Does anybody know what I do with this part?

Last response: in Components
Share
November 9, 2013 5:09:35 PM

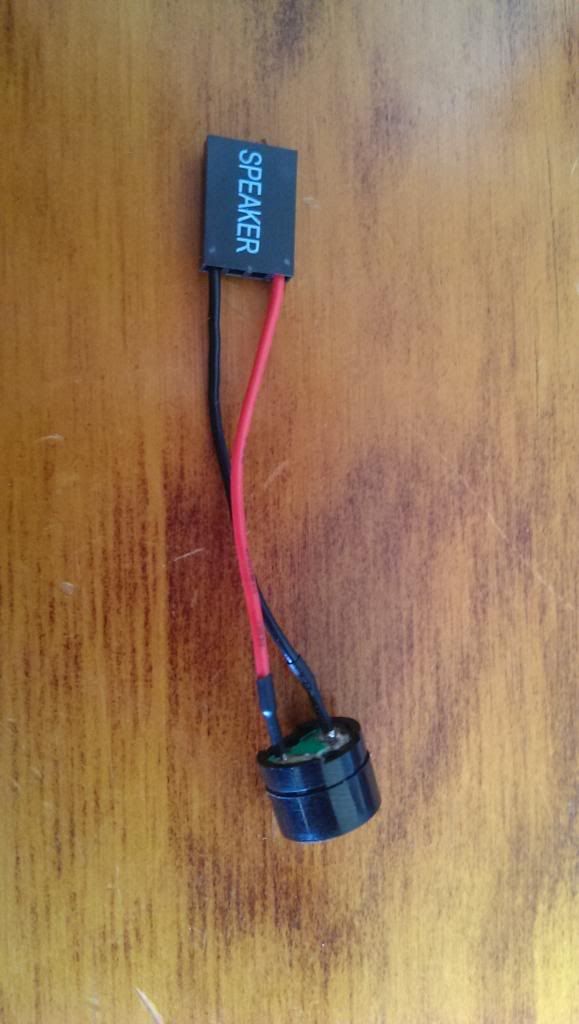

Hey guys, I have just finished building my system all is running and seems okay, but I have this part left over and I am not sure what its for?

Also, While I'm making this post I thought I would ask my CPU temperature pretty much stays at 32 degrees at all times, and under intensive stress load my GPU goes to about as high as 48 degrees. Is this normal?

More about : part

a c 109 V Motherboard
November 9, 2013 5:13:09 PM

Picture or link to said part?
m
0
l
November 9, 2013 5:16:49 PM

Gam3r01 said:
Picture or link to said part?


Sorry, was in the process of uploading
m
0
l
Related resources

Best solution

a c 109 V Motherboard
November 9, 2013 5:19:28 PM

Your temps are normal, and for the part I know exactly what that is! I made the same mistake of leaving mine out. That is the motherboard speaker which outputs any post noises or beeps. Notice how the pc dosent beep when turned on? Because that is missing. Where you plug in the front panel usb, sound, lights etc to the motherboard pins http://img.tomshardware.com/us/2002/09/18/building_your... that, you plug that in as well.
Share
November 9, 2013 5:36:17 PM

Gam3r01 said:
Your temps are normal, and for the part I know exactly what that is! I made the same mistake of leaving mine out. That is the motherboard speaker which outputs any post noises or beeps. Notice how the pc dosent beep when turned on? Because that is missing. Where you plug in the front panel usb, sound, lights etc to the motherboard pins http://img.tomshardware.com/us/2002/09/18/building_your... that, you plug that in as well.


You are awesome!, couldn't find anything online or in my manuals regarding this part thank you so much. Just to clarify, that im putting it into the right spot here is a diagram of my motherboard. Just to be sure could you direct me so that I plug it into the right place?

I have the Asus v1 Formula
m
0
l
a c 109 V Motherboard
November 9, 2013 5:46:22 PM

I had the same issue on my Asus M5A97, nothing in the book. But I saw empty pins and was like, well if it fits it probably goes there.
m
0
l
November 9, 2013 6:29:22 PM

any thoughts regarding the picture i put above and where to actually put it?
m
0
l
November 10, 2013 2:06:26 AM

at the top right of that diagram there is(16)panel header,
on my board this is the panel header where the front power button cables go,just above my panel header is the chassis speaker header,it should say in your manual for your motherboard,look at the description for each number and it should tell you the name of it,
i hope this helps.
m
0
l
a c 109 V Motherboard
November 10, 2013 11:00:51 AM

Yeah it should be on 16, it should be on 2 of the 4 pins on the right side.
