Display, inverter, graphics card? How can I tell?

Tags:
  • Laptops
  • Graphics Cards
  • Graphics
  • Displays
Last response: in Graphics & Displays
Share
March 30, 2014 1:10:16 PM

Hello all,

I'm having a display problem with my laptop, and I'm not sure where to go next. Short story: the display is malfunctioning, I can't afford a new laptop right now, and I need to get it back in shape for work.

The machine: it's an HP HDX16, model number x16t-1200, p/n NK135AV. It has a 16" WXGA (1366 x 768) single lamp (CCFL) display. Running windows 7.

The history of the problem: actually, there were two separate issues, and I'm not positive which one is giving me trouble now. At first, the screen would flicker and I would momentarily get thin stripes of bright color while opening the lid. It would open happen while the lid was being actively moved, or if it stopped in a bad spot. To fix it, I'd simply nudge the lid a touch, and everything would return to normal. This problem became slightly worse with time. Now, I suspect, this may be the primary issue.

However, at some point while the above was occurring, a separate problem surfaced. The laptop suddenly shutdown one day (overheated? or maybe battery went to 0%, as the remaining meter doesn't work until sleep and resume) and when I went to restart, the screen was black. I thought it was completely done, until I realized everything was running normally in the background, and it was simply the display that was black. When Windows finally booted, the entire screen had a blue cast, there were lines through it, and it was displaying in 800x600 resolution! If I put it to sleep and woke it up, however, it would generally wake up with the correct resolution, no blue cast, no lines -- though the lid movement flicker would still occur.

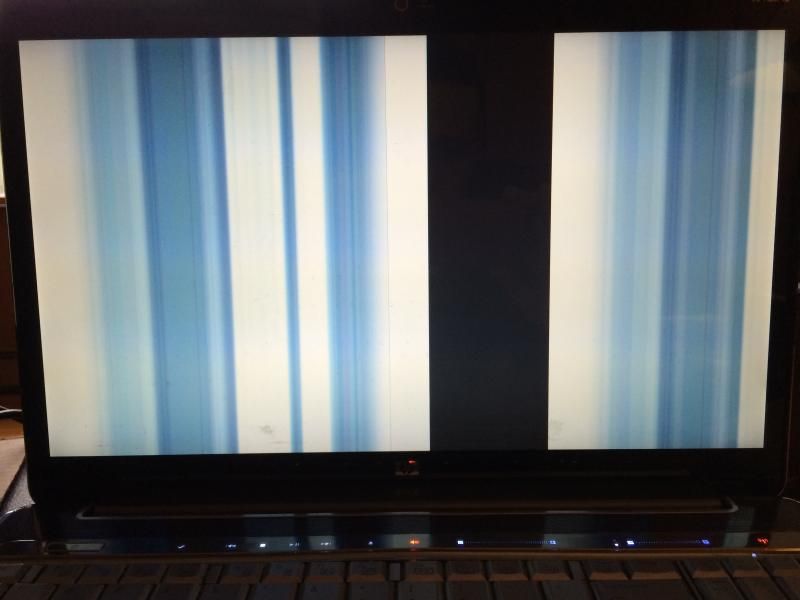

About a week ago, I opened the lid from sleep and got this:



I nudged the lid, but it didn't go away! The pattern changes, but that's all I can get. Did some reading, some poking around, and here are the results: the machine functions perfectly when (as now) I use an external display on the VGA port. It also functions flawlessly through HDMI! So at least something about the video card has to be working. I immediately suspected the LCD cable (wear on the cable and shorting explains flicker; I thought maybe lack of detection of the display even explained the occasional 800x600 behavior). So I opened the laptop, replaced the LCD cable with a 30-pin LCD cable (different part number, but seems identical) from eBay, expected a fix and - nothing.

I was just about to order a new LCD display panel last night, but thought I'd better post here first. Could it be an inverter? Do you actually think the display is OK? Could it be a connector or joint on a card somewhere? The physical movement flicker resembles the pattern now.

Any help you can offer would be GREATLY appreciated! Thank you!

More about : display inverter graphics card

a c 254 D Laptop
March 30, 2014 3:05:39 PM

Hi, the inverter will not do the problem you have, you already change the cable, and the problem still remains. You have a good picture with an external monitor, but with the screen from the laptop, when you move the lid, you have some vertical lines, then what I suspect, the screen is defective.
