HELP: 4GB DDR3 Kingston Memory Not Compatible on DH55TC

Tags:
  • Computers
  • DDR3
  • Kingston
  • Memory
  • Compatibility
Last response: in Memory
Share
May 29, 2014 2:41:46 AM

I have a computer with a Memory of 2GB DDR3, and my Dad bought a 4GB DDR3 Module but it is half of its size. Let's call the computer with 2gb ddr3 memory as "myPc" and the 4gb ddr3 as "DadPc". I want to replace my old memory from myPc to a new 4gb ddr3 memory that it is inserted on my dadPc. I want to swap them. But the problem is when i insert the 4gb module to myPc, it will only load until on the boot screen, and it will restart again. It keeps on restarting. But when i inserted the old 2gb on my DadPc. It works fine. Until then when I inserted it back to their own slot, myPc gets a Blue screen Physical Dump memory.

Here's myPc specs:
Processor: Intel Core i3-540
Mainboard: Intel DH55TC
Video Card: AMD Radeon HD7750 1GB DDR5
MEMORY: 2GB DDR3.

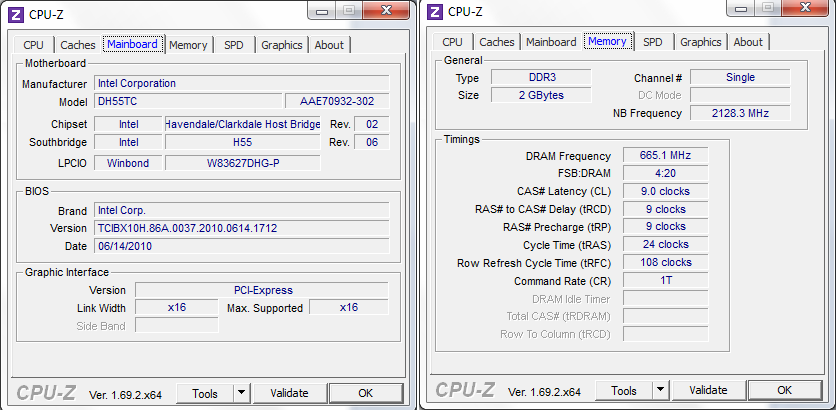

I provided some screenshots of my detailed specs (using CPU-Z)
FOR myPc
" alt="" class="imgLz frmImg " />

For DadPc


PLEASE HELP ME. THANK YOU ! :)

More about : 4gb ddr3 kingston memory compatible dh55tc

a b } Memory
May 29, 2014 2:59:41 AM

My Pc intel dh55tc motherboard supports DDR3 1333 / 1066 MHz DIMMs Support for up to 16 GB of system memory
Dads PC asus p8h61-m le supports DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory maximum 16GB

Dads memory 1333mhz
your memory 1333mhz

it should be compatible even same timings 9,9,9,24

a little unclear on what is happening with your pc , the 2gb is working ?
but the 4gb is not ?

yet both work on dads ?
m
0
l
May 29, 2014 3:02:55 AM

mickypheonix said:
My Pc intel dh55tc motherboard supports DDR3 1333 / 1066 MHz DIMMs Support for up to 16 GB of system memory
Dads PC asus p8h61-m le supports DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory maximum 16GB

Dads memory 1333mhz
your memory 1333mhz

it should be compatible even same timings 9,9,9,24

a little unclear on what is happening with your pc , the 2gb is working ?
but the 4gb is not ?

yet both work on dads ?


Yes it is working both on Dadpc, but myPc can only support my 2gb ram. Perhaps you can help me a little bit more. I really need help :(
m
0
l
Related resources
a b } Memory
May 29, 2014 3:04:19 AM

edit: sorry misread ,sounds like a compatibility problem , but i don't see how ,
m
0
l
May 29, 2014 3:06:41 AM

mickypheonix said:
yes whats working the 4gb on yours ?


To DadPC only. It works fine, I run dxdiag and it shows me the details "2048MB RAM"

But on myPc . it keeps on restarting while in boot screen.
m
0
l
a b } Memory
May 29, 2014 3:07:56 AM

Your board should accept the 4gb and it is 1333mhz which your board supports and the ram in question is working
m
1
l
May 29, 2014 3:09:09 AM

mickypheonix said:
edit: sorry misread ,sounds like a compatibility problem , but i don't see how ,


I sent you a Private Message. I'll provide a photo of my ram stick after i shutdown this.
m
0
l
May 29, 2014 3:09:16 AM

mickypheonix said:
edit: sorry misread ,sounds like a compatibility problem , but i don't see how ,


I sent you a Private Message. I'll provide a photo of my ram stick after i shutdown this.
m
0
l
a b } Memory
May 29, 2014 3:21:42 AM

i think i know what the problem is but i need a serial number of the ram to find out for sure
m
0
l
May 29, 2014 3:29:30 AM

mickypheonix said:
i think i know what the problem is but i need a serial number of the ram to find out for sure


Sure, let me take a photo of my RAM Sticks. I'll be right back.
m
0
l
a b } Memory
May 29, 2014 5:33:35 AM

thanks ,
i thought so, it is single sided and it is high density
the intel board only supports double sided(low density x8) for 4gb modules.
so no the 4gb stick is not compatible

for a kingston 4GB stick that will work with your mobo look for this one
KVR1333D3N9H/4G 4GB 1333MHz DDR3 Non-ECC CL9 DIMM


m
1
l
May 29, 2014 6:19:05 AM

mickypheonix said:
thanks ,
i thought so, it is single sided and it is high density
the intel board only supports double sided(low density x8) for 4gb modules.
so no the 4gb stick is not compatible

for a kingston 4GB stick that will work with your mobo look for this one
KVR1333D3N9H/4G 4GB 1333MHz DDR3 Non-ECC CL9 DIMM




I don't know if I can manage to find that kind of RAM here in our country, and due to the fact that I don't have any higher knowledge regarding with those ram informations. Can you please look and choose along with the list to find what is the suitable for my Board?

KINGSTON 4GB DDR3 PC12800/1600
KINGSTON 4GB DDR3 PC10600/1333
KINGSTON 4GB HYPERX DDR3 PC12800
CORSAIR 4GB DDR3 PC10600/1333
CORSAIR 4GB DDR3 PC12800/1600

I live here in Philippines, or maybe I should ask those retailers what is the RAM that would fit to my MOBO ?
m
0
l

Best solution

a b } Memory
May 29, 2014 6:24:01 AM

go to ram manufacturers website input your motherboard , use their ram selector get ram part number and see if you can get it locally , i dont know any retailers in the philipines
Share
May 29, 2014 7:07:50 AM

mickypheonix said:
go to ram manufacturers website input your motherboard , use their ram selector get ram part number and see if you can get it locally , i dont know any retailers in the philipines


You helped a lot. I'm glad that you helped me to solve this. I'll look forward to this. Thank you !
m
0
l
a b } Memory
May 29, 2014 7:10:53 AM

you are most welcome , hope it all goes well for you , all the best
