How to connect ps3 slim to samsung lcd pc monitor

hey guys i just recently bought a ps3 slim and i need help connecting it to a pc monitor. i have the samsung b2230h hd monitor (http://www.samsung.com/sg/consumer/pc-peripherals-printer/monitor/lcd-monitor/LS22PUHKFV/XS/index.idx?pagetype=prd_detail ) that supports hdcp and hdmi but i dont know how to connect to sound since it does not have speakers. what extra connectors do i need besides an hdmi cable? thanks in advance
15 answers Last reply
More about connect slim samsung monitor
  1. So that is just a pc monitor with HDMI but not speakers, so you should be able to connect a set of speakers on the ps3. I think you could use ps3 its digital output if you have digital speakers or you can connect the analog cable and connect the audio cables to a normal set of speakers.

    That means you will have to configure the sound on the ps3.
  2. where would i connect the speakers to? theres no audio input in the ps3 or the monitor.
  3. yeah either check if the monitor has audo out jacks to compensate for eating the whole HDMI cable or see if PS3 will output to HDMI and regular AV audio at the same time and connect your speakers to that (might need a cable adapter here).

    Edit: yep, monitor manufacturer ate HDMI with sound and decided it's ok to not have sound :(
  4. You are going to have to purchase seperate speakers, as the monitor you have doesn't have any, using the standard av leads that came with your PS3 you can connect the WHITE and RED RCA connectors to a set of PC speakers with an adapter ((2x RCA Phono Male to 1x 3.5mm Female Jack Socket Lead)http://cgi.ebay.co.uk/2x-RCA-Phono-Male-1x-3-5mm-Female-Jack-Socket-Lead-/330462922796?pt=UK_Computing_CablesConnectors_RL&hash=item4cf120082c)
  5. also what good, cheap, speakers has input jacks since i only have normal speakers where you can only connect to the computer?
  6. k3v1n_123 said:
    also what good, cheap, speakers has input jacks since i only have normal speakers where you can only connect to the computer?


    What I meant is, get this AV multi out cable shown in this link, you should have one

    http://www.tomshardware.co.uk/forum/104748-25-connect-audio-only

    Connect it on the back of yer ps3, and to something like this http://www.amazon.co.uk/Logitech-980-000355-Z323-Speaker-System/dp/B002L3TSMU/ref=dp_ob_title_ce
  7. so if i have speakers with a normal headphone jack i can just plug the RCA plug into there and i will get sound? also can someone confirm that this plug is the one that i need for the audio: http://canadacomputers.com/product [...] _id=024144
  8. k3v1n_123 said:
    so if i have speakers with a normal headphone jack i can just plug the RCA plug into there and i will get sound? also can someone confirm that this plug is the one that i need for the audio: http://canadacomputers.com/product [...] _id=024144


    You need the female 3.5mm Jack version otherwise you will need to purchase an additional 3.5mm coupler.
  9. Dam this is confusing. I don't get why i cant use the one that i posted. Don't i connect the audio (red and white) cables that came from the ps3 to the red and white female RCA connector from this (http://canadacomputers.com/product_info.php?cPath=72_76&item_id=024144), then connect to my speakers with that third connector?
  10. k3v1n_123 said:
    Dam this is confusing. I don't get why i cant use the one that i posted. Don't i connect the audio (red and white) cables that came from the ps3 to the red and white female RCA connector from this (http://canadacomputers.com/product_info.php?cPath=72_76&item_id=024144), then connect to my speakers with that third connector?


    No, you will need to connect the 2 RCA white and red to the back of your speakers which will have the inputs for them. You probably can attach the white and red cables but then you won't be able to connect the single end to the speakers, because the 3.5mm jack on the speakers would be an audio output for headphones,not an input.
  11. i don't know of any speakers with inputs for red and white connectors. i checked all of the speakers in my house and none have any inputs besides from the headphone jack.
  12. actually guys i just found out that my monitor has a headphone jack. so scratch the cables right? since i have an hdmi cable running from my monitor to the ps3 and hdmi has sound as well, i can just plug in my speakers to the back of my monitor correct?

    http://www.samsung.com/sg/consumer/pc-peripherals-printer/monitor/lcd-monitor/LS22PUHKFV/XS/index.idx?pagetype=prd_detail&tab=gallery3d

    the link is just to show you that my monitor does in fact have a headphone jack but for some reason it is not mentioned on the specs page. thanks guys
  13. k3v1n_123 said:
    actually guys i just found out that my monitor has a headphone jack. so scratch the cables right? since i have an hdmi cable running from my monitor to the ps3 and hdmi has sound as well, i can just plug in my speakers to the back of my monitor correct?

    http://www.samsung.com/sg/consumer/pc-peripherals-printer/monitor/lcd-monitor/LS22PUHKFV/XS/index.idx?pagetype=prd_detail&tab=gallery3d

    the link is just to show you that my monitor does in fact have a headphone jack but for some reason it is not mentioned on the specs page. thanks guys

    could you post the image separately? I can't see to connect to samsung gallery site...
    what does it say next to the round port in the top right of the picture? I'm betting it's not for speakers
  14. OK, thats an example just to show you the inputs and outputs.

    This is my amplifier:

    http://www.mediafire.com/imgbnc.php/dd123a416743b4b23028130a667719a989296a2145897f0716e92d361eebe2fa2g.jpg" class="img lazy">

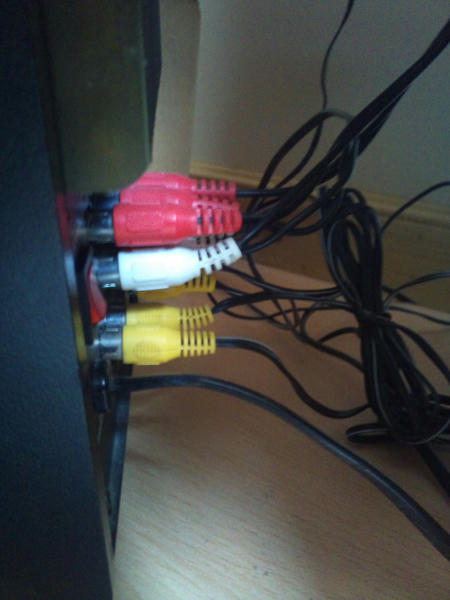

    These are the inputs and outputs:

    The white ones and red ones (on the upper side) are the inputs(coming from my pc outputs).this is the cable im using http://www.esofties.co.uk/images/products/342061-1873.jpg

    The ones are below them, in yellow, are my speakers connected to the outputs of the amplifier.

    http://www4.mediafire.com/imgbnc.php/dce0b6e55eaaae57f1ae4c82923677918429b371f197e729692b99abe05072fd5g.jpg" class="img lazy">


    If your monitor has the headphone jack, then you should be able to connect your speakers there without problem. I hope now you understand the inputs and outputs!
