I got about 1/4 of the way through putting my first build together when I hit a major snag. It happened after I installed the CPU and started to install the heatsink. First of all, my board is a Gigabyte GA-EP35-DS3P. The heatsink is a Thermalright Ultima-90.

So I went to fit the backplate of the heatsink onto the back of the board, as per the instructions. However, one side of the backplate was sitting higher than the other side. I couldn't get it to sit flush against the board. Upon closer inspection, I noticed that a row of "pins" sticking out of the back of the motherboard was keeping the backplate from inserting properly.

Pictures can explain it better.

These pins on the motherboard,
http://i113.photobucket.com/albums/n223/pretzelogic/mobo.jpg

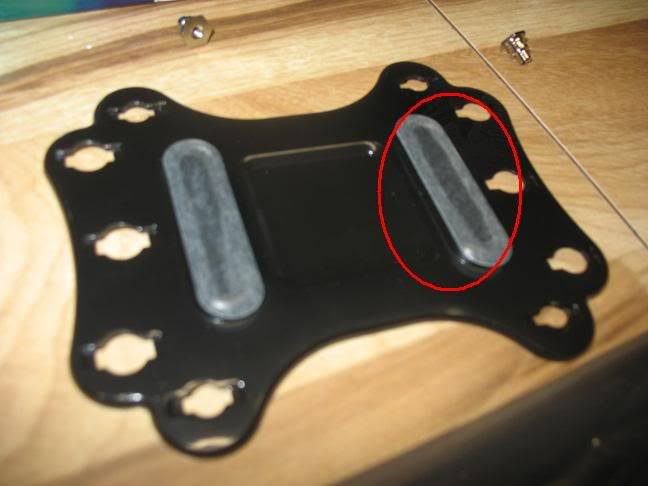

are hitting one of the "pads" on the backplate,
http://i113.photobucket.com/albums/n223/pretzelogic/backplate.jpg

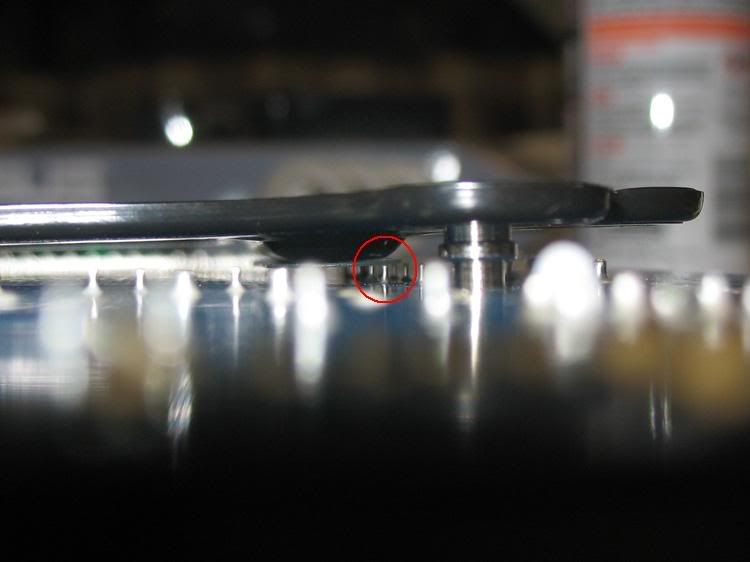

and keeping it from sitting against the board.
http://i113.photobucket.com/albums/n223/pretzelogic/bkpltmobo.jpg

You can see how the pillar to the right of the pins won't go through the board. If the pins were a millimeter or two to the right, everything would be fine.

As far as I can tell, this is a major problem for me and anyone else who buys this combination of mobo/heatsink. At the same time, I'm certain I've seen people with this combo, and I never read about any problems like this. But I don't see how I can possibly install this heatsink. Unless I can somehow "snip" off the offending pins. Otherwise, the heatsink will be slightly lopsided and pressing against those pins...

As I said, this is my first build, so if anyone can pleeeaase help me out I'd appreciate it. This really has me frustrated. I've been preparing for months to build this thing, and these bloody pins stop me dead in my tracks. :pfff:


Message edited by zeroneleve n on 03-18-2008 at 08:47:36 AM
Related Pr oduct
Register or log in to remove.

kad
Profile: addict
More Information

Be careful if the pad is touching one ore more pin as it will cause short circuit
If it was me I'll change one of the two , possibly heatsink
There might be another safe solution to use insulating sheat between the pad and sink
But you have to be carefull that the pins are not sharp and penetrating the insulating sheet
and you have to live with the heatsink twisted but it will not affect cooling as long as the sink is touching the processor perfectly
One thing more make sure you are installing heatsink properly as this seems odd
Good notice man

Work smarter, not harder!!
Profile: Honorary Poster
More Information

You might be able to put in hollow stand-offs, to effectively pull the backplate away from the bottom of the motherboard. I'm not sure this is the best option, but it's something to consider. I would double check that your installing the backplate on right. I would think that maybe your off by 90 degrees, so I'd rotate the backplate by that much and see if you are just installing it incorrectly or not.


---------------
PSU Tiers
GPU Power usage
8800gtx/380w PSU!
s939 x2 4200/7900gs/2gb
Warranty Offender
Profile: enthusiast
More Information

Another option is to go to your local hardware store, and pick up a pack of PLASTIC washers (could also use small rubber O-Rings)

Work smarter, not harder!!
Profile: Honorary Poster
More Information

Might need longer screws, though, so you would have to consider that too. Only problem I'd see with rubber washers is that they give too much and probably wouldn't hold their shape too well. Plastic washers sound like a good plan though. :)


---------------
PSU Tiers
GPU Power usage
8800gtx/380w PSU!
s939 x2 4200/7900gs/2gb
Profile: Forum Veteran
More Information

You can trim those leads off down to the solder. I don't know that I would want to do it though. You could break the solder connections unless you had high quality diagonal cutters and were careful. Additionally, it isn't clear that even with trimming you wouldn't still have a potential shorting problem, which would be catastrophic. I would see if the backplate could be rotated 90 degrees and clear the capacitor leads or research it and get one with a back plate that would clear the leads.



I'm pretty sure the Ultra120 backplate would clear. Maybe Thermalright would send you one.


Message edited by Zorg on 03-18-2008 at 11:56:48 AM
jsc
Profile: old hand
More Information

Excellent photography.

Profile: newbie
More Information

Ok, I got it! Thanks to everyone for the suggestions. :wahoo:  I tried lunyone's advice and rotated it 90 degrees, even though the instructions clearly show the other orientation. Well, it worked anyway. No need for clipping pins, longer screws, etc. But I have to say, getting that damn backplate on was insanely difficult. I accidentally touched the motherboard a few times. I hope I didn't fry anything. Hopefully my anti-static wrist strap paid off.

Thanks again for your help. I'll let you know how the rest of it goes.



Work smarter, not harder!!
Profile: Honorary Poster
More Information

YVW, glad we all could help you out. Sometimes manuals don't always paint the picture correctly for all situations. Your pictures were very good and very accurate. :)


---------------
PSU Tiers
GPU Power usage
8800gtx/380w PSU!
s939 x2 4200/7900gs/2gb
Profile: addict
More Information

Always use the standoff pins they supply with the board, and you wont have a problem, if your case doesnt allow you too, then buy a new case...

Profile: Forum Veteran
More Information

BLACKSCI wrote :

Always use the standoff pins they supply with the board, and you wont have a problem, if your case doesnt allow you too, then buy a new case...

Did you even read the thread and uh... look at the pictures? Your advice does not relate to the opening post in any way whatsoever. Don't believe me, read it again for the very first time.

Profile: addict
More Information

Wow i read it wrong, my bad, oh well still good advice.

Profile: Forum Veteran
More Information

True that, with no standoffs you can guaranty serious problems.
