Antec 900 & Cooler Master V8 Install w/ Pictures

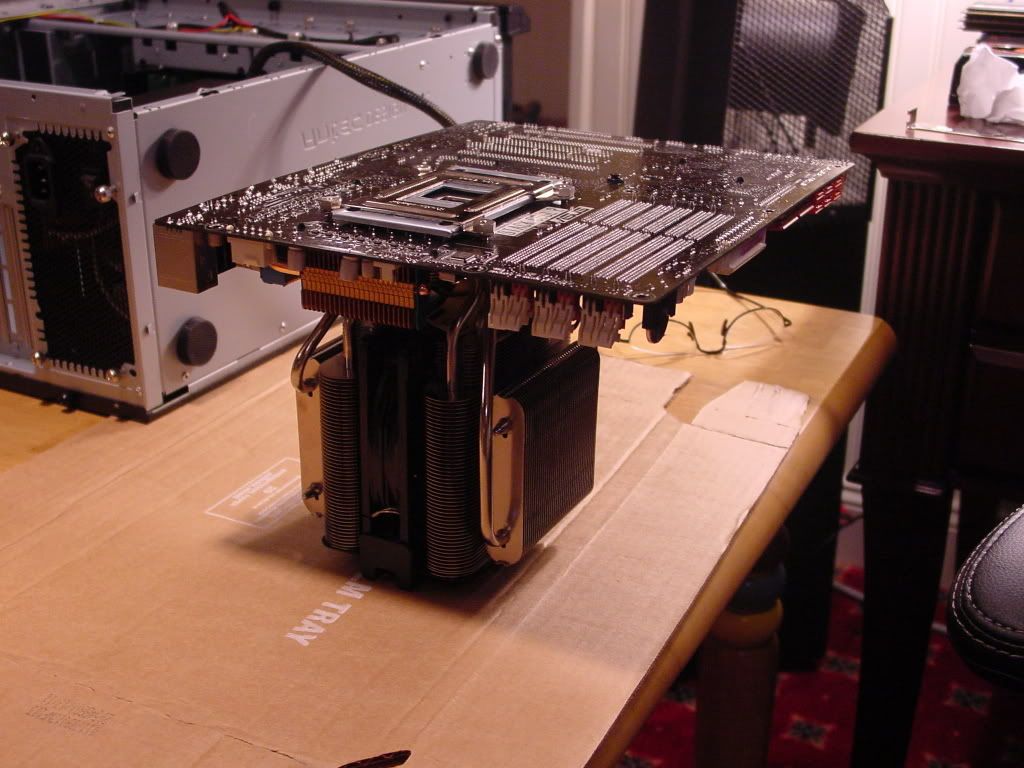

You have to install this cooler outside of the case.

Installing the Back Plate. It was a PITA as you have to push the screw up from the
bottom and push down and twist on the nut at the same time.

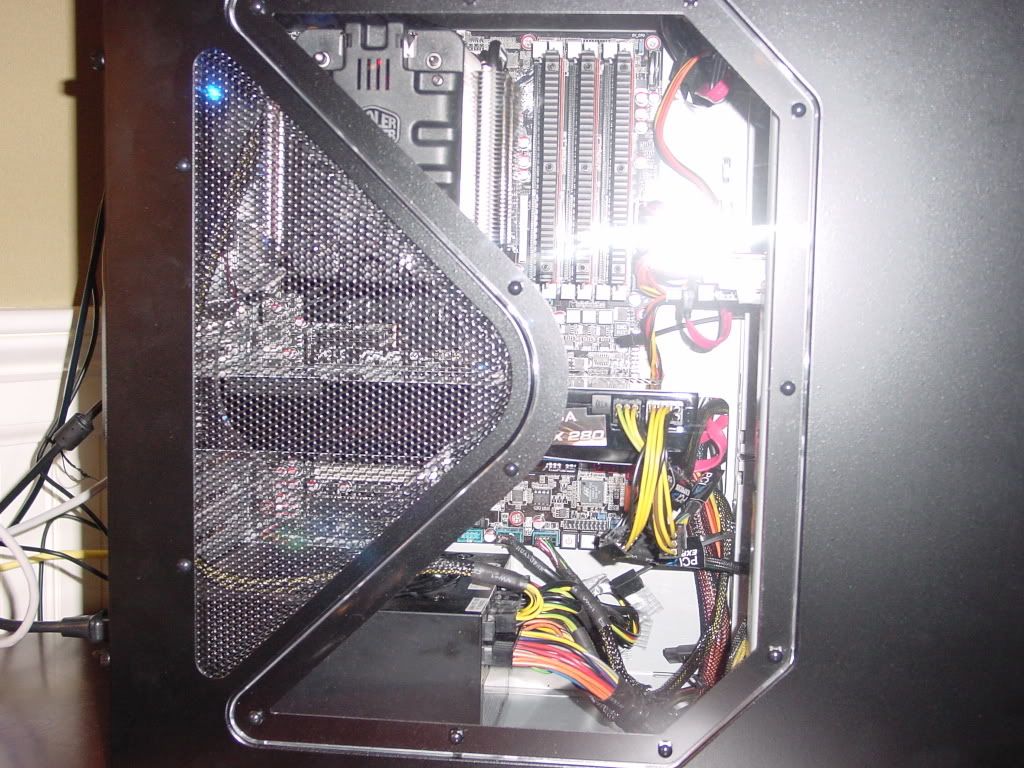

I just odered an extension for the board power cord that you can see. I will be routing it
out the side panel behind the mother borad like I did for the other cables.

This is how it used to look with the standarded Intel cooler:
This link also shows how I modded my case for cable management.
http://www.tomshardware.com/forum/ [...] d#t1896300

Message edited by Mark_k on 04-06-2009 at 05:16:58 PM

------------------------------ Lian Li PC-B25F w/ side window W-LM2AB-1, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.6 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8, OCZ OCZTXTCC2 XTC Cooler Rev 2, Windows 7 H

Add a reply

Register or log in to remove.

Looks great, I'm jealous.

If you want to add some light to the inside of the case, I'd recommend a cold cathode or two. 12" is bright, 4" would add a nice glow if you place it well.

just a thought

Message quoted 1 times

Reply to coopchennick

Hey Mark, do you have any tips on cable management? I've got exactly the same setup, except with a GTX295, and I'm having a bit of trouble tucking everything away, and yours' looks absolutely sweet!

Cheers

Message quoted 1 times

Reply to Tinotoin

Tinotoin wrote :

Hey Mark, do you have any tips on cable management? I've got exactly the same setup, except with a GTX295, and I'm having a bit of trouble tucking everything away, and yours' looks absolutely sweet!

Cheers

This link also shows how I modded my case for cable management.
http://www.tomshardware.com/forum/ [...] d#t1896300

------------------------------ Lian Li PC-B25F w/ side window W-LM2AB-1, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.6 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8, OCZ OCZTXTCC2 XTC Cooler Rev 2, Windows 7 H
Reply to Mark_k

coopchennick wrote :

Looks great, I'm jealous.

If you want to add some light to the inside of the case, I'd recommend a cold cathode or two. 12" is bright, 4" would add a nice glow if you place it well.

just a thought

Thanks!

Where can I buy the 4" kit?

Thanks

Mark

------------------------------ Lian Li PC-B25F w/ side window W-LM2AB-1, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.6 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8, OCZ OCZTXTCC2 XTC Cooler Rev 2, Windows 7 H
Reply to Mark_k

I'm sure you'd be able to find them at other electronic sites, or on ebay or something, but I got a couple for my xbox 360 here: http://secure.llamma.com/catalog/index.php?cPath=43_76

Right now it looks like they only have red and white in the 4".

Mine came with 2 cathodes, a small converter box (which you can bust open and heat-shrink tube the inners if you want), an expansion slot switch, and a molex power adapter.

I think if you just put one or two like along the top front edge (above the window and out of direct sight), it could add a nice glow to the inside.

Reply to coopchennick

Thanks Mark. I’m sure to most it’s apparent, but to me – a newbie to custom builds – it’s quite easy to have positioned the V8 upside down and force air opposite the rear fan. A simple air flow director would have been a nice feature for clarity sake. Your pose was most helpful.

Reply to cincode5

The instructions for the V8 are misleading. They show the airflow going the wrong way. The OP has the V8 mounted the correct way...Coolermaster should really address this.

------------------------------ i7 920 @ 3.8ghz
P6T Deluxe V2
OCZ Platinum 6gb @ 1520 7-7-7-18 1T
EVGA GTX 295
Reply to foolycooly

So you didn't have to mod the case at all to get the V8 to fit right? I've got a 900 also and want to make sure the V8 will fit before I order it. Thanks

-Matt

Reply to carpenma

Nope no mods.

Have fun

It looks and works great!

Reply to Mark_k

hey mark, im curious what did the cooler master v8 do?? did your temps drop significantly??

i am about to pick up the Xigmatek Dark Knight, and am curious as to what the differences would be between the Knight and the V8?

Reply to chronicbucks

See. You can solve the cable management problems of an Antec 900 with a little work.

And the cooling capacity is great.

Reply to jsc

It dropped them a few degrees.

IMHOP, there wont be that much of a diference between air cooling methods and products.

I bought the V8 becuse I like the looks of it better.
I am OCing my system but I'm not be stupid about it.
If you are really going to go carzy with ocing I would look at H2O coling.

Have fun

Mark

Reply to Mark_k

Hi there, same setup, and i'm contemplating purchasing the V8 as well.

One fundamental difference though - I have a side window fan installed in my 900. Would you foresee any issues with interference between the V8 and fan?

Thanks

Message quoted 1 times

Reply to japlews

japlews wrote :

Hi there, same setup, and i'm contemplating purchasing the V8 as well.

One fundamental difference though - I have a side window fan installed in my 900. Would you foresee any issues with interference between the V8 and fan?

Thanks

You may have an issue with this.

I would remve the side fan as it may not be needed.

Reply to Mark_k

Google is your friend
'antec 900 coolermaster v8 install'

Message quoted 1 times

Reply to Conumdrum

Conumdrum wrote :

Google is your friend
'antec 900 coolermaster v8 install'

I have installed a V8 in an Antect 900.
Take a look at the first post in this thread.

I have read that you may have to cut the side fan housing a little to use it with a V8 in an Antect 900.

What where you trying to show with you post?

Reply to Mark_k

Typing a good string into Google usually gets you an answer now instead of waiting for a kind soul (not real kind myself) to hopefully help. Used to teach electronics for years. You can't find it in the book etc, well............... better learn how/now, because your momma is a few thousand miles away. Better than welfare eh?

You can't wait on the world to answer things if your a go-getter.

And That Is what I wanted to say, Mark_K.

Message quoted 1 times

Reply to Conumdrum

Conumdrum wrote :

Typing a good string into Google usually gets you an answer now instead of waiting for a kind soul (not real kind myself) to hopefully help. Used to teach electronics for years. You can't find it in the book etc, well............... better learn how/now, because your momma is a few thousand miles away. Better than welfare eh?

You can't wait on the world to answer things if your a go-getter.

And That Is what I wanted to say, Mark_K.

I agree with you 100%.

When I interview people for jobs I will ask a question to see if they can answer it or if they can explain how they would go about finding the answer.

Good for you trying to teach people to fish rather than feeding them....poached salmon.

Oh and thanks for teaching our kids!

Message edited by Mark_k on 07-07-2009 at 02:08:34 PM

Reply to Mark_k

I am curious I was thinking of gettin the V8 how does the fan work? Do you have to use the controller or can you let the motherboard do the work for you?
I read on other forums people saying you can just have to enable in bios but I want to make sure from a actual user of one before I go rushing in and buying it.

I prefer auto since the controller is set for the back vs a front bracket.
Thanks for the images though it looks great and least now 1 worry of "will it fit" is lifted from my mind.

Message edited by Twist86 on 11-27-2009 at 04:20:06 AM

Reply to Twist86

99.99% of CPU fans are connected to the Mobo and temp controlled through the bios. The knob on the controller has a variable resistor that drops some of the voltage to the fan. If you connect the V8 direct to a molex, you'll use the knob to adjust the speed. If you use your bios just leave the knob at max and let the bios do it.

Look at your Mobo book, look for fan control or look in your bios. Most mobos have it for 3-5 fan connectors on the mobo. Yiou can set your temp tiggers, % of RPM etc.

Reply to Conumdrum

I see thank you Conumdrum. I just wanted to be sure of it before buying as its not a cheap cooler.

Some coolers I have seen only work with the controller which is cool but I prefer the lazy approach when its not in the front 2.5.

Thanks again.

Reply to Twist86

I think it is on sale at newegg for half price today.

$39.99

http://www.newegg.com/Product/Prod [...] 6835103055

Message edited by Mark_k on 11-27-2009 at 01:16:41 PM

Reply to Mark_k

I am getting ready to buy a LIAN LI PC-B25F today to replace my Antec 900.
http://www.newegg.com/Product/Prod [...] 6811112248

Reply to Mark_k

how much clearence was there between the side panel and the v8

Reply to obsidian86

1/4 in.

Reply to Mark_k

Just curious why the LIAN?

For the price wouldn't it be wiser to go full tower like the twelve hundred?

Message quoted 1 times
Message edited by Twist86 on 12-03-2009 at 04:21:47 PM

Reply to Twist86

Twist86 wrote :

Just curious why the LIAN?

For the price wouldn't it be wiser to go full tower like the twelve hundred?

Check this thread out:
http://www.tomshardware.com/forum/ [...] puter-case

Reply to Mark_k

Ah I see thanks Mark_K

BTW to add the V8 questions I bought this @ Tigerdirect and it came WITH a 775/1156/1366 3 in 1 bracket.

So I wasted $10 @ Newegg buying the same bracket ^-^ just a update for anyone that runs to this thread via google like myself.

Reply to Twist86

I feel sorry for that i7 - such a beast of an overclocker and it gets lumped with that shite cooler.

Message quoted 1 times
Message edited by LePhuronn on 12-09-2009 at 06:42:56 PM

Reply to LePhuronn

LePhuronn wrote :

I feel sorry for that i7 - such a beast of an overclocker and it gets lumped with that shite cooler.

Nice addition to the thread.
How about adding some productive information.

Reply to Mark_k
