elie3000   07-30-2008 at 07:27:35 PM

Hi,

I am trying to put some ArcticSilver 5 thermal compound on the gpu but when removed the cooler I saw that it was all protected by a plastic paper that was between the cooler and the board, can that be removed?

Will the AS5 make a drop of 2-5degrees?

ThnX


Message edited by elie3000 on 07-30-2008 at 08:20:17 PM
Add a reply
Sponsored Links
Register or log in to remove.
elie3000   07-30-2008 at 08:25:15 PM
- 0 +

Any Ideas?


Message edited by elie3000 on 07-30-2008 at 08:40:21 PM
Reply to elie3000
V3NOM   07-31-2008 at 07:48:30 AM
- 0 +

there was a piece of paper between the heatsink and the GPU? wtf enver heard of that...

Reply to V3NOM
ailgatrat   07-31-2008 at 08:02:51 AM
- 0 +

Wasn't the xbox 360 using something similar? I never took mine apart to see, but I remember reading something about that.

Reply to ailgatrat
SonDa5   07-31-2008 at 08:05:32 AM
- 0 +

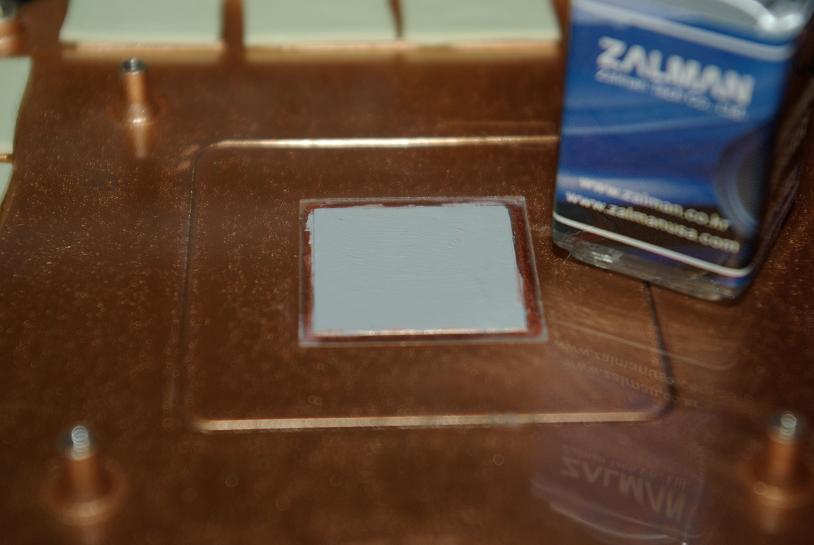

You can see the plastic layer in this photo.

http://minidriven.com/GreenMachine/PlasticstockcoolerHD4850.jpg

Very shiny.

I'd leave it on.

Maby be some kind of non conductive coating for protection.
I'm sure it doesn't help cool the HD4850.


Zalman needs to make a specific kit for the Hd4850 now.

Somebody.


Message edited by SonDa5 on 07-31-2008 at 08:06:08 AM
Reply to SonDa5
nukemaster   07-31-2008 at 08:17:35 AM
- 0 +

From that picture it does not cover where the core makes contact. leave it be



That zalman stuff sure applies nice. Seems to get almost powdery after its been on for a while(re did my cpu heatsink that had that on it), but still works well.


Message edited by nukemaster on 07-31-2008 at 08:18:55 AM
------------------------------ http://i33.tinypic.com/sw3a5y.png
http://tinyurl.com/26uxxb - C2/i7 Temp? http://tinyurl.com/cj3pw - VGA power?
http://tinyurl.com/5v55wk - C2 Mem performance? http://tinyurl.com/6pmbke - SLI/Xfire?
http://tinyurl.com/yfmxdc9 - Part Guide?
 Reply to nukemaster
elie3000   07-31-2008 at 03:12:14 PM
- 0 +

I left the plastic layer and applied the AS5 on the GPU and it made a nice job. The results: 3-4º drop on idle and 7-9º drop in full load.
It did a better job on the gpu than the cpu lool Me who was afraid to put some cause I read that it is electricity conductive unlike the ceramic compound.

Message quoted 1 times
Message edited by elie3000 on 07-31-2008 at 03:18:19 PM
Reply to elie3000
nukemaster   07-31-2008 at 05:55:08 PM
- 0 +

as long as you do not put too much(i mean you would have to dump the full tube)it will not get anywhere other then the gpu core anyway. glad you got a good decrease in temps.

------------------------------ http://i33.tinypic.com/sw3a5y.png
http://tinyurl.com/26uxxb - C2/i7 Temp? http://tinyurl.com/cj3pw - VGA power?
http://tinyurl.com/5v55wk - C2 Mem performance? http://tinyurl.com/6pmbke - SLI/Xfire?
http://tinyurl.com/yfmxdc9 - Part Guide?
 Reply to nukemaster
SonDa5   08-01-2008 at 03:12:17 AM
- 0 +

elie3000 wrote :

I left the plastic layer and applied the AS5 on the GPU and it made a nice job. The results: 3-4º drop on idle and 7-9º drop in full load.
It did a better job on the gpu than the cpu lool Me who was afraid to put some cause I read that it is electricity conductive unlike the ceramic compound.




I got similiar results with Zalman Super Thermal Grease.
