Considering adding a second 4870 to my system (the egg has them for $195). I have a 650W thermaltake toughpower.......will it be enough. I'm already running 1 4870, plus a q6600@3.6ghz. Not to mention a few hard drives, and an assload of fans. Theoretically, I think with a second card, at max consumption, I could potentially draw 650W. I know that's not likely, and the psu is rated for 80% eff. Anyway, is it enough?

Sponsored Links
Register or log in to remove.

Most power supply manufacturers recommend you run their PSUs at 60% of rated capacity. You'd be well over 90% with your system as described. Even a 750w would be hard pressed by your system, time to look for a new PSU if you get another 4870.


Message edited by dirtmountain on 09-13-2008 at 07:35:06 AM
Reply to dirtmountain

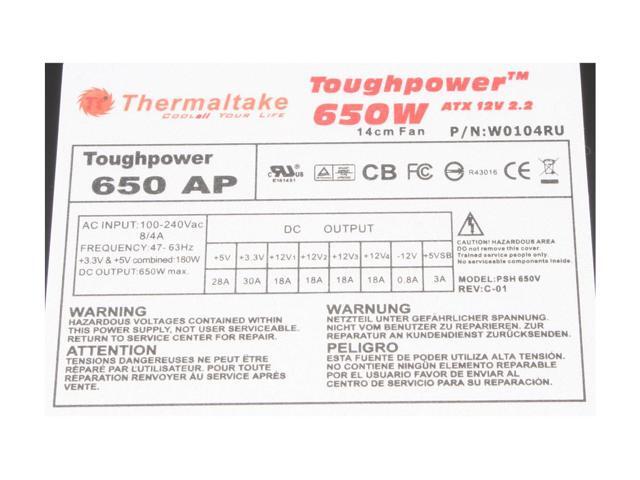

http://c1.neweggimages.com/NeweggImage/productimage/17-153-034-06.jpg

The combined 5v and 3.3v max is: 180W (hard to see, almost looked like 160w)

Which would leave 470w for 12v side (if its 180w for 5v/3.3v).

Using the PS Calculator, just the CPU and 4870/CF with the CPU @ 60% TDP 384W, which leaves 86w.

Hard to say how much a game (different games may be more CPU intensive) would put on a CPU (which could be less then 60%), but normally the quad isn't going to get fully utilized which would change that figure drastically if all 4 cores were under load.

eXtreme Power Supply Calculator Lite v2.5

Just put in your stuff to see what a general wattage for CPU 85% and system load at 90%.

Too bad you can't select your PSU for it to tell ya if your making it difficult. :sweat:

Reply to Grimmy

I think I'd be pushing it...plus the cheap 4870s are gone. The egg has a 1000W sparkle unit for ~$145....think I'll order one of those and wait for another deal. I don't really need a second 4870; only play at 1680x1050. But I do suffer from the need for speed.

Reply to clownbaby
