How to overclock my memory in the BIOS?

Last response: in Overclocking
Share
August 26, 2010 10:13:59 PM

Complete here noob way over my head and need some help.. :lol:

Memory: G.SKILL Trident 12GB (3 x 4GB) DDR3 2000 (PC3 16000) / Cas Latency:8 / Voltage:1.65V / Timing:8-9-8-24

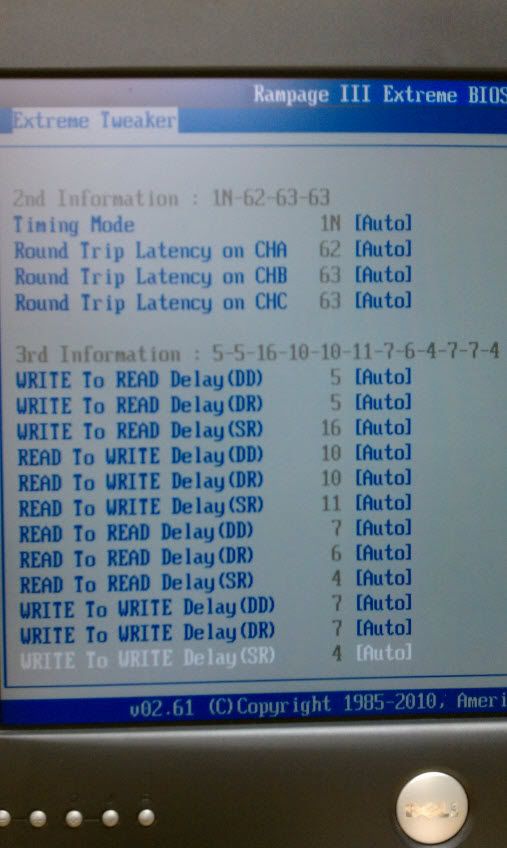

Installed and went into ASUS Rampage III Extreme BIOS. This is what it looked like -->





It appears that everything defaults to AUTO when the RAM is installed which is:

DRAM FREQUENCY: DDR3-1333

DRAM TIMING CONTROL: 9-9-9-24

The DRAM FREQUENCY options did not include DDR3-2000 which the memory is rated at. Closest it will do is DDR3-1866 or DDR3-2133..

By looking at the photos above, can someone tell me what I need to change to make one of these (DDR3-1866 or DDR3-2133) settings work?

Hope I'm making sense because this memory stuff has got me confused. If anyone needs any additional info to help... just ask.

Thanks!




More about : overclock memory bios

a b } Memory
a b K Overclocking
August 27, 2010 12:27:48 AM

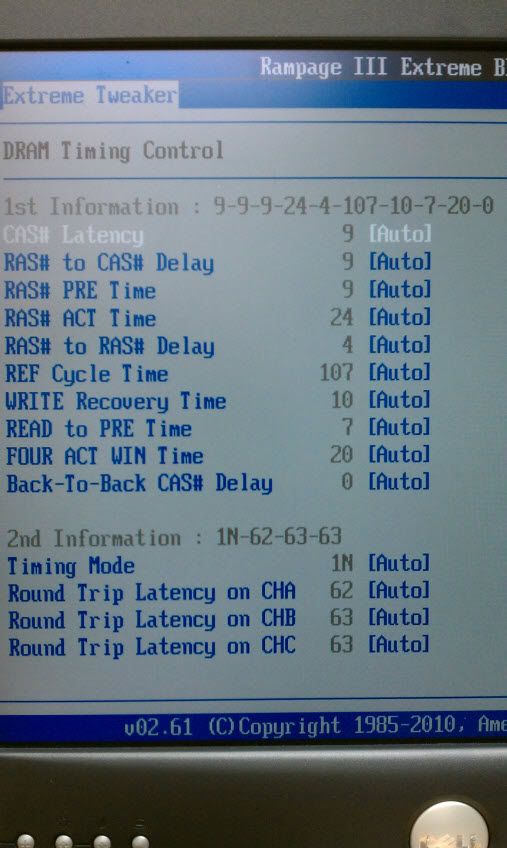

Change pic1:
-- CAS# Latency to 8
-- RAS# PRE Time to 8

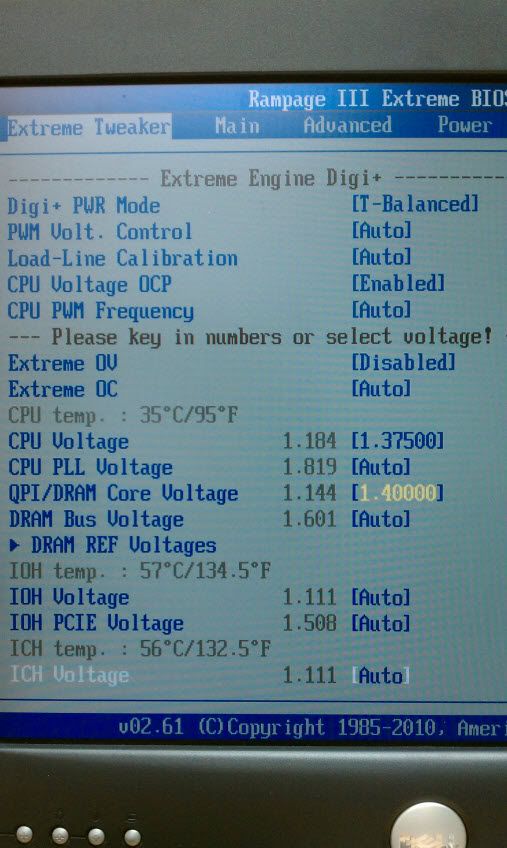

Change pic3:
-- QPI/DRAM Core Voltage to 1.65V
Not pictured, find and change the frequency to either: 1) 1866MHz or 2) 2133MHz, use the frequency shown on the RAM sticker
