[Solved] AMD coolers

I'm looking into getting a new cooler but am having issues deciding on what to buy, i will be overclocking my phenom 965 to 4.0 GHZ but not anyhigher i problably wont even utilize all the power at 4ghz

i am willing to spend 80-120$ on a cooler, air or water, just for the CPU any suggestions on what would be best for my system.

case: cooler master haf 922 (200mm,120mm intake)(200mm,120mm exhaust)
Mobo: gigabyte 890GPA (1 cpu fan, 2x4 pin fans, 1x3 pin fans)
CPU: phenom II 965 BE
GPU: Vapor-x 5870 (its big but so is my case.)

i've looked into:
noctua nh d14
coolermaster hyper
corsair h50,570
zalaman cnpsx10 performa (its like 40$ but i hear its one of the best AMD coolers

as for space i have a lot of room my RAM has no large fins or fans on it and as for the mobo it has okay clearence. though i will go and do background checks on anything i buy so no worries about buying sumin that wont fit.

Message edited by cinnaman on 09-30-2010 at 06:07:26 AM

Reply to cinnaman

Forget the Corsair if you want good cooling, the hgyper 212+ is greatr for the monet the Zalman is better for slightly more and the Noctua is even better but not worth the price unless you desperately need and extra 1-3 Cs lower

Reply to simon12

I love my Cool It Eco which is same as h50.
My 4.0ghz i5 750 idles at 35 load at 61 ....
I was higher than that with a true black push pull ...

It's 10x more quiet and more efficient.

Mugen 2, corsair A70 (not H70), and xigmatek balder are also good choices for under $50 and let you mount two fans, mugen lets you use 4! But it is hard to compete with hyper 212+, another two fan mounter, for 30 shipped.

Message edited by sparkle_ftw on 09-30-2010 at 08:19:02 PM

Reply to sparkle_ftw

the h70 is a little bit better than the h50 but I heard it was way more noisy ...

Best temps : noctua nh d14
Best low noise : H50
Best low cost : Hyper N
Easiest installation : H50/Cool It Eco

Left to right good/better/best for @$50 and under.
http://www.newegg.com/Product/Prod [...] 181-011-TS
http://www.legitreviews.com/article/1389/6/

You don't mention your ram model the Mugen 2 is best installed with low profile ram 33/30mm.Anything over 50mm can be troublesome for any air cooler.

Reply to davcon

That's why you choose a H50/Eco

water cooling + tall ram = ftw

Well... I'd actually recommend the V6 GT for the best temps, it fits most ram kits but... ye know. The Hyper 212+ that Davcon recommended is probably one of the best budget coolers I know. Switch up the fans for two Thermalright TR-FDB-12-2000 and it'll be golden and "quiet-ish". The V6 GT is probably one of the best coolers besides the D-14 but even the D-14 is freaking huge for almost anything. The V6 GT is great on temps, however it's dBa is a freaking 50dBa at max I'm pretty sure.

Hyper 212+ review: http://www.guru3d.com/article/cool [...] s-review/7
Cooler Master V6 GT review: http://www.hardwarecanucks.com/for [...] ew-11.html

Reply to aznshinobi

Every cool computer has water inside

And Intel

Jesus enough with the water cooling, my god.

Reply to aznshinobi

Go with Corsair H50. I am using my I5 750 at 3.8ghz and it would not touch 57*C. Great cooler. Very easy installation!

Reply to HansVonOhain

I recently got myself a Thermaltake Frio, and previously had an Arctic Cooling Freezer Pro.

With the Freezer Pro, I was seeing about 62 degrees at full load with an X4 965 overclocked at 3.9Ghz.

With the Frio (that won a recent 'Custom PC Magazine' test - the reason I got it) I dont hit over 42 degrees!! I'm sitting at 31 degrees now at idle writing this.

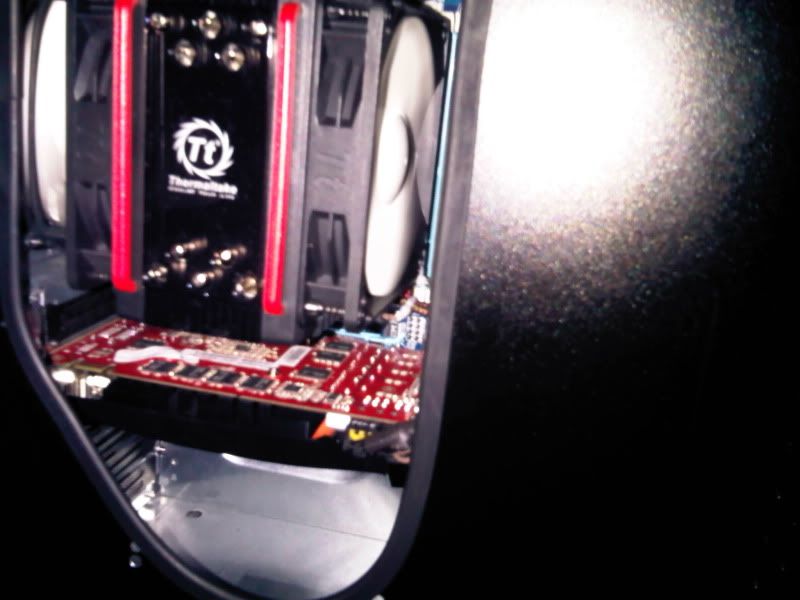

Only problem is that you will need a large (wide) case, or it wont fit....my temporary solution below lol:

------------------------------ Gigabyte GA-MA78LM-S2H
AMD X4 965
Palit GTX 460 2Gb
2Gb Ram (need more!)
Reply to mrsav25

Enough with water cooling ?

LOOOOOOOOL ?
I do understand that you don't need a water cooler for your e5200

-.- What are you even saying ABS.... No one here has an e5200... Plus none of the closed water cooling systems are beating any top notched air cooling at the moment. Many air coolers that are the same price as the H50 and much cheaper than the H70 beat both those water cooling units..

EDIT: Just looked at some benchs and the even the V6 GT beats the H50 and its cheaper.

Message edited by aznshinobi on 10-03-2010 at 05:02:27 AM

Reply to aznshinobi

Is the H50 really much quiter cuz the only way i see it being effective is if i attached 2 kaze ultra or even Delta Fans to it, then it would problably be louder then anything. then agaitock fans on any cooler aren exactly special.

Message edited by cinnaman on 10-03-2010 at 08:35:15 AM

Reply to cinnaman

Been using 2 H5O's in one HAF 932 @Phenom IIX4 965BE on MSI 790FXGD70 and in a HAF 922 @Phenom IIX2 555BE on M3N-HT Deluxe Mempipe. Never Seen my temps soar above 45 DegC And to add to the point I live in India where standard avg room temps are 35DegC, no airconditioning here all that money has gone into my rigs.
So I guess, no doubt an H5O will cool you rig as well as any of the top end air coolers.The only difference is going to be the Noise and Dust factor.
More fans are going to pull in more dust and will increase the noise level.
Decent cooling as you said can be achieved if the H5O fans were to be replaced , hmmmmm. Yes, but it's not required at that OC level and since the fans that come in the bundles are controlled by the Mobo, the noise levels are absolutely minimum.
I had a high end air cooler before this, but that used to get so cluttered with dust that I really needed a different option and this does work well or even better than my earlier air cooler.

Message edited by alyoshka on 10-03-2010 at 11:01:14 AM

------------------------------ Passiveness causes others to pass us by

http://valid.canardpc.com/cache/banner/2026250.png

Reply to alyoshka

Use H50 or H70.

In H50 use Noctua NF-P14 140mm (it has 120 mm mounting bracket though the fan is 140mm) as a second fan for push pull along with the stock 120mm fan by given corsair.

In H70 replace one of the stock fan with the noctua fan. The noise comes down drastically and cools the radiator better.

Reply to abully

i was thinking ultra kaze fans on a noctua nh u12p its basically a nh d14 but one larger heatskink instead of one. not sure if the nf-p14 or the ultra kaze are better in static pressure which is wht a heatsink needs so ill go do some research

Reply to cinnaman

the noctua fans are good enough for any cooler...... especially on their own coolers........ if you are going for any cooler with 120mm fan, just switch or add the NF-P14 fan........ it really cools well and is dead silent on full speed (1000 rpm)

Reply to abully

I'd recommend getting fans like the Thermalright TR-FDB-2000, the reason being allthough the noctua fans cool, they are 20$. The thermalrights are only (were) only 10$ on newegg and 14$ at frozen CPU. Plus the thermalright is 2000rpms, rpms go a great distance when cooling your cpu heatsink. (The thermalright is rated 81 cfm at 30 dba, your really going to hafta sacrifice, to be honest even the noctuaheatsink with their noctua fans get loud.

Reply to aznshinobi

i do understand the noctua fans aren't the fastest or the highest CFM but they also have really good static pressure which is required to push air through things like rads and headsinks. im looking at reviews still to find which one is better. for my build

Reply to cinnaman

If you do enough research on static pressure which is an overused term imo you'll find heatsink fin spacing has more to do with it then fans.

Reply to davcon

Best answer

+1 to Davcon comment........... static pressure is measured by the density of the fins and not the fan itself......... I dont have to remind that larger fans cool better........ thats why i suggested noctua nf-p14 which can be fitted to 120mm mounts............

Reply to abully

Best answer selected by cinnaman.

------------------------------ CPU: P II 965 BE
GPU: Sapphire 5870
Mobo: Gigabyte890gpa
PSU: corsair 950tx
Reply to cinnaman

hello: i'm very new to this, so please be kind. I also just built my first pc with the same Gigabyte 890GPA mobo, and had purchased the Corsair A50 to go with it. However, the A50 comes with a backplate, and the mobo has no holes to accommodate this backplate. I ended up using the stock heatsink/fan that came with the processor, which uses the clip-on (not push-pin) attachment.

can anyone help: can the A50 fit this mobo, and if so, how?

thanks in advance.

Message quoted 1 times

Reply to bmaddock

bmaddock wrote :

hello: i'm very new to this, so please be kind. I also just built my first pc with the same Gigabyte 890GPA mobo, and had purchased the Corsair A50 to go with it. However, the A50 comes with a backplate, and the mobo has no holes to accommodate this backplate. I ended up using the stock heatsink/fan that came with the processor, which uses the clip-on (not push-pin) attachment.

can anyone help: can the A50 fit this mobo, and if so, how?

thanks in advance.

wel first off this could problably go into a different thread seeing as it's not too closeley related to this one however.

the corsair A50 is AM3 compliant so you should not have an issue i think you are using the wrong backplate. the backplates with pins on them are generally Intel based you should be using the one that is shaped like a rectangle. For a better description read the instructions that came with it if any. or go to the corsair site.

http://www.corsair.com/products/a50/default.aspx

Reply to cinnaman

cinnaman, you were dead on. i was using the wrong plate. thanks so much for the help. fan is installed and quietly working!

Message quoted 1 times

Reply to bmaddock

bmaddock wrote :

cinnaman, you were dead on. i was using the wrong plate. thanks so much for the help. fan is installed and quietly working!

Good to hear it best of luck

Reply to cinnaman
