Finalized Rig: Antec 900, V8, SLI GTX 280

Forum CPU & Components : Power Supplies, PC Cases & Case Mods - Finalized Rig: Antec 900, V8, SLI GTX 280

Tom's Hardware: Over 1.4 million members in 6 different countries available to answer all your high-tech questions. Sign up now! Its free!
Ask the community Add a reply
Word :    Username :

Mark_k   09-27-2009 at 02:55:50 PM

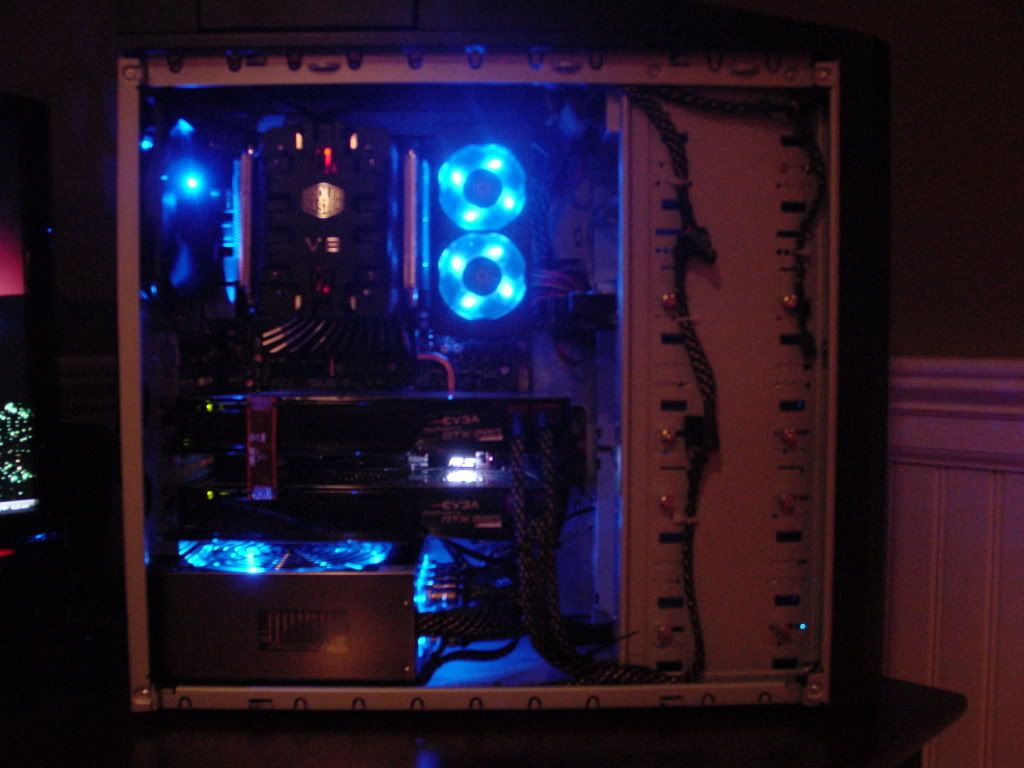

This is my finalized rig including case mods like cable management holes I had to drill on the side of the case.

Antec 900, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.6 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8

http://i579.photobucket.com/albums/ss237/markkramm/My%20PC/PC%20Final/DSC00007.jpg

http://i579.photobucket.com/albums/ss237/markkramm/My%20PC/PC%20Final/DSC00008.jpg

http://i579.photobucket.com/albums [...] C00009.jpg

http://i579.photobucket.com/albums [...] C00010.jpg

http://i579.photobucket.com/albums [...] C00011.jpg

http://i579.photobucket.com/albums [...] C00012.jpg

http://i579.photobucket.com/albums [...] C00006.jpg


Message edited by r_manic on 10-16-2009 at 09:30:17 AM
Add a reply
Sponsored Links
Register or log in to remove.
PsychoSaysDie   09-27-2009 at 02:57:44 PM

How well does the V8 perform?

Message quoted 1 times
------------------------------ Core I7 920 D0 @ 4.2Ghz
MSI X58 Pro-E
32GB SSD, WD Blacks In R0
Sapphire HD 5870's In XFire
 Reply to PsychoSaysDie
Mark_k   09-27-2009 at 03:09:25 PM

PsychoSaysDie wrote :

How well does the V8 perform?



Really well. I don't have numbers right now except for idle while typing this reply
35 34 38 33 fan on low power.
GPUs at 42

Here is a link to pictures of the install of the V8.

At

http://www.tomshardware.com/forum/ [...] l-pictures


Message edited by Mark_k on 09-27-2009 at 03:31:48 PM
Reply to Mark_k
angry_ducky   09-27-2009 at 08:58:08 PM

Nice rig! How about some pictures in the light so we can see it better?

That's a nice OC on your CPU, but what are the load temperatures? Do you have SpeedStep enabled? Because those idle temps on your CPU could be for a 2-odd GHz CPU, as opposed to a 3.6.

Message quoted 1 times
Reply to angry_ducky
Mark_k   09-27-2009 at 09:16:08 PM

angry_ducky wrote :

Nice rig! How about some pictures in the light so we can see it better?

That's a nice OC on your CPU, but what are the load temperatures? Do you have SpeedStep enabled? Because those idle temps on your CPU could be for a 2-odd GHz CPU, as opposed to a 3.6.



Did you click on the other links in the fist post?
Are those pictures too darK?

Here is my complete Configuration and results:

Antec 900, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.80 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8

3.80 GHz

Ai Over Clock Tuner: Manual
CPU Ratio Setting: 20.0
BCLK Freq: 190
PCIE Freq: 100
DRAM Freq: DDR3-1523 MHZ (9, 9, 9, 24 2T)
UCLK Freq: Auto
QPI Link Data Rate: Auto

Dram Timming Control (Auto for all)

CPU Voltage: 1.30
DRAM Bus Voltage: 1.64
CPU Spread Spectrum: Disabled

Turbo: Disabled
SpeedStep:Enabled

Prime95 12 hours
Full load Temps: 74 73 73 70
Ideal Temps: 37 36 39 35

Reply to Mark_k
DeeTee_uk   09-28-2009 at 12:11:13 AM

Niiiiice. I have the same case, but my cable management resembles trying to seal a squid in a lunchbox! Can I be really cheeky and ask how much that all set you back? I'm getting the upgrade itch, which might have to be satisfied in the new year.

Message quoted 1 times
Reply to DeeTee_uk
aznguy0028   09-28-2009 at 12:29:47 PM

good job man! done an awesome job with the wirings! wish my 900 looked as clean as yours :P

------------------------------ http://valid.canardpc.com/cache/banner/590311.png
 Reply to aznguy0028
Mark_k   09-28-2009 at 01:57:50 PM

DeeTee_uk wrote :

Niiiiice. I have the same case, but my cable management resembles trying to seal a squid in a lunchbox! Can I be really cheeky and ask how much that all set you back? I'm getting the upgrade itch, which might have to be satisfied in the new year.



Back in Feb. it cost $1,600 USD.
I then added a new PSU, V8 and the memory cooling. for around $230.00 USD

Thanks all!

Mark

Reply to Mark_k
Mark_k   09-30-2009 at 03:38:51 PM

Thanks!

Now I need to buy a bigger monitor like a 26' with higher resolution.

Reply to Mark_k
Dariusz   09-30-2009 at 08:10:57 PM

Nice 1! just curiously why 280 sli ont 295? / why didnt you w8 for 300 cards which are coming out...welll...soon? :]

Reply to Dariusz
Mark_k   09-30-2009 at 09:26:36 PM

Medjohnson77 - You got that right.

Dariusz,

This is my first build that I originally did around Jan of this year. At that time The 280 was relatively new and I had only one.

Less than a month ago, I decided to go SLI and I got a free 280 off eBay....it's a long story. And I also decided to upgrade the PSU to a 1000w Blue LED unit and add the OC Blue LED memory cooler.

I also took the time to cleanup my wire management because the cables with my new PSU are so nice.

You bet I have my eyes on the new 300's when they come out.

I will be placing both 280's on eBay when that happens.

Thanks

Mark

Reply to Mark_k
Mark_k   10-15-2009 at 03:06:09 PM

I just updated my ram timings
Here is my complete Configuration and results:

Antec 900, ASUS P6T DELUXE, SLI x2 EVGA GTX280, KINGWIN Mach 1 ABT-1000MA1S Modular,CORE I7 920 OCed (2.66 -> 3.80 GHz),Corsair TR3X6G1600C8D,WD Caviar Black 640GB, CoolerMaster V8, NZXT Sentry-2 Touch Screen Fan/Temp Control Unit

3.80 GHz

Ai Over Clock Tuner: Manual
CPU Ratio Setting: 20.0
BCLK Freq: 190
PCIE Freq: 100
DRAM Freq: DDR3-1523 MHZ (8, 8, 8, 24 2T)
UCLK Freq: Auto
QPI Link Data Rate: Auto

CPU Voltage: 1.30
DRAM Bus Voltage: 1.64
CPU Spread Spectrum: Disabled

Turbo: Disabled
SpeedStep:Enabled

Prime95 12 hours
Full load Temps: 74 73 73 70
Ideal Temps: 37 36 39 35


Message edited by Mark_k on 10-15-2009 at 03:10:09 PM
