Electric Pickle [ Build Log ]

Last response: in Overclocking
Share
March 13, 2012 5:34:21 PM

Computer Components:
Intel Core I7 2600k
Asus p8p67 Evo rev 3
2x Western Digital Caviar Black 1 TB HDD
Kingston HyperX 120gig SSD SATA 3
Corsair Vengeance CL9 DualChannel 1600mhz
Asus 580 GTX
Corsair AX 1200 PSU
Xigmatek Elysium
Water Cooling Components:
2x RX360 XSPC Rads
Raystorm XSPC Cpu block

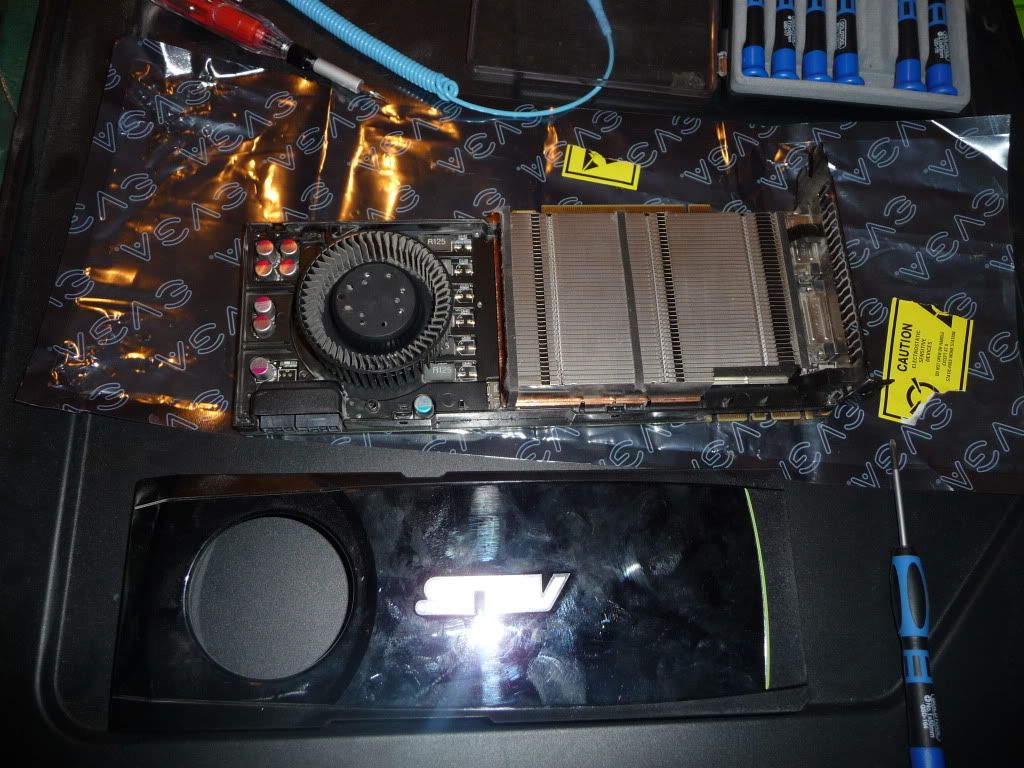

EK 580 gtx reference block
1/2ID3/4OD Fesser Acid Green tubing
Primochill anti kink coils
12x Gelid Wing12pl
Bitspower Fittings ( dual rotary 90's, 45's, straight compressions est . )
MCP35x2 Pumps
FrozenQ reservoir
Tools:
Precision Needle Nose Pliers
Precision Screw DriverSet ( with small torq bits ( T6 ) )
Dremel
Angle Grinder
Cordless Drill

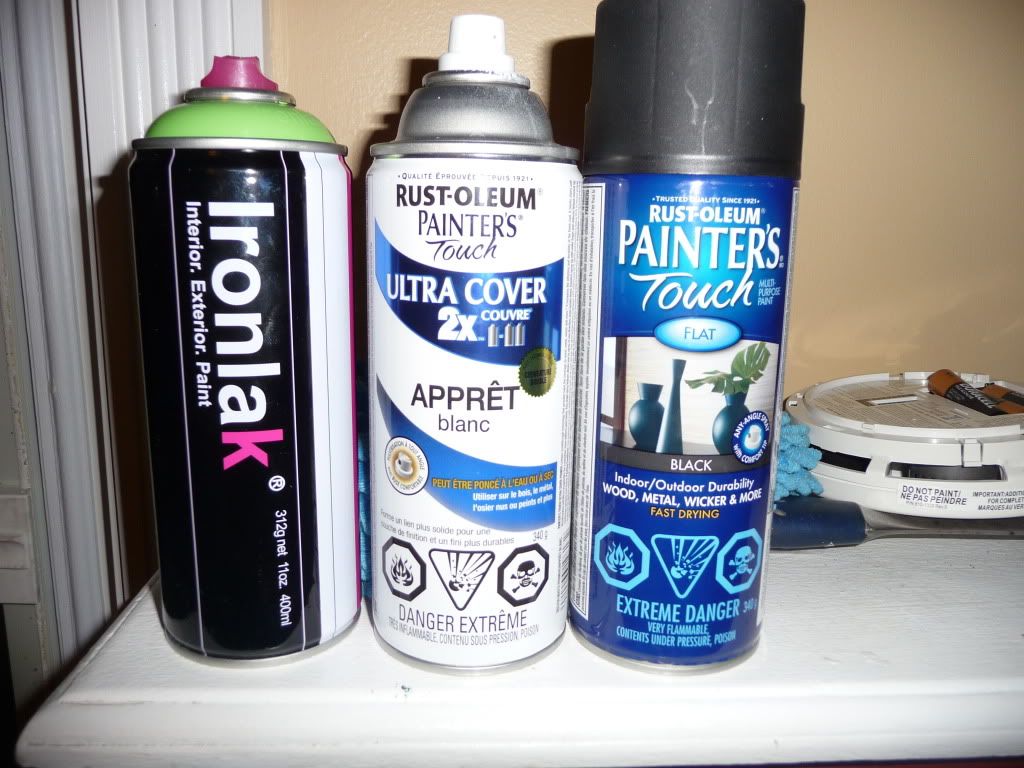

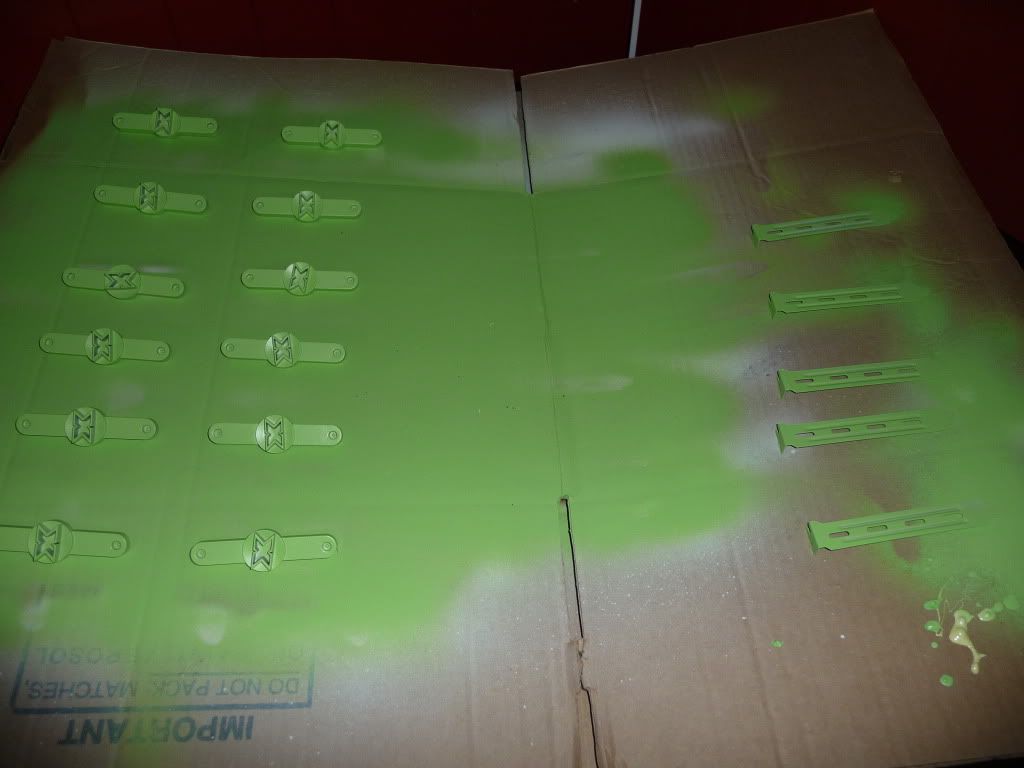

Spray Paint
Olfa Knife

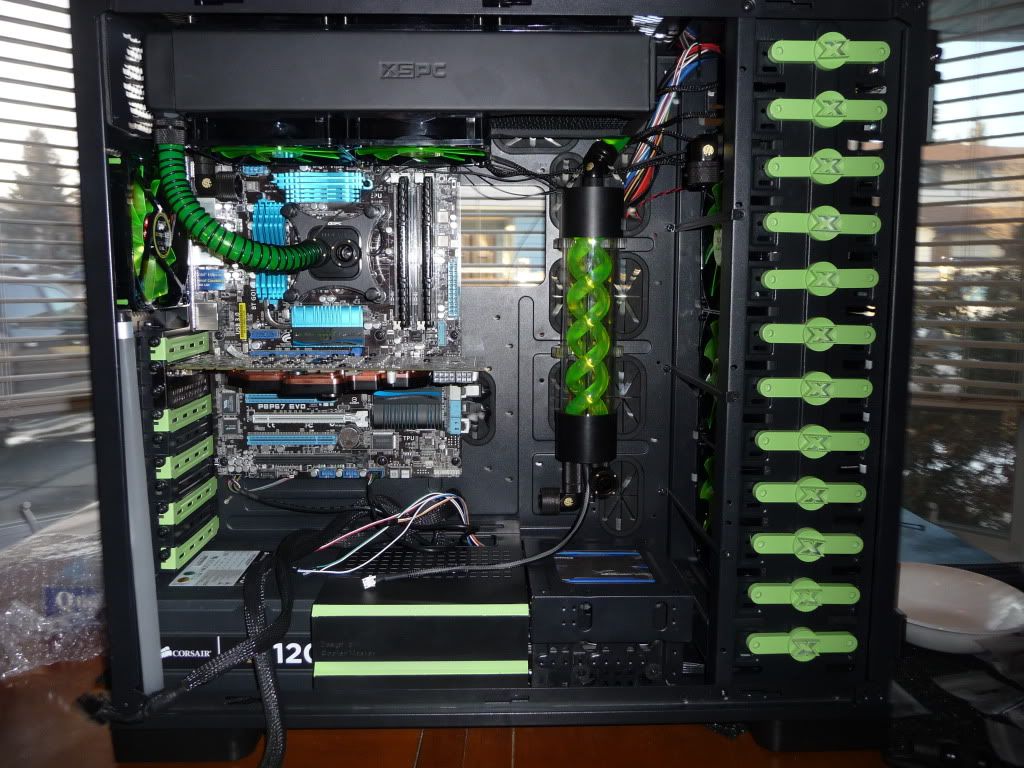

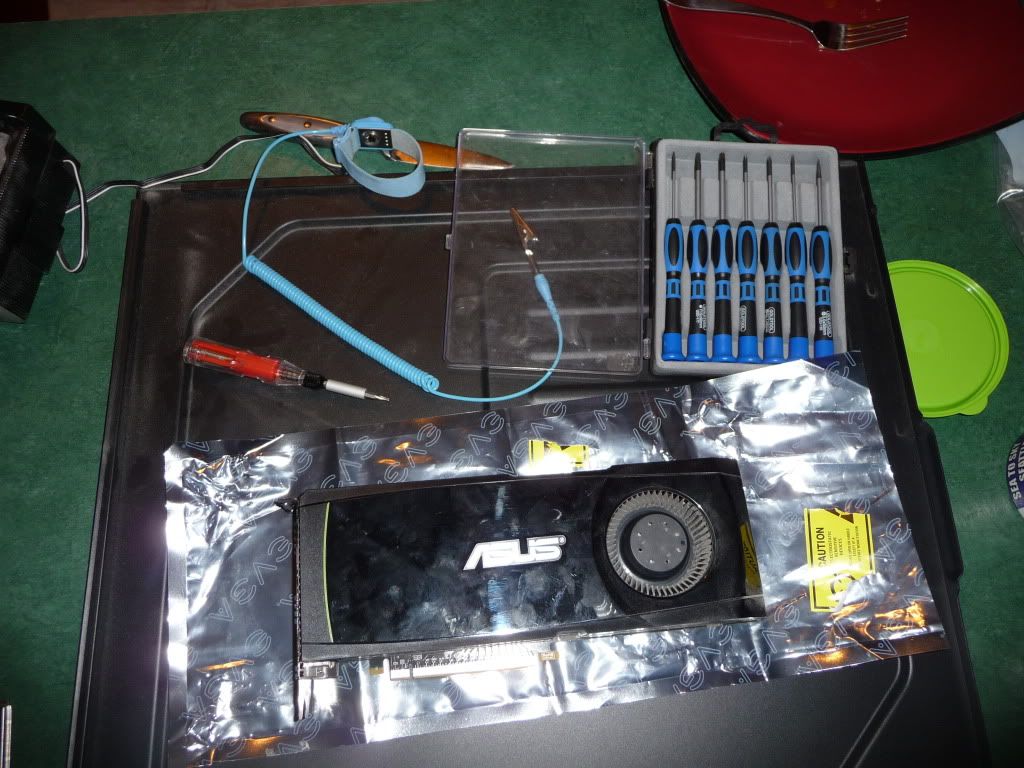

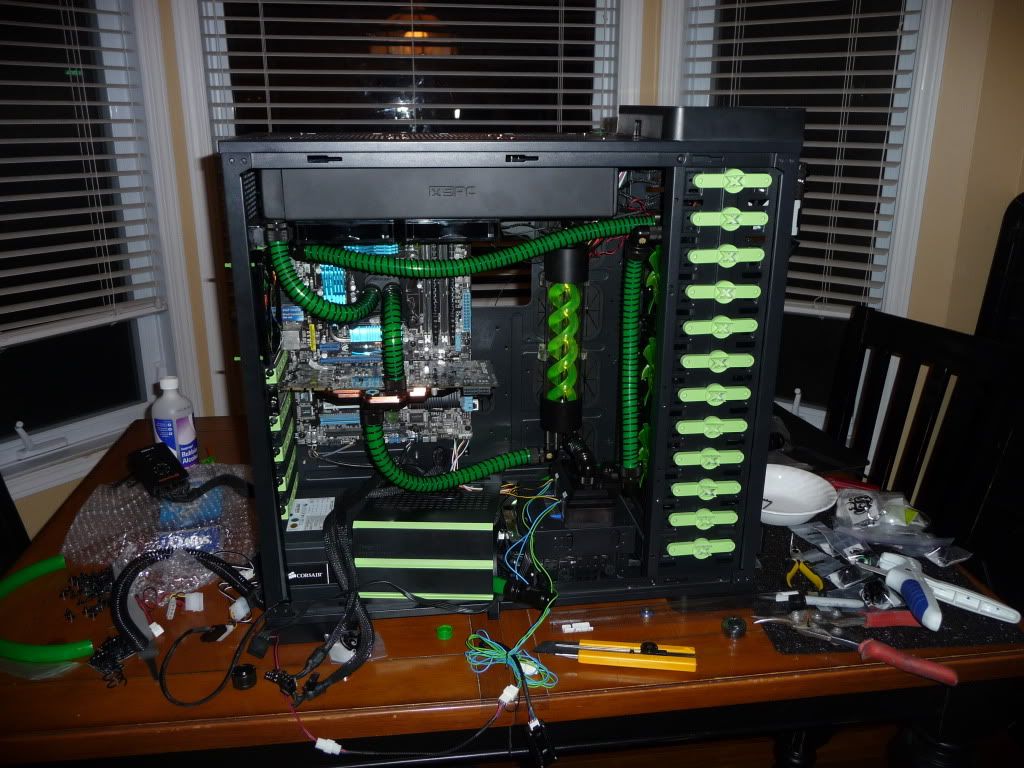

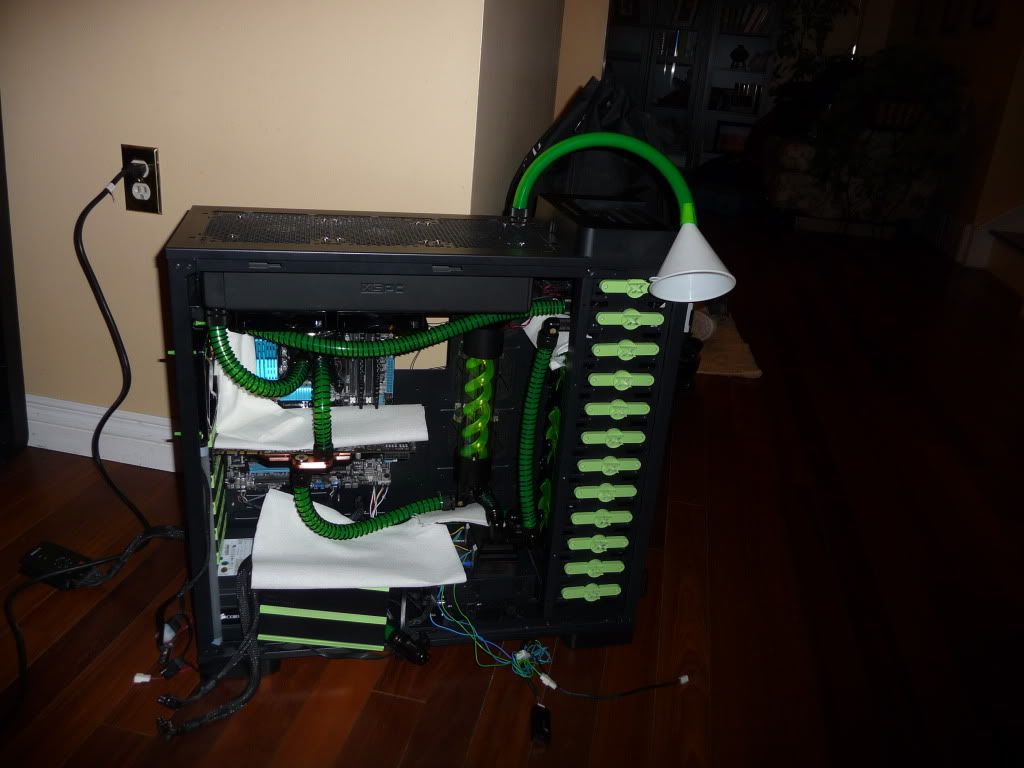

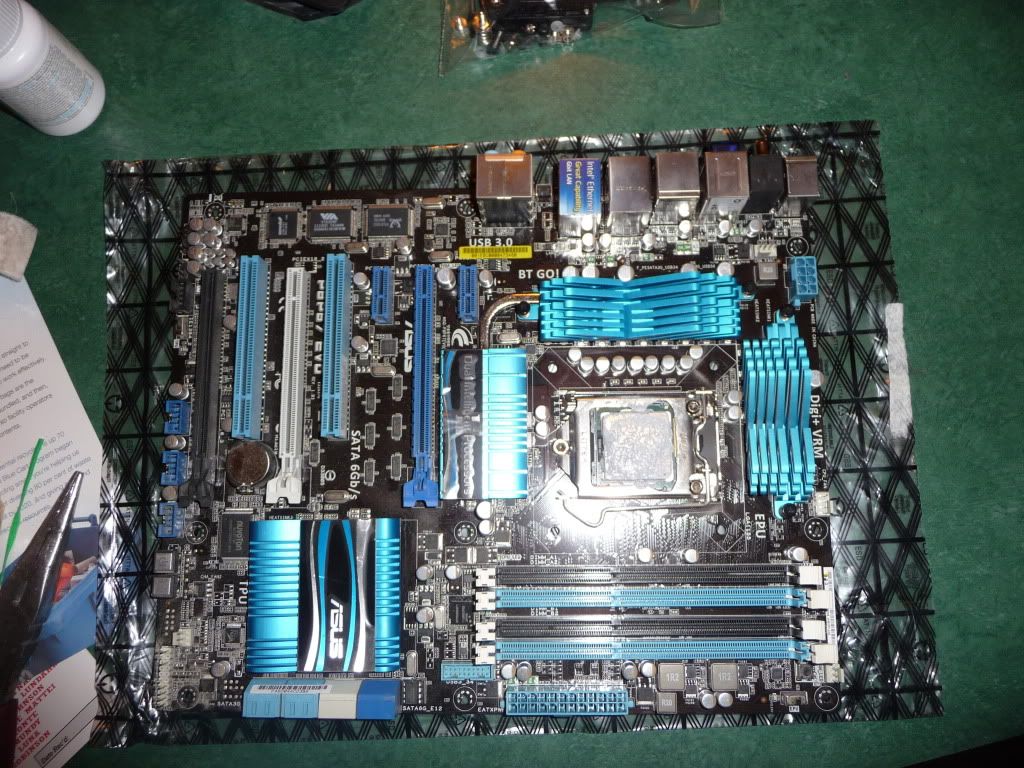

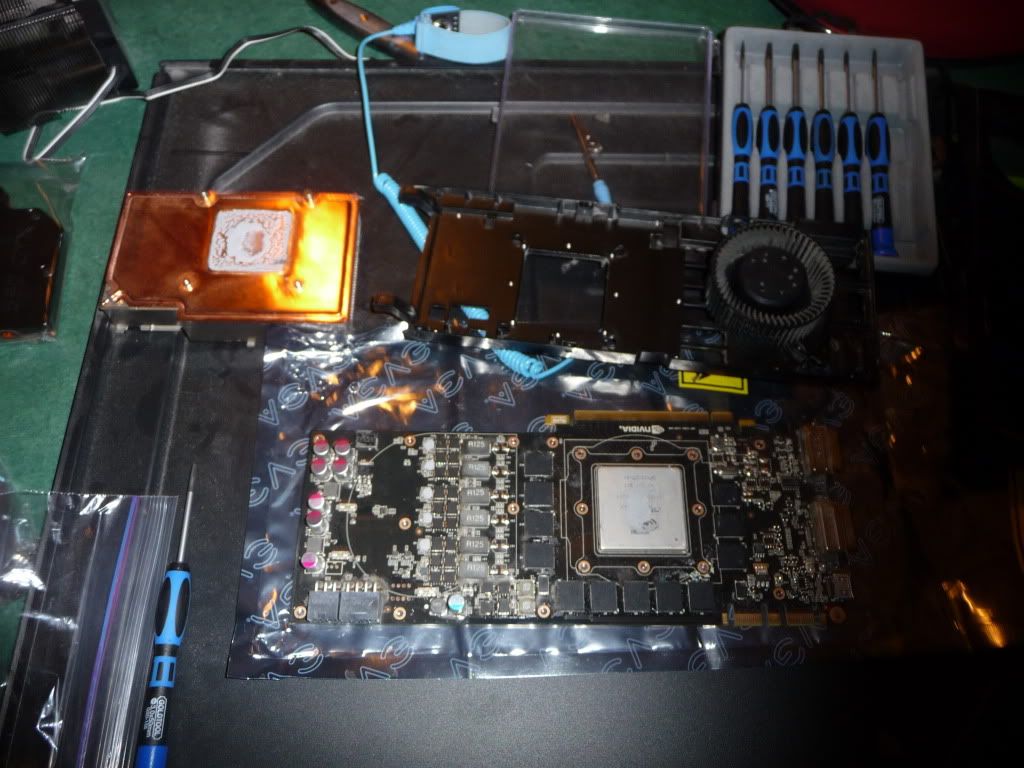

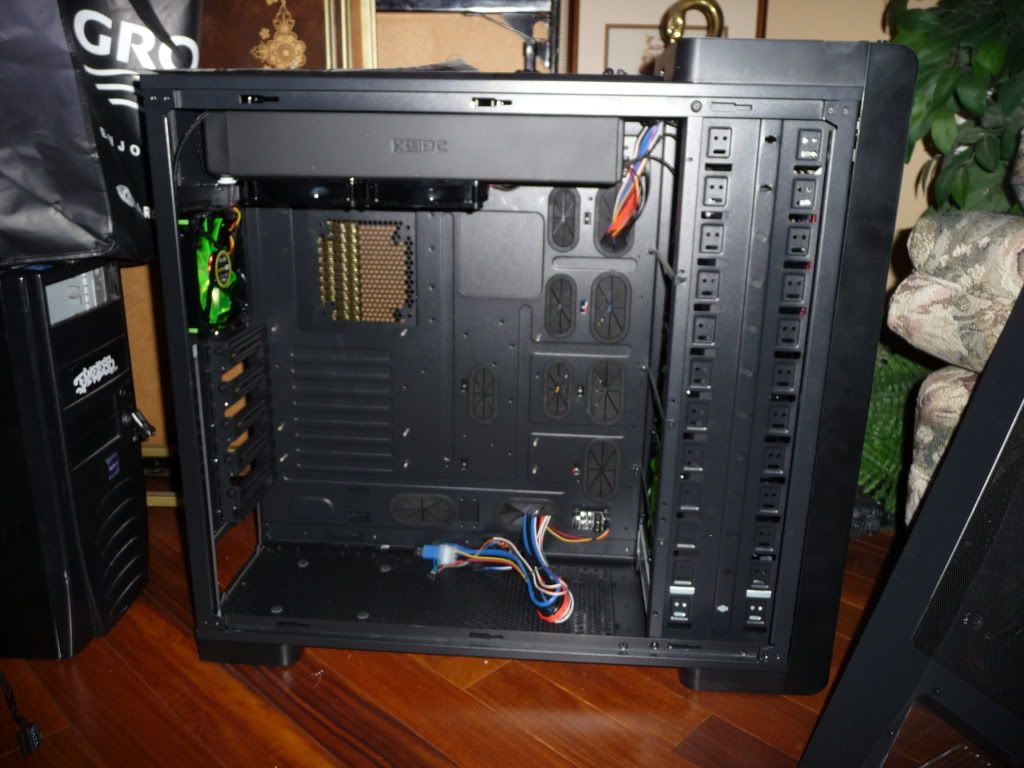

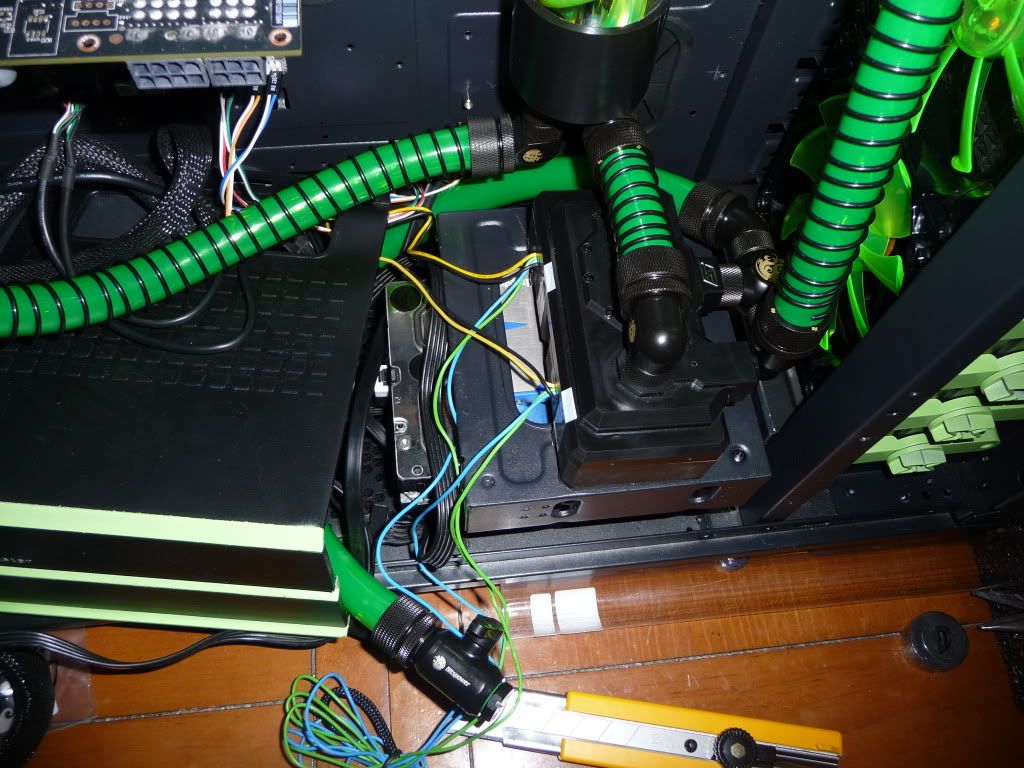

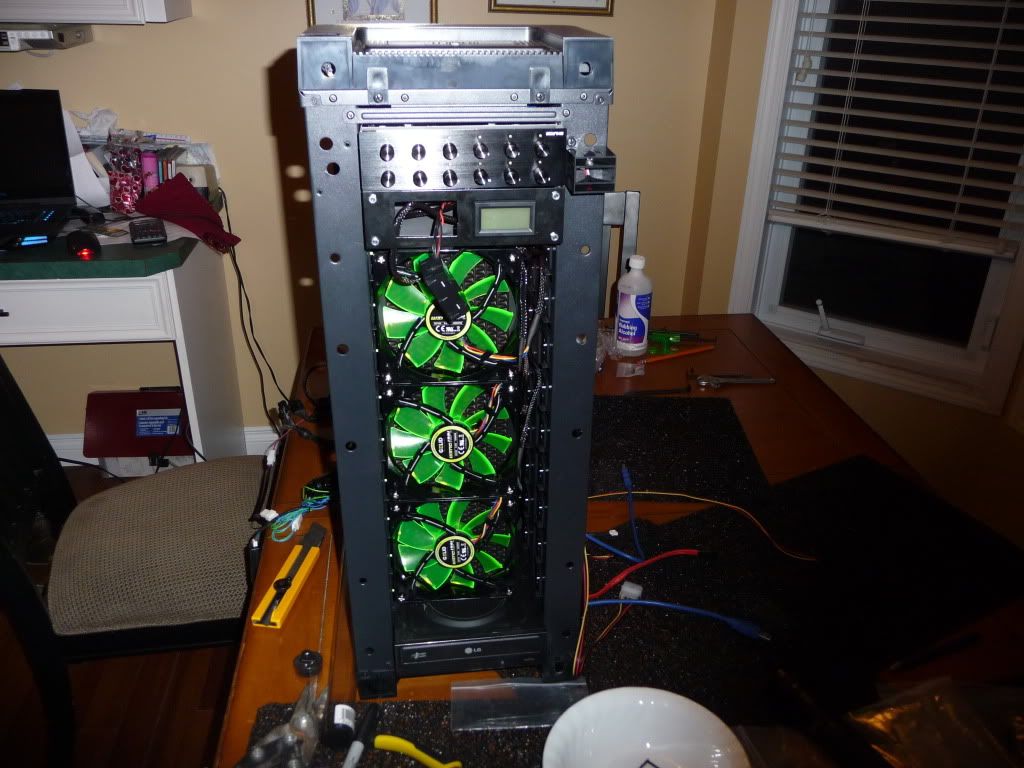

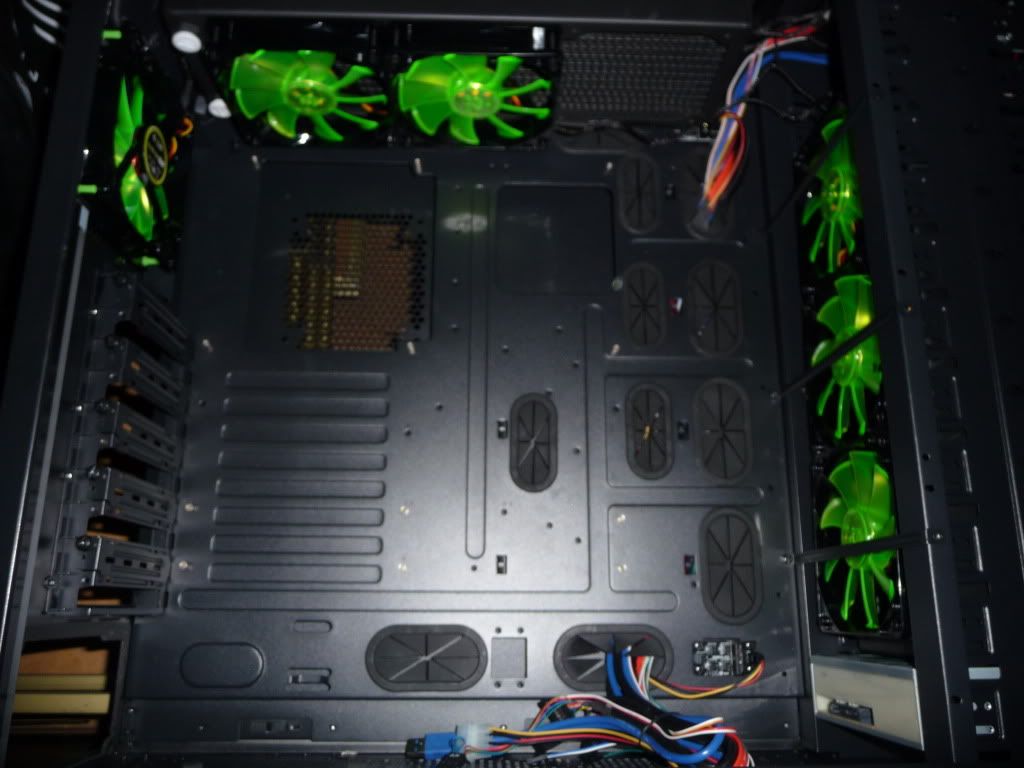

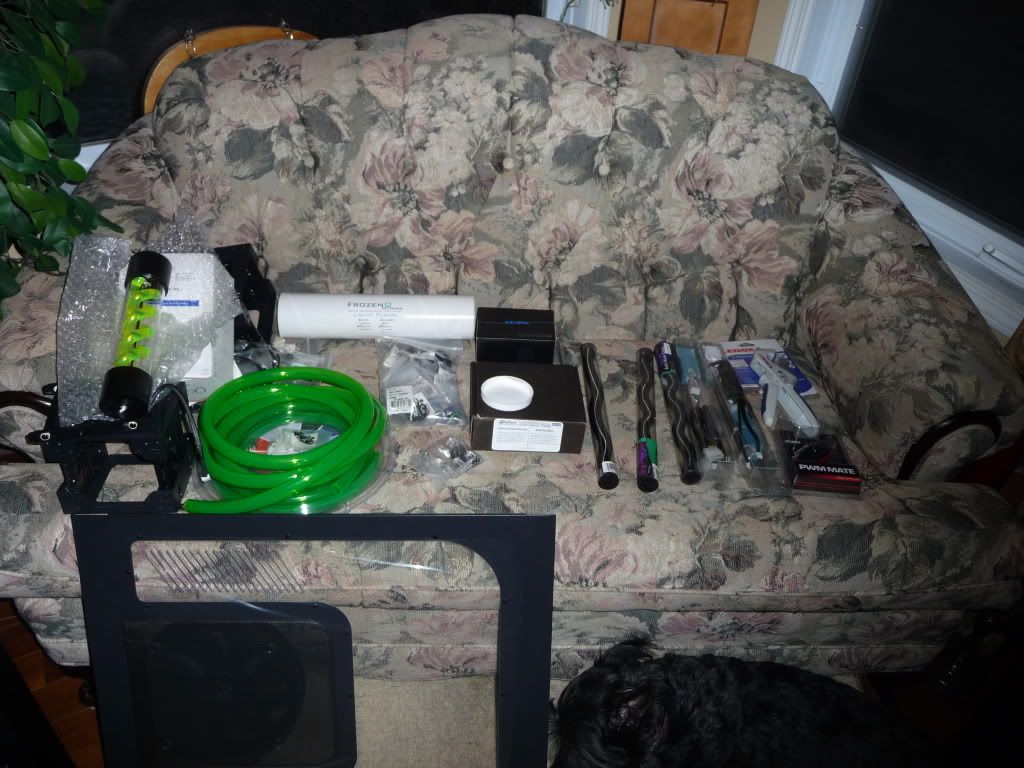

This is my First water cooling build and modding of a case. Thanks to Water cooling sticky's in this form and help from overclock.net as well i was able to find the right parts for the job. Thanks everyone that helped answer any questions i had! I had a oring leak on one of the dual rotary 90 fittings so i am waiting for a replacement to come in. I have not bothered to get air out as i am going to have to drain it again some time this week. Here are some pictures of how it is so far. if you have any suggestions please let me know i would love to change/add more!
