Gtx 480 VS. 8800 Gtx , My upgrade and benchmarks

Last response: in Graphics & Displays
Share
April 15, 2010 4:11:40 AM











More Pics (Link below)

http://pbckt.com/s3.wnJ

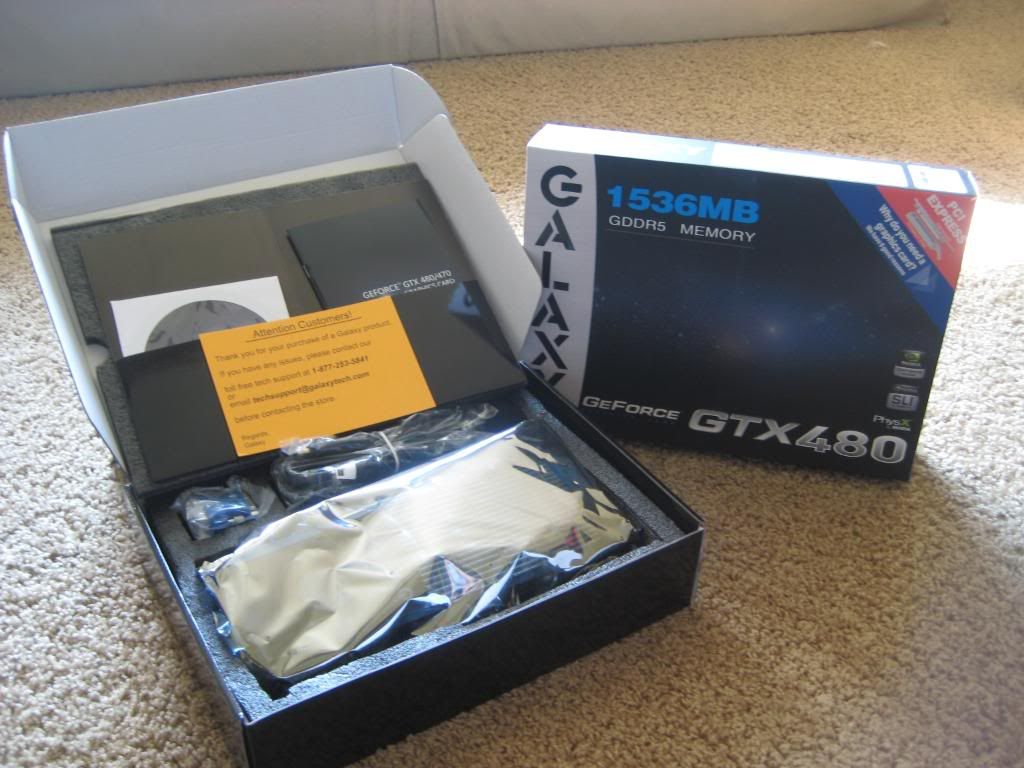

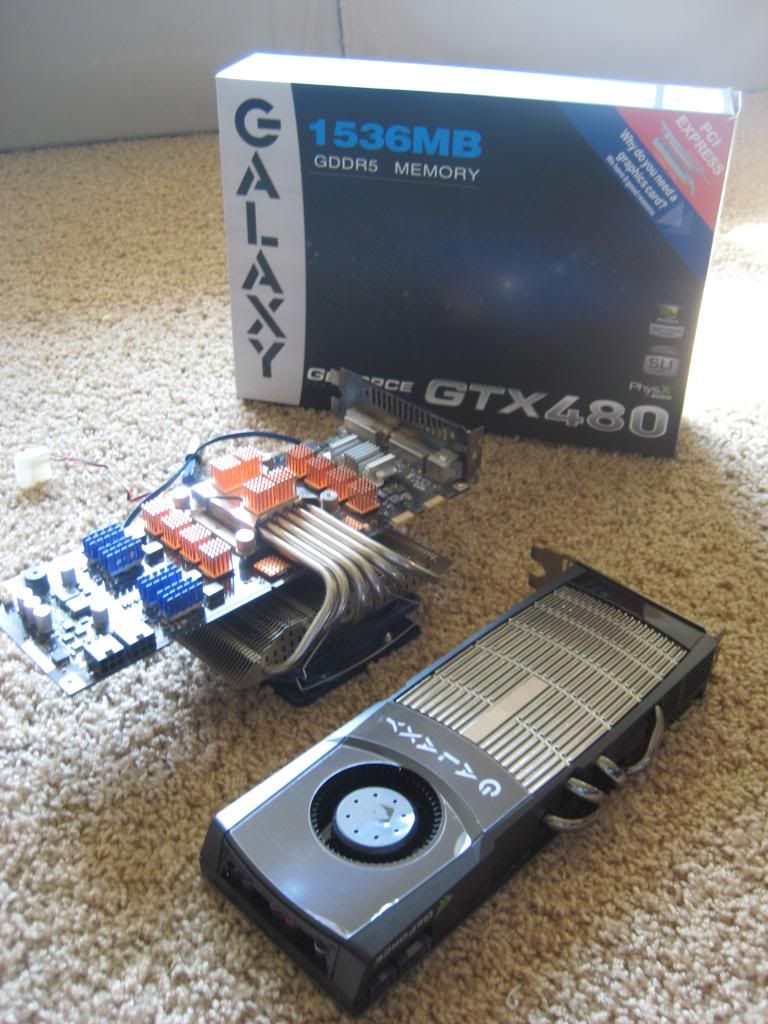

Today I just got my new Galaxy Gtx 480 and replaced it with my old 8800gtx. I thought I would post pics and I did some benchmarks just in case any of you with an 8800gtx wants to see what upgrading to a Gtx 480 will do.

I am upgrading the Gtx 480 to a water cooling kit, but unfortunately I had some trouble with parts getting damaged and am waiting for my new parts to arrive, also, I just got lucky enough to order a Danger Den GTX 480 Block with nickel top and copper base. So when I get that, and All my parts, Ill repost everything with the new pics. Hope you enjoy.

Here are the benchmarks:

Thermaltake ArmorPlus(Armor+) VH6000BWS
Motherboard Name Gigabyte GA-EX58-UD3R-SLI
CPU Type QuadCore Intel Core i7 920, 3200 MHz (20 x 160)
System Memory 3072 MB 3 x 1 GB DDR3-1333 (Corsair XMS3 CM3X1G1333C9)
Audio Adapter Creative SB X-Fi XtremeMusic
Hitatchi 1.0 terabyte deskstar 7200rpm 32mb buffer
Windows 7 ultimate 64


Graphics cards- 8800 Gtx vs. Gtx 480

All test ran on 8800 Gtx, then card pulled out and switched to Gtx 480 and ran again.

Crysis benchmark

Settings:

1920 x 1200
Anti Aliasing= 8X
DirectX 10
64bit
quality settings- all set to VeryHigh
loops= 1
time of day= 9


8800 Gtx:
Min FPS= 2.65
Max FPS= 8.20
Ave FPS= 6.89

Gtx 480:
Min FPS= 14.67
Max FPS= 30.17
Ave FPS= 25.32



Far Cry 2

Settings:

Ranch Long
loops= 1
1920 x 1200
Anti Aliasing= 8X
DirectX 10
Quality Settings- everything set to very high
accept Ambient and Post FX are set to high
Bloom & HDR are checked

8800 Gtx:
Min FPS= 16.26
Max FPS= 57.07
Ave FPS= 28.38

Gtx 480:
Min FPS= 48.30
Max FPS= 157.05
Ave FPS= 86.94




Heaven Benchmark 2.0


Settings:

DirectX 10
Shaders= high
Anistropy= 16
Anti-aliasing= 4X
Fullscreen
Resolution= 1920 x 1200

8800 Gtx:
Min FPS= 8.6
Max FPS= 36.1
Ave FPS= 18.7

Gtx 480:
Min FPS= 26.1
Max FPS= 91.9
Ave FPS= 47.5




Grand Theft Auto IV

Thought you might like this test as gpu in this situation makes a huge difference.

Settings:

Graphics Settings
Video Mode: 1920 x 1200 (60 Hz)
Texture Quality: Medium
Shadow Quality: High
Reflection Resolution: Very High
Water Quality: Very High
Texture Filter Quality: Anisotropic x16
Night Shadows: High
View Distance: 100
Detail Distance: 100

other settings:
Vehicle Density= 100
definition= on

8800 Gtx:
AVE FPS= 30.55

Gtx 480
Ave FPS= 64.79






OTHER:

GTAIV GTX 480 Max Settings

Statistics
Average FPS: 63.55
Duration: 37.34 sec
CPU Usage: 37%
System memory usage: 87%
Video memory usage: 85%

Graphics Settings
Video Mode: 1920 x 1200 (60 Hz)
Texture Quality: High
Shadow Quality: Very High
Reflection Resolution: Very High
Water Quality: Very High
Texture Filter Quality: Anisotropic x16
Night Shadows: Very High
View Distance: 100
Detail Distance: 100

other settings:
Vehicle Density= 100
definition= on



Temp Comparison
(i did not do an exact benchmark, these are just the min and max I observed)

8800 GTX: (with aftermarket cooler)
Min Temp= 42C
Max Temp= 56C

GTX 480:
Min Temp=49C
Max Temp=90C
UPDATE: Max temp has hit 91C so far, I will update if I see higher temps.
UPDATE: Min temp so far is 46C

On a side note: My case is a huge case, and is a little loud, but,
going from the 8800 Gtx to the Gtx 480, I have not noticed it being any louder at all. I was expecting a huge difference, but I don't think anyone would notice a sound difference, even at full load. Maybe it's the placement of my case, I dunno.
I actually think the card is very quiet in the thermalright armo+ case.

UPDATE: I have noticed in some games when I'm playing for a bit that the fan does get loud, it's not extremely loud, but it is noticeable. It's like it's warning me, "hey, im getting hot, hurry up and water cool me"..
a c 169 U Graphics card
April 15, 2010 9:28:17 AM

First of all congrats on your purchase,its a decent upgrading going from a 8800GTX to a GTX 480 :)
Thanks for the benchmarks,you got an excellent boost in performance.
m
0
l
April 15, 2010 3:38:36 PM

Thanks. :)  Cant' wait to get the water cooling setup. Should have the parts and get that all setup by next week. Feel bad for everyone who is still camping around there pc trying to get a card. I just checked tiger direct, were I got the card, looks like they are sold out. Hopefully they get the other batches out quickly.

I was playing last night, so nice to be able to max every setting again.

I was kinda worried about metro 2033, because it says for optimal settings you need 8gb of ram!! Luckily, I only run 1920 x 1200 max on my monitor, as it runs max settings 30-50 FPS. So, if you run that res.

I was playing just cause 2 demo last night, cranked those settings to, and getting around 50-60 fps. Water looks awsome in that game. All the ripples and everything.

Anyways, i'm very happy I bought the card. Only regret is I wish I got an Evga card, as the warranty will be void when I mod it. But, I doubt i'll have any problems, as normally heat is normally what ruins a card. I voided the warranty on the 8800gtx and it lasted me 3 years. Water cooling it should give me extra years. And I fully tested the card, and it seems like it runs just fine, no artifacts or anything, no bsod's. On a side note, my computer used to freeze for like 10 seconds during boot, I thought it was normal, but now it doesn't do that. I think it had to do with running the 8800. Old card in new motherboard. So this card actually fixed a problem I was having. Even the desktop runs quicker in windows 7. So happy. :)
m
0
l
Related resources
a c 106 U Graphics card
April 15, 2010 3:39:05 PM

Seems like you got a pretty big upgrade there. That's pretty awesome. Happy gaming
m
0
l
Anonymous
a b U Graphics card
April 15, 2010 7:57:41 PM

Sure, Water is the way to go, +1 less noise, +1 High OC. Post OC results when water is here :D
m
0
l
April 15, 2010 8:21:25 PM

Will do, just got the rest of my parts today, except for the danger den block. Hopefully that will come in by friday, then I can work on it on sat and sun and hopefully have time to benchmark for some results.

:bounce:  :D
m
0
l
a b U Graphics card
April 15, 2010 8:39:24 PM

Very nice dp =)

What are you going to do with your 8800 now that you have upgraded?
m
0
l
a b U Graphics card
April 15, 2010 8:42:04 PM

Nice card! Looking forward to you WC'ed review as well.
m
0
l
April 15, 2010 8:47:50 PM

OvrClkr said:
Very nice dp =)

What are you going to do with your 8800 now that you have upgraded?


I gave it to my friend. It's actually a funny story, see I tried buying the card from tiger direct, but my credit (debit) card company was having comuter issues so my card wouldn't approve of it, even though I had money in the bank (spent like 3 hours on and off the phone with them but they couldn't fix it :fou:  ), and I wanted to get one before they sold out, so I told my buddy if he lets me use his credit card that he can have my old card, cuz he wanted it to go SLI on one of his computers. So, after my card arrived, and I took the pictures,then I gave it to him.

Don't worry, I actually had the money in his bank before they even put took it out. So now we are both happy, I got my card, he has his card. I was gonna just put it in a display case and put in on the shelf as a backup card anyways, but it's worth giving up if it saved me a month camping on the computer trying to get a card that no one knows when it will be out.
m
0
l
April 16, 2010 3:01:02 AM

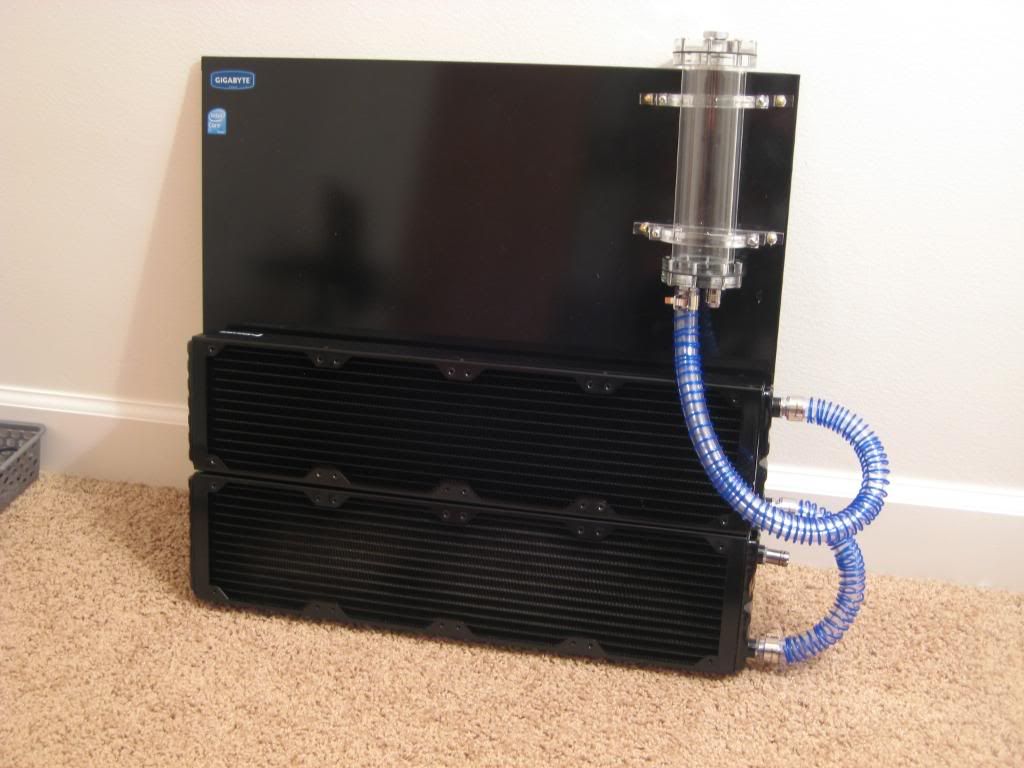

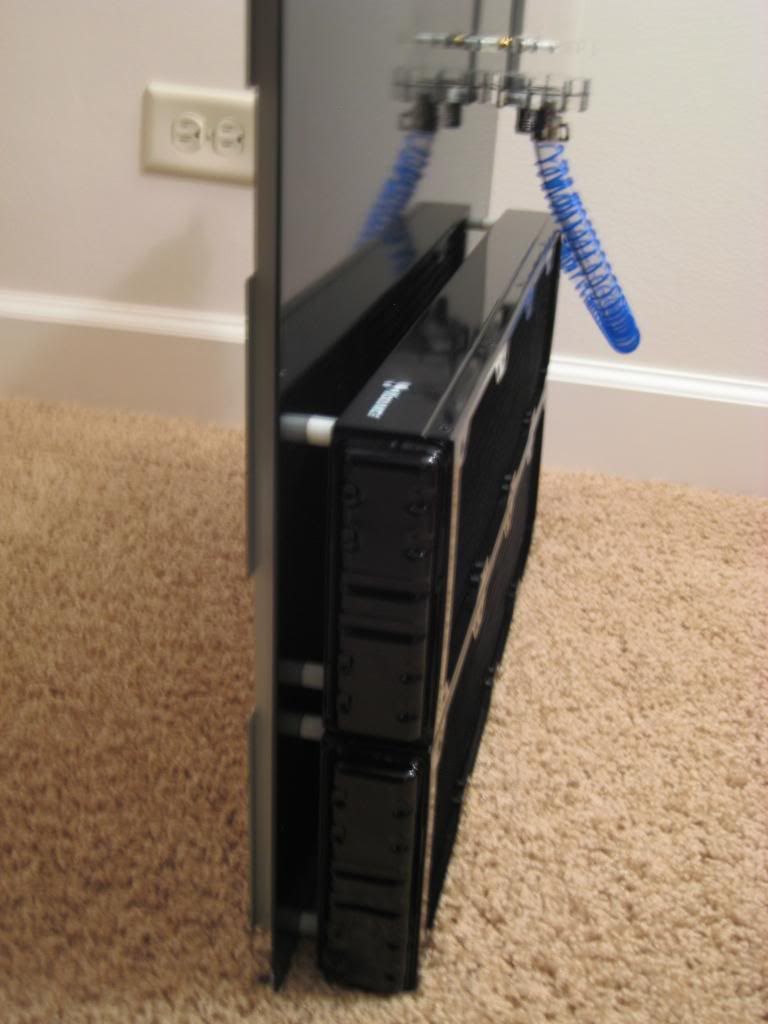

Well, here are a couple of picks of my parts I have so far- All I need now is the gpu cooler, and I almost forgot I need the fans too, Luckily radioshack sells some for like 10 bucks each down the road. Only gonna probably mount 4 at first and if I need more upgrade later.

I have two radiators because one got damaged during shipping, and I was gonna send it back, but performance-pcs.com told me I don't have to. So, I'm gonna leak test it, and if it doesn't leak, then i'm gonna mount them both. That should be enough to keep my gtx 480 cool huh?

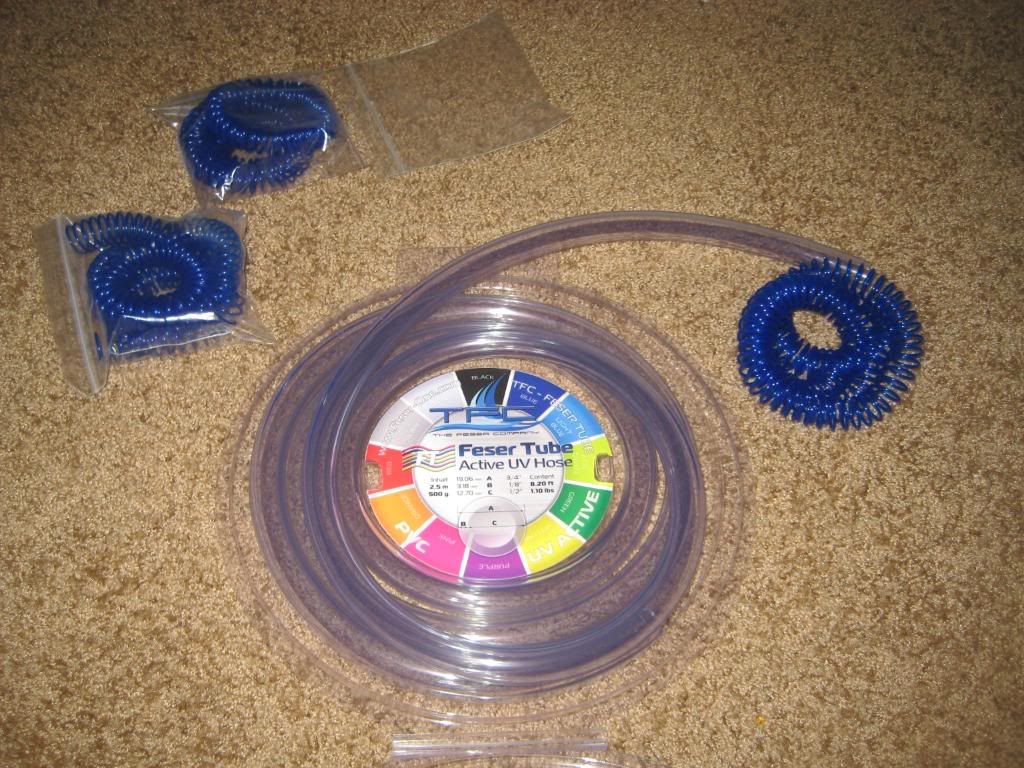

Anyways, I was trying to install the anti-kink coil on the hose, just to see how to do it, but it is so tight I can barely get it on past a few coils, is there a trick to it?

Also, are there any specific torque recommendations I should use when tightening my barbs? Should I add greese or anything to the O-rings?

Still trying to figure out the loop diagram. I'm thinking, pump, gpu, radiator, radiator, reservoir. Reservoir will be highest point of the system. Does that sound good?

Anyways, here are some pics for now-







Missing component-

http://www.dangerden.com/store/product.php?productid=44...

Mine is nickel plated top, copper bottom




Should be on it's way here soon. Ordered it yesterday.
m
0
l
a b U Graphics card
April 16, 2010 4:26:14 AM

nice =)

you were one of the lucky ones.. my GTX 470 was DOA =(
m
0
l
April 16, 2010 4:09:54 PM

OvrClkr said:
nice =)

you were one of the lucky ones.. my GTX 470 was DOA =(


Sorry to hear that. You sure it was the card? I know you need at least 35 amps on the 12+ rail. You need a high end psu to run it.

Anyways hope you get your's RMA'd and get another soon. They are great cards. Everything seems soooooo smooth now. Nvidia did a great job working on getting the minimum frames up. Even when the card does get into the 30's in games like metro 2033 on max settings it still seams smooth as butter. Can't wait to get a 3d setup.
m
0
l
April 16, 2010 5:33:20 PM

My other related threads.

what is the Best coolant?

http://www.tomshardware.com/forum/258447-29-liquid-cool...

anti-kink coils?

http://www.tomshardware.com/forum/258558-29-anti-kink-c...

flow diagram?

http://www.tomshardware.com/forum/258561-29-does-flow-d...

Best coolant- pump lubrication

http://www.tomshardware.com/forum/258484-29-perfect-coo...

What caused your leak or water cooling failure?

http://www.tomshardware.com/forum/258570-29-water-cooli...

:bounce:  This Main thread :bounce:

To get back here I posted a link in my signature, just click on that, and it will bring you back to this thread.

After I get my last parts, i'll start my build and ill post my pics and everything in this thread.


If anyone has any rogue idea's that hit there brains before I start my build please let me know. Thanks.
m
0
l
April 16, 2010 8:02:49 PM

Nice review man! Congrads on the card!
m
0
l
a b U Graphics card
April 16, 2010 8:46:36 PM

dreamphantom_1977 said:
Sorry to hear that. You sure it was the card? I know you need at least 35 amps on the 12+ rail. You need a high end psu to run it.

Anyways hope you get your's RMA'd and get another soon. They are great cards. Everything seems soooooo smooth now. Nvidia did a great job working on getting the minimum frames up. Even when the card does get into the 30's in games like metro 2033 on max settings it still seams smooth as butter. Can't wait to get a 3d setup.


Yea it was a faulty card. My Psu has 62a on a single rail (TP 850w). Anyways the Egg is out of stock and it seems like they are not getting new shipments anytime soon.

E-bay has a few 470/480's that are going for almost double price, funny thing is that people are actually shelling out the cash instead of waiting.

Anyways good luck on that WC'ing project, I am eager to see the outcome ;)


m
0
l
Anonymous
a b U Graphics card
April 16, 2010 8:52:28 PM

Thats like the 5970 with 1.2K$ on ebay @ launch lmao

On water 900 should be cake.
m
0
l
April 17, 2010 1:29:19 AM

Just checked my email, Danger Den just shipped out my gpu, so I checked the tracking
and it's not scheduled for delivery until Thursday 4/22/2010.
So i'll be putting it all together next Sat or Sun.

I guess that will give me time to figure out how to get some fans.

Thanks for your replies everyone. :)
m
0
l
a b U Graphics card
April 17, 2010 1:46:00 AM

Thanks for letting us enjoy your progress. This is great stuff. I love your flow diagram/picture. Keep giving us pictures,progress. I notice some people go with old school metal mini auto clamps. I've seen what looks like a tie strap? Then I've seen something like a silver shrink wrap? What that covers and how it seals I'm unsure.
m
0
l
a b U Graphics card
April 17, 2010 1:47:19 AM

Looks like a great upgrade, also good luck on the WC loop, looks like it will be setup pretty good
m
0
l
April 17, 2010 8:46:16 PM

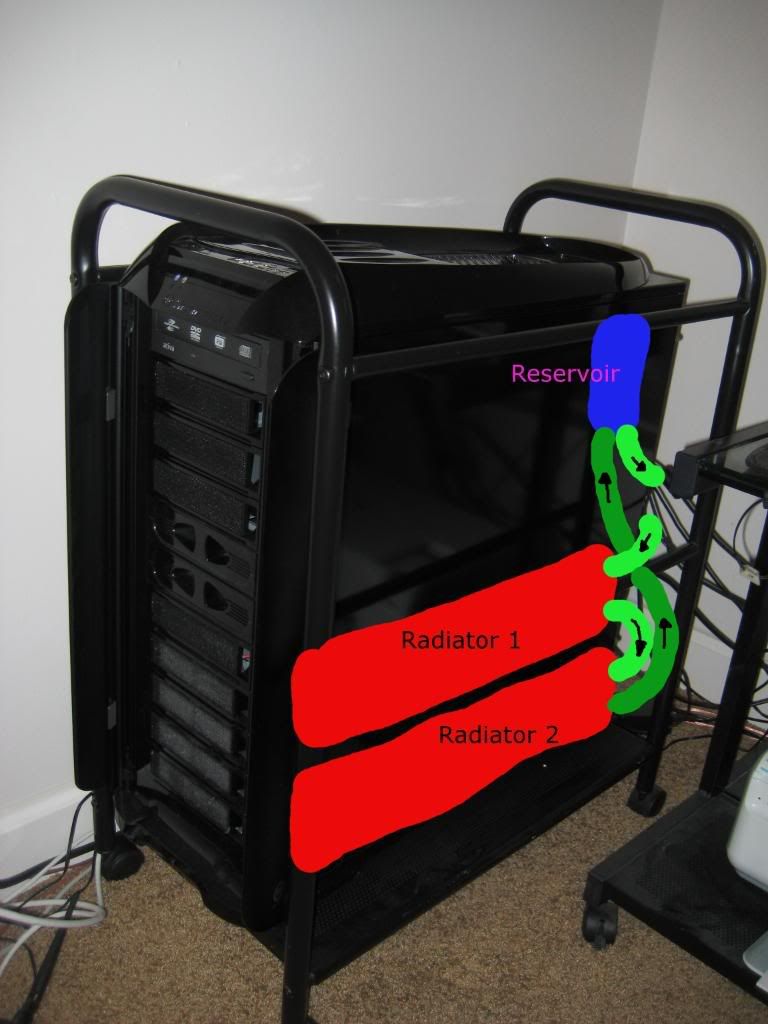

I think I'm gonna do my loop different. It doesn't matter where I put my reservoir in the loop right? I was worried about heat damaging the reservoir, but if the water temp is only a few degrees C difference then I can run my reservoir right after the gpu right?

pump >> GPU >> Reservoir >> Radiator 1 >> Radiator 2 >> Back to pump. I think the system would be much easier to bleed that way and it won't need as much tubing. But i'll mount everything in the same place, just hose it in a different order.

Sound good?
m
0
l
a b U Graphics card
April 17, 2010 11:18:02 PM

Everything looks good man.

Let us know what temps and clocks you achieve.
m
0
l
April 21, 2010 12:49:12 AM

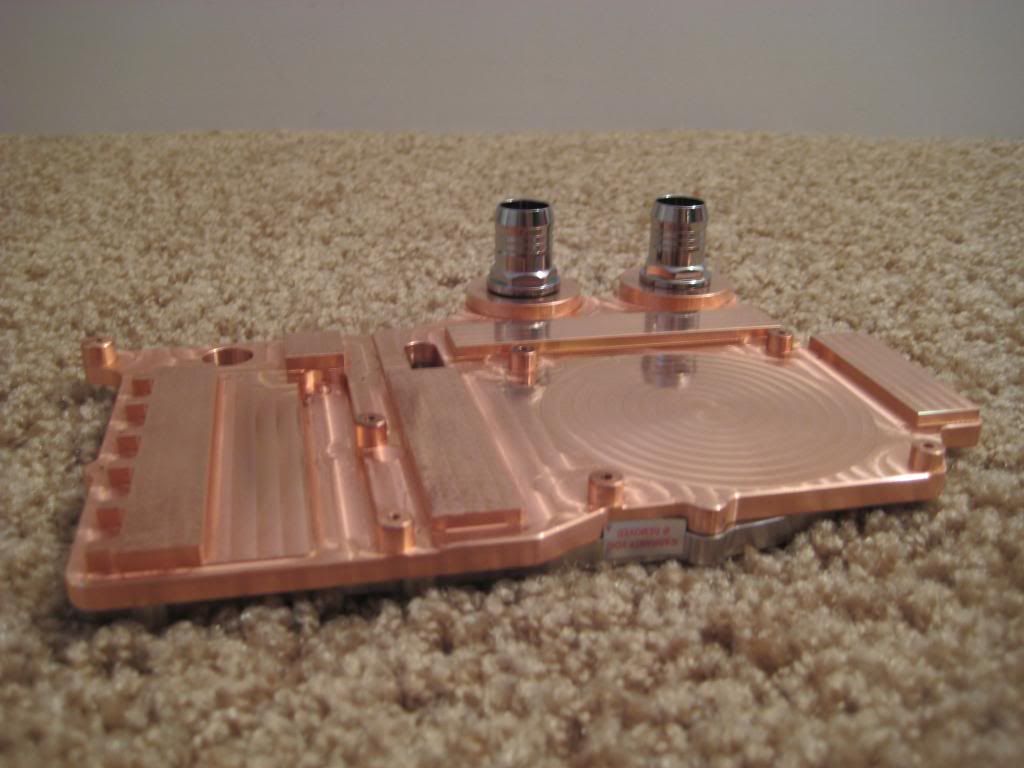

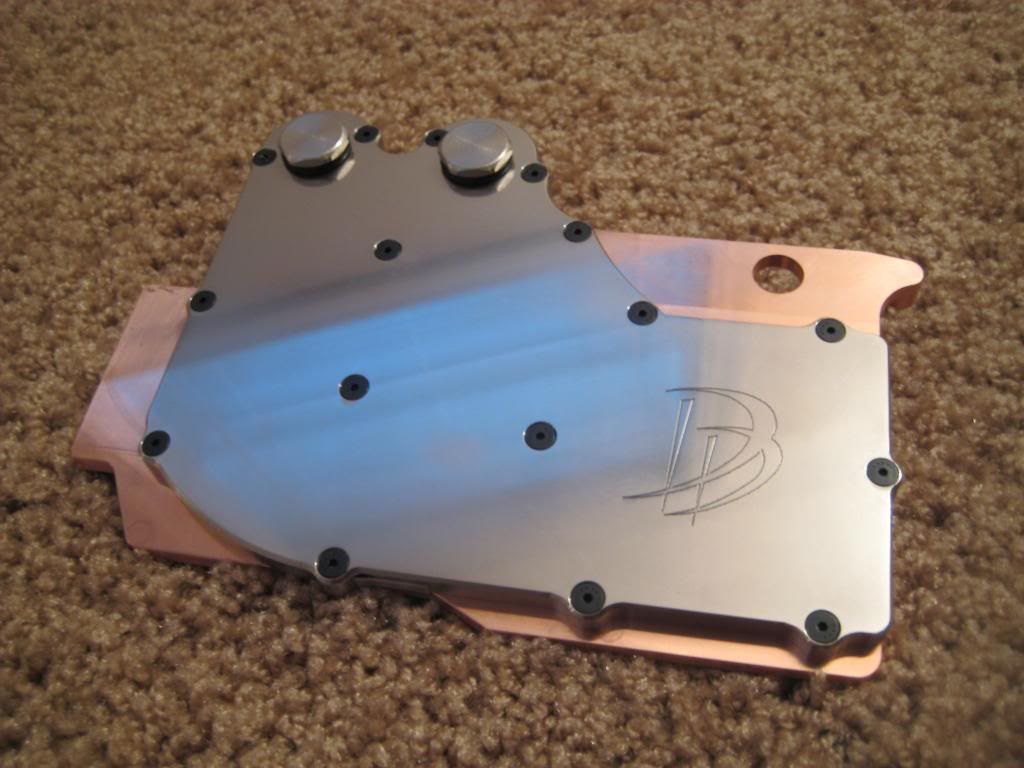

Well today I got my New Danger Den GTX 480 water block in the mail.
I'm not gonna put it all together until this weekend. Still waiting on my
fans to arrive, supposed to be in tomorrow. Just thought I'd post some pics of the block.

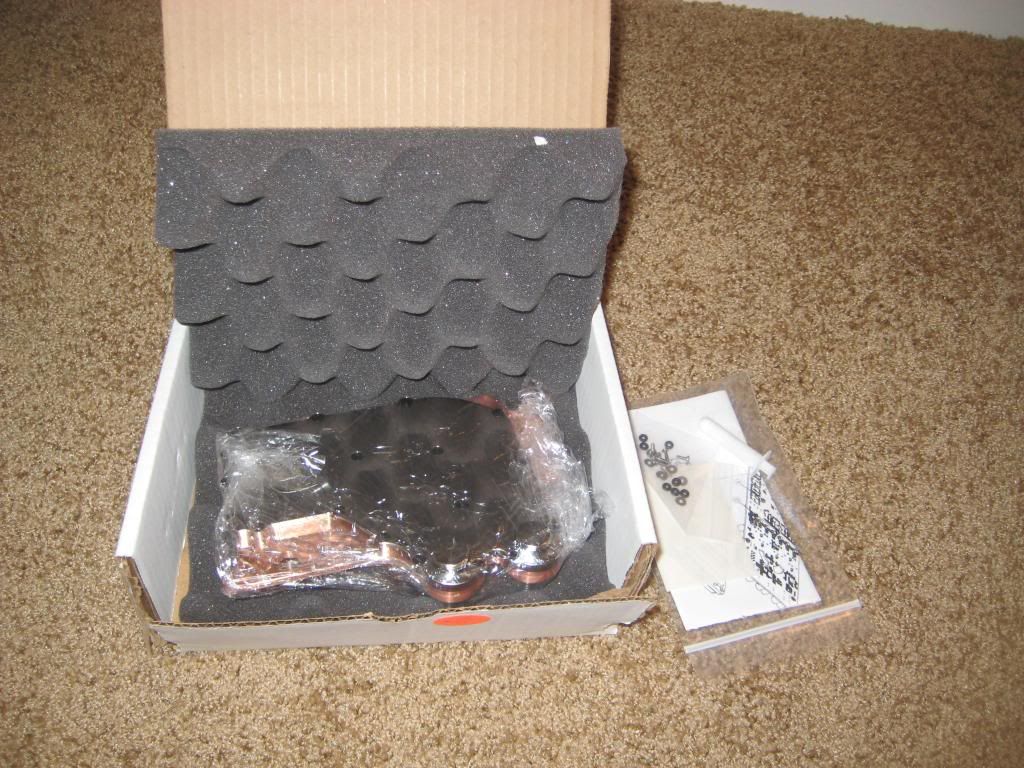

Came shipped in two boxes (sorry I threw out the big box at work), this box with gpu block wrapped in saran wrap,
with foam in small box, then small box is inside a huge box with peanuts.
No need to worry about shipping, Danger den packs there stuff very very well.
Oh, also, it arrived two days earlier then it originally was posted on fed ex tracking.

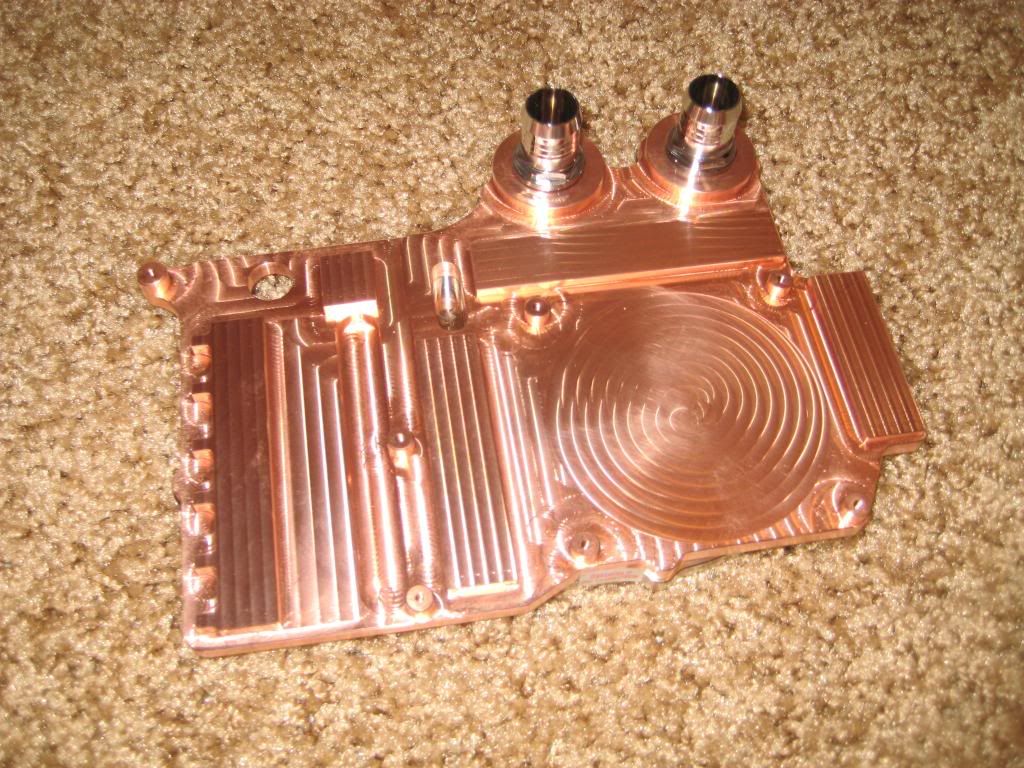

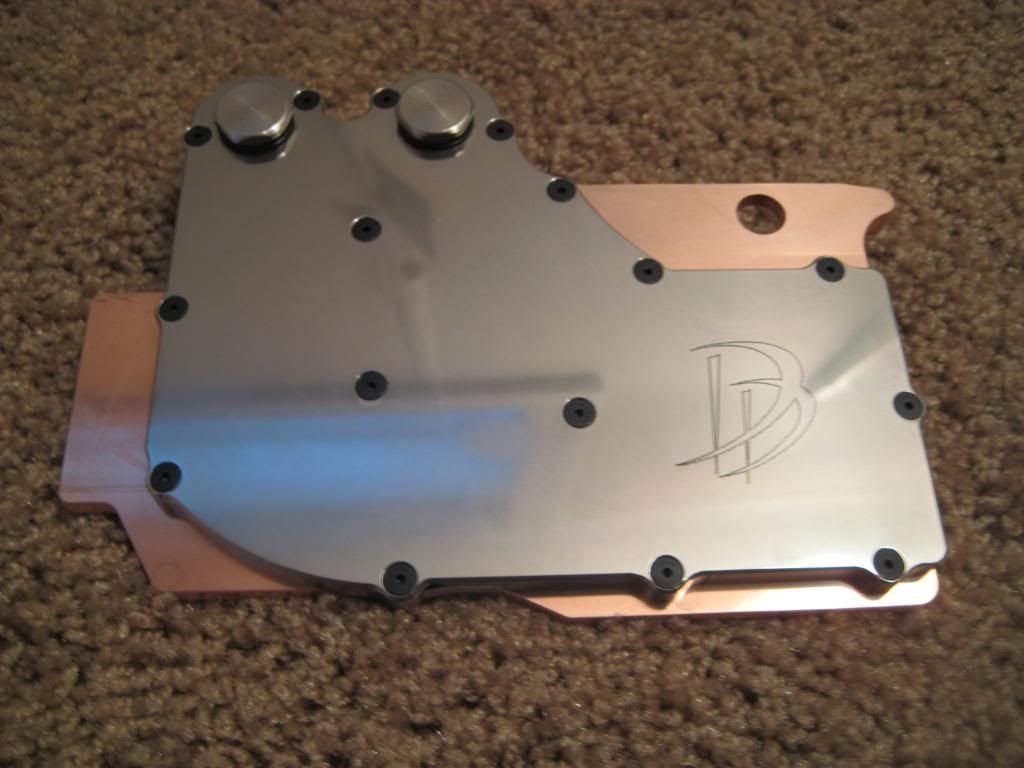

It's beautiful isn't it...:)



Block came with 1/2" barbs installed.

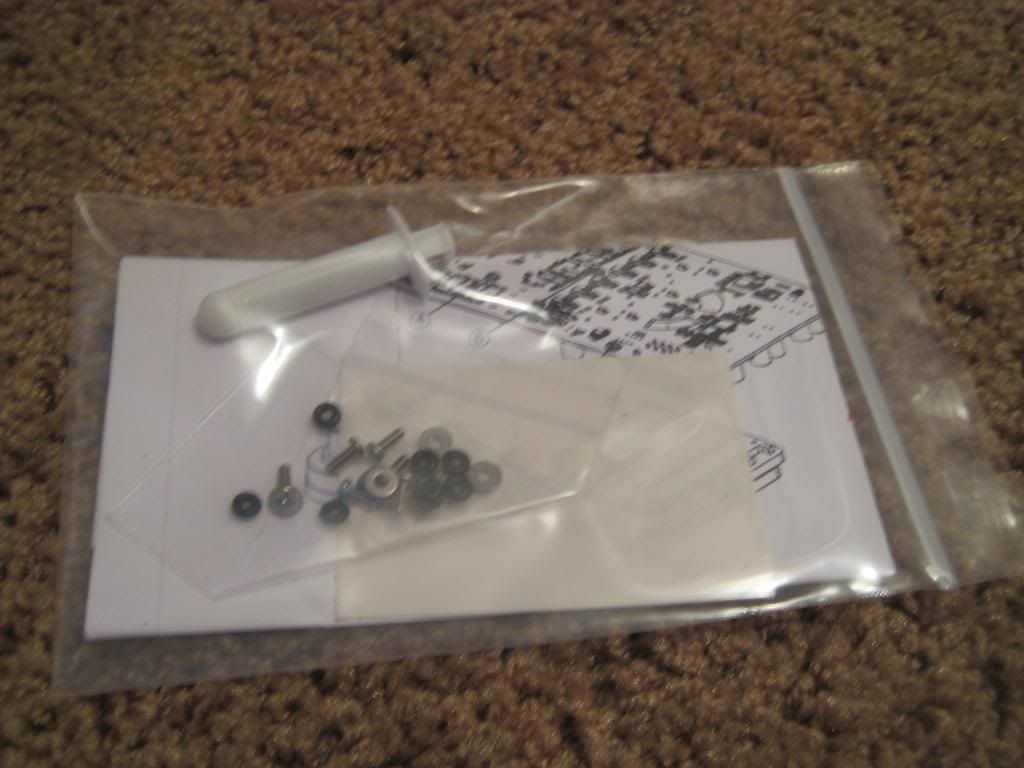

Came with instructions, screws (had to order with it), thermal paste, and thermal tape.
Everything you need to install it. There is also a video on Danger dens website showing
step by step how to remove and install the heatsinks.







Here is a link to more pics.


http://s177.photobucket.com/albums/w237/Dreamphantom_19...
m
0
l
April 21, 2010 12:52:37 AM

I'm jealous, I gave it up for another 480 lol. :p  I'm waiting to grab a good cheap 120hz monitor. :p
m
0
l
April 21, 2010 1:28:51 AM

L1qu1d said:
I'm jealous, I gave it up for another 480 lol. :p  I'm waiting to grab a good cheap 120hz monitor. :p


Thanks man. :D  Ur running 2 :o  No, i'm jealous of you.
m
0
l
April 21, 2010 1:57:51 AM

Dont be I'm running a Micro ATX its going to be like to Sumo wrestlers in my case:(  lol
m
0
l
a b U Graphics card
April 21, 2010 2:00:53 AM

Oooh, very shiny :love:
m
0
l
a b U Graphics card
April 21, 2010 2:24:04 PM

That block looks killer, cant wait to see the final outcome.
m
0
l
a b U Graphics card
April 21, 2010 2:29:10 PM

Do the people that sold you that awesome looking water block give you a game plan on converting the card over to water. What I mean is, cooling for your ram and key VR components. Thermal pads to the block ?
m
0
l
April 21, 2010 6:52:34 PM

notty22 said:
Do the people that sold you that awesome looking water block give you a game plan on converting the card over to water. What I mean is, cooling for your ram and key VR components. Thermal pads to the block ?


If you go on Danger Dens site, they have plenty of pictures, and video's explaining everything, from removal, to installation, temps, and overclocking. :)

http://www.dangerden.com/Page-2.html

Disassembly
http://www.youtube.com/watch?v=SQPD4k_kB50&feature=play...

Installation
http://www.youtube.com/watch?v=L_0w2_dXt5A&feature=play...


m
0
l
April 22, 2010 5:37:41 PM

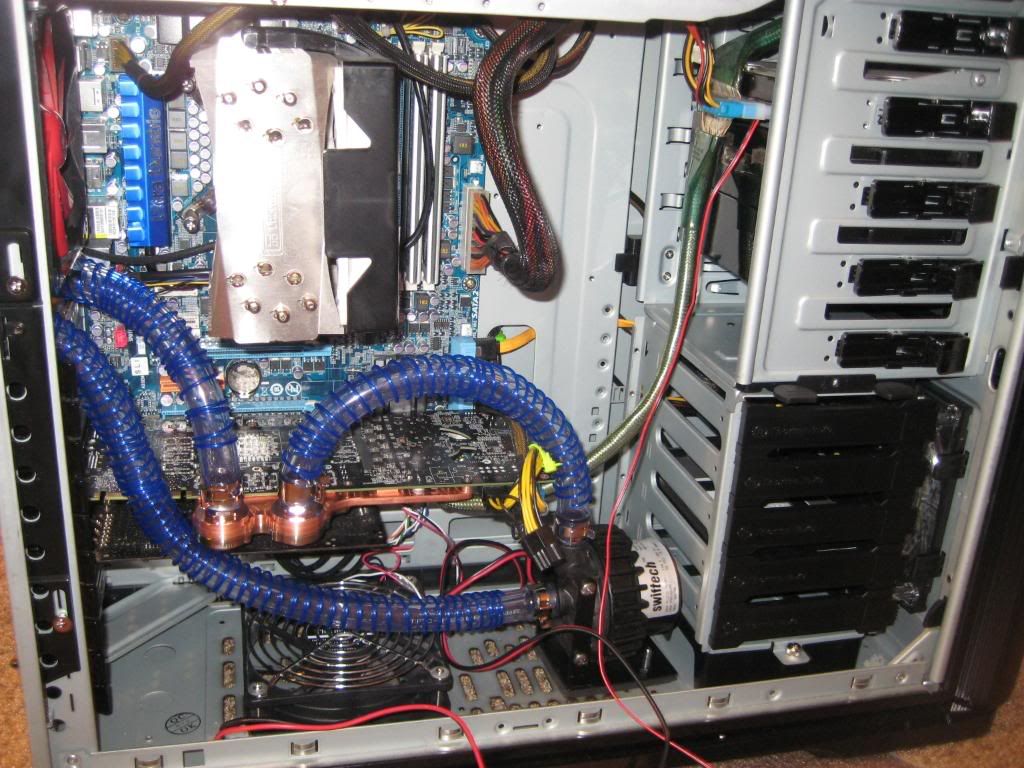

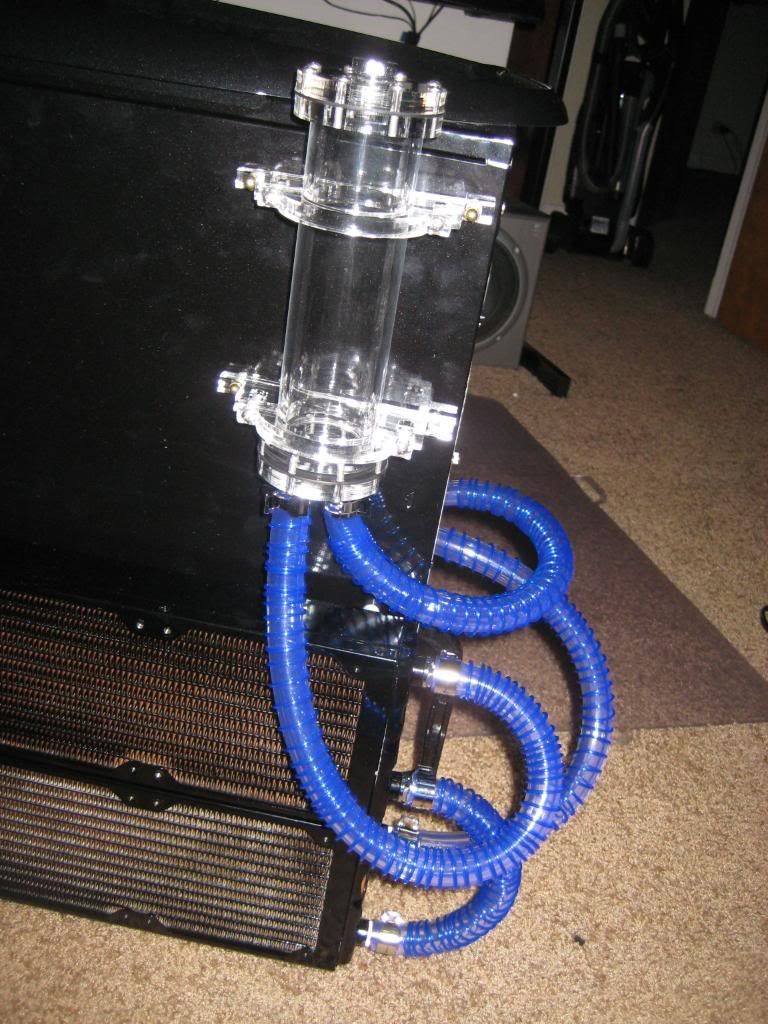

Well, Yesterday was my day off, and I got my fans in, so I decided to start my build yesterday. I worked on it from 7pm to 3am, and I am just about finished. I am at work right now, so I haven't plugged it in to test it yet. Last night and this morning I was leak testing it though, and so far everything looks good. I took a bunch of pics. I am not finished yet, I ordered 4 fans, but could only put two on, because the screws that came with the radiators were too long as they are meant to be used with radiator grills, and my fans didn't come with any, luckily I had two lying around so at least I have two fans. Gonna try getting two grill tonight and get the other fans on. Either way, I'll have it up and going tonight, and i'll post some temps and some more pics, possibly overclock. Anyways, hope ya like the pics. :)

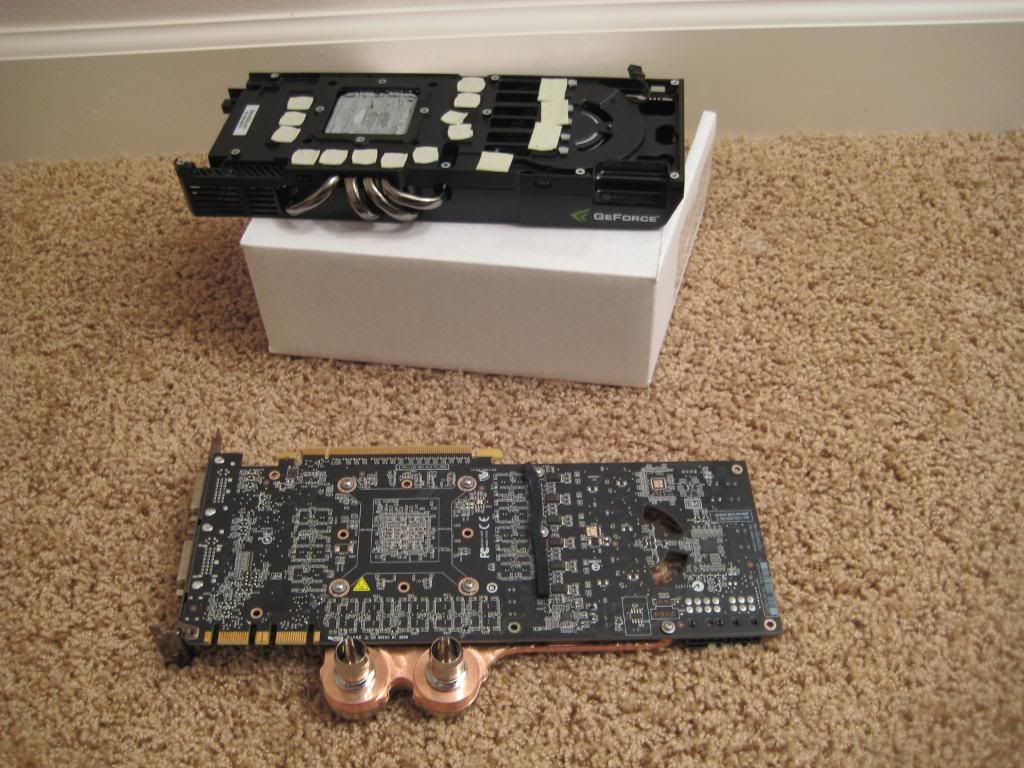

On a side note: The stock cooler for the gtx 480 was just about impossible to get off. They used threadlock on the small screws that held the cooler on. And I had to apply a lot of pressure to get the screws to loosen up. Three of the screws almost stripped out, and I was using the proper screwdriver size. In order to get it out, I had to have my wife hold the card, while I clamped the screwdriver with a pair of pliers, pushed down on the screwdriver and turned the pliars. Finally it came loose. I thought I would have to drill them out. Hopefully the card didn't crack or anything :ouch:  . I guess I'll find out tonight.

All pics
http://s177.photobucket.com/albums/w237/Dreamphantom_19...

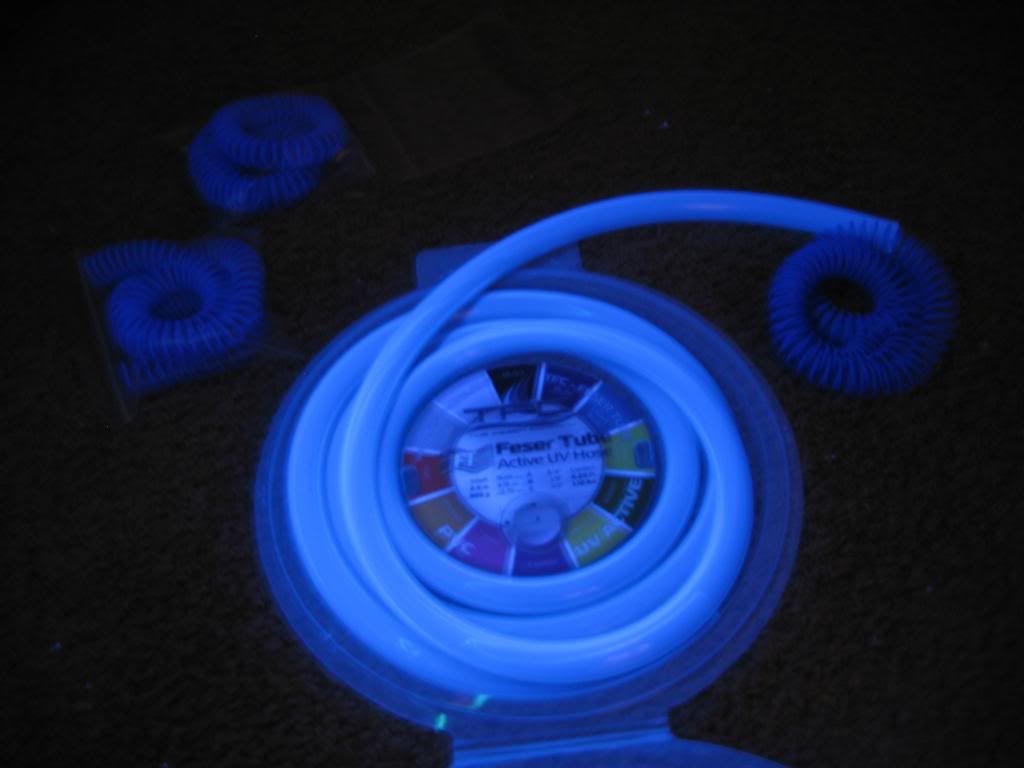

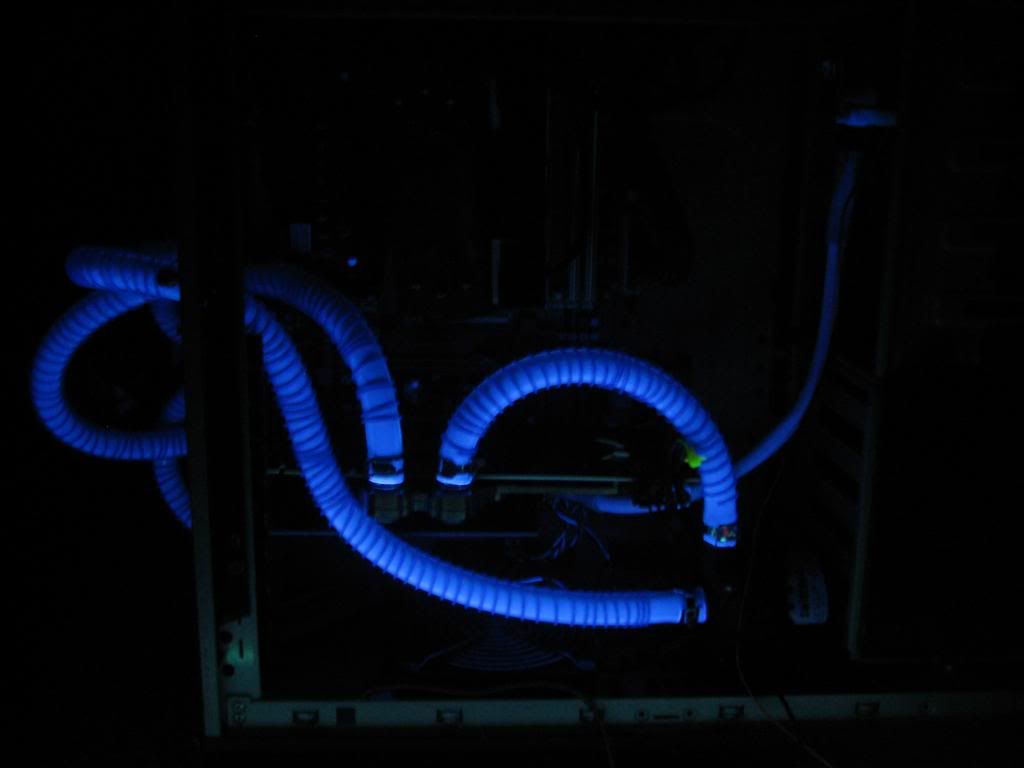

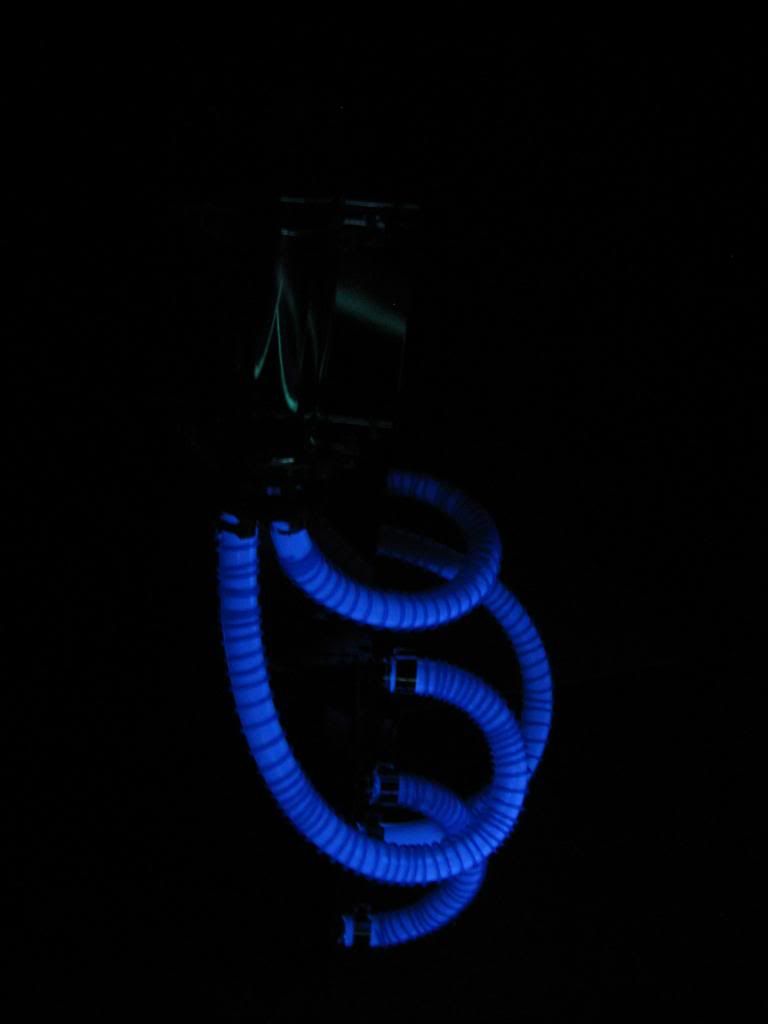

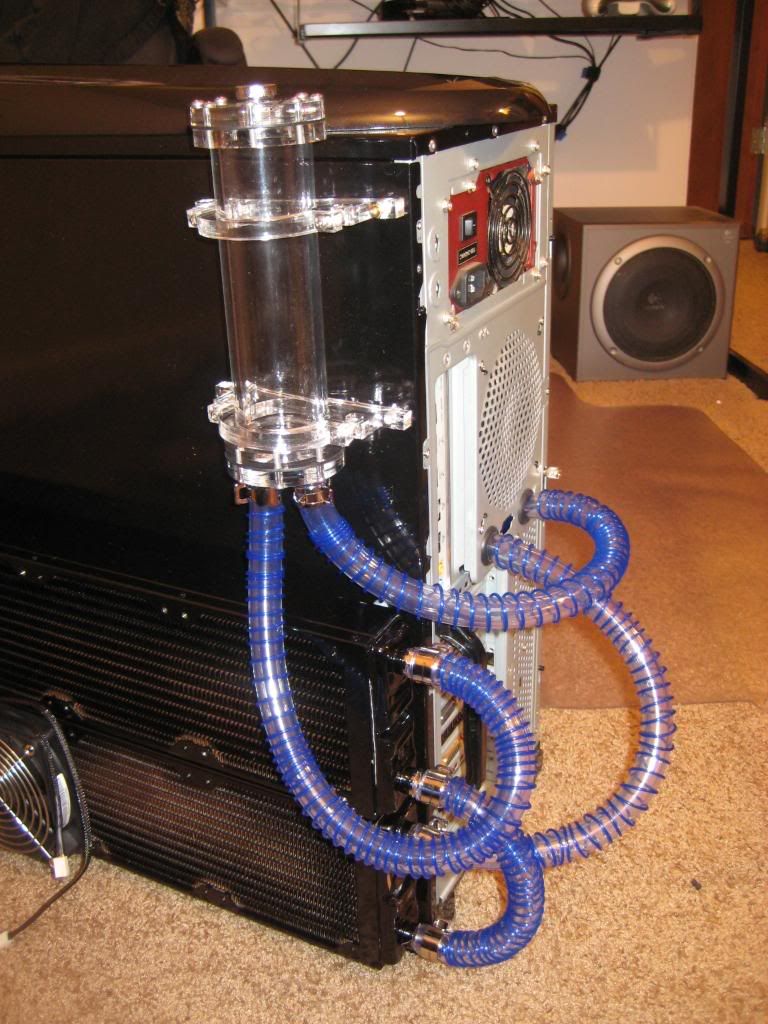

U.V. Pics, I put my black light by the case, no pics with fluid in it yet i'll take some tonight.






m
0
l
April 22, 2010 5:50:43 PM



I wanted to post 11 pics but the forums only allow 10 per post so here is the eleventh. :)

When I bought the case I wanted to get it the inside powder coated metal flake blue or emerald green, but unfortunately I didn't have enough to have it sent out to have done, and there is no place I could find around me that does powder coating. So, hopefully that will be a future project.
m
0
l
April 22, 2010 6:14:45 PM

dude this sh!!Ts insane
m
0
l
a b U Graphics card
April 22, 2010 6:57:13 PM

Aww your running a dyed liquid. Straight water is the way to go.

Are the anti kink coils really necessary? I mean under what circumstances would they ever kink.
m
0
l
April 22, 2010 7:20:11 PM

rofl_my_waffle said:
Aww your running a dyed liquid. Straight water is the way to go.

Are the anti kink coils really necessary? I mean under what circumstances would they ever kink.


Well, I am running HydrX because one of the guys from toms hardware team suggested using it, and he said he ran it in his system for 2 straight years with no problems with sludge buildup, algae or corrosion. I'm really not worried about the dye in it, Although I would have rather had blue or clear to match my tubing. Either way, If I want to change it later on it's only a drain away, no big deal. :)


I actually put the anti-kink coils on hoping they would help with the kinks. When I started running the loop I originally wanted, the hose kinked, and the loop didn't do anything to stop it from kinking, so I ended up changing my loop configuration. I'm thinking, I would need metal loops of internal loops to stop it from kinking. Either way, I like how it looks with the anti-kink, I love the blue. To each his own I guess.

Thanks for your posts. :D

Can't wait to get home and test it out.


EDIT: oh, just so you know, the bottom pics in the above post are empty loops. The hose is uv blue, and when I shine my 3 foot U.V. light on them it turns almost solid blue color. I did check out how it looked last night with the U.V. green in them, they actually turn almost a solid white color, while the coolant in the reservoir turns green. It looks really cool in person actually. Hopefully they will come out with a clear or UV blue HydrX in the near future.
m
0
l
April 22, 2010 7:27:41 PM

Wait water? Doesn't reg water have a high evaporation rate and less heat is needed to change the temp of water compared to coolant? Its like putting water in an engine than water coolant. It will heat up if temps go over 100 Degrees, even with the fans.

I forgot the scientific word for high heat capabilities when talking about materials. (heat resistance and how much it takes to change the temp of a certain object...damn grade 11 Science...yrs back:( )

I think u should most likely use water to clean out the system and use either 50/50 coolant (Although I think most users use around 10-20% coolant) or depending on the pump power more or less coolant.

I might be mistaken though!
m
0
l
a b U Graphics card
April 22, 2010 7:30:44 PM

Sometimes hose will want to flatten after 'time' especially at the apex of a curve. I've seen that happen. I think it looks cool. I only recenlty realized people were making the water glow, its novel + cool.
m
0
l
April 22, 2010 9:41:39 PM

L1qu1d said:
Wait water? Doesn't reg water have a high evaporation rate and less heat is needed to change the temp of water compared to coolant? Its like putting water in an engine than water coolant. It will heat up if temps go over 100 Degrees, even with the fans.

I forgot the scientific word for high heat capabilities when talking about materials. (heat resistance and how much it takes to change the temp of a certain object...damn grade 11 Science...yrs back:( )

I think u should most likely use water to clean out the system and use either 50/50 coolant (Although I think most users use around 10-20% coolant) or depending on the pump power more or less coolant.

I might be mistaken though!


Oh, i'm sorry, I meant I am running HydrX plus distilled water. I'm actually running less HydrX than It specifies. On the bottle it says add 1 bottle to .5 litters. I have added 1 1/4 bottle to 2 liters (aprox. 1/2 gallon) of distilled water (should be using 4 bottles according to the bottle). I am planning on adding the rest of the second bottle when I get home (i was waiting for leak testing first), but either way, it's mostly distilled water.

m
0
l
a b U Graphics card
April 23, 2010 3:12:01 AM

Mad props man.
m
0
l
a b U Graphics card
April 23, 2010 3:17:20 AM

Yeah, can't wait. Hope it all works well.
m
0
l
April 23, 2010 5:37:25 AM

Well, I after work I stopped at my best friends house, and he gave me two fan grills so I could mount the fans. Took me awhile but I wired up all the fans, and leak tested it for another two hours. Anyways, I finally got the system up and going, and everything is going great. :D
I didn't take many pics, only a couple, but I did manage to run some temp tests. I ran msi afterburner and kombuster on extreme burn in, anyways here are my temps.

Kombuster extreme burn in @ 1600 x 1200 for 1/2 hour
Max temps = 55C GPU and 39C for PCB

To get the minimum I wrote the temps down when the computer was up and running idle for a few minutes, and then after combuster I let the computer sit and seen how long it took to drop back down to those temps. I didn't time it, but it only took a couple of minutes.

Min temps = 32C GPU and 28C for the PCB

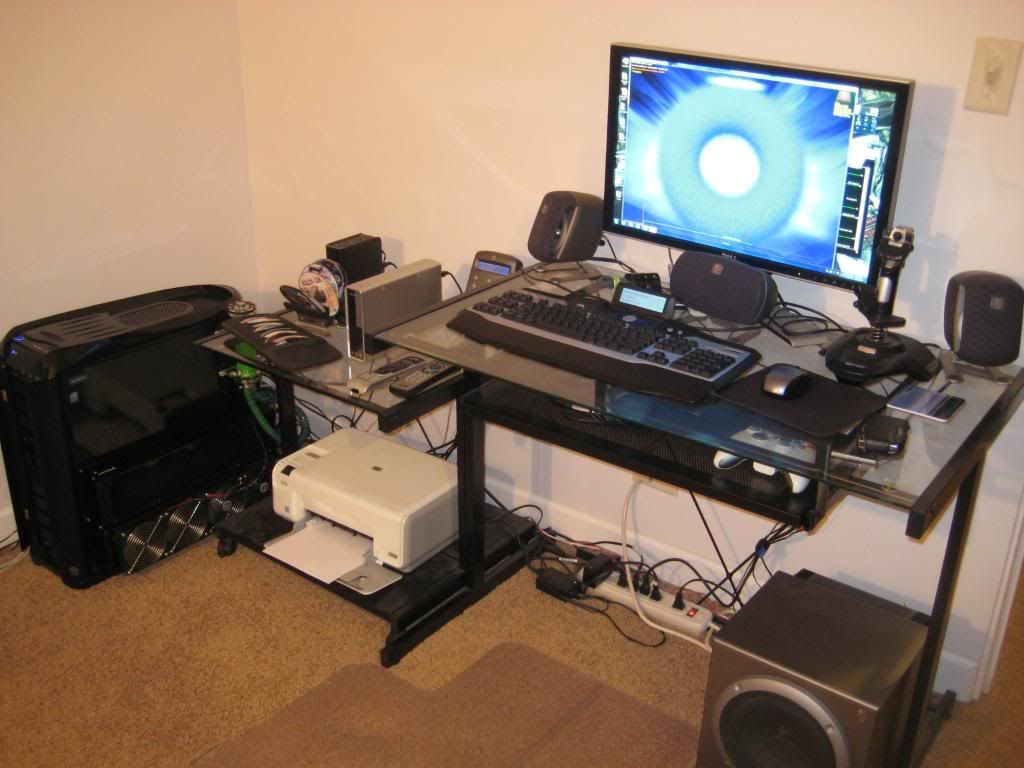

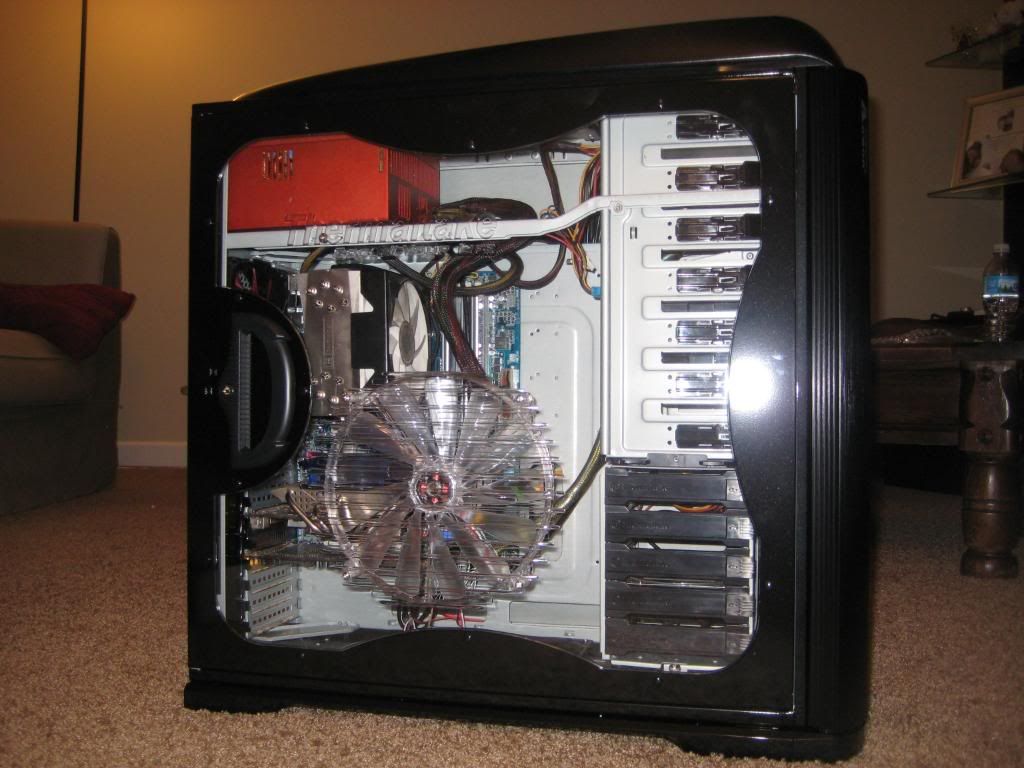

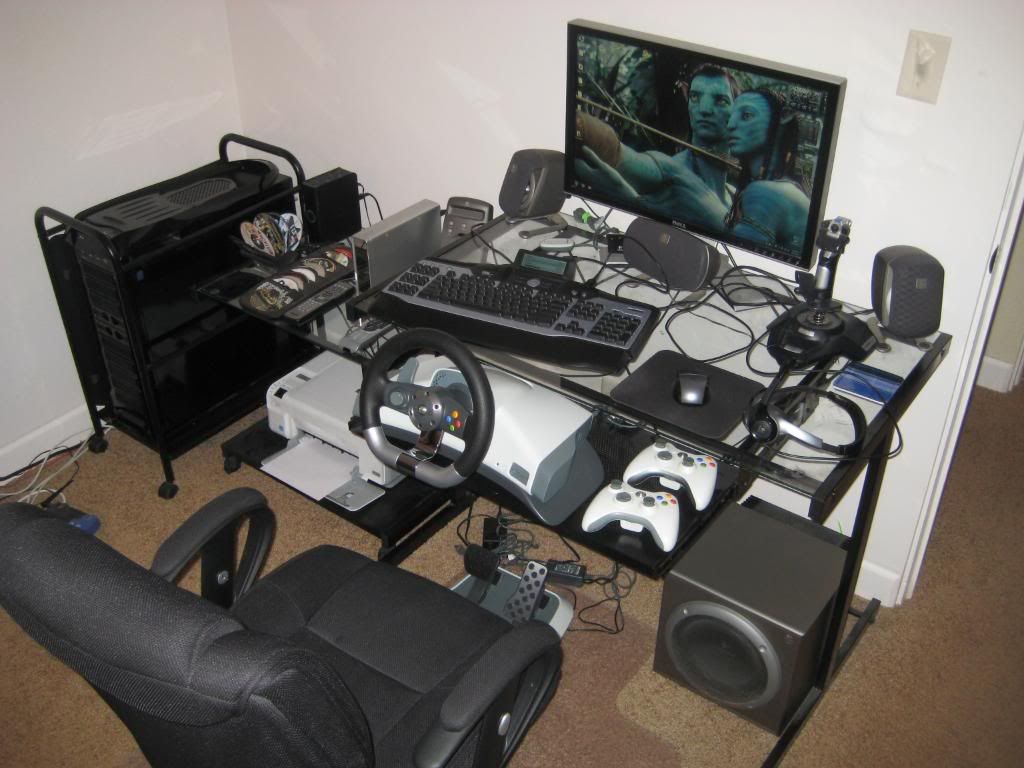

Anyways, i'll probably do some more testing tomorrow. Here are a few pictures. Hope ya like them. :)

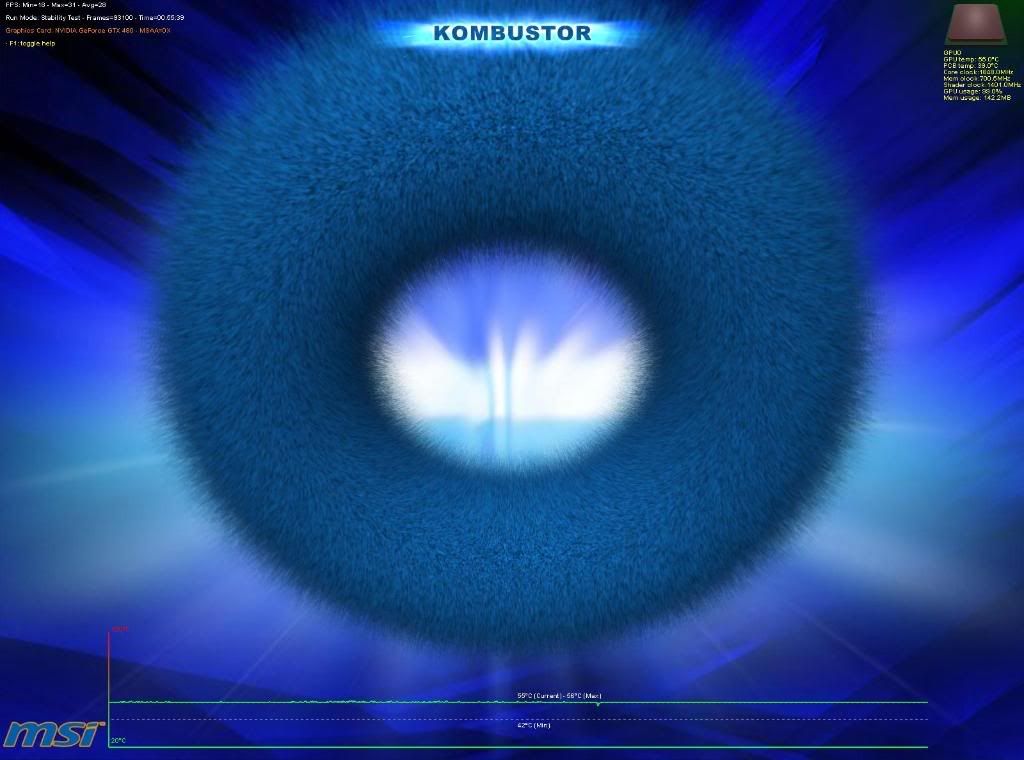

Kombuster screenshot taken @ 1/2 hour mark








m
0
l
April 23, 2010 7:16:06 AM

Very nice. Impressive
m
0
l
April 23, 2010 11:35:26 AM

GOOD:D
m
0
l
a b U Graphics card
April 23, 2010 12:15:28 PM

Wow! That is awesome.
m
0
l
a b U Graphics card
April 23, 2010 1:08:17 PM

That is very impressive. What kind of clocks can you get on that?

Im using a single 360 radiator and my 5970 + i7 + north bridge. The 5970 barely breaks 30 and the i7 averages at 45. Suprised that using two 480 radiators you got over 50 with the two cards.

Pure distilled or deionized would be a better coolant because glycols have higher heat capacity but conducts heat a lot slower. Since a liquid cooling loop doesn't get anywhere near the boiling point or freezing point of water, you don't need it. Also glycols have slow down water flow. Anyway it is insignificant.

I worked with lots of coolants and hydraX was one of them. They are all the same product. Some form of glycol + dye. The dye can build up in parts of the loop if you have a highly restrictive block. But those GPU blocks look very smooth and should be fine. You aren't adding too much either. I just don't like the dyes because they stain everything like my hands and anything it gets on while providing pretty much no performance increase.
m
0
l
April 23, 2010 4:26:32 PM

DreamPhantom... Just by looking at the cooling and stuff. Did it not cost as much as a small car? lol... Should you not have just bought another 480 to get way more performance than a single 480 + liquid cooling???
m
0
l
a b U Graphics card
April 23, 2010 4:52:26 PM

Why dual 480's? A single 480 watercooled should be more than enough, especially on water where he can up the voltage pretty high w/o worrying about temps..
m
0
l
April 23, 2010 5:02:35 PM

cromedome said:
DreamPhantom... Just by looking at the cooling and stuff. Did it not cost as much as a small car? lol... Should you not have just bought another 480 to get way more performance than a single 480 + liquid cooling???


Lol, no I didn't buy a second radiator, I actually got the second one for free. What happened was one of the radiators got severely dented on both ends during shipping. I ordered it from performance-Pcs.com, and they didn't wrap it well. I sent them pictures, and was gonna send it back with an rma, I wasn't gonna use it cuz I was worried about leaks, but they told me I could keep it, and sent me another one. Which, by the way, also came with a couple of small dents. Neither were packaged well.Speaking of performance-Pcs.com, I have used them before, and never had trouble, and they have great stuff, so I highly recommend them, just tell them to wrap your radiator good when you order, they have a note section in the order form.

Anyways, I decided that if they didn't leak then I would use them, so I leak tested them both, and neither leaked, so I ended up using both. I didn't do it just for cooling a single card, I knew I wouldn't get better performance out using an extra one with a single card. Anyways, I decided to add two radiators because I want to upgrade down the road and figured I'd get the work out of the way so i'd be set when I upgrade. I decided I want to upgrade to a cpu water cooler, and add another gtx 480 when I can afford it.

Besides, I get the extra benefit of being able to run the fans on a lower speed if I want so it will be quieter, and I can crank down the pump so it will last longer and still get decent temps. (I can also add more fans to the top radiator if I decide to)

Plus I think it looks cool.

rofl_my_waffle said:
That is very impressive. What kind of clocks can you get on that?

Im using a single 360 radiator and my 5970 + i7 + north bridge. The 5970 barely breaks 30 and the i7 averages at 45. Suprised that using two 480 radiators you got over 50 with the two cards.

Pure distilled or deionized would be a better coolant because glycols have higher heat capacity but conducts heat a lot slower. Since a liquid cooling loop doesn't get anywhere near the boiling point or freezing point of water, you don't need it. Also glycols have slow down water flow. Anyway it is insignificant.

I worked with lots of coolants and hydraX was one of them. They are all the same product. Some form of glycol + dye. The dye can build up in parts of the loop if you have a highly restrictive block. But those GPU blocks look very smooth and should be fine. You aren't adding too much either. I just don't like the dyes because they stain everything like my hands and anything it gets on while providing pretty much no performance increase.


On the danger den site they used furmark to do a burn in test, and actually they got a max temp of 60C after 1/2 hour. I used MSI Kombuster which is actually more stressful. So I think my temps are decent for this block. Also, my thermalpaste still needs time to settle in, this morning I noticed my min temps lowered by 1C. But not sure it might be ambient that changed it.

Using distilled water will only net you a few degrees C difference. Here is a comparison showing a difference the coolant makes, only like 2-3C difference. I decided not to add the other 3/4 of a bottle yesterday, so my mix is mostly distilled water, so I'm guessing switching would only give me 1C max.

http://www.bit-tech.net/modding/2008/02/16/watercooling...

You have to take a lot into account when you are doing comparisons, I did some research, and not sure what block you are getting, but your temps seem average compared to what other people are getting with watercooling on the 5970. A few things to take into account are-

1. Way you tested
2. ambient air
3. cooling block efficiency
4. flow rates (using two radiators actually adds restriction- so I might not benefit from them until I upgrade two SLI and add on my CPU)
5. fan CFM I originally wanted silverstone 110 Cfm fans, mine only push 75 Cfm, which makes a big difference - gonna upgrade when I can afford it
http://www.newegg.com/Product/Product.aspx?Item=N82E168...
6. Radiator efficiency

How did you test your maximum temps? You should try running MSI Kombuster @ 1600 x 1200 on Extreme burnin mode and post your max temps after 1/2 hour and post some screenshots. I'm curious about your system though, can you post screens and specs?
Either way, I think both our systems are average, and you really can't compare, as you are comparing apples to oranges. Just too many variables to do a direct comparison.

But I would still love to see your system, I love pc modding. :)  do you have a link?

Everyone should post there systems pics in this thread.

http://www.tomshardware.com/forum/258655-29-pics-custom...

Either way, thanks everyone for your comments. :D  Love the feed back.

I might do a little more benchmarking & overclocking tonight and i'll post what I get, if I got time.
m
0
l
April 23, 2010 5:40:39 PM

dam straight.. it looks so jahs dude. and it would be so champ with the CPU water cooled as well..
m
0
l
!
