Modding My Case, Can't Remove Front

Last response: in Components
Share
a b ) Power supply
October 3, 2010 8:40:25 PM

The Front of the case seems to be stuck, trying to remove it and it feels like its about to break. I have an extremly cheap case, the Power Up! Case: http://www.tigerdirect.com/applications/SearchTools/ite...

Its frustrating me to no end, also, I have to be able to put it back on. Any help is appreciated.
October 3, 2010 10:47:52 PM

Computerrock1 said:
The Front of the case seems to be stuck, trying to remove it and it feels like its about to break. I have an extremly cheap case, the Power Up! Case: http://www.tigerdirect.com/applications/SearchTools/ite...

Its frustrating me to no end, also, I have to be able to put it back on. Any help is appreciated.


It looks very similar to my brother's case. I certainly have the same feeling whenever I remove the front.

I'd suggest removing the side panels (both of them) and then checking the inside of the front, to see if you can see how the front is held on.
If it is the same construction as my brother's, there should be 6-8 small plastic clips, held inside circular holes in the chassis.

You might be able to make them out in this image;

(Though this is not the case my brother has)

Also, check the bottom of the fascia, to see if there's a large gap at the bottom. If there is, it's most likely there to facilitate the removal of the front.

If you've made sure that there isn't anything holding the front securely*, grab the bottom of the fascia, through the gap, and pull. Be firm, but don't force it if there's a lot of resistance.

*If it's very cheap, the clips might be permanently attached to the chassis, which means you can't remove it by hand without breaking the clips.

It could also be that there are the flat, wedge-shaped clips holding it on, which need to be pushed inwards to release them. But that should be obvious, if you see them.
m
0
l

Best solution

a b ) Power supply
October 4, 2010 4:11:22 AM

might be a half dozen small phillips head screws holding it on. Pull sides as suggested and look to see if they're holding the front on.
Share
Related resources
a c 104 ) Power supply
October 4, 2010 6:39:57 AM

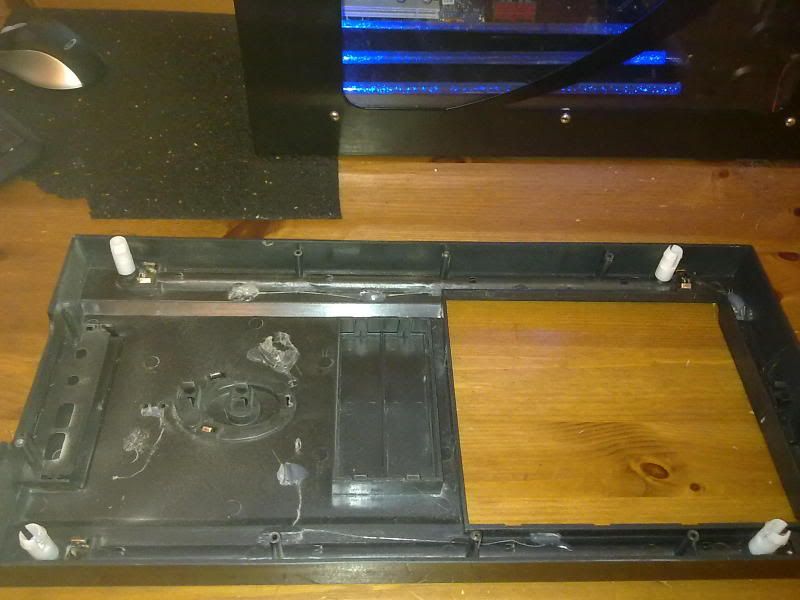

^ I'd agree with falcifer as it looks similar to my case (same side panel) look for round (possibly white) tabs at the front on the left and right side with the side panels off,might be 2 each side,possibly three as in the picture he posted, just grip each tab gently and push it towards the front till it pops out, then do any others on that side, repeat on the other side, to replace cover just check no wires are catching anywhere and firmly push the tabs back in.

you can see the tabs clearly on my pic cause there white
**Edit, P.s. whats the intended mod? :p
hope this helps,
Moto
m
0
l
a b ) Power supply
October 8, 2010 4:01:04 PM

Best answer selected by Computerrock1.
