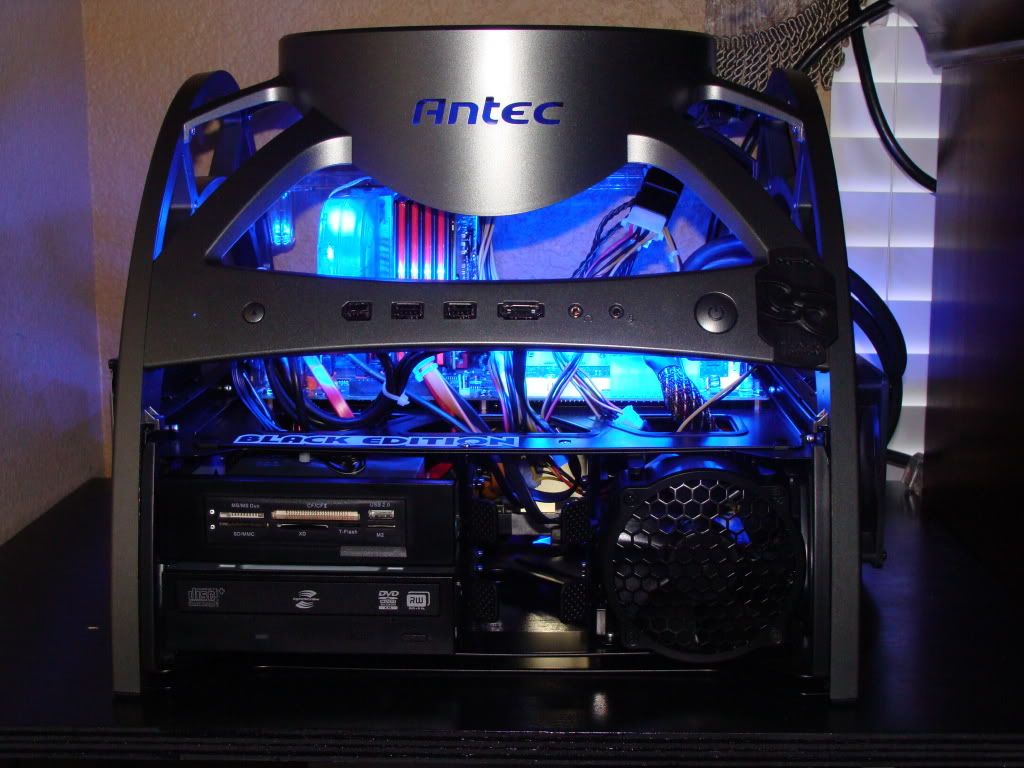

ANtec Skeleton + Antec Kuhler h20 620 It CAN BE DONE..PICS!

Last response: in Components
Share
May 31, 2011 5:11:07 AM

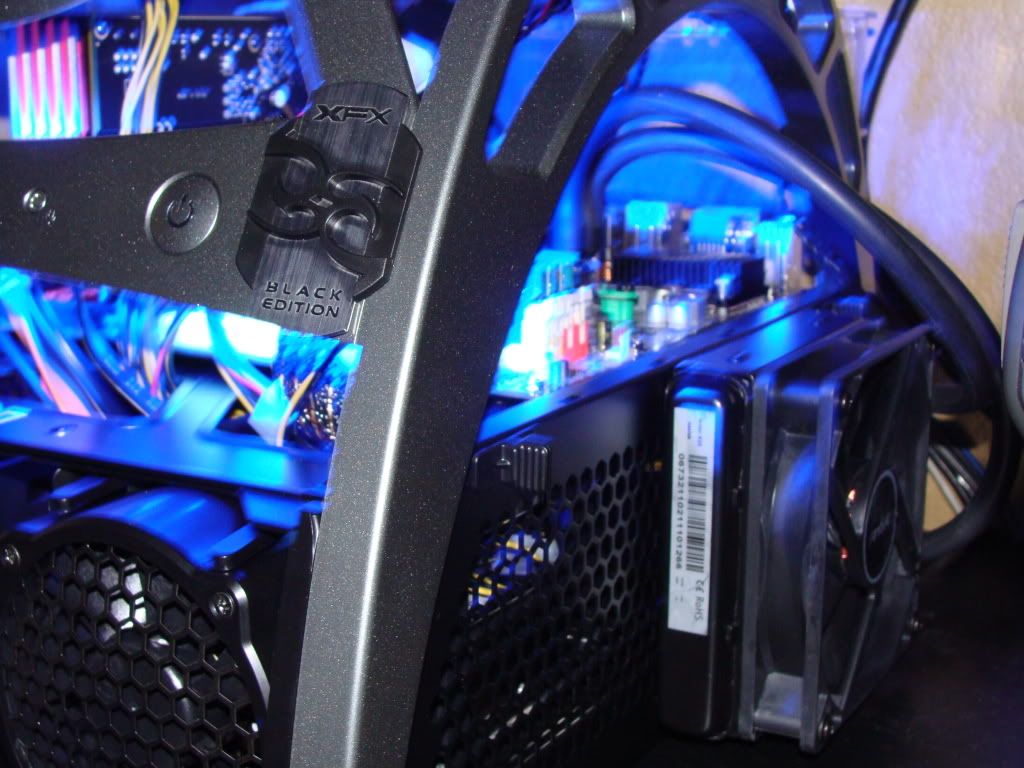

Hi everyone, Name is Ulysses/CEO of DJ's Computer Service. We just built this Simple Project PC for awesome cooling and Gaming. In simple there was A lot of debate about Antec Skeleton and a simple cooling system mounted on to it. We used Antec very own Kuhler h20 620. Very simple mod, Only drilled 4 Holes on the side panel which comes off by un-latching it. You use the 120mm Cooling fan to Mark your holes. You wanna make sure you are not blocking the latch so you can close and open the latches. We simply attached the Radiator First using hardware we found at your local Hardware store. I suggest you take the Fan to Radiator screws to match the threading. The length should be no more that 1/4 inch to mount panel to Radiator. We turned our Radiator to have the Liquid cooling line on the right side instead of the bottom for fitting purposes. No harm can come of the Radiator mounted sideways, the pump does all the work located where the CPU is. Once mounted we then mounted the Fan on the radiator. Preferably pulling the air out not pushing. The Fan located in front of the hard drives is pushing air to the back and as well as the 250mm above FAN pushing down. Then Install your CPU cooler and make sure you don't force bend the lines. They will bend on their own very easily. And THATS it. 4 simple modded holes and you have simple from the shelf Liquid Cooler. No Crazy custom kit required. You can do the Same install with a Corsair H50, H60, H70. Temp Readings playing hard on a AMD Phenom X4 9850 2.5GHZ 125w on Medal of Honor Highest settings was a whooping 39 Celsius. The system we build description is below and PICS. Any questions feel free and look us up DJ's Computer Service

Antec Skeleton
Antec Kuhler h20
AMD Phenom X4 9850 Black Edition 2.5GHZ 125W
8GBs RAM DDR2 PC2-6400
XFX ATI Radeon HD6870 Black Edition Running Triple Monitor EYEFINTY mode.





May 31, 2011 6:29:26 AM

Looks great ! :)
m
0
l
September 1, 2013 4:44:54 PM

Looks awesome! I have cats, so that kind of setup wouldn't work for me.... :(
