Solved

Adding lights/UV to a new case.

Case: Silverstone Raven RV03b-w (black w/ window)
UV reactive parts:
HIS H577QT1GD - HD5770 w/ IceQ 5 design -- mounts vertically because the motherboard is rotated 90 degrees towards the front.
Parts w/ lights:
Antec TruePower-New 750-Blue -- very subtle blue glow from PSU fan, but it will be bottom mounted near the front of the case.
Zalman CNPS 9900A LED -- blue LED lit center fan w/ copper heatsink fins

Nothing else is lit up or reacts to UV (yet). I was thinking about adding the Logisys dual 12" UV cold cathode kit.

Thank you for the input.

==========(Photos added 06/14/2011)==========
http://i1128.photobucket.com/albums/m489/ChromeTusk/Builds2011/th_0610110154.jpg Case open, room lights on

http://i1128.photobucket.com/albums/m489/ChromeTusk/Builds2011/th_0610110156.jpg Case closed, room lights off
17 answers Last reply Best Answer
More about adding lights case
  1. Does anyone know how an LED fan would affect the UV lighting?
  2. The current draw is minimal so no issue there,
    its basically down to taste of where you want the lights to shine
    Moto
  3. Motopsychojdn said:
    The current draw is minimal so no issue there,
    its basically down to taste of where you want the lights to shine
    Moto

    I wanted to add UV b/c the video card is UV reactive and I heard it looks awsome. I also have 2 spare Antec Tri-Cool blues, but I do not know how it will affect the UV on the video card.
  4. Ah, I misunderstood lol,
    it may brighten up the case a little, but as its not uv light it wont make them glow I'd have thought
    Moto
  5. Motopsychojdn said:
    Ah, I misunderstood lol,
    it may brighten up the case a little, but as its not uv light it wont make them glow I'd have thought
    Moto

    My main concern with adding my spare fans is drowning out the UV lighting. On my old case, they got pretty bright. The LED glow from the PSU and CPU cooler are fairly soft so they should not negatively affect UV lighting.
  6. Best answer
    You could snip the led wires or if you want the leds lit,
    you can solder a resistor onto the led power wires, not the main power as that would slow the fan itself
    Moto
  7. Motopsychojdn said:
    You could snip the led wires or if you want the leds lit,
    you can solder a resistor onto the led power wires, not the main power as that would slow the fan itself
    Moto

    Thanks for the input. Guess I'll just have to use trial and error. I'll post pictures when I have a chance.
  8. Cool, look forward to them :)
    Moto
  9. ChromeTusk said:
    My main concern with adding my spare fans is drowning out the UV lighting. On my old case, they got pretty bright. The LED glow from the PSU and CPU cooler are fairly soft so they should not negatively affect UV lighting.

    I added photos of the current build to the OP.

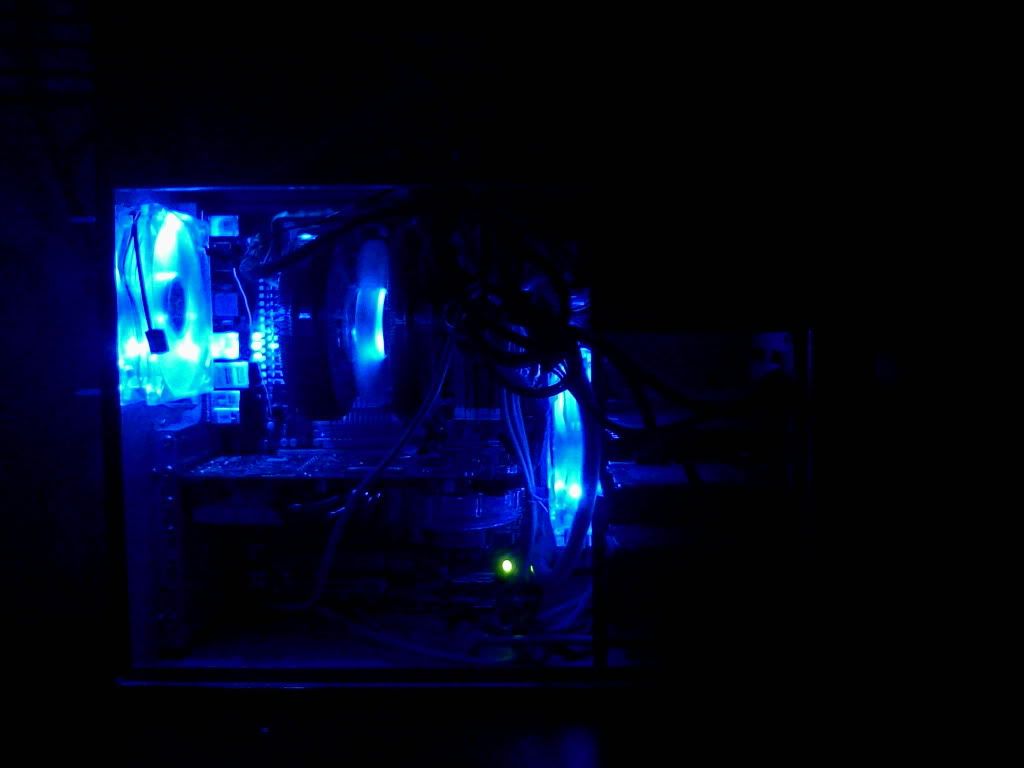

    Inside the old case with the room lights off
  10. The best pic there imo is the last one, of the old case :-)
    Moto
  11. Nice :)
    I'm not one for U.v. personally but that 5770 looks great
    I only have subtle lighting in my current rig, a triple lightbar I built myself, one led fan on the cpu (Whitelight on orange blades) and one 120mm blue led fan at the front, the Psycho Rider build will only have 2 cold cathodes inside, and two T-virus cathode reservoirs http://www.frozenqpcmods.com/lf.php but the cathodes not the focus of those, its the tubes themselves for my purposes, they'll work, but I'm dimming them off the fancontroller (if I can make that work :P)
    Nice looking build though you have
    Moto
  12. Got a new camera and took some new photos. Check out the upgrades :bounce: on Photobucket. I posted some of them on page five of :bounce: Tom's Hardware Member System Gallery.
  13. Do yourself a favour and buy UV reactive blue SATA cables. They look extremely sick when coupled with UV lighting, it's something to witness! They are quite cheap as well, no more than $5 for a cable.
  14. Toxxyc said:
    Do yourself a favour and buy UV reactive blue SATA cables. They look extremely sick when coupled with UV lighting, it's something to witness! They are quite cheap as well, no more than $5 for a cable.

    Due to a stripped screw connected to one of the 3.5" adapters, I had to mount the BR drive at the top 5.25" bay. The original cable barely streched to fit :fou: , so I bought a replacement. If you look closely at this picture, http://i1128.photobucket.com/albums/m489/ChromeTusk/Builds2011/th_DSC00424.jpg, you should see a long blue UV cable snaking from the lower left to the drive in the upper right. I love the way they react :sol: and I might get some sleeves for the cables that are too short to hide (like the USB/card reader cables below the video card).
  15. Best answer selected by ChromeTusk.
  16. No more updates until the end of this year. Thank you for the imput.
    The complete build as of June 2011.
