Best way to mod case to have a top fan?

Last response: in Components
Share
January 13, 2012 7:31:07 AM

Hey everyone.

What would be the best procedure to carry out in order to add a fan on the top of my case, even though the case does not have a slot for a top fan.

Thanks

Andy

More about : mod case top fan

a c 111 ) Power supply
January 13, 2012 7:41:22 AM

Go to garage, get saw, cut out dimensions of the fan you want to put in.
a b ) Power supply
January 13, 2012 7:43:39 AM

With a drill. In the place where you want to mount the fan give some holes with 5-6mm drill. The holes for the fan screws must to be smaller than screws..Measure them.
Related resources
January 13, 2012 7:48:12 AM

Hmm yeah thats a good idea. I'll take that into account. Thanks guys :)
January 13, 2012 8:25:35 AM

Depends on the case.

Post a picture or link to the case in question so we can better help.
a b ) Power supply
January 13, 2012 8:49:12 AM

Buy a Dremel.
a c 104 ) Power supply
January 13, 2012 9:07:23 AM

A Holesaw, dremel or normal drill bit can all be used,
if you want the large hole, use a holesaw or dremel to cut out the metal,
or another option is to mark the four screwholes out, and drill lots of smaller holes inside the fans circumference,
Uther has a great topfan mod on one of his builds,

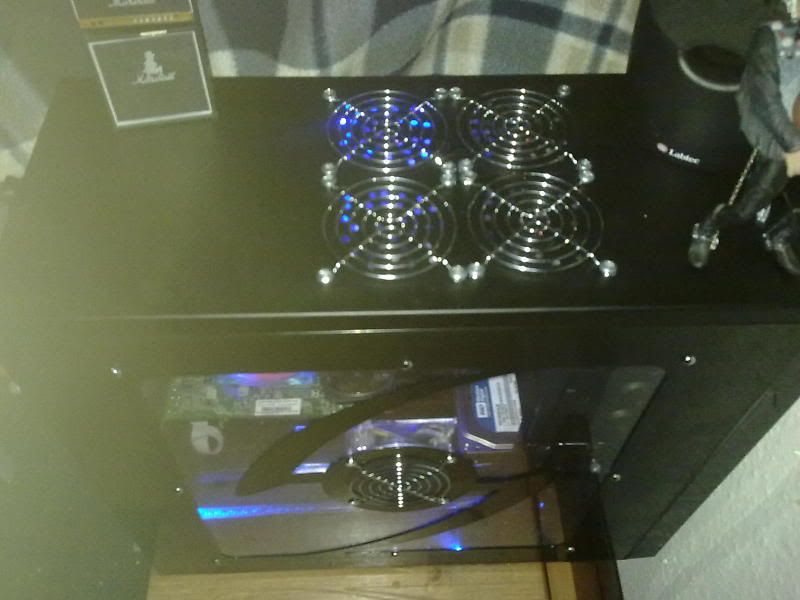

and heres my method for four 80mm fans in a roof


it all depends how much time/effort you are wanting to put into this and how 'cool' you want it to look
Moto
a b ) Power supply
January 13, 2012 9:25:23 AM

Heres my top mod.



a c 104 ) Power supply
January 13, 2012 9:35:45 AM

Cheers Bro, I didn't have time to go trawling and find a pic :)
Btw Op, we both used the same case there
Moto
a b ) Power supply
January 13, 2012 9:49:57 AM

Kind of wishing id never sold that case mod.. :(
January 13, 2012 10:00:28 AM

@uther39 surely that's rather inefficient for cooling?

The bottom fans won't do much due to there location. Depending on how the top fan is setup (push/pull) its potentially forcing how air over the cpu heatsink (heating it more) then into the psu which pushes the hot air out of the back instead of the top.
Then the side fan adds even more confusion into the mix.
a b ) Power supply
January 13, 2012 10:14:06 AM

The design works very well indeed using the heat rises principle and also by achieving +ve cool air pressure inside the case, so you have 2 x 120mm fans at the bottom of the case drawing cool air in and up over all the components, also the side fan blowing cool air straight onto the GPU, then you have the cpu fan and rear case fan exhausting hot air, with the top fan exhausting any hot air lingering at the top of the case.

The proof is in the pudding, i managed to have a 955 x4 in the rig OCd to 3.8ghz, idling at 22c and only 52c on small fft test after 6hours, ambient room temp of 19c.
a b ) Power supply
January 13, 2012 10:16:06 AM

Remember the issue on this case is that it has not front intake fans, or space for them so i had to mod the case so it was like a chimney, cool air in at the bottom hot air out of the top, pretty much stole the idea from Silverstone cases.
a c 104 ) Power supply
January 13, 2012 11:28:24 AM

I have/had a few front intakes on mine Uther,
2x80mm in the front spaces provided, and a 120mm in the optical drive area, but as you said, your convection method is based on basic physics and has a headstart on other methods :)

Moto
January 13, 2012 11:31:24 AM

Ah it just looked a little flush to the ground for me.
a b ) Power supply
January 13, 2012 11:46:53 AM

AHA, thats because you have not seen the under side yet, here you go, notice ive used aluminium drawer knobs as the feet which gives 4.5 cm clearance from the ground plus the fans are filtered to stop them acting like a vacuum cleaner.

a c 104 ) Power supply
January 13, 2012 2:31:46 PM

I saw laxy3 at the end of the link and laughed, you have the same case...... :)
Moto
a c 104 ) Power supply
January 17, 2012 5:38:27 PM

Hows it going Andy? Any progress?
