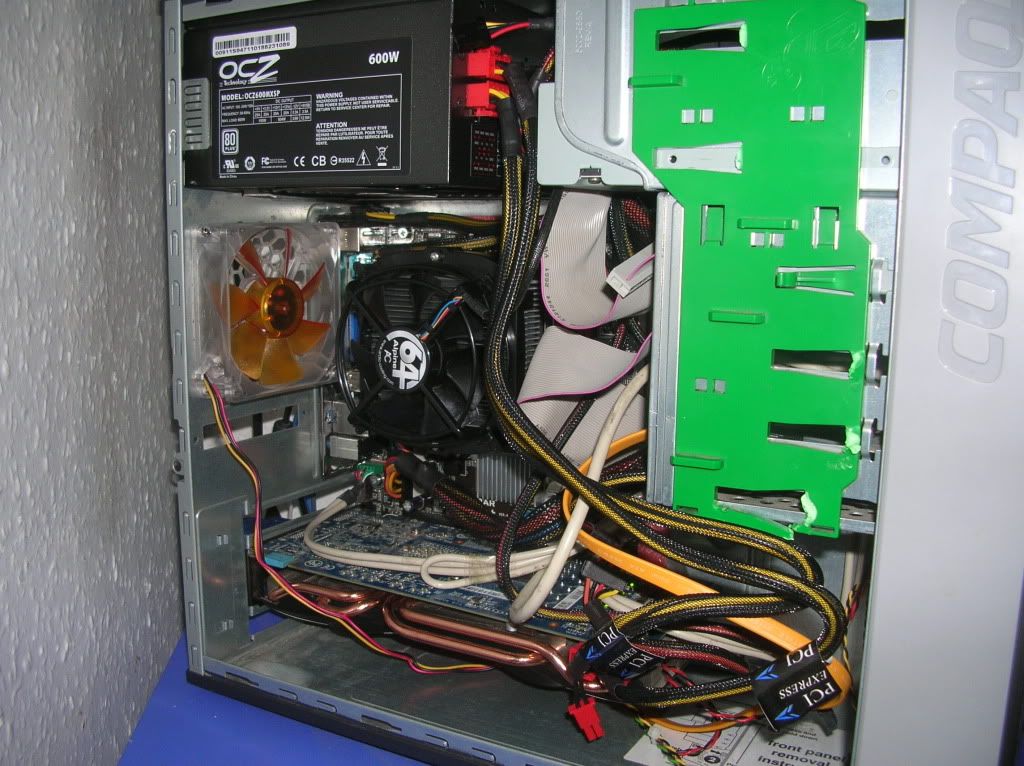

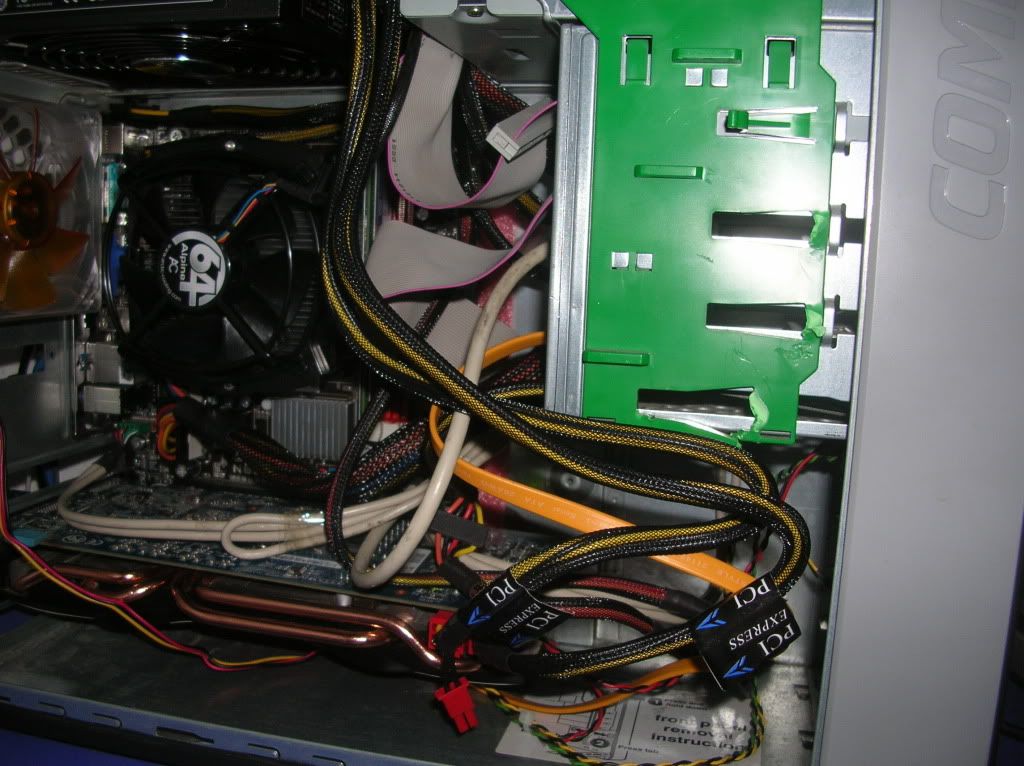

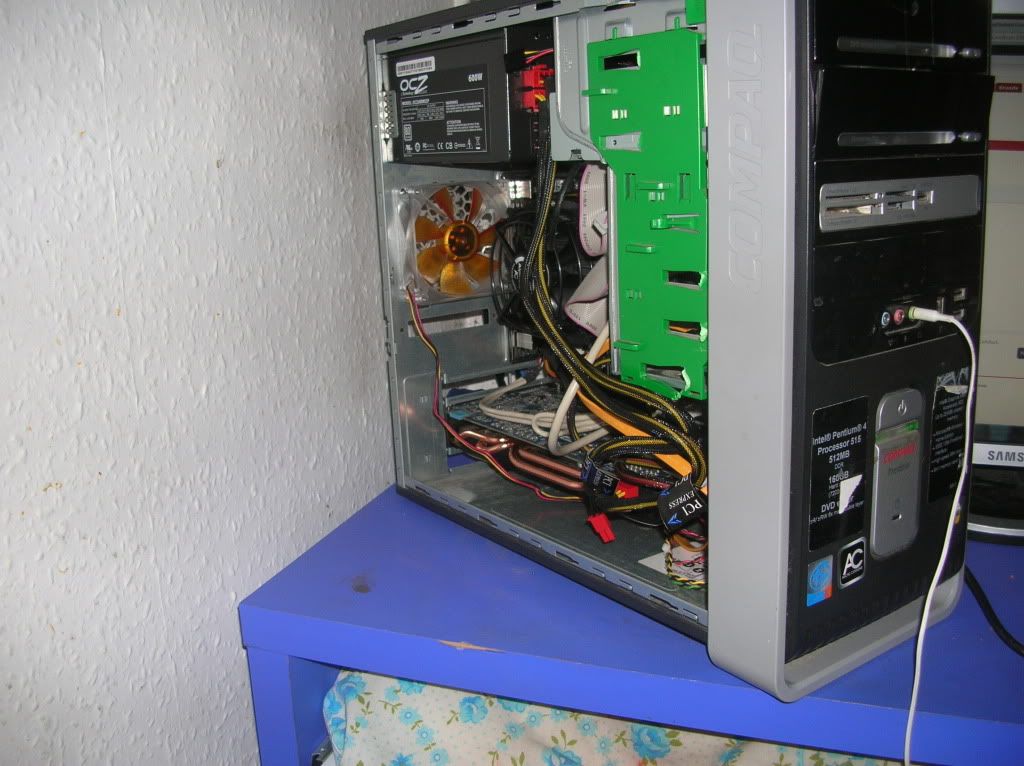

Should my side fan be blowing in or out ? pics included

Last response: in Systems
Share
January 29, 2012 11:35:11 PM

okay

my fan at in my case blows air out of the pc - meaning I feel the air when my hand is behind it, when the case is closed.


so the fan I intend to put on the side.

1 ) Should it blow in, or out , in meaning that when I put my hand next to it I wont feel anything - because it's blowing in. ???

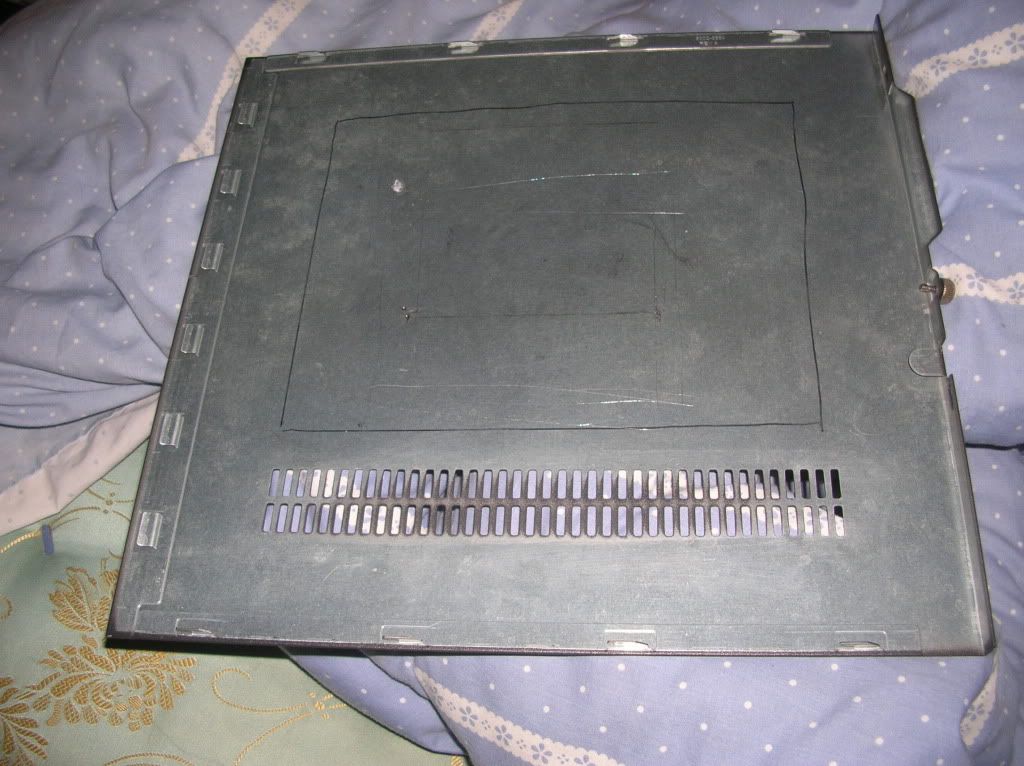

Yes I plan to cut out the metal, put a mesh over it, and screw down a 200mm or 140mm fan.









January 29, 2012 11:52:33 PM

It should blow the cold air in. You already have fans at the back blowing hot air out.
a c 83 B Homebuilt system
January 29, 2012 11:52:43 PM

Side fans generally work best as intake fans. If you are worried about temps you could get a really good gaming case for $50-$60 that comes with fans installed.
Related resources
a b B Homebuilt system
January 29, 2012 11:54:11 PM

The fan at the side should blow in. If you try it the other way, blowing out will give less of a cooling effect to the processor.
January 30, 2012 12:01:15 AM

By the look you have at least 3 things blowing stuff out the case...

1. the main fan at back - exhausting air out the case
2. The power supply.
3. The graphics card.

Presumably you already have something at the front sucking stuff into the case?
But as you suggets - another side fan sucking in cool air... escpecially if it focused as supplying cool air to the CPU cooler is probably good.

You seem to have fairly restricted space in the photos... make sure all the air comming in and out has somewhere to go. Dont butt your PC
right up against a wall or anything.

Cheers
January 30, 2012 12:01:34 AM

Front fan blowing in. Supply fresh air to the componets inside and help cool the hdd.
Side fan blowing in, try to mount over your intake of the gpu fan area. Gives fresh air to them hot gpu's.
Back fan blowing out, remove heat from components and cpu.
PSU fan is blowing out.

The real trick on the side fan is not the processor but robbing air from your gpu.

Also, i would mount the side fan lower.

Or, if your handy, get the cpu intake cone and mount that over your cpu instead of a fan.

Usually you do, cold air in the bottom intake, hot air at the top exhaust.

Another thing you could do would be get a tower style cpu cooler. Be a lil better at cooling all your components. :)
January 30, 2012 12:02:50 AM

It seems a bit difficult to cut the case & install a fan; unless you have the right set of tools. Also don't forget to install dust filter (You can always use a homemade one with sponge), or it will be dust clogged very quickly. :??:
January 30, 2012 12:22:08 AM

You should really consider dumping that OEM case and getting an aftermarket case. They are cheap, usually come with 1 or 2 fans (even more depending on the money you spend), and will cool more efficiently than most any OEM Case.

With all the work you put in cutting and so forth... you'd be spending more. Unless your time isnt worth much. ;p

But blowing in would be the way to go.

Plus you should really consider redoing your cabling... it looks like a rats nest and definitely cuts down on your cooling efficiency. I've rerouted cabling in cases and have seen a good 5 degree difference.
January 30, 2012 1:18:55 AM

yoji said:
By the look you have at least 3 things blowing stuff out the case...

1. the main fan at back - exhausting air out the case
2. The power supply.
3. The graphics card.

Presumably you already have something at the front sucking stuff into the case?
But as you suggets - another side fan sucking in cool air... escpecially if it focused as supplying cool air to the CPU cooler is probably good.

You seem to have fairly restricted space in the photos... make sure all the air comming in and out has somewhere to go. Dont butt your PC
right up against a wall or anything.

Cheers


nope - nothing at the front

everything you see is what I have

at the front I cant, my power button is in the way, the cable is directly in the middle

January 30, 2012 1:19:34 AM

there is no front fan

my case wont fit it
January 30, 2012 1:22:35 AM

okay...

whats a good cooling case
January 30, 2012 1:26:48 AM

tracker45 said:
okay...

whats a good cooling case



now were talking.

You can get the Cooler Master HAF 912 for 50-60 bucks.

It comes with 2 fans and has great cable management for the price.

Whats cool, is you can stick your extra fans in it and bam... you got one heck of a cooling machine for the price.

http://www.newegg.com/Product/Product.aspx?Item=N82E168...


and if you ever want to go water cooling... this is one of very few in this price range thats already set up for water cooling.

its just a really all around great inexpensive solution to keeping your system cool.


and believe me... the minute you get those cables managed more efficiently, youre gonna see a good 5 degree difference inside the case
January 30, 2012 1:32:08 AM

Look around at the cases, depends on what you want to spend.

Tradition for money, probally the antec 300 series, i know it's a atx case and you got a matx board.
Nzxt makes some cases, if you want to go really cheap, rosewill challenger.
Want to spend some money, silverstone trejin tj-08 is one of my favorites, though that power supply might be a lil large for it.
Corsair makes some nice cases but they're big.

Just look around... are you possibly going to upgrade in the future? Finding a case with an internal 20 pin usb 3.0 cable is nice.

I got a corsair 650d which is awesome for my needs. I help people out with the computer for the top docking bay is nice for transfering hdd info.

Haf series are nice as well.
January 30, 2012 1:40:12 AM

hmm

I want a minimalist case

one hdd drive bay

one cd drive

4 or 5 fans would be nice



a c 83 B Homebuilt system
January 30, 2012 1:46:09 AM

Of those I listed I have used the Antec 300 Illusion in over a dozen builds. It will run on sale sometimes for ~$50 and at that price can not be beat. I have it's big brother the 1200.
January 30, 2012 1:51:46 AM

anort3 said:
Of those I listed I have used the Antec 300 Illusion in over a dozen builds. It will run on sale sometimes for ~$50 and at that price can not be beat. I have it's big brother the 1200.


Yes, thats another good little case. I just like the cooler master better because its more stout and has a better choice up top for air flow and looks better. lol
January 30, 2012 2:04:00 AM

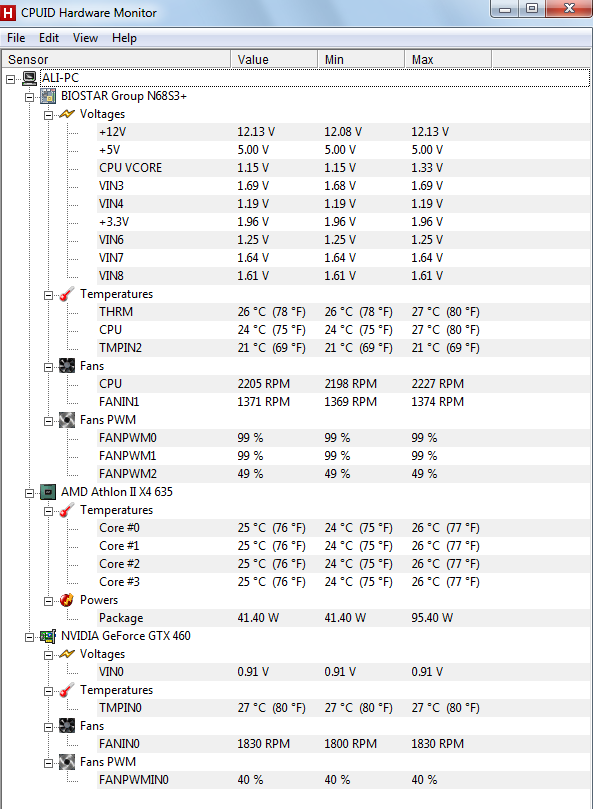

are these good system temps for idle

for intense gaming just double them

January 30, 2012 2:10:40 AM

fairly average temps if you ask me.
January 30, 2012 2:17:04 AM

if you're running at those temps... just clean up your cables... your cables are a mess... which will decrease proper airflow in the case.
a c 83 B Homebuilt system
January 30, 2012 11:12:32 PM

Honestly I have never heard of that brand. It might be UK specific. It comes with 1 x 120mm front fan and space for 1 x 120mm back and 1 x 140mm top fans so the cooling would be decent. I can not say how good build quality would be. Probably not great at that low a price. It would be ventilated better than that OEM you are using now though.

Edit: Comes with mounting space for 2 x 120mm side fans as well, missed that.
!
