Hello Everyone,

Just went ahead and purchased a new PSU and the 24 pin ATX cable only has 23 cables attached? is this bad, I installed it anyway and everything booted up fine.

The PSU is Antec HCG 750w, I've also attached two pictures of my old generic PSU and the new Antec one!
If you look at the older PSU it had all 24 pins cabled and the new way more expensive PSU has only 23?? :/  manufacturing error or what? and will this cause me problems.
NOTE: Booted up fine!

Also I have a HD 7870 video card which requires two 6pin connectors to the video card and my new PSU has 2 cables which has 4x 6+2 pin connectors for video cards, I've used a 6 pin from each cable, rather than using the same cable (Both Connectors from same cable)

Is this better or will it make a difference to my video card?

Thanks.

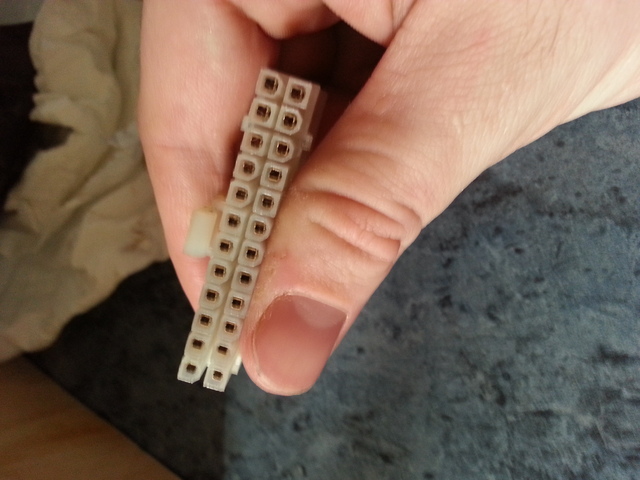

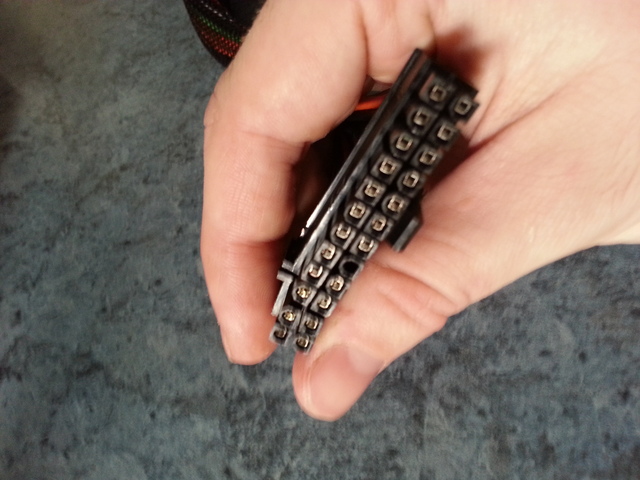

Here are the pictures of the ATX cables.. white one is my generic and the other is the one that has the missing cable... :/  brand new PSU makes no sense to me.



More about : psu questions

a c 76 ) Power supply
a b U Graphics card
September 12, 2012 6:15:21 AM

It's fine. It's missing the -5V pin/wire, but that's a legacy thing that has no use on newer systems, hence why every newer PSU that I know of omits it. No need for it = no need to include it.
m
0
l
September 12, 2012 6:31:05 AM

Thanks DJ, your always helping me out haha.

Also the video card? does it matter if they are from different cables or should I just use the same connectors from the same cable?
m
0
l
a c 76 ) Power supply
a b U Graphics card
September 12, 2012 6:37:22 AM

cameronmc88 said:
Also the video card? does it matter if they are from different cables or should I just use the same connectors from the same cable?


It really doesn't matter. I have 4 too, but I used two on the same cable just to keep it cleaner. No other advantage or disadvantage for doing it either way, though, as far as I know.
