Last message on previous page:
Heres mine guys. I have several builds that I have put together, but this one is the very first Custom built case from scratch with Aluminum and lined with Granite. It took me alittle over a week to fab this case...

Its a video, please click here

Temps in this case are unreal, the best I have seen in any case I have ever owned or worked with... Phenom II 940 at 3.6ghz stable 24/7

Raid 0 with two WD 640 gb hard drives, 1.5 tb seagate for storage

2x 4870 512 mb, 8 gb of g.skill ram. :whistle:

Message edited by medjohnson77 on 08-31-2009 at 01:44:58 AM

Reply to medjohnson77

http://www.facebook.com/home.php?# [...] =510980617

http://www.facebook.com/home.php?# [...] =510980617

if anyone knows the model of my case could they please send me a private message, its just i bought it from a friend before i made this build and he didnt know, and i really need to know as the front panel has a really bizarre setup that i would like the instructions for looks so much nicer with my 4890 than my 8800gtx if i do say so myself

------------------------------ gigabyte 990fxa-ud7
bulldozer fx 8150 @4.2ghz
6gb Crucial ddr3 1333mhz
Sapphire 6970
Reply to dacca

And here is my NZXT Tempest I modded for water cooling....

and my other rig, a coolmaster 590 case I set up and modded for water cooling with a honeywell 12" AC fan!

Reply to medjohnson77

And my very first build with a NZXT case...

Reply to medjohnson77

I have to say I also love seeing others custom rigs and there are alot of very nice builds on this thread. I hope more post and keep it going, because I love all the pics and the ideas that come from them for noobs just getting into the hobby. Kept the pics coming guys, and for all those that posted their pics already, very nice guys.

Reply to medjohnson77

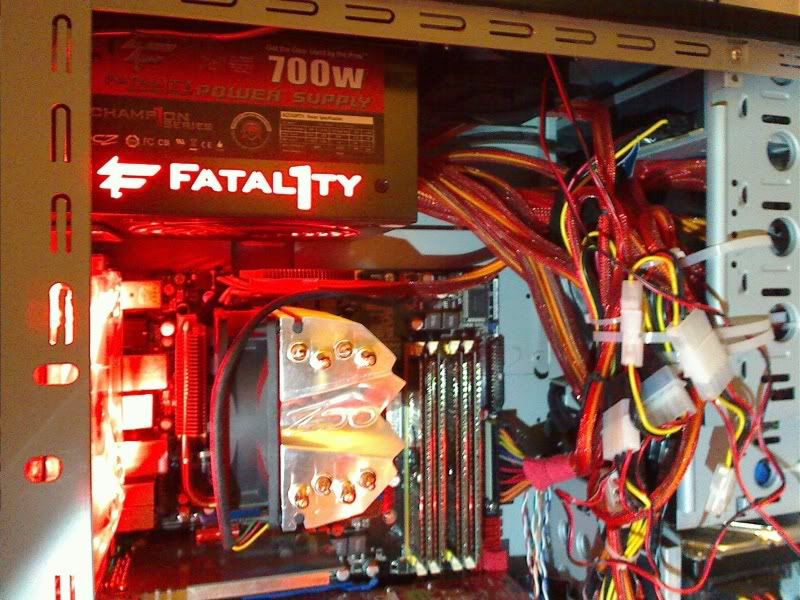

Some really gorgeous rigs here; I hope mine can compete for some attention lol. Spent most of this years' summer putting this together... cost me a lil under $4000 total for everything. This is my first custom (self) built computer btw. I'm rather proud of myself for not destroying anything expensive.

Specs/Parts:

NZXT Lexa Blackline Case
ASUS P5Q-E Motherboard
OCZ 'Fatal1ty' 700W PSU
Intel Core 2 Duo E8400 @ ~3.6 GHz
OCZ Gladiator CPU Cooler
8 GB (4x2 GB) OCZ Platinum Series 1066 MHz (PC-8500) Memory

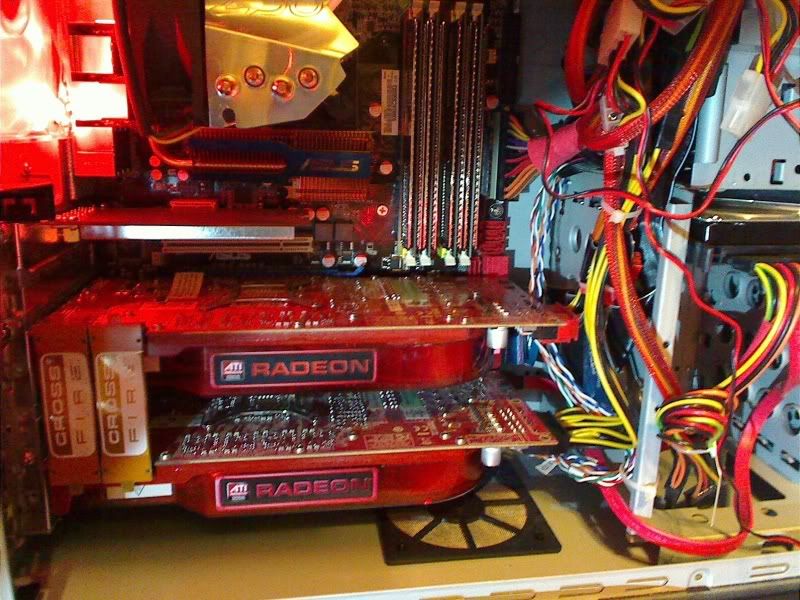

2x ATI Radeon HD 4890 (XFX & Sapphire) @ 910 MHz / 1050 MHz
Windows Vista Ultimate x64

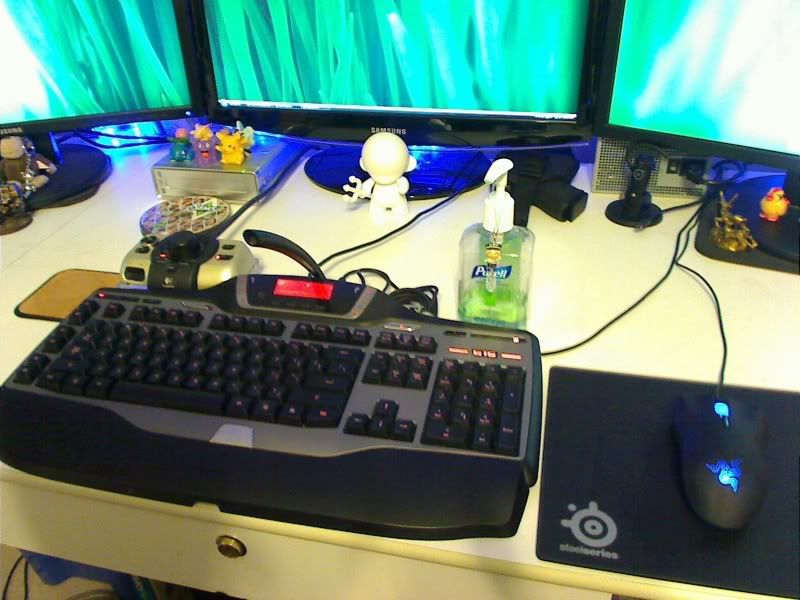

3x Samsung Syncmaster 24" Monitors
Logitech G15 Keyboard
Razer Lachesis Mouse, on Steelseries Frosted Glass Mouse Pad ($50 mouse pad.. definitely worth it)
Logitech G51 Speakers

I'm using SoftTH to run games (ie. L4D, Bioshock, COD 4, CS:S, etc.) in 5760x1200... not intending on picking up a TH2G atm because of the low resolution cap on it

First time overclocking as well... decided to stop at 3.6 for the processor because... well.. I'm just not a patient guy lol and I got fed up having to test the thing for like 4 hours after each little change for the sake of stability.

Anyway, thanks for checkin it out guys tell me what you think! ^^

Message edited by Kalidian on 09-09-2009 at 07:34:28 AM

Reply to Kalidian

Hey Kalidian,

Looks really nice man. Love the tri monitor setup.

Reply to medjohnson77

lol, 4k? haha, i feel bad for you. I got what you have x4 and it cost me 850.00

Reply to pluke the 2

all of that for $850? the tower alone would at best cost you at least $1300... add three 24" monitors, speakers, the g15, lachesis mouse... =P plus whatever "x4" means... 12 monitors... 4 towers, 4 processors.. 32 gigs of ram.. etc.

whatever man feel bad all you want; im happy as a clam and loving my computer, and i didnt have to eat small children to get "x4" of the parts, probably in the ass end of some sweat shop in China.

but.. in the positive spirit of this forum topic, congrats to you all the same. maybe post some pics? =P

Message edited by Kalidian on 10-16-2009 at 01:55:24 AM

Reply to Kalidian

Meh, how do I add pictures?

Reply to pluke the 2

photobucket.com, make an account, load your pictures up to it and copy and paste to here when from photobucket

Reply to medjohnson77

http://s878.photobucket.com/albums [...] ziedelano/

Reply to pluke the 2

Reply to michaelmk86

http://s809.photobucket.com/albums [...] g&newest=1
This is what Im working on now

Reply to HG02

Motherboard: MSI P55-CD53
CPU: Intel Core i5-750 @ 2.66GHz (Stock Clock)
RAM: Corsair XMS3 4GB (2 x 2GB)
Video Card: GeForce GTX 260 896MB @ 575MHz (Stock Clock)
Sound Card: Creative SB Audigy 2
Hard Drive 1: WD Raptor 150gb 10000rpm SATA (OS Installed)
Hard Drive 2: Seagate 320gb SATA 7200RPM
Hard Drive 3: Samsung Spinpoint F1 750gb 7200RPM
Optical Drive: 2x Samsung DVD-RW
Case: Cool Master Centurion 5
PSU: OCZ GameXStream 600W
OS: Windows 7 64-bit RTM

@michaelmk86: thats a nice wallpaper, where'd u get it from

Message quoted 1 times
Message edited by Jerry_03 on 10-24-2009 at 04:48:14 AM

Reply to Jerry_03

I am just new around Tom's Hardware Forum and I just want to share my previous unique computer case mod entry at a recently concluded online worldwide contest.

The Satella DQ ( an unjustly DisQualified entry in the just concluded CM modding contest)

Once a BUCKET, now a Satellite looking rig...The Satella DQ (DisQualified)

some video of Satella DQ here http://www.youtube.com/watch?v=o9qcse7yFYc&NR=1

Presently, I have my worklog here due to the inavailability of a faster Internet provider - http://www.pcmodz.info/viewtopic.php?id=302

Thanks for viewing.

Message edited by sunnyXtremist on 10-23-2009 at 09:06:50 AM

Reply to sunnyXtremist

Jerry_03 wrote :

Hey Jerry, how much was your rig?
Also, what PSU do you have?

thanks, I like the looks of it

Message edited by alfred6 on 10-23-2009 at 01:52:12 PM

Reply to alfred6

I didnt buy all the parts at the same time, i just upgraded the mobo and CPU this month. before i had a Gigabyte P35-DS3L and a Core 2 Duo E6750 @ 2.66GHz. my Gigabyte mobo died so decided to get a new p55 mobo and an i5.

the i5,MSI P55-CD53 & Corsair XMS3 4GB RAM was about $390 on newegg.

the rest of the hardware (save for the GTX 260 which i got in december 08 for $200, the soundcard and DVD drives which was from a recycled rig.), including the PSU which is a OCZ GameXStream 600W, i had purchased in december 2007 for about $570.

so total is about $1100.

i took my time on the wire management, using zipties and shrink tubing, carefully routing the wires towards the back to improve airflow.

heres a pic of the rear where i routed all the wires to:

this case only came with 1 front 80mm fan and 1 rear 120mm fan. i attached a 120mm fan in 3 empty lower bay drives via zipties:

Message edited by Jerry_03 on 10-24-2009 at 05:02:04 AM

Reply to Jerry_03

Here's my combination engineering/gaming rig:

-Antec 1200
-i7-965 EE cooled with a TRUE black
-P6T deluxe
-Corsair HX-1000W
-12GB Corsair Dominator DDR3-1600 7-8-7-22
-4 HDDs - 1 Intel X25-M 80GB OS drive, 2 300GB Velociraptors in RAID 0 for apps, and 1 1000GB Caviar Black for general storage
2 Sapphire HD4870x2 in CFX
1 X-fi Titanium PCI-E
LG Blu-Ray Burner
Windows 7 Ultimate x64 (as of yesterday )

The cable management isn't bad, but I definitely didn't spend as long as some people to get it just right - I did it mostly to help airflow.

Sorry about the terrible image quality - this was taken with my cell phone. I'll get a better one as soon as I can with my normal camera (which I don't have right now).

Message quoted 1 times
Message edited by cjl on 10-24-2009 at 12:44:54 PM

Reply to cjl

cjl wrote :

-4 HDDs - 1 Intel X25-M OS drive, 2 300GB Velociraptors in RAID 0 for apps, and 1 1000GB Caviar Black for general storage

Hey cjl, I was wondering.. if you were to do a virus scan, would you have to scan all 3 drives? Or just the apps and general storage (Or best yet, just general storage?).
I am considering buying multiple drives for the OS and for everything else.

Thanks!

Message quoted 1 times

Reply to alfred6

alfred6 wrote :

Thanks!

It's a good idea to scan all 3 volumes. Viruses could hide on any one of them. There are plenty of other good reasons to get multiple drives though.

Message edited by cjl on 10-24-2009 at 12:44:40 PM

Reply to cjl

Here is my build... not at the power level as cjl's Antec 1200 but suits me just fine. Next upgrades will be with the release of GTX300 GPU's, which at this point I will be adding a SSD.

CPU: Intel Core i7 920 at 3.2 GHz
MOBO: EVGA E758-TR 3-Way SLI
RAM: OCZ Platinum 6GB (3 x 2GB) DDR3 1600
HSF: XIGMATEK Dark Knight-S1283V
HDD: Western Digital VelociRaptor 300GB
PSU: CORSAIR CMPSU-850TX
GPU: 2x EVGA GeForce GTX 260 Core 216 Superclocked Edition
DVD: SAMSUNG DVD Burner Black SATA Model SH-S223L LightScribe Support
BD-ROM: Sony Optiarc Black 2X BD-ROM SATA Model BR-5100S
Case: Antec Twelve Hundred
Thermal Compound: Arctic Silver 5 Thermal Compound
Montior: SOYO Pearl MT-NI-DYLM24E6 Monitor 24" 1900x1200
Mouse: RAZER DeathAdder Gaming Mouse
Keyboard: RAZER Lycosa Gaming Keyboard
OS: Microsoft Windows Vista Ultimate SP1 64-bit

------------------------------ Recommended Builds by Usage
Step-by-Step Guide to Building a PC
Reply to tecmo34

This is mine =) got it last month.

you can also share your rig's photo here

Reply to postmyrig

@youngster yeah! I'm visiting this thread from time to time and it's inspiring.

Reply to postmyrig

Yeah, we all must be a rare %, because when I tell people I work with and family about my custom builds and water cooling, or start talking about tech, its like I am talking in french to them. LOL.

There are some really nice rigs on here, I am starting to get the itch to design and build another case and, start shopping for the next custom build I want to put together.

Reply to medjohnson77

@medjohnson77

thats cool, goodluck for your new project =) I'm looking forward to see that.

If anyone of you wants to share your rig in our container, you can pass by here. Thanks.

Message edited by postmyrig on 12-04-2009 at 01:57:56 AM

Reply to postmyrig

[img][/img]

[img][/img]

[img][/img]

Specs:
Case: Cooler Master HAF 932 Full ATX Tower Chassis
CPU: Intel Core i7 920 Nehalem (D0)
RAM: OCZ Platinum 6GB Triple Channel DDR3 1600mhz CL7
MOBO: Asus P6T Motherboard
Storage: Intel X-25M 80GB G2 MLC Internal SSD
PSU: Corsair 850TX
Cooler: Coolermaster V8
GPU: Nvidia Geforce 8800GTS 640MB (I know it sounds weak but it satisfies my needs, plus the games i play...it maxes them out anyway, and i barely play anyway)
Cooling: Zalman 6-Channel Fan controller ZM-MFC1
Keyboard: G15
Mouse:...just a gaming mouse
TP: Artic Silver 5
Monitor: Samsung 23'' 1080p
DVD Drive: I don't care
OS: Microsoft Windows 7 Home Premium 64-Bit

^Just built it, couldn't resist sharing

Reply to blackhawk1928

Hey Tecmo34, I was just curious, I see that your PSU is upside down (fan up) as it should be for a bottom mount, but that all your labels are upright. Did you flip them, or did they come that way? Thanks.

Message quoted 1 times
Message edited by EXT64 on 12-06-2009 at 04:29:53 PM

------------------------------ 4 x AMD 6172 > Tyan S8812 > 32GB > X-1050 | i7 970 > P6X58D-E > 7970 3GB > 24GB | i7 3770k > P8Z77-V Pro > Classified 580 3GB > 16GB

http://piro.pirocast.net/badge/none/fah02/800/0/0/0/0/0/0/0/0/0/0/0/0/255/255/255/557101.png

Reply to EXT64

EXT64 wrote :

It came that way from Corsair...

------------------------------ Recommended Builds by Usage
Step-by-Step Guide to Building a PC
Reply to tecmo34

Interesting. Thanks for the quick reply.

------------------------------ 4 x AMD 6172 > Tyan S8812 > 32GB > X-1050 | i7 970 > P6X58D-E > 7970 3GB > 24GB | i7 3770k > P8Z77-V Pro > Classified 580 3GB > 16GB

Reply to EXT64

Reply to Anonymous
