Asus Shows New Motherboards at Computex 2012

By , Benjamin Kraft - Source: Tom's Hardware US | B 38 comments

If you're a fan of Asus boards, check this out.

Besides the neat ThunderboltEX add-in card, we also took a look at the new motherboards from Asus for both AMD and Intel platforms. First up are two Z77 Chipset mainboards equipped with Thunderbolt, the P8Z77-V Pro/Thunderbolt and P8Z77-V Premium

The Pro model has memory speeds up to DDR3-2600 (overclocked), whereas the Premium goes to DDR3-2800 (overclocked).


P8Z77-V Premium

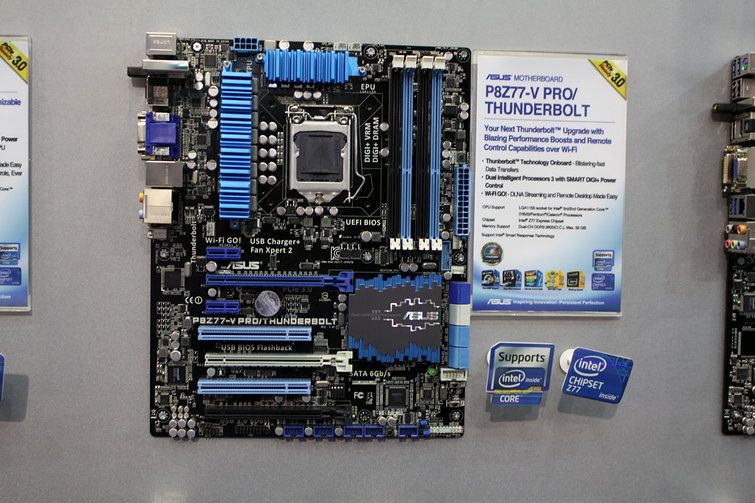

P8Z77-V Pro/Thunderbolt

Socket (CPU)

Socket 1155 (2nd/3rd Gen Core Processors)

Socket 1155 (2nd/3rd Gen Core Processors)

Chipset

Intel Z77 Express

Intel Z77 Express

Memory

DDR3-2800 (overclocked), max 32 GB

DDR3-2600 (overclocked), max 32 GB

Graphics Output

Thunderbolt, DisplayPort, VGA

Thunderbolt, HDMI, DVI, VGA

Multi-GPU Support

4-way SLI

4-way CrossFireX

LucidLogix Virtu MVP

2-card SLI (up to quad GPU with GTX 590/690)

3-way CrossFireX

LucidLogix Virtu MVP

PCI-E

4 x PCIe 3.0/2.0 x16

3x PCIe 3.0/2.0 x16

SATA 6Gb/s

6

4

USB 3.0

Front x2

Back x4

Front x2

Back x4

eSATA

2 (6 Gb/s)

Not available

LAN

Dual Intel Gb

Intel Gb

Audio

8-channel / DTS

8-channel / DTS

 As for the AMD FM2 boards, specifications and pictures are as follows:

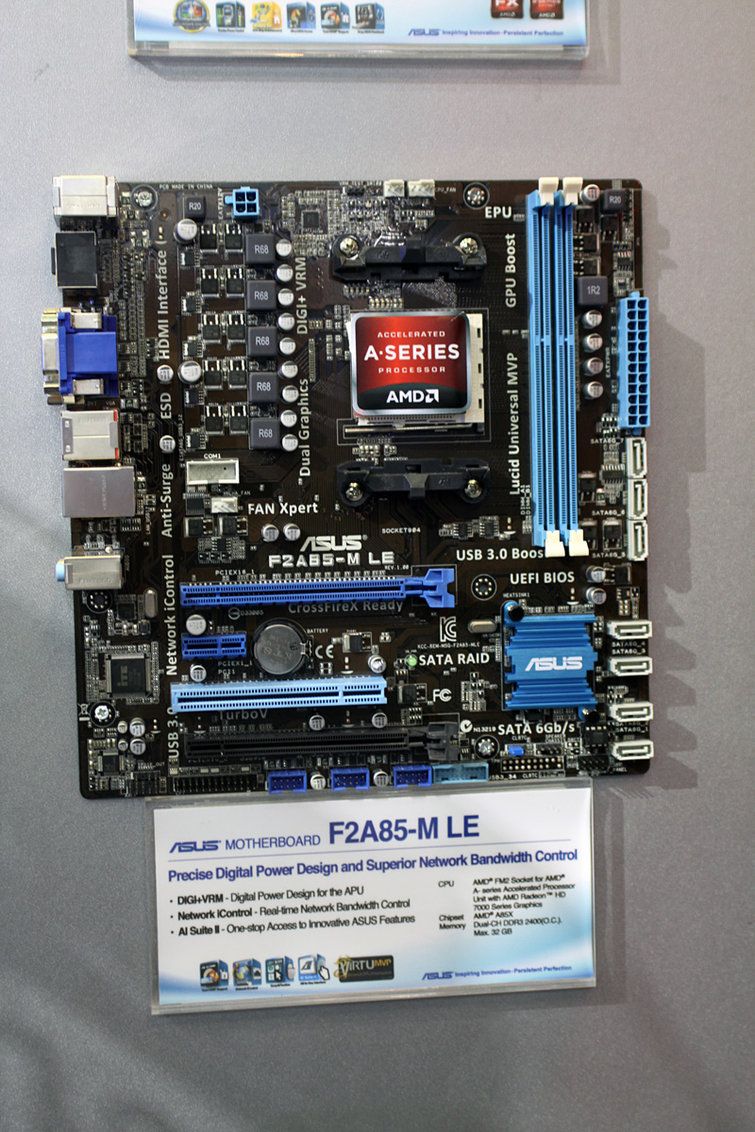

F2A85-M LE

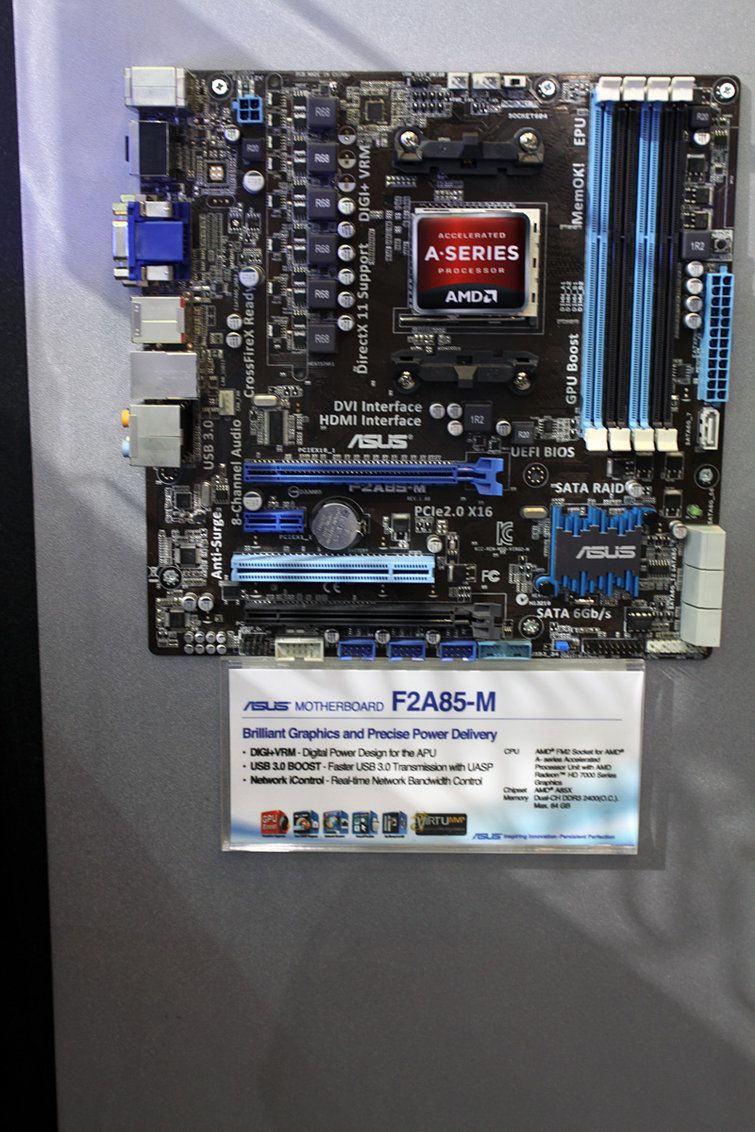

F2A85-M

 F2A85-V

CPU

FM2

FM2

FM2

Chipset

AMD A85X

AMD A85X

AMD A85X

Memory

DDR3-2400 (overclocked), max 32 GB



Graphics Output

HDMI, DVI, VGA

HDMI, DVI, VGA

HDMI, DVI, VGA

Multi-GPU support

CrossFireX

LucidLogix Virtu MVP

CrossFireX

LucidLogix Virtu MVP

CrossFireX

LucidLogix Virtu MVP

PCI-E

2x PCI-e 2.0 x16

2x PCI-e 2.0 x16

2x PCI-e 2.0 x16

SATA 6Gb/s

7

7

7

USB 3.0

Front x2

Back x2

Front x2

Back x2

Front x2

Back x2

eSATA

1 (6 Gb/s)

1 (6 Gb/s)

1 (6 Gb/s)

LAN

Gb

Gb

Gb

Audio

8-Channel

8-Channel

8-Channel
