Asus Launches First Motherboard with Thunderbolt 2

By - Source: Engadget | B 13 comments

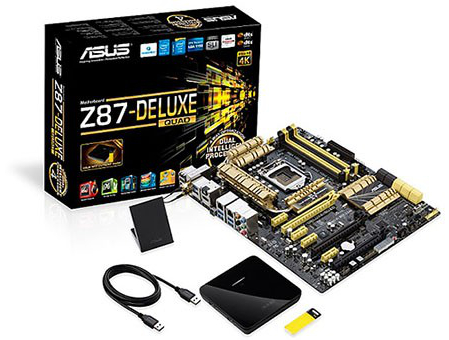

Asus has introduced the Z87-Deluxe/Quad motherboard for Haswell CPUs.

This week Asus introduced the very first motherboard sporting Intel's Thunderbolt 2 technology that provides up to 20 Gbit/s transfer speeds to connected Thunderbolt devices. Called the Z87-Deluxe/Quad, it's based on the new Intel Z87 chipset and is ready for the latest Intel Core "Haswell" processors.

The first-generation Thunderbolt standard uses four separate transfer channels: two upstream and two downstream, allowing for a maximum transfer rate of 10 Gbit/s. However Thunderbolt 2, which was revealed back in June, takes those same four channels and combines them into two 20 Gbit/s bi-directional channels, providing twice the bandwidth of the latest USB 3.1 spec – four times than the mainstream USB 3.0 spec.

"Together with DisplayPort 1.2 support, Thunderbolt 2 enables simultaneous delivery of extremely high-resolution video to the latest 4K/2K (4096 x 2160 and 3840×2160) displays while still offering communication with other bandwidth-hungry devices such as hard drives," the company said. "Additionally, the ASUS Z87-Deluxe/Quad's onboard HDMI port means that it can drive a total of three 4K UHD displays at once."

Asus said the new motherboard includes a number of exclusive Asus technologies such as Dual Intelligent Processors 4 with 4-Way Optimization, an easy-to-use tuning tool that, with a single click, dynamically adjusts performance and cooling for reduced noise and increased efficiency. The board also uses the easy-to-read UEFI BIOS so that users can set up shortcuts and favorites for quick access to the options they use most.

The new motherboard also arrives with the NFC Express accessory for automating common PC tasks by simply tapping a supplied NFC tag or a NFC-compatible device to the box. Thus, NFC can be used to log into Windows, pass pictures and videos to and from NFC-enabled devices using the free Wi-Fi GO & NFC Remote apps, and even launch multiple applications to create a specific workflow. Users supposedly can even remotely control the PC by tapping on the NFC Express box.

"Z87-Deluxe/Quad has been subjected to a tremendous amount of compatibility, BIOS, as well as video/audio and other tests to verify its quality and design," said Joe Hsieh, ASUS Corporate Vice President and General Manager of the Motherboard and Desktop System Business Unit. "Being the world's first certified motherboard for Thunderbolt 2 technology also means setting the standard for all of the upcoming products, which is something that ASUS has always done."

The motherboard specs include two Intel Thunderbolt 2 ports, one HDMI port, four DIMM slots, three PCIe 3.0/2.0 x16 slots, ten SATA 3 ports (6 Gbit/s), eight USB 3.0 ports with USB 3.0 Boost, and eight USB 2.0 ports fitted for an ATX form factor.

Currently the actual release date and pricing is unknown, but Asus is selling the Z87-Deluxe/Dual version over on Newegg for $349.99 as a reference point.

Display 13 Comments.
This thread is closed for comments
  • 0 Hide
    TheMentalist , August 22, 2013 10:14 AM
    Well done ASUS, those are smoking fast speeds
  • 3 Hide
    ubercake , August 22, 2013 10:19 AM
    Wait... I don't know anyone using Thunderbolt 1 yet and we already have Thunderbolt 2??? Sweet!!!?
  • 2 Hide
    SvRommelvS , August 22, 2013 10:40 AM
    Isn't thunderbolt more applicable to video cards than motherboards? I don't want to run a bunch of monitors off the Intel HD4600.
  • 3 Hide
    punahou1 , August 22, 2013 12:13 PM
    Western Digital has a nice 2TB external hard drive that will work with this. After a quick search I saw it listed for $890 bucks! I think I'll wait until Thunderbolt 2 devices come down in price...
  • 0 Hide
    Bolts Romano , August 22, 2013 12:47 PM
    Thumbs up Asus
  • 0 Hide
    Pherule , August 22, 2013 1:11 PM
    Awesome. Too bad flash memory still sucks and USB 2.0 doesn't even bottleneck it usually.
  • 2 Hide
    Grandmastersexsay , August 22, 2013 1:27 PM
    The fastest consumer level SSD are in the 4 Gb/s ballpark, so this make a lot of sense. Oh wait, USB 3.0 provides 5 Gb/s. So there is nothing I can think of to attach to a motherboard that needs that kind of bandwidth.
  • 0 Hide
    jojomexi , August 22, 2013 5:37 PM
    arent SSD's at the 6GB/s mark? and although USB3.0 is fastER, its still not fassssst. i transfer a couple gigs of music and it still takes like 5-10 minutes.
  • 0 Hide
    lp231 , August 22, 2013 8:21 PM
    Thunderbolt can be use as mini displayport, but mini displayport cannot be use as Thunderbolt.
    Thunderbolt looks exactly like mini displayport, it's really confusing to tell which is which just by looking at it.
    If you want a board with TB, you'll have to look make sure to look at the specs.
  • 0 Hide
    velocityg4 , August 22, 2013 8:43 PM
    Thunderbolt is going to remain a niche product until they get the prices of peripherals and cables down a lot. They need to make Thunderbolt not require special cables with chips in them to help it work. Docks that provide a PCI-e slot cost more than motherboards with Thunderbolt.

    External drives are ridiculously expensive and only begin to make sense with large hard disk RAIDs. However, someone in need of a large RAID is going to buy a dedicated RAID controller card. Negating the need for Thunderbolt.

    Quote:
    arent SSD's at the 6GB/s mark? and although USB3.0 is fastER, its still not fassssst. i transfer a couple gigs of music and it still takes like 5-10 minutes.


    If you are using modern high speed SSD's then something is wrong. As far as hard drives go this makes sense. Numerous small files kill transfer speeds. You'd get much faster rates transferring one large video file.
  • 0 Hide
    Firion87 , August 22, 2013 10:32 PM
    @ssdpro sir, I'm a MSI fanboy but this was funny. You will be right :) ))
  • 0 Hide
    JOSHSKORN , August 23, 2013 8:33 PM
    I've read this mobo has the C1 stepping. Might want to check that out before buying.
  • 0 Hide
    ubercake , August 26, 2013 8:29 AM
    Quote:
    Western Digital has a nice 2TB external hard drive that will work with this. After a quick search I saw it listed for $890 bucks! I think I'll wait until Thunderbolt 2 devices come down in price...

    By the time the price would have come down to something comparable to a USB or eSATA drive, we'll be enjoying the new Thunderbolt 7 standard which will put the price back up to $890.
