Koolance Launches QD1H No-Spill Quick Disconnect Water Cooling Fittings

Koolance announced that it has released a set of quick disconnect water cooling fittings for 3 mm inner diameter tubing. Koolance said the QD1H no-spill quick disconnect fittings were designed to be as small as possible while taking advantage of the company's patented auto-shutoff, no-spill quick disconnect mechanism.

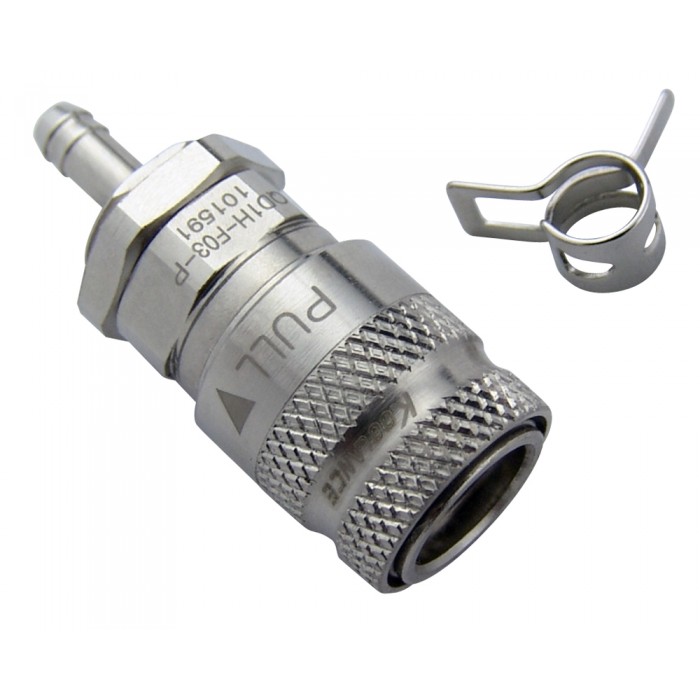

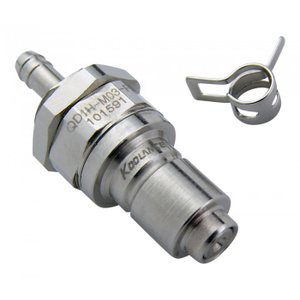

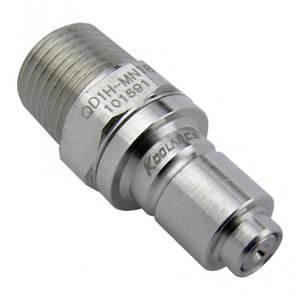

These new fittings are offered with barbs and clamps, but the company didn't mention a compression fitting option. Koolance sells the quick disconnects as individual parts, not as a set. The female couplings are only available with barb ends, but the option to get threaded QD1H fittings is offered for male couplings.

Swipe to scroll horizontally
Header Cell - Column 0 QD1H Female Quick Disconnect No-Spill Coupling, Panel Barb for 03mm (1/8in)QD1H Male Quick Disconnect No-Spill Coupling, Panel Barb for 03mm (1/8in)QD1H Male Quick Disconnect No-Spill Coupling, Male Threaded, 1/8 NPT
Weight0.04 lb (0.02 kg)0.03 lb (0.01 kg)0.03 lb (0.01 kg)
MaterialsNickel-Plated Brass, Stainless Steel, EPDMNickel-Plated Brass, Stainless Steel, EPDMNickel-Plated Brass, Stainless Steel, EPDM
Max Pressure @ 25°C8kgf/cm2 (113.8 psi)8kgf/cm2 (113.8 psi)8kgf/cm2 (113.8 psi)
Max Temperature100°C (212°F)100°C (212°F)100°C (212°F)

The Koolance QD1H quick disconnect fittings are available at Koolance's web site. The female ends are $10.24, and the male ends are $9.49 for both the threaded and barbed versions.

Follow Kevin Carbotte @pumcypuhoy. Follow us on Facebook, Google+, RSS, Twitter and YouTube.

 Kevin Carbotte is a contributing writer for Tom's Hardware who primarily covers VR and AR hardware. He has been writing for us for more than four years.

  • hobbsmeerkat
    I'm trying to understand the kind of tubing this would be used with... 3mm ID tubing is REALLY tiny, especially for water cooling...
    Reply
  • PhilFrisbie
    They are available for up to 1/2" tubing.
    Reply
  • RazberyBandit
    3mm is the ID of the quick-connect itself, not the tubing with which they can be used.
    Reply
  • jasonelmore
    thats a big flow restriction. need wider connectors on both ends.
    Reply
