Tom2D: Polygons
Next up, drawing polygons. Here, too, various test candidates demonstrate interesting weaknesses.

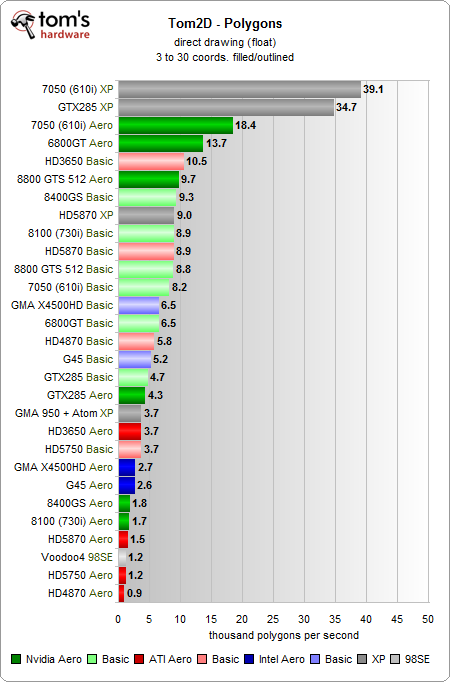

Polygon benchmark
Test Content:
For this test, we draw a total of 60,000 polygons with anywhere from 3 to 30 vertices, various line weights, and either colorfilled or empty in some randomly chosen position on screen. As with our other tests, the random number generator seed remains constant so all test runs produce the same results. All objects appear entirely within the display area, so no clipping is necessary.
GDI Functions Called
Direct drawing test for polygons:
CreatePen
CreateSolidBrush
GetStockObject
SelectObject
DeleteObject
Polygon
Polygons drawn from the DIB buffer:
CreateCompatibleDC
CreateDIBSection
Rectangle
BitBlt
Summary
When polygons get buffered, performance is the same whether Aero is turned on or off. For direct draw operations, the highend graphics cards fall way behind the pack. We have to wonder what might be bottlenecking ATI's cards. Similarly, why is Nvidia's GeForce GTX 285 suffering from freezes and delays when rendering polygons? And why is it falling behind Intel's GMA 950/Atom combination and the older G45based integrated core logic?
