We've seen Cooler Master launch two power supply families in the past year or so. At the end of 2011, it introduced the Silent Pro Hybrid series. This line-up of 80 PLUS Gold-rated PSUs shuts its fan off under low-load conditions where moderate ambient temperatures allow. The fan switches on when the load exceeds right around 200 W.
Cooler Master's Silent Pro Platinum family ups the ante, according to the company's spec sheet.

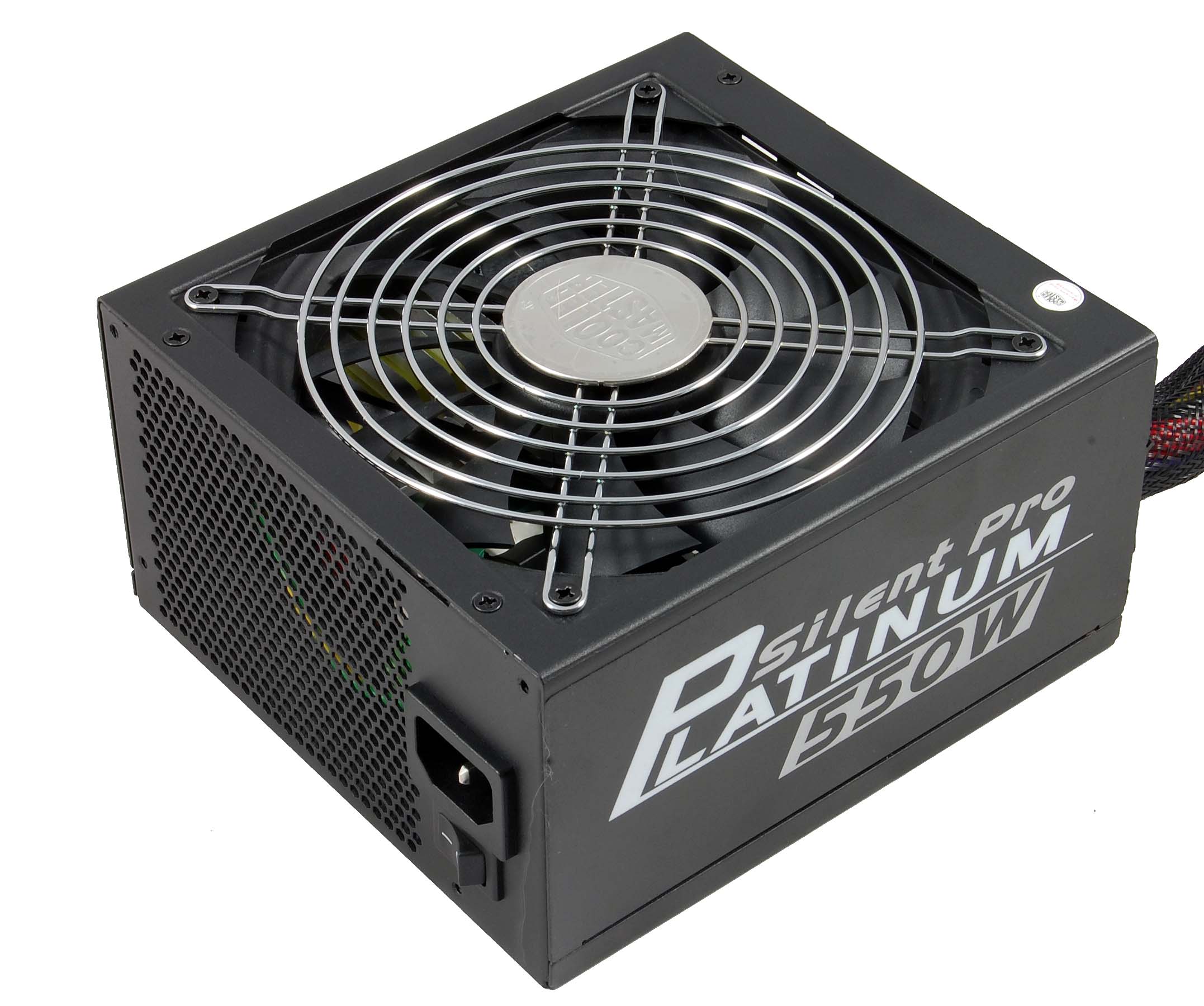

We received a 550 W entry-level model, and the feature list is impressive: fully sleeved permanent cables, flat modular cables, and lots of connectors, namely four PCIe, five Molex, and a whopping nine SATA connectors. However, we wish that it came with longer cables, as 27.5” may be a tad short if you want to route them behind a motherboard tray.
This power supply sports a single 12 V rail, which can be loaded with up to 45 A. It ships in a huge cardboard box, with the power supply nestled into a soft, velvet-like bag. Although it looked nice, we weren't big fans of the overpowering chemical smell the bag was emitting.
| Cooler Master Silent Pro Platinum 550 W | ||||||||
|---|---|---|---|---|---|---|---|---|
| AC Input | 100-240 V, 50-60 Hz | |||||||
| DC Output | +3.3 V | +5 V | +12 V (#1) | +12 V (#2) | +12 V (#3) | +12 V (#4) | -12 V | +5 Vsb |
| 25 A | 25 S | 45 A | n/a | n/a | n/a | 0.3 A | 3.5 A | |
| Individual Output | 32 A | 17.5 W | 10.5 W | |||||
| Rail Utilization | Sys | Sys | CPU And VGA | |||||
| Combined Output | 150 W | 540 W | ||||||
| Total Continuous Output | 550 W | |||||||
| Peak Output | n/a | |||||||
- In The Power Supply World, Gold Paves The Way For Platinum
- Antec EarthWatts Platinum 550 W
- Results: EarthWatts Platinum 550 W
- Enermax Platimax 600 W
- Results: Enermax Platimax 600 W
- Kingwin Lazer Platinum 550 W
- Results: Kingwin Lazer Platinum 550 W
- Cooler Master Silent Pro Platinum 550 W
- Results: Silent Pro Platinum 550 W
- Rosewill Fortress 550
- Results: Rosewill Fortress 550
- Test Setup, Hold-Up Time, And Inrush Current
- Efficiency (According To The 80 PLUS Spec)
- Efficiency (Based On Performance Profiles)
- Which Platinum-Rated Power Supply Should You Buy?
