Foxconn 975X7AA

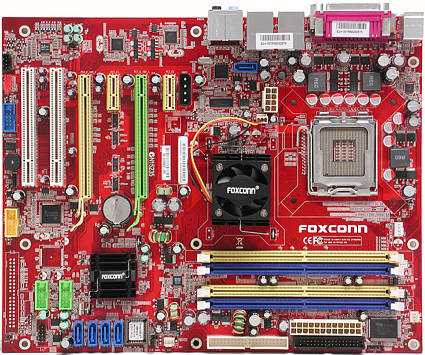

Foxconn's motherboard is somewhat colorful.
Swipe to scroll horizontally
| Foxconn 975X7AA (Rev. 1.0) | |
|---|---|
| Platform | Sockel LGA775 |
| Northbridge | Intel 975X (Rev. C0) |
| Southbridge | Intel ICH7R (82801 GB) |
| Phasen | 3-Phasen Regulator |
| BIOS | 597F1P23 (03/02/2006) |
| Clock Chip | ICS 9LPR5511CGLF |
| Clock Setting in BIOS | Measurement |
| 266.6 MHz (FSB1066) | 266.1 MHz (-0.25%) |
| SPD Memory Timing Recognition | Timing Result |
| DDR2-667 | CL 4.0-4-4-12 (setup 4.0-4-4-8) |
| Interfaces | |
| Connectors | onboard / IO - panel |
| USB 2.0 | 4 / 4 |
| IEEE1394/Firewire | 1 / 1 |
| Serial COM Port | none / 1 |
| Parallel LPT Port | none / 1 |
| Game | none |
| LAN | none / 2 |
| WLAN | none |
| SATA | 5 / 1 |
| Audio analog | LineIn CD / 7.1 Cannels |
| Audio digital | none / optical Out |
| Connectors | onboard only |
| PCIe 16x | 2 |
| PCIe 4x | 0 |
| PCIe 1x | 2 |
| PCI | 2 |
| IDE (PATA) | 1 (2 channels) |
| Fan 4 pins (CPU) | 1 |
| Fan 3 pins (System) | 2 |
| Mass Storage Controller | |
| ICH7 | 1x IDE (ATA100)4x SATA (RAID 0,1,5,10) |
| Silicon Image SiL3132CNV | 1x SATA (RAID 0,1,0+1,5) |
| LAN | |
| Marvell 88E8053 PCIe | 1 Gbit/s LAN |
| Marvell 88E8053 PCIe | 1 Gbit/s LAN |
| Audio | |
| Realtek ALC882 | AC97 (High Definition Audio) |
| IEEE1394/Firewire | |
| Texas Instrument TSB43AB22A | 2x 1394a (400 Mbit/s) |

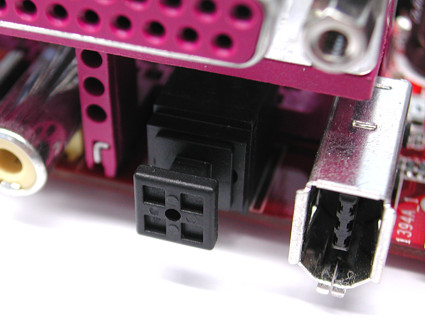

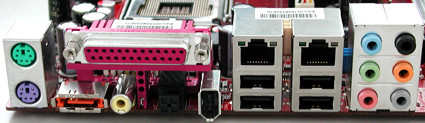

Foxconn offers all connectors from eSATA to dual Gigabit Ethernet. The antiquated cap for the optical audio connector would be better exchanged for a flap cover, though.
