Asus P5WD2-E Premium Edition

Previous Next
7:05 AM - 05/22/2006 by Patrick Schmid

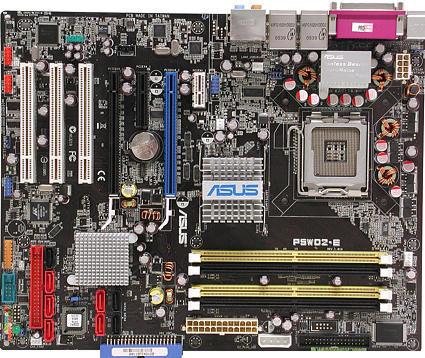

Asus P5WD2-E Premium Edition
Asus P5WD2-E Premium (Rev. 1.01g)
Platform Sockel LGA775
Northbridge Intel 975X (Rev. C0)
Southbridge Intel ICH7R (82801 GB)
Phasen 4-Phasen Regulator
BIOS 0403 (03/03/06)
Clock Chip ICS 954123CGLF
Clock Setting in BIOS Measurement
266.6 MHz (FSB1066) 267.1 MHZ (+0.12%)
SPD Memory Timing Recognition Timing Result
DDR2-667 CL 4.0-4-4-8
Interfaces
Connectors onboard / IO - panel
USB 2.0 4 / 4
IEEE1394/Firewire 2 / none
Serial COM Port 1 / none
Parallel LPT Port none / 1
Game 1 / none
LAN none / 2
WLAN none / none
SATA 8 / 1
Audio analog LineIn CD / 7.1 Cannels
Audio digital none / optical Out, SPDIF Out
Connectors onboard only
PCIe 16x 2
PCIe 4x 1
PCIe 1x 1
PCI 3
IDE (PATA) 2 (4 channels)
Fan 4 pins (CPU) 1
Fan 3 pins (System) 3
Mass Storage Controller
ICH7 1x IDE (ATA100)
4x SATA (RAID 0,1,5,10)
Marvell 88SE6141 PCIe 4x SATA
1x IDE (ATA133 RAID 1,0,0+1)
LAN
Marvell 88E8053 PCIe 1x 1 Gbit/s LAN
Marvell 88E8053 PCIe 1x 1 Gbit/s LAN
Audio
Realtek ALC882M 7.1 AC97 or High Definition Audio
IEEE1394/Firewire
Texas Instruments TI 43AB22A 2x 1394a (400 Mbit/s)
