Board Layout & Components
Board Layout
The lack of memory modules outside of the package opened up some possibilities for AMD to get creative with the Frontier Edition PCB. Now, the voltage regulators are found where you'd expect to find GDDR5, and we're looking at a classic 6+1-phase design for power delivery to the GPU and HBM2.
A pair of eight-pin auxiliary power connectors have one coil each; they help smooth out certain voltage peaks. Interestingly, though, there are no large capacitors to be seen.
On the back of the board, we spy a densely-packed area under the GPU/memory, a PWM controller, and several other surface-mounted components.
GPU Power Supply

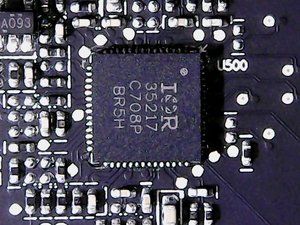

At the center of it all is International Rectifier's IR35217, a poorly-documented dual-output multi-phase controller able to provide six phases for the GPU and two others. A closer look reveals 12 regulator circuits though, not just six. This is a result of doubling, allowing the load from each phase to be distributed between two regulator circuits.
We suspect that AMD won’t go to all of this trouble for the lower-end XL version. The space for the doubled circuits will either be empty or the board layout will be simplified.

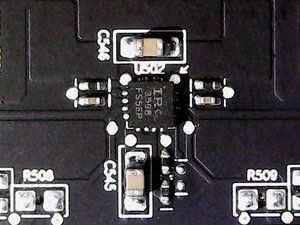

Six IR3598 interleaved MOSFET drivers on the back of the board are responsible for the doubling. These are the parts we pointed out earlier. The following video was taken at idle and shows how the PWM controller switches the load back and forth between the circuits. This keeps efficiency high by using only one phase, but also avoids overloading a single circuit over prolonged periods of time.

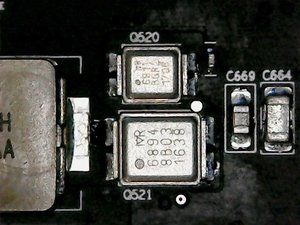

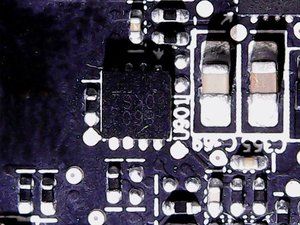

The actual voltage conversion for each of the 12 regulator circuits is handled by an IRF6811 on the high side and an IRF6894 on the low side, which also contains the necessary Schottky diode. Both are International Rectifier HEXFETs that we've seen AMD use before.

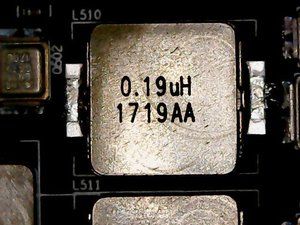

For the coils, AMD went with encapsulated ferrite core chokes that are soldered in the front. At 190nH, their inductivity is a bit lower than the 220nH we often see.
Memory Power Supply

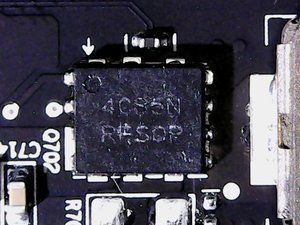

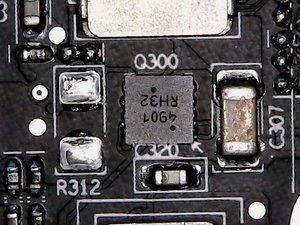

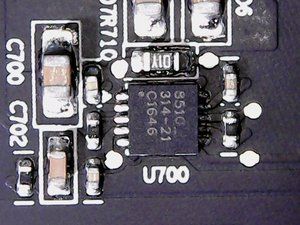

The memory's one phase is supplied by the IR35217 as well. One phase is plenty, since on-package HBM2 needs a lot less power. A CHL815 gate driver is found on the back of the board. For the voltage converters, AMD went with ON Semiconductor's NTMFD4C85N, a dual N-channel MOSFET that supplies the high and low sides.
It’s interesting that AMD went with flat SMD capacitors instead of can caps. The somewhat lower capacity is compensated for by simply running two of them in parallel on the back of the board. It does make sense to spread the hot-spots and make the thermal solution's job a little easier. Waste heat is kept to a minimum, as is the cost associated with cooling.

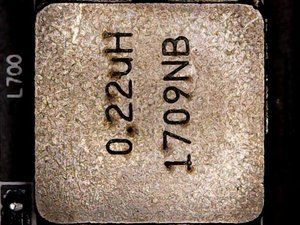

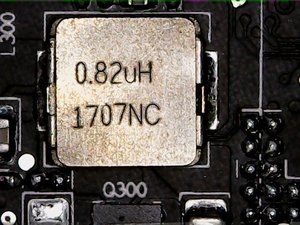

At 220nH, the coils are a bit larger this time around. The ones corresponding to the "partial voltage" converters, which operate at a much lower frequency, are even larger at 820nH. They don’t have to deal with the same amounts of power, though.
Other Voltage Converters
Creating the VDDCI isn’t a very difficult task. But it's an important one since this regulates the transition between the internal GPU and memory signal levels. It’s essentially the I/O bus voltage between the GPU and the memory. As such, two constant sources of 1.8V and 0.8V are supplied.

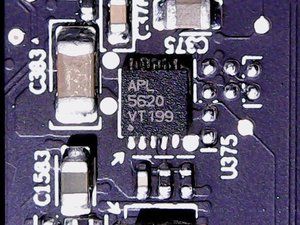

Underneath the GPU, there’s an Anpec APL5620 low drop-out linear regulator, which provides the very low voltage for the phase locked loop (PLL) area.

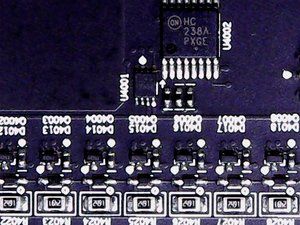

ON Semiconductor's MC74HC238A demultiplexer drives the LED bar that shows the power supply’s load. It’s a fun gimmick, but does get annoying in a dark room at night due to its brightness.
