Updated: Tuning C'n'Q: Maximize Power And Performance, Part 2

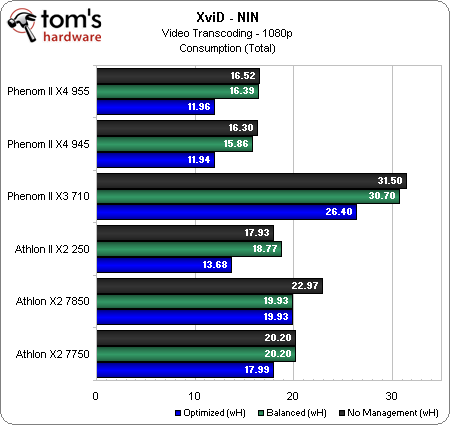

Benchmark Results: 1080p AVI With VirtualDub And XviD

For Xvid encoding, we’ve selected the unrestricted profile with the general purpose preset. The encoding was done with a fixed quantizer of one, one pass, quality-based. Everything else was set at its default value.

Xvid actually requires less processing power than DivX. Encoding time is also shorter. The resulting file is slightly larger, but not by much.

It looks like DivX isn't the only codec having problems with the Phenom II X3 710. We see a larger gap between both the Phenom II X4s and the dual-core Athlon X2/Athlon II. So, much like test results with multi-threaded applications, the Phenom II X4s end up as the most energy efficient processors.

  • nzprogamer
    GO AMD go
    i am telling you my next build AMD/ATI
    """I WILL BE BACK"""
    Reply
  • jedimasterben
    I'd be interested to see the tests performed on Windows 7 to see what the effect of reducing thread "jumping" would be.
    Reply
  • cnox
    Dammit...how can this part 2 article be posted before the Building the Balanced PC Part 2?

    Cumon....
    Reply
  • melangex3
    Great Stuff. Keep up the good work. This is the type of review that will keep me coming back. How about throwing in the ever popular 720 BE and the new 620 or 630 just for giggles?
    Reply
  • Ryun
    jedimasterbenI'd be interested to see the tests performed on Windows 7 to see what the effect of reducing thread "jumping" would be.
    I was thinking the same thing as well.

    Also, were the BIOSs all updated? The asynchronous clocks problem you're experiencing with Athlon II X2 was supposed to be fixed with updated CPU microcode.
    Reply
  • Summer Leigh Castle
    620 and 720? :D
    Reply
  • redgarl
    I must admit that lately AMD is impressive. I got a PII X3 720 BE unleashed at PII X4 20 fully stable with an Asus M4A78T-E latest BIOS. Let simply add that my 2 radeon 4850 OC in Crossfire are running as fast as 2 stock 4870...

    If you take into account that the 2 cards only cost 82$ each for a total of 165$ for the two... I can hardly believe that so little money can give so much results.
    Reply
  • JimmiG
    With my Phenom X4 9650, I found Cool n Quiet to be pretty much worthless without tweaks. There were huge performance drops across the board, especially with tasks that didn't use all four cores, or only loaded cores partially. Videos and games would stutter and skip every couple of frames, compressing files would take longer etc. I basically had a 1.1 GHz CPU that would sometimes run at 2.3 GHz, if it felt like it. Too bad there was no tweak guide available then. I just disabled CnQ which solved all problems but made the system use more power and run hotter.

    With my 955BE, I haven't really had a need to tweak CnQ. It might cause a slight performance hit in some rare cases, but generally when I need a 3.2 GHz CPU, that's what it delivers.
    Reply
  • tacoslave
    Nice, amd owns in the graphics department now with that $1.2 billion im sure amd is heading to pwn BOTH markets.
    Reply
  • saint19
    Good!!!, I have my 955 to 3.8GHz at 1.5V....
    Reply
