Core i5-3570K, -3550, -3550S, And -3570T: Ivy Bridge Efficiency

Test Setup And Benchmarks

Test Hardware
Processors

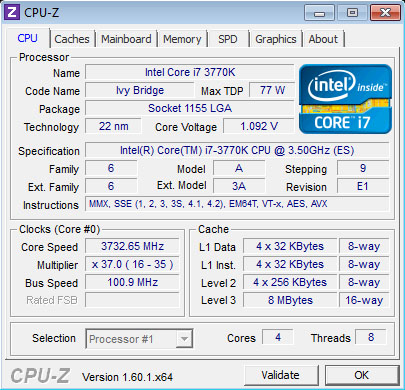

Intel Core i7-3770K (Ivy Bridge) 3.5 GHz (35 * 100 MHz), LGA 1155, 8 MB Shared L3, Hyper-Threading enabled, Turbo Boost enabled, Power-savings enabled

Intel Core i5-3570K (Ivy Bridge) 3.4 GHz (34 * 100 MHz), LGA 1155, 6 MB Shared L3, Turbo Boost enabled, Power-savings enabled

Intel Core i5-3550 (Ivy Bridge) 3.3 GHz (33 * 100 MHz), LGA 1155, 6 MB Shared L3, Turbo Boost enabled, Power-savings enabled

Intel Core i5-3550S (Ivy Bridge) 3.0 GHz (30 * 100 MHz), LGA 1155, 6 MB Shared L3, Turbo Boost enabled, Power-savings enabled

Intel Core i5-3570T (Ivy Bridge) 2.3 GHz (23 * 100 MHz), LGA 1155, 6 MB Shared L3, Turbo Boost enabled, Power-savings enabled

Intel Core i7-2700K (Sandy Bridge) 3.5 GHz (35 * 100 MHz), LGA 1155, 8 MB Shared L3, Hyper-Threading enabled, Turbo Boost enabled, Power-savings enabled
Thermal Paste
Zalman ZM-STG1
Motherboard
Gigabyte Z77X-UD5H (LGA 1155) Intel Z77 Express Chipset, BIOS F7
Memory
G.Skill 16 GB (4 x 4 GB) DDR3-1600, F3-12800CL9Q2-32GBZL @ 9-9-9-24 and 1.5 V
Hard Drive
Intel SSD 510 250 GB, SATA 6 Gb/s
Graphics
Intel HD Graphics 4000

Intel HD Graphics 3000

Intel HD Graphics 2500
Power Supply
Cooler Master UCP-1000 W
System Software And Drivers
Operating System
Windows 7 Ultimate 64-bit
DirectX
DirectX 11
Graphics DriverHD Graphics Driver For Windows 7 (15.26.8.64.2696)


In addition to testing all four Core i5 processors, we also re-ran our results using the Core i7-3770K and Core i7-2700K using Intel HD Graphics 4000/3000.

Game Benchmarks And Settings
Batman: Arkham City
Game Settings: Lowest Quality Settings, Anti-Aliasing: Disabled, V-sync: Disabled, DirectX 11 Mode, 1280x720, Built-in Benchmark
The Elder Scrolls V: Skyrim
Game Settings: Low Quality Settings, FXAA disabled, V-sync: Disabled, 1280x720, 25-second playback, Fraps
World of Warcraft: Cataclysm
Game Settings: Good Quality Settings, Anti-Aliasing: 1x AA, Vertical Sync: Disabled, 1280x720, Demo: Crushblow to The Krazzworks, DirectX 11/9
Audio Benchmarks and Settings
iTunesVersion: 10.4.10, 64-bit
Audio CD ("Terminator II" SE), 53 min., Convert to AAC audio format
Lame MP3Version 3.98.3
Audio CD "Terminator II SE", 53 min, convert WAV to MP3 audio format, Command: -b 160 --nores (160 Kb/s)
Video Benchmarks and Settings
HandBrake CLIVersion: 0.9.5
Video: Big Buck Bunny (720x480, 23.972 frames) 5 Minutes, Audio: Dolby Digital, 48 000 Hz, Six-Channel, English, to Video: AVC Audio: AC3 Audio2: AAC (High Profile)
MainConcept Reference v2.2
Version: 2.2.0.5440
MPEG-2 to H.264, MainConcept H.264/AVC Codec, 28 sec HDTV 1920x1080 (MPEG-2), Audio:
MPEG-2 (44.1 kHz, 2 Channel, 16-Bit, 224 Kb/s), Codec: H.264 Pro, Mode: PAL 50i (25 FPS), Profile: H.264 BD HDMV
Application Benchmarks and Settings
WinRARVersion: 4.11
RAR, Syntax "winrar a -r -m3", Benchmark: 2010-THG-Workload
WinZip 16Version: 16.0 Pro
WinZip CLI, Benchmark: 2010-THG-Workload
7-Zip
Version 9.22 beta
LZMA2, Syntax "a -t7z -r -m0=LZMA2 -mx=5", Benchmark: 2010-THG-Workload
Adobe Premiere Pro CS 5.5
Paladin Sequence to H.264 Blu-ray
Output 1920x1080, Maximum Quality, Mercury Playback Engine: Software Mode
Adobe After Effects CS 5.5
Version: CS5.5
Tom's Hardware Workload, SD project with three picture-in-picture frames, source video at 720p, Render Multiple Frames Simultaneously
Adobe Photoshop CS 5.1 (64-Bit)Version: 11
Filtering a 16 MB TIF (15 000x7266), Filters:, Radial Blur (Amount: 10, Method: zoom, Quality: good) Shape Blur (Radius: 46 px; custom shape: Trademark sysmbol) Median (Radius: 1px) Polar Coordinates (Rectangular to Polar)
ABBYY FineReaderVersion: 10 Professional Build (10.0.102.82)
Read PDF save to Doc, Source: Political Economy (J. Broadhurst 1842) 111 Pages
3ds Max 2012
Version: 10 x64
Rendering Space Flyby Mentalray (SPECapc_3dsmax9), Frame: 248, Resolution: 1440 x 1080
Adobe Acrobat X Professional
PDF Document Creation (Print) from Microsoft PowerPoint 2010
SolidWorks 2010
PhotoView 360
Render 01-Lighter Explode.SLDASM (SolidMuse.com)
Image Output Resolution: 1920x1080, Render: Preview Quality “Good”, Final Render Quality “Best”
Visual Studio 2010
Compile Chrome project (1/31/2012) with devenv.com /build Release
Synthetic Benchmarks and Settings
PCMark 7Version: 1.0.4
3DMark 11
Version 1.0.3
SiSoftware Sandra 2012 SP3
CPU Test=CPU Arithmetic/Multimedia, Memory Test=Bandwidth Benchmark, Cryptography, Cache Latency
