Application Benchmarks: 2D And 3D Image Rendering

System Builder Marathon: $1,250 Mid-Range PC
By

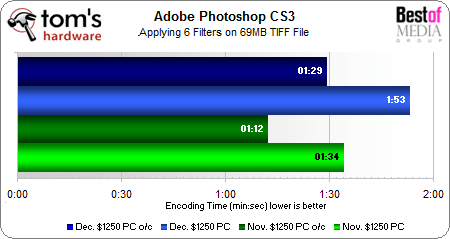

In the past, Photoshop has shown itself to be unaffected by more than two cores. Let's see if i7's microarchitecture makes much of a difference here, or if the higher-clocked Core 2 still has the moves.

And the answer is, not really. Photoshop is definitely clock-speed dependent more than anything else, which is somewhat disappointing for a workstation-centric productivity program.

On the flip side, 3dsMAX has always loved multiple cores, so it's likely going to favor the i7:

No surprise here, as 3dsMAX shows us a 100% increase in speed when using the quad-core i7 over the dual-core E8500.

Up to this point, what we're seeing is that the i7 can hang with the much-higher clocked E8500 in applications that don't take advantage of quad cores, but when they do, the i7 pummels the E8500 for the win. Now let's look at regular productivity tasks.

Ask a Category Expert

Create a new thread in the Reviews comments forum about this subject

Example: Notebook, Android, SSD hard drive

Display all 75 comments.
This thread is closed for comments
  • -4 Hide
    Hellcatm , December 30, 2008 7:36 AM
    Personally I'd get a cheaper processor and motherboard and go with a Gforce 280 video card. You can get a $180 processor and a $145 motherboard and the 280 card has PhysX built in which is really nice.
  • 6 Hide
    enewmen , December 30, 2008 7:57 AM
    I will hope to see how a high-clocked q9550/q9650 E0 will compare with a i7 920. The Motherboard and RAM will be cheaper. So, you can also get more RAM and faster RAM with the q9550 than the i7 920 with the same cash. Or the high-bandwidth/ lower total memory DDR3 tri-channel might actually do better?
    I don't think a i7 920 /w 3 gigs RAM will work as quickly as a q9550 @ 4.0Ghz with a 470mhz fsb and 4+ gigs RAM -even with quad-core supported apps.
    Anyway, I think the outcome will be hard to predict.
  • 9 Hide
    one-shot , December 30, 2008 9:03 AM
    I think the Q9550/i7 920 comparison would be very informative. I have been considering purchasing a Q9950 in the near future. Let's see it happen.
  • 9 Hide
    chriscusano , December 30, 2008 9:58 AM
    I agree with I'd agree with trying to run a comparison with the Q9550. Throwing in an nvidia card would also prove interesting.
  • 3 Hide
    pcgamer12 , December 30, 2008 10:08 AM
    Very good article. I just want to say that the Crucial 3GB triple-channel DDR3 1066 kit costs only $73.99; its price surprised me. Go Crucial! I'm definitely looking into a Crucial memory kit for my next upgrade or build, which might or might not be Core i7, depending how the price wars progress between nVidia and ATI (saying AMD still feels wierd to me when referring to video cards). I noticed how the budget had to "settle" for a 4850 X2 when they Core 2 Duo build had money for a 4870 X2. Hopefully, prices will go down faster, and soon.
  • 2 Hide
    Pei-chen , December 30, 2008 10:10 AM
    Page 2 - E8500 has 6MB L2 cache, not 4MB.
  • 5 Hide
    Anonymous , December 30, 2008 10:45 AM
    Yes, please try the next system with the Q9550! I would love to see how this processor compares again the new kid on the block. Of course this is the processor I have and also want to see what you get out of it. It would be nice if you chose another Gigabyte board as well to get a more apples to apples comparison with this month's build.
  • 6 Hide
    Huttfuzz , December 30, 2008 11:00 AM
    Yes we want to see Q9550 against Core i7 920. Both overclocked at the same speed. Let's say 3.8 or something like that.
  • 3 Hide
    JeanLuc , December 30, 2008 11:04 AM
    Good article, well done. At first I was a bit worried for the Core i7 was going to get humiliated against the higher clocked E8500 but you summary shows just how much progress has been made with developing software that can take advantage of multiple cores.

    The Supreme Commander: Forged Alliance benchmark was surprising out of all the games you tested I expected that game to be the one which showed off what quad cores can do for games. Perhaps you could add in GTA IV into your future benchmarks as that games seems to love quad cores?

    The temps were a little worrying but the Intel Stock cooler isn’t designed with overclocking in mind and you can pretty much guarantee a decent 3rd party cooler will slash those temps by a third.

    One last thing it might be an idea to compare your very first mid range build to your current mid range build, it would give the readers an idea as to how much more bang for buck we get now days.
  • 0 Hide
    kelfen , December 30, 2008 11:11 AM
    well 4850x2 there is only two in newegg 2gb and 1gb which not sure if ATI rly supported as far as drivers compared to its bigger brother
  • 1 Hide
    Anonymous , December 30, 2008 11:22 AM
    I read this and I suddenly start to cry ... you may have read before that figures in Euros are equal to figures in Dollars ... but things got worse and worse.

    The current prices in an average shop in Spain:

    Intel Core i7 920 : 293 EUR = 413 USD
    GIGABYTE GA-EX58-DS4 : 219 EUR = 308 USD
    Sapphire Radeon 4850 X2 2 GB : 349 EUR = 492 USD
    6 GB Patriot DDR3-1333 CL7 Kit : 259 EUR = 365 USD
  • -7 Hide
    kelfen , December 30, 2008 11:24 AM
    spain lol
  • 1 Hide
    Pei-chen , December 30, 2008 11:52 AM
    And yes, please include a GTA 4 benchmark. I got more FPS from overclock my C2D 700MHz than overclock my 9800GT 100Mhz.
  • 0 Hide
    bvbellomo , December 30, 2008 12:08 PM
    The Q9550 would be interesting because it would show how much gain is from the change from Dual to Quad core and how much is gain from the new i7 architecture. This comparison is very relevant to everyone buying/building a new quad core system right now, especially around this price range.

    What I would really like to see is the new i7s on the CPU charts.
  • 0 Hide
    cah027 , December 30, 2008 12:36 PM
    I think it would have been cool if you would have used two 512mb 4870's in crossfire instead of the 4850 X2. I think there would have been a different trade off in memory amount but I think the added speed of the i7 might have offset it nicely.
  • 0 Hide
    Anonymous , December 30, 2008 1:01 PM
    I guess core i7 is strictly suited for high end systems ($2000+), where the added costs of memory, mobo and cpu are justified. for low to mid range systems it is too much to bare.
  • 1 Hide
    trabello , December 30, 2008 1:28 PM
    In the next SBM we should watch the brand new GTX 295, keep it in mind, folks ;)
  • -3 Hide
    jerreece , December 30, 2008 2:12 PM
    I'm kind of surprised that you folks chose a new i7 for a "Mid Level" system.

    You've upgraded the processor, but downgraded the video cards from last month.

    "Not really. The i7/4850 X2 still performs at about 80% of the level that the E8500/4870 X2 is managing to achieve."

    Of course this new system performs less than the November one.
  • 1 Hide
    Roland00 , December 30, 2008 2:23 PM
    I understand you keep Vista 32 to make it easier to compare to the previous systems, but in reality you should really upgrade to vista 64.

    You have a total of 3.5 gigs of memory to play with in vista 32. Since you only put in a graphic card with 2gigs of video memory that leaves 1.5 gigs of memory for normal applications and the OS. Anybody that reads these system builder marathons are going to put vista 64 on their computer if they are going to use vista.
  • 0 Hide
    terr281 , December 30, 2008 2:46 PM
    Your chart regarding the base and overclock settings of the Dec. pc on page 7 is inaccurate. (Ram and Graphics card.)
