Verax Helado 2 PWM-T: Simply Too Expensive

CPU Cooler Charts 2008: Part 4
By

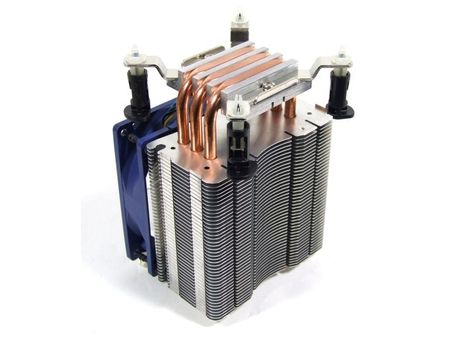

Veteran company Verax offers a cooler named Helado 2 PWM-T. It sports a blue, unlit, 92mm PWM fan.

cpu heatsink cooler

The design principles of the Helado 2 and Xigmatek’s HDT S1283 are similar: the Helado 2 comes with heatpipes that are in direct contact with the CPU, conducting heat to the horizontally-aligned cooling fins. As a result of its smaller fan, the cooling surface provided by the fins is also smaller.

The cooling efficiency of the Helado cooler is only average. The Core 2 quad-core processor we used for testing reached up to 78 °C with all four cores under full load, though the cooler never got unpleasantly loud. With the CPU idle, the temperature drops to about 40 °C, resulting in an even lower noise level.

Considering the overall performance, the price of nearly $89 is much too high.

cpu heatsink cooler

cpu heatsink cooler

Technical Details
CPU 100% Load Idle
Temperature 78 °C 39.5 °C
Noise 38.3 dB(A) 37.5 dB(A)
Fan Speed 1,600 RPM 1,200 RPM
Weight 450g
Intel Compat. LGA775
AMD Compat. AM2/AM2+ 939/940

cpu heatsink cooler

Display all 66 comments.
This thread is closed for comments
  • 0 Hide
    Proximon , July 11, 2008 6:59 AM
    Interesting review! Good to see so many factors presented so well. Someone needs to build a data base for what cooler fits in which case and MB though... I understand there are some problems with the Xigmatek blocking Dimm slot 0 when placed correctly for dual-core, on some boards... If so would likely apply to other 120MM coolers.
  • 0 Hide
    kelfen , July 11, 2008 7:10 AM
    Interesting, It is pretty cool how you kept track of the data :)
  • 2 Hide
    Anonymous , July 11, 2008 7:33 AM
    Hehe, this review makes me feel great, I bought this cooler about three months ago, for about $30 after rebate on Newegg, and its good to see I made not only the right choice, but the BEST choice POSSIBLE, as far as my bang for my buck!
  • 1 Hide
    Ogdin , July 11, 2008 8:04 AM
    That xigmatek gets even better when you put a decent fan on it too.
  • 0 Hide
    leo2kp , July 11, 2008 11:09 AM
    I use the Thermaltake Big Typhoon and I never see it anymore on charts, but I understand it to be nearly as good as the Zalman 9700LED. My CPU idles at 30C and sits at 50C fully loaded (1st gen E6600 @ 3GHz), although I am using an upgraded fan. Anyway, I think the Big Typhoon should have been tested too =D
  • 8 Hide
    00mike000 , July 11, 2008 11:11 AM
    who agrees that toms hardware should make a CPU and or VGA coolers chart to go in the chart section would be a great way to compare the majority of coolers out there
  • 0 Hide
    JPForums , July 11, 2008 12:03 PM
    The temperatures are a bit higher than my experiences would suggest. However, they seem to be consistent so there is really no issue. It's probably just a difference in how the temperatures are measured and the calibration of my equipment. Still it would be interesting to see the variation in temperatures measured using several different methods.

    I agree with mike, CPU/VGA cooler charts would be useful.
  • 0 Hide
    martel80 , July 11, 2008 12:13 PM
    JPForumsThe temperatures are a bit higher than my experiences would suggest. However, they seem to be consistent so there is really no issue. It's probably just a difference in how the temperatures are measured and the calibration of my equipment. Still it would be interesting to see the variation in temperatures measured using several different methods.I agree with mike, CPU/VGA cooler charts would be useful.

    Calibration of equipment? Several different methods? Dude, match the room temperature in the first place. LOL
  • 0 Hide
    schwally , July 11, 2008 12:35 PM
    I put a scythe fan in mine that runs at a higher rpm, and nearly inaudible decibels. Keeps it cooler and quieter. My one problem with the cooler is the push pins. I know they sell the backing seperate, but it would be nice if it was all one. Anywho...
  • 2 Hide
    truehighroller , July 11, 2008 12:40 PM
    I think the Thermalright extreme would beat them all why is it not used here?
  • 2 Hide
    Farrwalker , July 11, 2008 1:06 PM
    I would like to see the popular thermalright Ultra120 Extreme CPU Cooler tested and included in the chart.
  • 2 Hide
    Fofo , July 11, 2008 1:07 PM
    truehighrollerI think the Thermalright extreme would beat them all why is it not used here?


    I am also curious to why it is not being used here, I am currently using one and I idle at 33 degrees with my CPU OCED Q9550 from 2.8-3.2ghz.
  • 2 Hide
    Niva , July 11, 2008 1:21 PM
    Hmmm... I have one of these ximatec coolers but I think it has a 120mm fan on it. Never heard the thing ramp up, it's installed in a phenom x4 rig. Maybe I should go look at my receipt and see what it is exactly but the picture looks identical.
  • 2 Hide
    nvalhalla , July 11, 2008 1:27 PM
    I'll cast my "vote" for the Arctic Cooling Freezer 7 Pro. I use it in the computers I build every day. Keeps q6600s @ 3.0 GHz down to 50-52c under load. Quiet as I need it to be as well. Ewiz sells them for $17, making it a no brainer as far as I'm concerned.
  • 0 Hide
    schwally , July 11, 2008 1:32 PM
    Probably because the cooler is a $60+ cooler. This is for less pricey coolers and the Thermalrights are out of the range.
  • 0 Hide
    sublifer , July 11, 2008 2:23 PM
    It'd be nice to have the OCZ Vendetta and Vendetta2 in the comparison. I got my Vendetta a while back for about $30 and its similar to the S1283 but it has a 92mm fan instead of the 120. Just curious how it compares to these others.
  • 2 Hide
    gaiden , July 11, 2008 2:44 PM
    Overall very informative article. With that said I think the "INSTALLATION" category is not as important as say "CONTENTS". My reason being that INSTALLATION, to me and possibly others, is simply a matter of preferences and it's a ONE TIME PROCESS unlike noise and performance. Some dont mind Push-Pins setup while others such as myself NEEDED a bracket and Screws to ensure an Error-Free installation process. Yes i get that Push-Pin style are error free too but I preferred the 'overkill' process (take out the Mobo and install the brackets and screws-the whole 9 yd).

    Moreover, Coolink and Zalman 9700 also requires underneath brackets but its score is alot higher than Thermalright IFX. I own both Zalman and the IFX 14 and both takes the same amount of screws in brackets (both seems painless) installing the retention bracket on the IFX may require a longer screwdriver but I cut myself in the fingers on the 9700 due the direction of the fins while IFX was rather painless. Regardless to its size the IFX isn't any harder to install then any other bracket retention coolers out there. IFX actually offers, arguably, better quality of installation due to that it has rubber rings for your screws for noise reduction as well as optional heatsink that extents from beneath the board. so Quality of the installation is a WHOLE LOT better than what other coolers offered, we all want Quality right?

    I think there should be a CONTENT category instead because like what the article mentioned, some DONT come with all the brackets for the most used sockets. I think sometimes that is a deal-breaker to many due to the 'additional' purchases required as well as a not-very-nice surprise when you actually do get it then find out you have to spend more and wait for a number of days depends on stock and quality of the store you are buying from. (e.g. Thermalright XP-90, XP-120 doesnt come with the LGA 775 with some of these heatsink sellers dont even carry, i have to get mine bracket elsewhere because N@w@gg was out of stock)

    BOTTOMLINE: INSTALLATION category deserves points but not all 10pts. TH should revisit of all these coolers and give them 1-5pts instead while score 1-5pts on their CONTENTS would make a lot more sense.

    my 2cents

    i guess im ready for flames? :p


    gl
  • 1 Hide
    psycho@home , July 11, 2008 3:03 PM
    Thermalright should have had more coolers tested.I have an Ultima-90 with
    an Intel 6300, stock 1.86Ghz, running at 3.4Ghz, and even running Crysis
    never breaks 58C. The scoring weighted poorly too. Cooling performance
    should count twice as much as installation or noise. Planning ahead, I
    bought my cooler and Gigabyte board together, installation was a breeze
    and the backing plate reduces strain on the board. Fantastic cooler, 6
    heatpipes, 460 grams and very quiet. It tested very close to the
    Thermalright Ultra 120 Extreme and as well as the Ultra 120. I did have
    to lap the bottom, not even close to smooth,but my results have to top
    Anand's.
  • 1 Hide
    sublifer , July 11, 2008 3:35 PM
    @gaiden

    "INSTALLATION category deserves points but not all 10pts. TH should revisit of all these coolers and give them 1-5pts instead while score 1-5pts on their CONTENTS would make a lot more sense."

    I completely agree. Installation is one time only and contents matter (especially if you don't get everything you were expecting. It really sukz to delay your build on something like a piece of mounting hardware (or a fan) when those things are generally expected with a cooler) and who doesn't want to get to playing a new game asap when you probably were building it so you could play. :)

    Wasn't my experience since I got a Vendetta, but I know the feeling.
  • 1 Hide
    zero2dash , July 11, 2008 4:49 PM
    Quote:
    Probably because the cooler is a $60+ cooler. This is for less pricey coolers and the Thermalrights are out of the range.


    The Zalman costs more than the TRUE at most websites. Why do they keep including it then if this is for budget coolers?

    They've also reviewed compact liquid kits and the IFX-14, both of which are over $60.

    The exclusion of the TRUE is getting pathetic, THG.
