Zalman is better-known for quality than value, yet the firm surprised us by providing its high-end Performa cooler with a moderate $35 Web price.

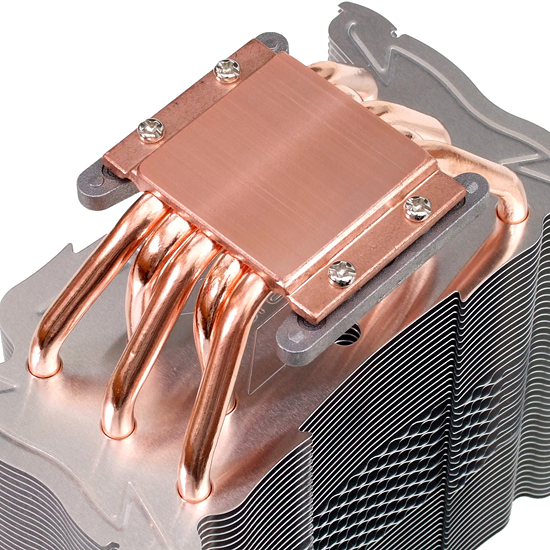

Zalman’s finely-finished copper base connects five heat pipes to a uniquely-designed sink. Screws at the edge of the base clamp mounting brackets in place.

The CNPS10X Performa includes two sets of AMD hardware, in addition to a universal socket support plate and LGA 1156/1366/775 brackets. Four clips support up to two fans, and an optional resistor wire for the included fan reduces its speed and noise.

After attaching the proper brackets to the heat sink and nuts to the support plate, the CNPS10X simply bolts in place. The same procedure is used for bolt-through brackets on both Intel and AMD motherboards.

Bolt-through installation allows the proper cross flow orientation on AMD motherboards. Users with oddball bracket orientation or those who really want an updraft configuration can achieve the desired result using an included retaining clip, rather than bolt-on brackets.
Read the article before posting please.
http://www.tomshardware.com/reviews/lga-1156-heatsink,2535-4.html
That's why the same system was used for both tests. It's all mentioned in the article, too.
http://www.tomshardware.com/reviews/lga-1156-heatsink,2535-4.html
That's why the same system was used for both tests. It's all mentioned in the article, too.
Read the article before posting please.
- Heatpipe orientation .. I know all about capillary action but since I don't know of any manufacturer that advertises/places the type of wick they use on the box of the cooler, believing that all coolers are the same and therefor heatpipe orientation does not matter, is a bit idiotic. I know that on a open test bed with the motherboard sitting flat/horizontally the heatpipe orientation isn't relevant but inside a PC case it might be .. and here is my dilemma. Did some research about this, but other then forums and "i believe so" arguments I haven't found anything relevant on this subject. The thing is I was looking these past few weeks at reviews for arctic cooling's 13 on different websites and even though the test method (and room temp)is slightly different from one reviewer to the other, the temp values differ quite a bit which is normal but the biggest difference seams to stem from it's orientation in a pc case.
Main point of my rambling ... since this is probably one of the oldest tech websites out there, could you bust/prove this myth? Get a bunch of coolers from all price ranges (i have a feeling that cheaper coolers would turn up a bigger difference in values that the expensive ones) and place them est-west and north-south inside a closed pc case. Run a couple of tests and gives us the results.
PS: i know that case fans matter but since most pc cases now have a psu mounted at the bottom and there is a exhaust fan/grill at the top, you could use that as the "standard case" for this test.
Great article.
I wanted a comparison between the CM 212+ and Xigmatek Gaia.
I think i'm going for the Gaia for its easier installation and to use it in a 2-fan setup with a fan that i allready have and don't know where to use it.
It would be even better if you added the performance of the coolers that support 2-fan setups.
Sorry, but the Hyper 212+ is too old to be part of a "new for 2010" cooler roundup, but that's why the link was provided in the article and the response thread:
http://www.tomshardware.com/reviews/lga-1156-heatsink,2535-4.html
thnx again
funny
I can see this time you took your time editing it and the end result is excellent.
On an unrelated note ... any news on whether your "grumpiness" is improving or can I expect a "slap" for my cheeky comment ... heh heh.
Seriously, If this is the new standard required for the other reviewers then the rest (Bar Chris and Don) have some work to do mate.
Well done ... very well done.
Are you guys adding a "Coolers P/P rank" anytime soon? That would be so helpful 8)
Cheers!
