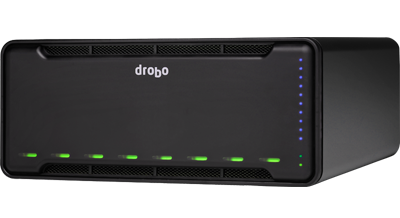

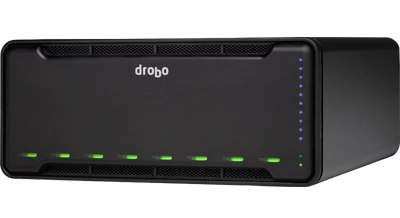

Drobo B810n 8-Bay NAS Review

Drobo. Now that's a name we haven't heard in a long time. The company is back, and it sent us its new Marvell-powered B810n storage appliance to test. Is there new magic in this once-prolific brand, or does it fail to reignite that old flame?

Early Verdict

For many users the Drobo B810n is the ideal NAS. It's easy to configure, easy to use and can move data at 100 MB/s when asked to perform basic tasks. At some point, though, you need more features that go far beyond an expensive, large black box that only holds data. We hope to see Drobo marry ease-of-use with a feature set that makes the brand iconic and takes it out of fad territory. Drobo was a big name in network-attached storage at one time, however, the company will need to innovate to succeed in this era.

Pros

  • +

    Easy set up that simplifies the NAS jargon

  • +

    Hardware is easy to work with

  • +

    Includes next-gen features like SSD cache

Cons

  • -

    Size of the system is quite large for what it is

  • -

    System is overpriced by $600 and under-powered in both the system memory and CPU processing power

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Specifications


Drobo was one of the first companies to introduce redundant storage appliances to the home. It initially focused on direct-attached configurations, but after seeing successful network-attached products from Infrant and Anthology Solutions, Drobo added Ethernet to some of its offerings. Though it fell on hard times and changed hands more than once, Drobo is in the middle of a reboot and is focusing on simple, yet powerful storage systems for professionals.

From the onset, Drobo products had to pass a simple test: anyone, regardless of computer experience, should be able to set them up and get them working. This emphasis carries through to the hardware introduced in 2016. In the same vein, focusing on simplicity limits the hardware's capabilities compared to the competition.

Drobo's management changes over the years noticeably slowed the development of new products. For the most part, though, its latest offerings look a lot like the old ones. Their features are also similar, which is to say they don't introduce many fresh ideas.

Still, the company is fairly open about its past, present and future. Drobo CEO Mihir H. Shah recently published a brief roadmap, discussing the brand's resurrection and plans for 2016. At CES in January, we sat down with Shah and a few key members of the management team. In our meeting, we encountered an enthusiastic group of industry insiders with a plan to take Drobo to the next level.

Today, we're testing the B810n, Drobo's first new product with Shah at the helm. It's a large, eight-bay system that remains easy to use, but adds next-gen capabilities like data-aware tiering (SSD cache). The platform is now open to third-party software developers, so we expect to see more apps if the hardware really starts catching on. And Drobo is addressing past complaints about its customer support by promising a better user experience throughout the product's life.

Drobo chose a quad-core SoC from Marvell for its B810n with 2GB of embedded DDR3 memory, whichis the first time we've seen such a combination in a system costing nearly $1600. It's also the first time we've tested an appliance in this price range without iSCSI support. Drobo sells a separate product with iSCSI─its B810i.

The eight hot-swappable drive bays support Drobo's proprietary BeyondRAID technology. You get two options: one for single redundancy and one for dual redundancy. Using the latest 8TB disks, you can get up to 64TB of storage in a single array. Matched drives aren't required, either. Feel free to install a 2TB disk alongside three 1TB drives; the system does the math to make a redundant array out of what you have. If you need more capacity, simply slide another drive in and let the platform manage the expansion.

Drobo is introducing SSD cache functionality through an auto-tiering mechanism that utilizes up to three solid-state drives. Moving forward, this should be a standard feature on the company's other appliances.

Information moves to and from the B810n through two GbE ports that can operate together in linked mode or in an active/passive (fail-over) model. We were able to install the system on two separate networks with different subnets. There is no empty PCIe slot for 10 GbE upgrades, unfortunately.

Inside the system, we found a large battery that should help in-flight data reach non-volatile storage in the event of a power loss event. When power is restored, the data moves from the flash back to system memory.

Pricing, Warranty And Accessories

Drobo's B810n sports an MSRP of $1,600, but we've seen the pricing slip since the initial release. At the time of writing, the Drobo Store included two hard drives with your purchase. We managed to find the system for as low as $1,517, but without the bundled disks at other etailers.

The B810n is protected by a paltry one-year warranty, though you can purchase an extension through DroboCare. One more year of coverage costs $379, while three years sells for $999. Pricing is model-dependent, so we'd expect the coverage on other devices to be different. Here's what the company says about its warranty product:

DroboCare is simple, powerful protection for your Drobo storage. The DroboCare support program extends your peace of mind beyond the standard warranty term and phone support included with your Drobo purchase. In fact, DroboCare gives you more, even during your standard warranty period.

Drobo sells one additional accessory for the B810n, a rack-mountable adapter for $200.


MORE: Best SSDs


MORE: How We Test HDDs And SSDs


MORE: All Storage Content

Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
  • Khimera2000
    Would of like to see the qnap tvs-871 i3 in the review. Its in the same price range. The qnap model mentioned in the article isnt even stocked on newegg any more, and although it makes for nice charts it does nothing from a buyers perspective.Adding something that might of passed end of life just skews performance expectation at the given price point.

    Just my opinion on it.
    Reply
  • firefoxx04
    $1600 with only 2gb ram and no support for zfs (or equivalent). Pretty sad when they market it for big data. Raidz2 with 3 or 4tb disks would be nice.
    Reply
  • Blytz
    Have to say I would get another DS1815+ Synology unit over that drobo any day of the week. Equal or better specs, about 1/2 the price.

    Not to say the Drobo is a poor unit, just very overpriced for what's on off
    Reply
  • Xajel
    I wonder when NAS becomes more home friendly in pricing and features... Dual Lan port with Link aggregation and 4-6 bays with support for expandability using USB 3 drives ( or another DAS ) for timely backups is not that much of a problem... wondering why prices for such features are very high
    Reply
  • milkod2001
    @XAJEL
    Look up for Zyxel 540 or 542, affordable 4 bay, dual lan port unit
    Reply
  • DPichugin
    Drobo b810n has 2 ethernet ports, and support port bonding. It was not clear whether bonded port configuration was used for benchmarking. I would expect different numbers for bonded port test. see https://en.wikipedia.org/wiki/Link_aggregation for details.
    Reply
