The Brazos Round-Up: Eight AMD E-350-Based Motherboards

The Brazos Round-Up: Eight AMD E-350-Based Motherboards
By

AMD’s Brazos platform, driven by the Zacate APU, offers a lot of performance per watt. It comes up short on features, though. Eight manufacturers try to change that perception by adding slots, controllers, and even overclocking in a couple of cases.

Buying a low-cost, high-efficiency platform is kind of like choosing a cable package. For a few dollars more you can always get a killer feature that you really want. But then it seems like the features that are still missing really aren’t that much more expensive. It's a clever scheme to keep you constantly thinking about the next-best thing just a few dollars up the ladder.

You might face the same sticky decision when it comes time to shop for that inexpensive PC: go for the budget gold, or spend a few extra dollars on a faster processor (and then a few more dollars on a better graphics card, and a bit more on more memory, and...it really never ends). But AMD is hoping that its Brazos platform gives you enough compute horsepower, enough graphics performance, and enough value to squelch that never-ending desire to push just a little bit further. If you want a solid idea of what the platform includes, check out ASRock's E350M1: AMD's Brazos Platform Hits The Desktop First.

Today we have eight different Brazos-based platforms, priced from $115 to $175. If you're dead set on saving money, one of these setups should be able to satisfy you. Now it's time to figure out which tier in this little sub-market serves up the best value.

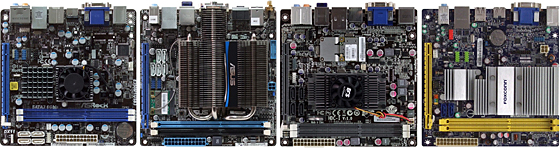

E350 Fusion Motherboard Features
 ASRock
E350M1/USB3
Asus
E35M1-I Deluxe
ECS
HDC-I
Foxconn
AHD1S-K
PCB Revision1.001.011.01.0
CPUAMD E-350 APUAMD E-350 APUAMD E-350 APUAMD E-350 APU
ChipsetAMD A50M FCHAMD A50 FCHAMD A50M FCHAMD Hudson D1
BIOSP1.20 (02/24/2011)0902 (04/15/2011)4.6.4 (03/24/2011)A931022 (04/19/2011)
100.0 MHz Clock101.3 (+1.30%)100.0 (+0.0%)101.9 (+1.9%)100.0 (+0.0%)
Internal Interfaces
PCIe x161 (x4-mode)1 (x4-mode)1 (x4-mode)1 (x4-mode)
PCIe x1/x4None1x mini PCIe (Filled)1x mini PCIe (Filled)None
Legacy PCINoneNoneNoneNone
USB 2.02 (4-ports)2 (4-ports)2 (4-ports)2 (4-ports)
USB 3.0None1 (2-ports)NoneNone
IEEE-1394NoneNoneNoneNone
Serial Port1NoneNone1
Parallel PortNoneNoneNoneNone
FloppyNoneNoneNoneNone
Ultra-ATA 133NoneNoneNoneNone
SATA 6.0 Gb/s4542
SATA 3.0 Gb/sNoneNoneNoneNone
4-Pin Fan1None12
3-Pin Fan121None
FP-Audio1111
CD-AudioNoneNoneNoneNone
S/PDIF I/ONoneOutput OnlyOutput OnlyOutput Only
I/O Panel Connectors
P/S 211None1
USB 2.04266
USB 3.0242None
IEEE-1394NoneNoneNoneNone
Network1111
eSATA111None
Digital Audio OutOptical OnlyOptical OnlyOptical OnlyNone
Digital Audio InNoneNoneNoneNone
Analog Audio5353
Video OutDVI-D, VGA, HDMIDVI-I, HDMIDVI-D, VGA, HDMIDVI-D, VGA, HDMI
Other DevicesNoneBluetooth Transceiver
802.11n Antennas
Bluetooth Transceiver
None
Mass Storage Controllers
Chipset SATA4x SATA 6Gb/s
1x eSATA 6Gb/s
4x SATA 6Gb/s
1x eSATA 6Gb/s
4x SATA 6Gb/s
1x eSATA 6Gb/s
2x SATA 3Gb/s
Chipset RAID ModesNoneNoneNoneNone
Add-In SATANoneNoneNoneNone
USB 3.0EJ168A PCIe2x D720200F1 PCIeASM1042 PCIeNone
IEEE-1394NoneNoneNoneNone
Networking
Gigabit LANRTL8111E PCIeRTL8111E PCIeAR8151 PCIeRTL8111E PCIe
Wireless LANNoneAR9285 PCIeRTL8188CE PCIeNone
Wireless PANNoneAR3011 USB 2.0AR3011 USB 2.0None
Audio
HD Audio CodecALC892ALC892VT1708BALC662
DDL/DTS ConnectUnspecifiedUnspecifiedDTS ConnectUnspecified


E350 Fusion Motherboard Features
 Gigabyte
E350N-USB3
Jetway
NC85-E350-LF
Sapphire Pure
Fusion Mini E350
Zotac
FUSION350-A-E
PCB Revision1.02.01.0Unspecified
CPUAMD E-350 APUAMD E-350 APUAMD E-350 APUAMD E-350 APU
ChipsetAMD A50M FCHAMD Hudson-D1 FCHAMD A50M FCHAMD A50M FCH
BIOSF2c (03/15/2011)A02 (04/14/2011)
0.31 (05/13/2011)1.01 (04/18/2011)
100.0 MHz Clock100.0 (+0.0%)101.4(+1.4%)101.4(+1.4%)101.4(+1.4%)
Internal Interfaces
PCIe x161 (x4-mode)None1 (x4-mode)1 (x4-mode)
PCIe x1/x4None1x mini PCIe (Empty)1x mini PCIe (Empty)1x mini PCIe (Filled)
1x x4 (Open for x16)
Legacy PCINone1NoneNone
USB 2.02 (4-ports)2 (4-ports)2 (4-ports)1 (2-ports)
USB 3.0NoneNoneNone1 (2-ports)
IEEE-1394NoneNoneNoneNone
Serial PortNone111
Parallel PortNoneNoneNoneNone
FloppyNoneNoneNoneNone
Ultra-ATA 133NoneNoneNoneNone
SATA 6.0 Gb/s4454
SATA 3.0 Gb/sNoneNoneNoneNone
4-Pin FanNone1None2
3-Pin Fan221None
FP-Audio1111
CD-AudioNoneNoneNoneNone
S/PDIF I/OOutput OnlyNoneBothOutput Only
I/O Panel Connectors
P/S 211None1
USB 2.04644
USB 3.02None22
IEEE-1394NoneNoneNoneNone
Network1111
eSATANoneNone11
Digital Audio OutOptical OnlyNoneOptical OnlyOptical Only
Digital Audio InNoneNoneNoneNone
Analog Audio6355
Video OutDVI-D, VGA, HDMIDVI-D, VGA, HDMIDVI-D, VGA, HDMIDVI-I, HDMI
DisplayPort
Other DevicesNoneNoneBluetooth Transceiver
802.11n Antennas
Mass Storage Controllers
Chipset SATA4x SATA 6Gb/s
1x eSATA 6Gb/s
4x SATA 3Gb/s5x SATA 6Gb/s
1x eSATA 3Gb/s
4x SATA 6Gb/s
1x eSATA 6Gb/s
Chipset RAID ModesNoneNoneNoneNone
Add-In SATANoneNoneNoneNone
USB 3.0D720200F1 PCIeNoneD720200F1 PCIeVL800-08 PCIe
IEEE-1394NoneNoneNoneNone
Networking
Gigabit LANRTL8111E PCIeRTL8111E PCIe88E8057 PCIeRTL8111E PCIe
Wireless LANNoneNoneNoneAR9285 PCIe
Wireless PANNoneNoneAR3011 USB 2.0None
Audio
HD Audio CodecALC892VT1705 PCIeALC892ALC892
DDL/DTS ConnectUnspecifiedUnspecifiedUnspecifiedUnspecified
