MSI GTX 760 OC Gaming

GeForce GTX 760 Review: GK104 Shows Up (And Off) At $250
By , Igor Wallossek

MSI’s GTX 760 OC Gaming (N760 TF 2GD5/OC) is equipped with the same TwinFrozr IV cooler introduced with the GTX 770 OC Gaming and Lightning cards. Like Gigabyte's offering, a slim thermal solution makes the GTX 760 OC Gaming a good choice for an SLI setup, leaving about 0.4 inches between the cards. At 11.81 inches, it is about 0.8 inches longer than its competition, though it also weighs a little less at 26.1 ounces. The MSI card is also the slowest of the factory-overclocked cards, running at 1020 MHz.

Technical Specifications And Dimensions
GPU-Clock
1020 MHz
Boost (according to BIOS)1085 MHz
Attainable Maximum Boost Under Load1163 MHz
Height125 mm / 4.92 inches
Length300 mm / 11.81 inches
Width (Cooler Side)
36 mm / 1.42 inches (<= double-slot)
Width (PCB side)4 mm / 0.16 inches (no backplate, frame only)
max. Weight 742 g / 26.2 ounces
Fans2 x 92 mm / 3.62 inches (fan diameter)

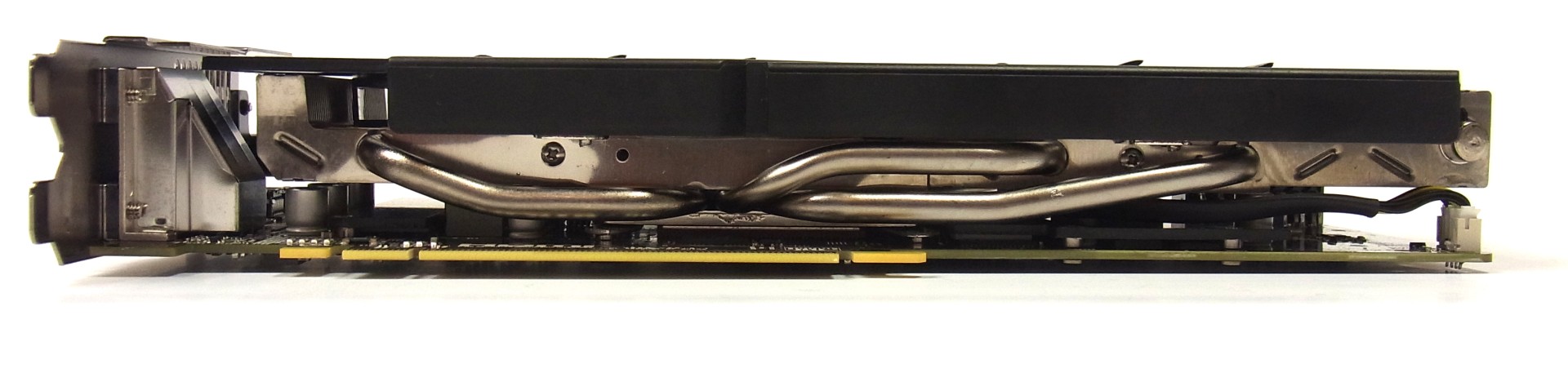

A single, extended sink dissipates the GPU’s heat, which is drawn away using two 8 mm and three 6 mm copper pipes. RAM and VRMs receive their own dedicated cooling courtesy of a massive frame that provides sufficient airflow.

One 6- and one 8-pin auxiliary power connector sit atop the PCB, along with two SLI interfaces.

The horizontally-aligned cooling fins push exhaust out of the card's back side into your case and through a half-slot grille cut into the I/O bracket. A DVI port consumes the other half of that slot space.

MSI’s card offers the same connectivity as Nvidia's reference design, namely dual-link DVI-I, dual-link DVI-D, HDMI, and DisplayPort.
