Overclocking On Air: 10 LGA 1156-Compatible Performance Coolers

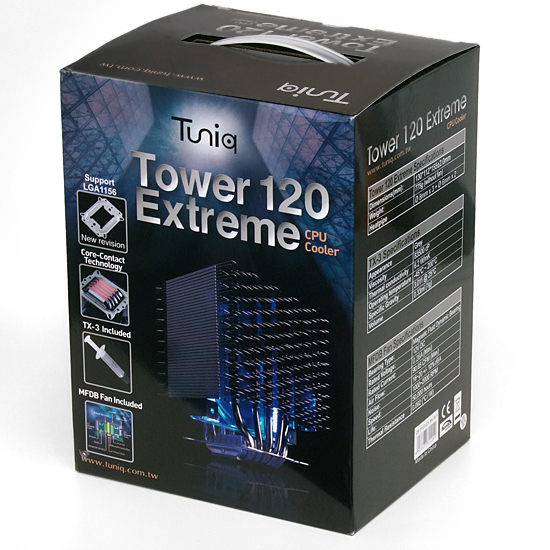

Tuniq Tower 120 Extreme

While our experience with the Tuniq brand is extremely limited, a quick look at the design elements of Tuniq's $60 Tower 120 Extreme back up its claims of design innovation.

To begin with, the Tower 120 Extreme is the first cooler in today’s comparison that uses fully-enclosed sides, something that’s critical in a pull fan arrangement, but still helpful with push fans. The Tower 120 Extreme is both, since its fan is located internally between two sink halves. By placing it in the center, Tuniq protects the LED fan from damage while creating a unique look as light escapes from between and under the sink’s fins.

A built-on bracket supports both AMD and Intel processors, including Socket 939, AM2, AM2+, and AM3 and LGA 775, 1156, and 1366. AMD adapter brackets and an Intel LGA support plate complete the installation kit.

Tuniq is one of several manufacturers to use direct-touch heat pipes to reduce latent heat and cooler weight. A finely sanded finish maintains excellent flatness for improved CPU contact, although grooves along each heat pipe’s edge slightly reduce the contact area.

LGA 1156 and 1366 installation begins by installing screws and nuts onto the support plate to create threaded studs that slip through the motherboard’s mounting holes. Spring-loaded nuts then secure the cooler against the CPU. The support plate must be added to the motherboard prior to fitting the motherboard inside cases, although the cooler itself can be installed and removed from inside any case that’s large enough to allow access to the cooler’s hold-down nuts.

Create a new thread in the US Reviews comments forum about this subject
This thread is closed for comments
161 comments
    Your comment
    Top Comments
  • arkadi
    I just love to read toms old school articles like this one :)
    19
  • Other Comments
  • kumaiti
    Not a single top down cooler?? That is disappointing, though I can already see the excuse: "they don't have as much performance as the tower coolers".
    -15
  • mrgrey
    Argh - unbelievable! I literally just purchased my build on newegg, and they just posted this article. I bought the Arctic Cooling 7 over the Hyper 212+, not having seen the article yet.

    Hey Tom's - what temps are you getting at 3.2 GHz with the Arctic Cooling 7? Did you use arctic silver 5?
    3
  • barmaley
    Test settings page reads: CPU Intel Core i7-860, but CPU-Z screen shot under it reads Intel Core i7-870. Which one is it that you tested Tom?
    3
  • Anonymous
    Is there an article testing thermal compounds?
    2
  • nzprogamer
    mrgreyArgh - unbelievable! I literally just purchased my build on newegg, and they just posted this article. I bought the Arctic Cooling 7 over the Hyper 212+, not having seen the article yet. Hey Tom's - what temps are you getting at 3.2 GHz with the Arctic Cooling 7? Did you use arctic silver 5?


    no worries there you will be fine
    0
  • nzprogamer
    i had the 212 and sunbermtech both were running really good and cool. but i would buy the sunbeamtech with the easy exchange fan kit.
    0
  • arkadi
    I just love to read toms old school articles like this one :)
    19
  • falchard
    What no Coolermaster V10 or Thermaltake SpinQ Vertical?
    -5
  • Crashman
    kumaitiNot a single top down cooler?? That is disappointing, though I can already see the excuse: "they don't have as much performance as the tower coolers".
    falchardWhat no Coolermaster V10 or Thermaltake SpinQ Vertical?
    You would have to ask the manufacturers, since they picked the coolers.
    8
  • micky_lund
    prolimatech megahalems
    -3
  • Anonymous
    If NH-D14 is in this, where's Prolimatech's Megahalems and Thermalright's Venomous X?
    -4
  • mayor_mccheese
    just bought a freezer pro too :(
    2
  • Crashman
    BobalinaIf NH-D14 is in this, where's Prolimatech's Megahalems and Thermalright's Venomous X?

    Thermalright sent the MUX-120.
    3
  • Spanky Deluxe
    Why no Megahalems? They're widely considered the best air coolers out there right now.
    1
  • pbrigido
    Even though the Zalman CNPS10X didn't win any of the tests, I still prefer its design because of the all copper contact between the CPU and the heatsink. Nice to see some of these tests again...can you also do one to compare the effectiveness of different thermal compounds?
    1
  • Crashman
    Spanky DeluxeWhy no Megahalems? They're widely considered the best air coolers out there right now.


    Some companies didn't respond to the invitation. Sorry, I didn't keep a list.
    4
  • fred2421
    Quick question..these temps you are showing they are all with an ambient temperature of 11C? So when you say 82C over ambient the temps are actually 82+11=93C?
    5
  • ubernoobie
    the best cpu cooler is now the thermalright vemonous I believe
    -1
  • JohnnyLucky
    Interesting article. I knew results would vary from other reviews. That's normal.

    I was surprised the new Thermalright Venoumous X was not included. It's an updated version of the Ultra 120 Extreme specifically designed for the new Intel Core i5/i7 cpu's.

    Didn't THG mention in an older article that those extra tall heatspreaders that sort of look like a comb did not provide any additional cooling over stock heatspreaders?
    0
  • Silmarunya
    It's clear the AC Freezer 7 is a poor choice for higher end overclocking, but how does it fare as a medium end OC cooler? Could it bring, say, an i5-750 to 3.5GHz without giving in?
    0
