Four New Closed-Loop Liquid Coolers Versus Noctua's NH-D14

Features
By Thomas Soderstrom
published

Four new closed-loop liquid coolers seek to improve thermal performance in a number of ways. We certainly understand the benefits of these configurations, but can they out-do the reigning air-cooling champion, Noctua's NH-D14? Check out our benchmarks.

Cooler Master Nepton 280L

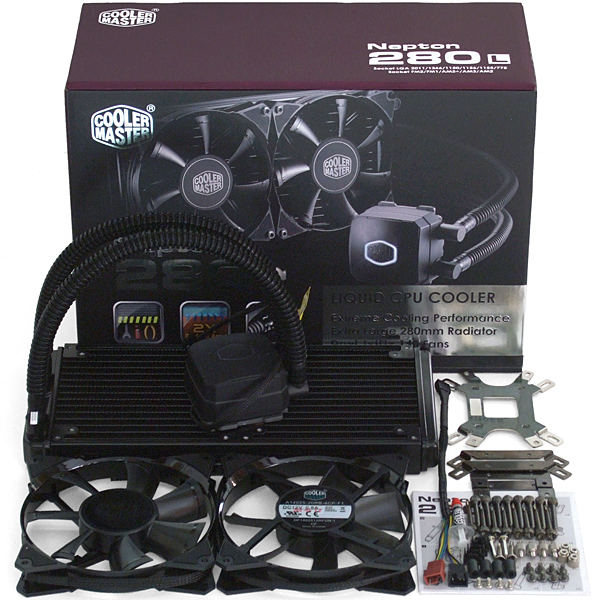

Drilled to support both 140 and 120 mm fans, Cooler Master’s Nepton includes the widest radiator in today’s comparison. It includes two of the company's 140 mm x 25 mm fans, a power splitter, and an installation kit.

The Nepton 280L fits all popular four-hole CPU cooler support systems, including AMD’s rectangular and Intel’s square patterns. AMD installations require the original bracket to be replaced with Cooler Master’s universal version, while custom standoffs fit LGA 2011’s original bracket.

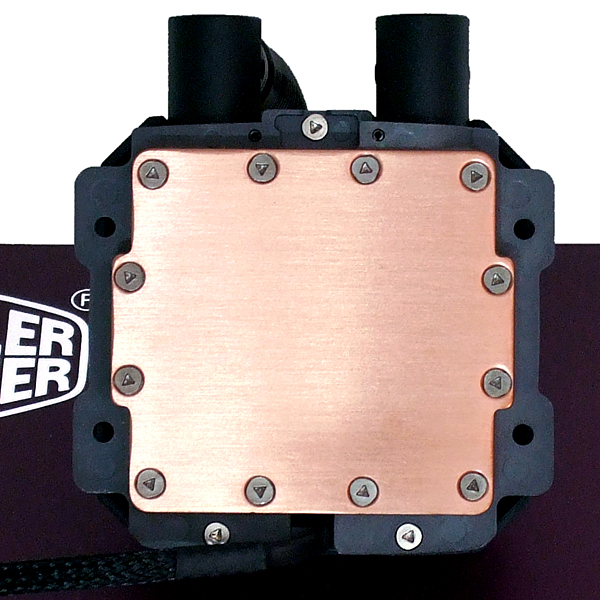

The Nepton 280L’s copper base is finely sanded to provide great contact with all current CPU-integrated heat spreaders. Only a thin smear of thermal compound is needed to complete that coupling.

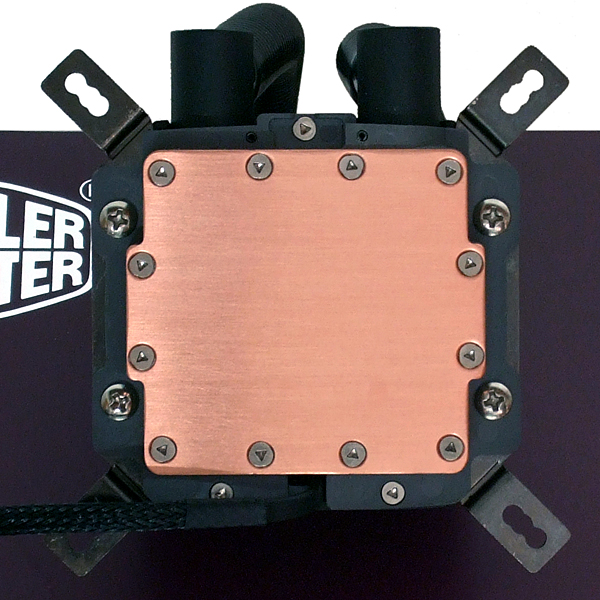

Separate top brackets fit either AMD or Intel sockets. The Intel version is drilled for LGA 775, 1150/1155/1156, and 1366/2011. These brackets are threaded for mounting screws and slide into slots on the side of the base/pump housing.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
