Audio And Video Conversion, Rendering, And Photoshop

Good Things In Small Packages: Seven Nettop Platforms, Tested
By , Benjamin Kraft

Audio Conversion: iTunes and Lame

It’s not too farfetched to assume a nettop will be used to compress the occasional music file. After all, some models, such as the Blu-ray version of Zotac’s Zbox, as well as some units from Shuttle, come with an optical drive.

Both of these audio converters use only one thread, resulting in identical performance rankings. The mobile Core i3 and the Celeron, both not really nettop parts, hold on to their positions at the top of the charts, followed by AMD's APUs. VIA pulls off another surprise, as its Nano X2’s IPC advantage lands it ahead of the Atoms.

Video Conversion: MainConcept and HandBrake

Nobody is going to buy a nettop to use primarily for video transcoding, but you may want to convert a short clip for playback on a smartphone or tablet every once in a while.

Unlike the audio benchmarks, the motto here is definitely "the more, the merrier" when it comes to threading. So, while superior IPC allowed AMD and even VIA to make a strong showing in the audio tests, their dual-core designs put them at a disadvantage compared to the Hyper-Threading-equipped Atoms. Although Intel's Sandy Bridge-based parts lack Hyper-Threading, their more powerful desktop architecture kicks in to facilitate impressive-enough times to take first and second place.

Rendering:  Blender and 3ds Max 2010

Rendering is another discipline not necessarily relevant to entry-level machines. But, just for kicks, lets see how our candidates fare when confronted with heavy workloads in Blender and 3ds Max.

Blender yields a similar finish as our transcoding tests, but 3ds Max shakes things up a little. Interestingly, VIA’s Nano X2 can not only beat out AMD’s dual-core E-350, but also Intel's quad-threaded Atom D525 as well. Not bad for a CPU that debuted shortly after Intel’s first-generation Atom chips more than five years ago. It takes an E-450 to outmaneuver VIA’s little CPU-that-could. Core i3, Celeron, and Atom D2700 take the first three places, though.

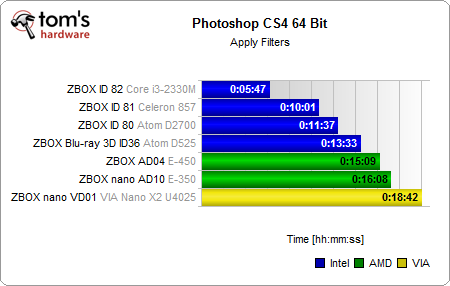

Photoshop CS4: Apply Filters

Our Photoshop test applies various threaded filters to a large image. This time around, we get to see what even logical cores can do for performance, as the quartet of Intel CPUs sweeps the top of the performance chart. Despite its surprisingly good IPC, VIA’s Nano X2 brings up the rear, and AMD’s APUs slot in ahead of it.
