PQI's DDR2-667 Is Fast, With No Overclocking Headroom

Previous Next
8:29 AM - 02/27/2006 by The editorial team

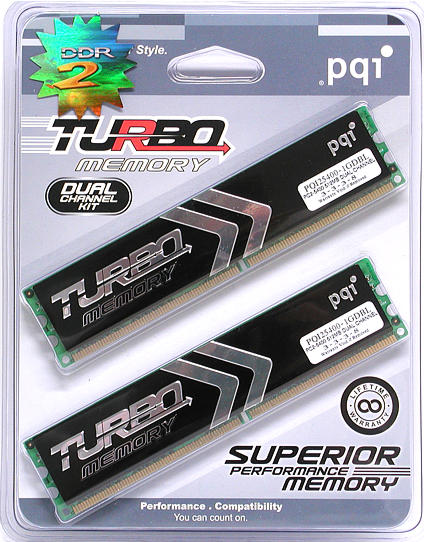

The PQI modules are double-sided, and they also managed to achieve CL3.0 timings at standard input voltage levels. This combination delivers very fast RAM for normal use. But they mustered only a weak showing in our overclocking tests: they topped out at a relatively modest speed of 888 (444 MHz). Other vendors manage to post much better results. That said, buyers can trust the label printed on these modules and enjoy fast CL3.0 timings.

Click to enlarge

Click to enlarge
Pqi
Manufacturer Details
Website: pqimemory.com
Speed: DDR2-667 (PC5300)
Timings: CL 3.0-3-3-8
Size: 512 MB (2 rank, 4 banks)
dual sided
Label: PQI25400-1GDBL
PC2-5400 512 MB Dual Channel
3-3-3-8
Module SPD-Timings
DDR2-667 (333 MHz) CL 5.0-5-5-15
DDR2-533 (266 MHz) CL 4.0-4-4-12
DDR2-400 (200 MHz) CL 3.0-3-3-9
Refresh Rate: 7.8 us, Self-Refresh
Voltage: 1.8 - 2.0 V
Test
Test I (default): DDR2-667, CL 5.0-5-5-15, 1.8V
Test II (timing): DDR2-667, CL 3.0-3-3-8, 1.8V
Test II (overclocking): DDR2-888@888 (444 MHz) 2.2V

Click to enlarge

Click to enlarge
