Silent, But Deadly: Build Your Own Gaming-Ready 0 dB PC

PSU: SilverStone Nightjar 400W Zero dBA

Fanless Power: SilverStone Nightjar 400W Zero dBA

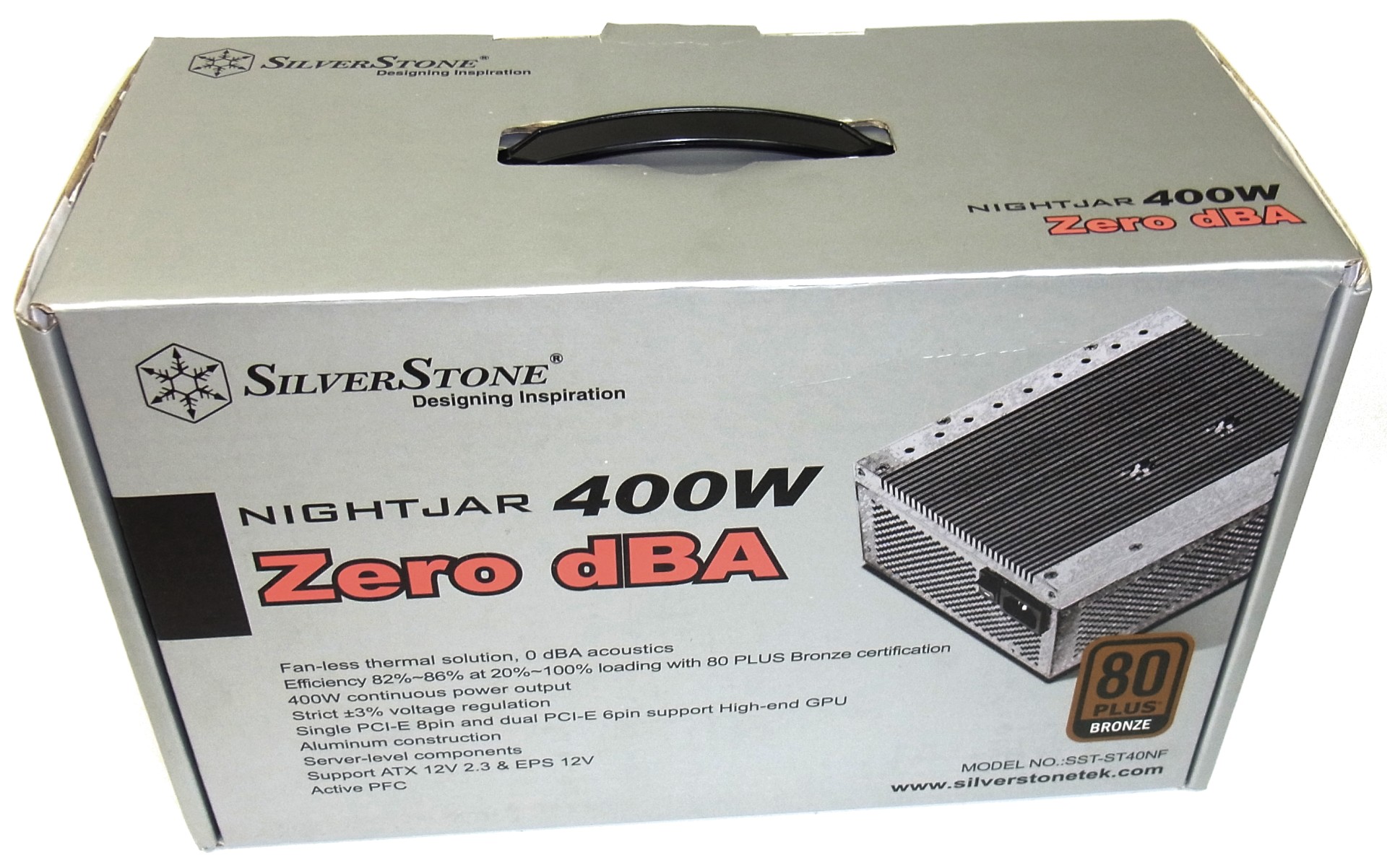

SilverStone's Nightjar 400W Zero dBA is fairly heavy as a result of its completely passive design. Thermally, this power supply should work really well in the Temjin TJ08-E because of how it's built. The Nightjar’s current street price of $160 is high, but within reason. We won’t need the PSU's 400 W output by a long shot. Of course, we know that wasting power by buying too large of a power supply (and consequently not optimizing for efficiency) is a problem). But we're getting as close as possible with SilverStone's Nightjar 400W Zero dBA. It’s getting hard to find a PSU under 400 W these days, after all.

SilverStone NightJar ST40NF Technical Specifications
Maximum Power
400 W (Passive)
Voltage Rails

+3.3 V
+5 V
+12 V
+5 VSB
-12 V
-5 V
Maximum (A)
20 A
14 A
17 A
2.5 A
0.5 A
n/a
Peak (A)
n/a
n/a
31.5 A
3.5 A
n/a
n/a
Minimum (A)
0 A
0 A
0.2 A
0 A
0 A
n/a
Combined +3.3 V, +5 V
130 W maximum
Combine +12 V
324 W (27 A) maximum
Line Voltage
99 V ~ 264 V
Line Frequency
47 Hz ~ 63 Hz
PFC
Active PFC (PF>0.99 at Full Load)
Efficiency
82% ~ 86% at 20% ~ 100% Load (80 PLUS Bronze)
Protection
OCP - Overcurrent Protection
OPP - Overpower (Overload) Protection
OVP - Overvoltage Protection
UVP - Undervoltage Protection
SCP - Short Circuit Protection

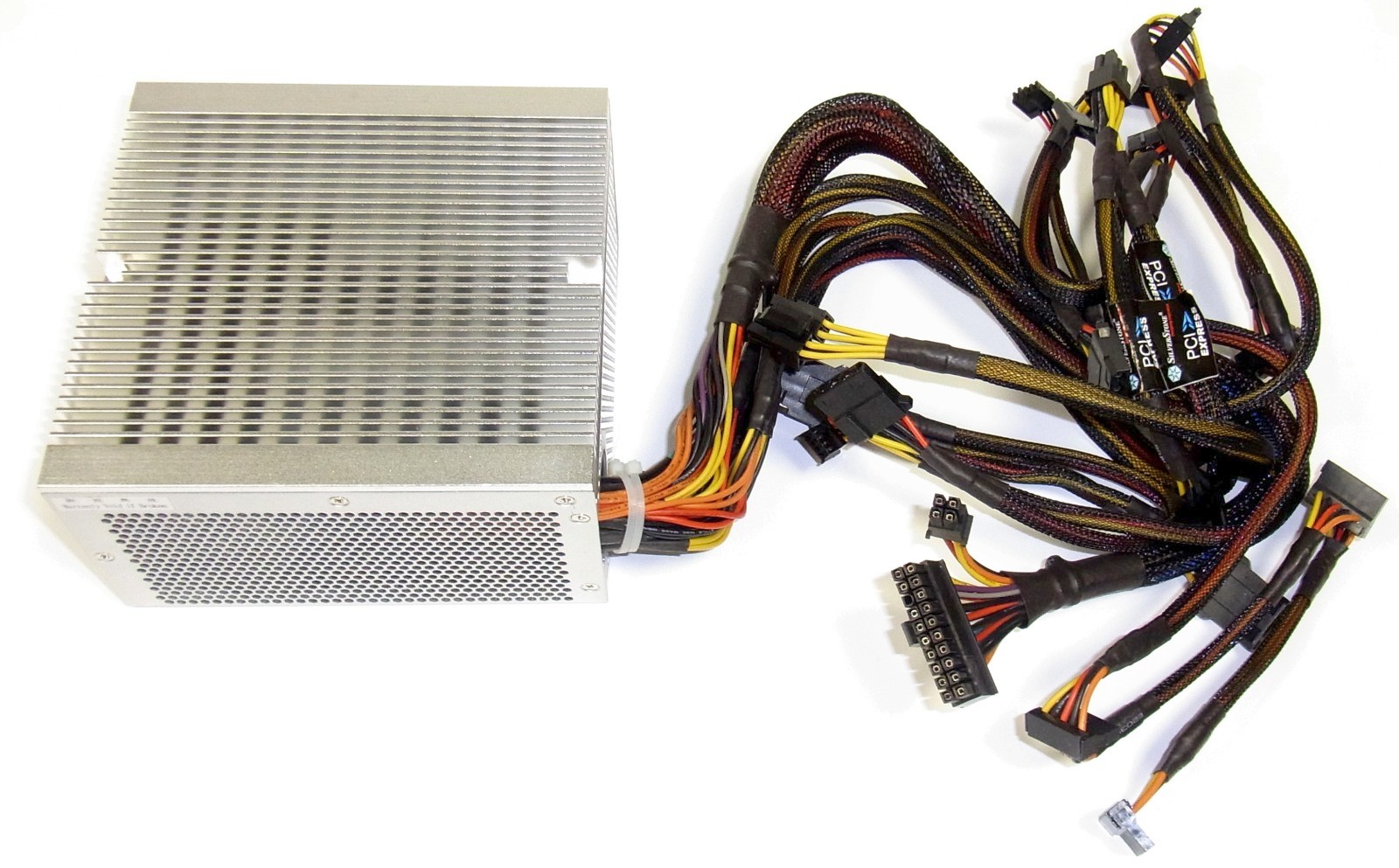

Connectors
1 x 24 / 20-Pin Motherboard Connector (550 mm)
1 x 8 / 4-Pin EPS / ATX 12V Connector (550 mm)
1 x 6-Pin PCIe Connector (500 mm)
1 x 8/6-Pin PCIe Connector (500 mm / 150 mm)
2 x SATA x3 Connector (500 mm / 150 mm / 150 mm)
1 x PATA x3 Connector (500 mm / 250 mm / 150 mm)
1 x PATA Connector + 4-Pin Floppy Connector (500 mm / 250 mm / 150 mm / 150 mm)
Color
Silver
Cooling
Passive, No Fans, 0 dBA
Dimensions
Width: 150 mm
Height: 86 mm
Depth: 160 mm
Weight
6.6 lbs


Careful Installation

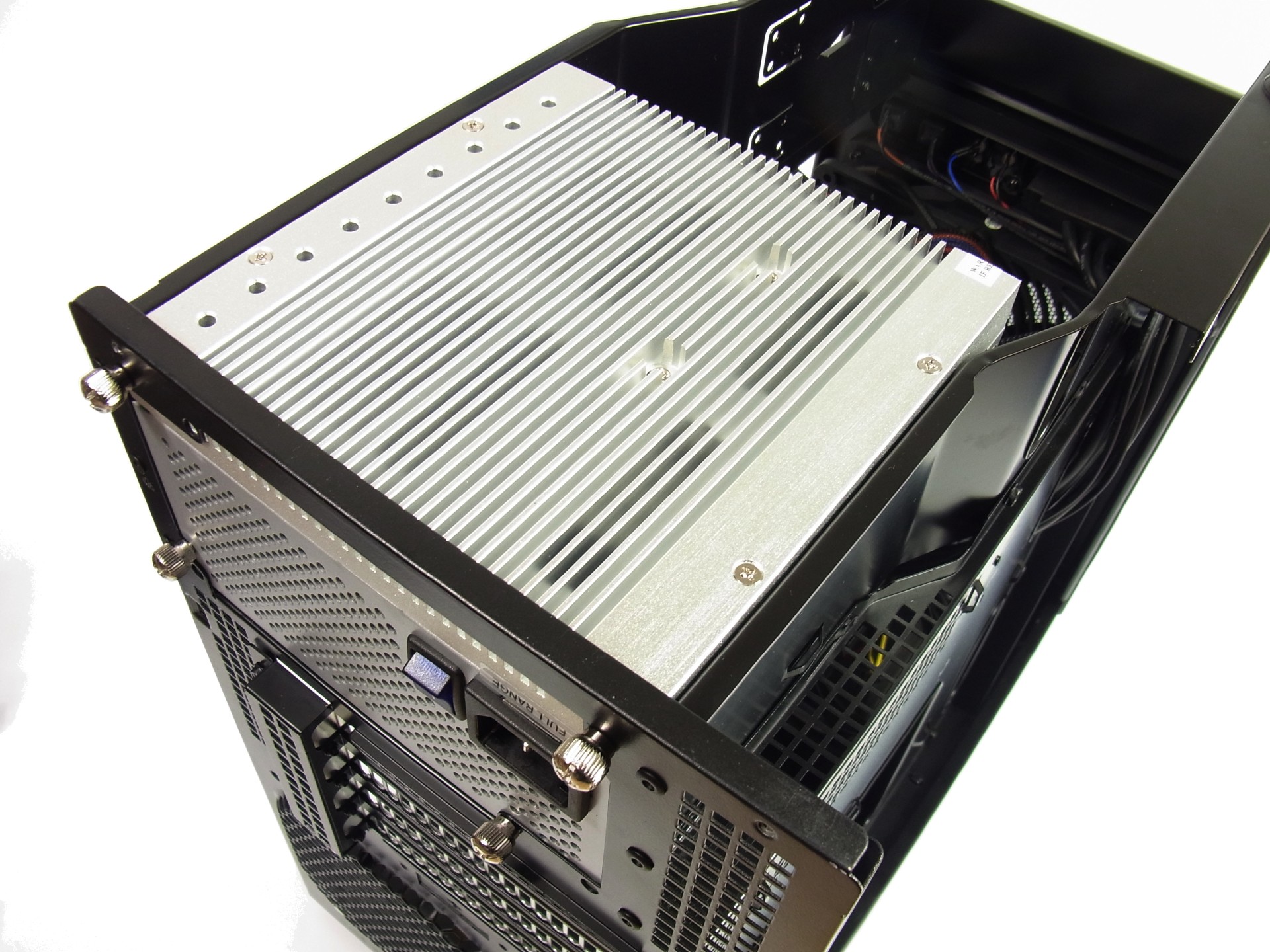

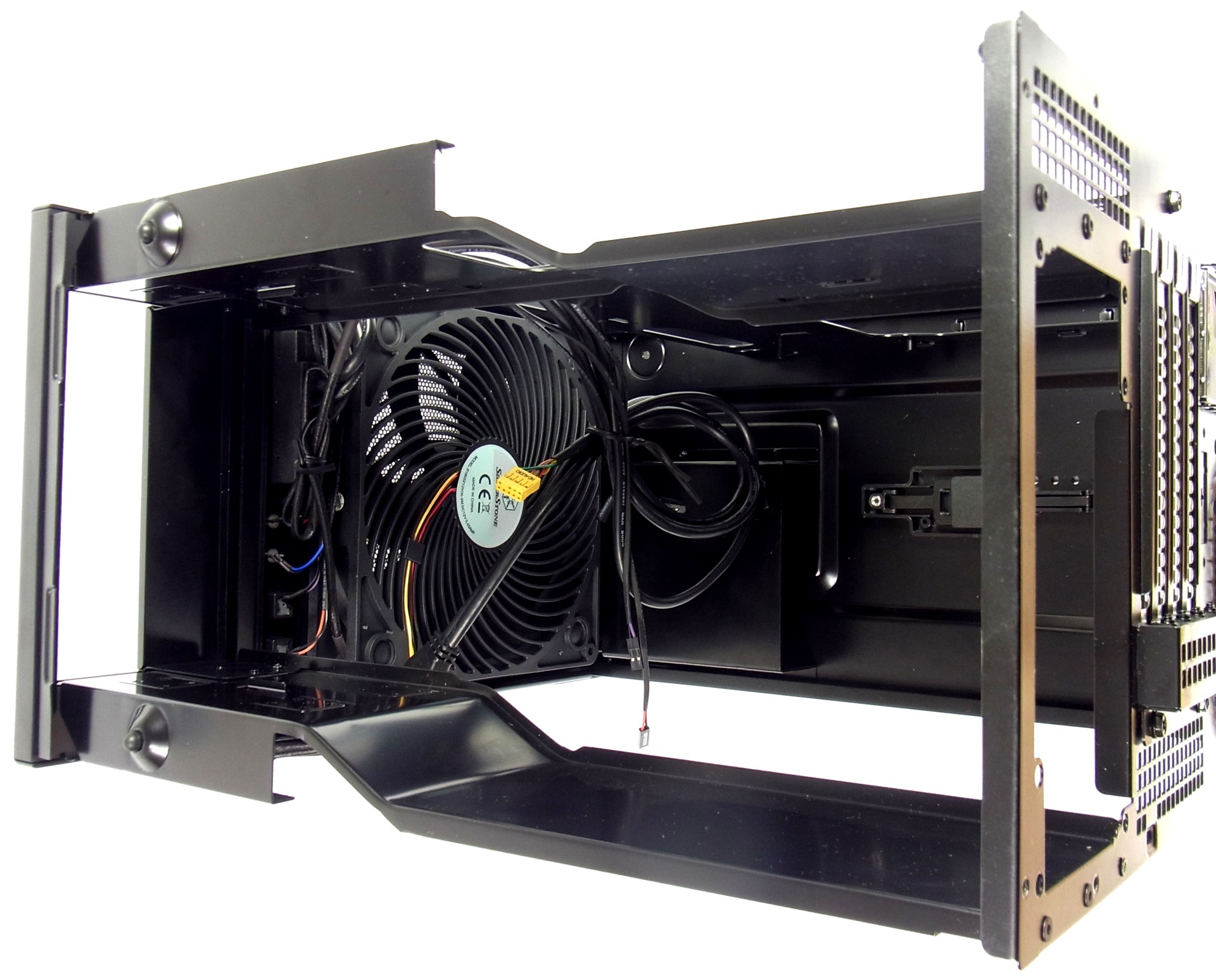

Installing the power supply takes some effort, and involves taking off the case’s top panel (the hard part) and then placing it inside the chassis from above (the easy part). The PSU's sharp edges can scratch the enclosure's finish very easily, so handle the hardware carefully during installation.

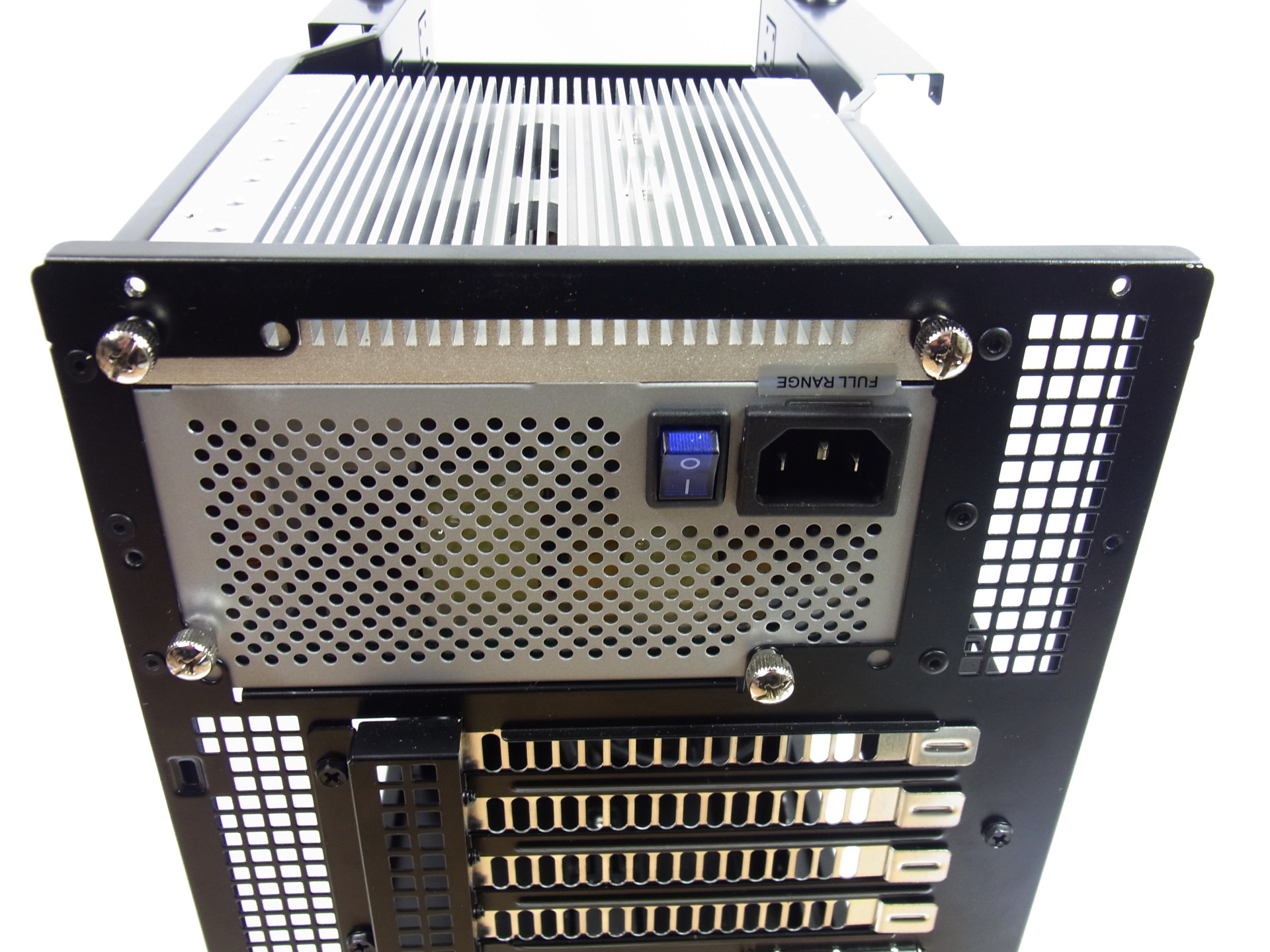

After the PSU is in place, it’s fastened from the back with four included thumb screws, making it easy to finish the installation. Too bad the screws and power supply aren't available in black, though.

The 400 W version of this PSU doesn’t have a status LED (the 500 Watt version does). Instead, the on/off switch lights up when the PSU is turned on. Using a motherboard that supports ErP/EuP, we measured an off-mode power consumption of only 0.4 W.
