System Builder Marathon: High-Cost System

Features
By Thomas Soderstrom
published

CPU Cooling: Swiftech Liquid Cooling Components

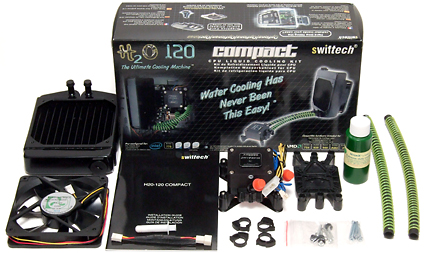

Our cooling system begins with Swiftech's H20-120 Compact kit, which includes a single 120 mm fan radiator with integrated reservoir, CPU water block with integrated pump, hardware, hoses, and a bottle of concentrated coolant additive (antifreeze).

While the kit comes preconfigured for use with LGA775 processors, AMD users will notice that its water block includes a second base for use with Socket F, 754, 939, 940, and AM2 motherboards.

Swiftech polishes its Apogee Drive 350 copper baseplate to a mirror finish. A tube of the kit's included thermal compound shows off the reflective surface.

The H20-120 was selected as the basis for our cooling configuration for two reasons. First, its integrated components, namely the Apogee Drive with water block and combination radiator/reservoir would simplify installation to reduce crowding and eliminate the need to drill holes. Second, the Apogee Drive's high-flow pump and high-dissipation base plate would allow us to build on the system without fear of exceeding its performance limits.

Of course we wouldn't settle for a single 120 mm fan radiator on a system that's designed for overclocking. Swiftech also supplied a 2 x 120 mm fan radiator with mounting hardware, two 3/8" hose barbs, four plastic hose clamps, and two 3/8" Neoprene tubing packs.

We'd also need a good way to attach the larger radiator. Fortunately, the Temjin TJ09 is designed around the concept of mounting this type of radiator where the two top-panel fans are located, and Silverstone recently released a bracket to ease this task.

Constructed of heavy gauge chrome plated steel, Silverstone's SST-RADSUPPORT09 is available from a few web stores for around $15.
