Test Setup And Benchmarks

CORE Or Boost? AMD's And Intel's Turbo Features Dissected
By
System Hardware
HardwareDetails
Performance Benchmarks
Motherboard
(Socket AMD3)
Asus Crosshair IV Formula (Rev. 1.0), Chipset: AMD 890FX, BIOS: 0505 (04/02/2010
Motherboard
(Socket LGA 1366)
Intel DX58SO (Rev. 1.0), Chipset: Intel X58, BIOS: 5000 (02/16/2010)
CPU AMD IAMD Phenom II X6 1090T (45 nm, 3.2 GHz, 6 x 512 KB L2 and 6 MB L3 Cache, TDP 125 W, Rev. C3)
CPU Intel IIIntel Core i7-980X Extreme (32 nm, 3.33 GHz, 6 x 256 KB L2 and 12 MB L3 Cache, TDP 130 W)
RAM DDR3 (dual)2 x 2 GB DDR3-1600 (OCZ3G2000LV4GK 8-8-8-24)
RAM DDR3 (triple)3 x 2 GB DDR3-1600 (Corsair TR3X6G-1600C8D 8-8-8-24)
GraphicsSapphire Radeon HD 5850, GPU: Cypress (725 MHz), Graphics RAM: 1024 MB GDDR5 (2000 MHz), Stream Processors: 1440
Hard DriveWestern Digital VelociRaptor, 300 GB (WD3000HLFS), 10 000 RPM, SATA 3Gb/s, 16 MB Cache
Power SupplyPC Power & Cooling, Silencer 750EPS12V 750W
System Software & Drivers
Operating SystemWindows 7 Ultimate 64-bit Edition
Updated on 2010-03-03
Drivers and Settings
Intel Chipset DriversChipset Installation Utility Ver. 9.1.1.1025
Intel Storage DriversMatrix Storage Drivers Ver. 8.​9.​0.​1023

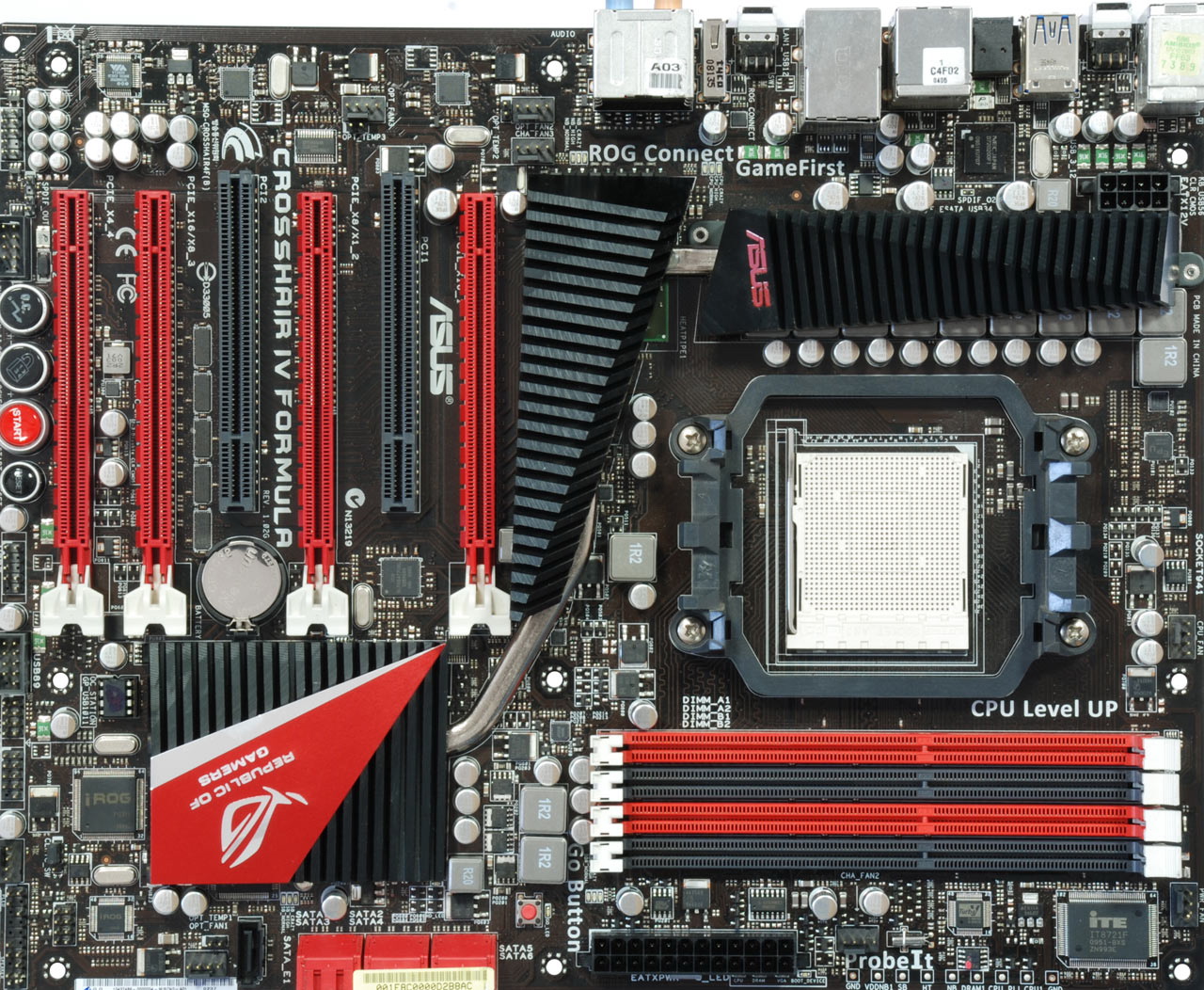

Asus Crosshair IV Formula: 890FX chipset and Socket AM3 for AMD’s Phenom II X6.

Audio Benchmarks and Settings
BenchmarkDetails
iTunesVersion: 9.0.3.15
Audio CD ("Terminator II" SE), 53 min.
Convert to AAC audio format
Lame MP3Version 3.98.3
Audio CD "Terminator II SE", 53 min.
convert WAV to MP3 audio format
Command: -b 160 --nores (160 Kb/s)
Video Benchmarks and Settings
Benchmarks Details
HandBrake CLIVersion: 0.94
Video: Big Buck Bunny (720x480, 23.972 frames) 5 min.
Audio: Dolby Digital, 48000 Hz, 6-Channel, English
to
Video: AVC1 Audio1: AC3 Audio2: AAC (High Profile)
MainConcept Reference v2Version: 2.0.0.1555
MPEG-2 to H.264
MainConcept H.264/AVC Codec
28 sec. HDTV 1920x1080 (MPEG-2)
Audio:
MPEG-2 (44.1 kHz, 2-Channel, 16-Bit, 224 Kb/s)
Codec: H.264 Pro
Mode: PAL 50i (25 FPS)
Profile: H.264 BD HDMV
Application Benchmarks and Settings
BenchmarkDetails
7-ZipVersion 9.1 beta
LZMA2
Syntax "a -t7z -r -m0=LZMA2 -mx=5"
Benchmark: 2010-THG-Workload
WinRARVersion 3.92
RAR
Syntax "winrar a -r -m3"
Benchmark: 2010-THG-Workload
WinZip 14Version 14.0 Pro (8652)
WinZip Commandline Version 3
ZIPX
Syntax "-a -ez -p -r"
Benchmark: 2010-THG-Workload
Autodesk 3ds Max 2010Version: 10 x64
Rendering Space Flyby Mentalray (SPECapc_3dsmax9)
Frame: 248
Resolution: 1440 x 1080
Cinebench 11.5Version 11.5 Build CB25720DEMO
CPU Test single- and multi-threaded
Adobe Photoshop CS4 (64-Bit)Version: 11
Filtering a 16 MB TIF (15000x7266)
Filters:
Radial Blur (Amount: 10; Method: zoom; Quality: good)
Shape Blur (Radius: 46 px; custom shape: Trademark symbol)
Median (Radius: 1 px)
Polar Coordinates (Rectangular to Polar)
Adobe Acrobat 9 ProfessionalVersion: 9.0.0 (Extended)
== Printing Preferenced Menu ==
Default Settings: Standard
== Adobe PDF Security - Edit Menu ==
Encrypt all documents (128 bit RC4)
Open Password: 123
Permissions Password: 321
Microsoft PowerPoint 2007Version: 2007 SP2
PPT to PDF
PowerPoint Document (115 Pages)
Adobe PDF-Printer
FritzFritz Chess Benchmark Version 4.3.2
Synthetic Benchmarks and Settings
BenchmarkDetails
3DMark VantageVersion: 1.02 Patch 1901, Options: Performance, Graphics Test 1, Graphics Test 2, CPU Test 1, CPU Test 2
PCMark VantageVersion: 1.0.2.0 Patch 1901
PCMark Benchmark
Memories Benchmark
SiSoftware Sandra 2010Version: 2010.1.16.10
Processor Arithmetic, Cryptography, Memory Bandwidth
