Results: Calibrated Brightness And Contrast

by

Since we consider 200 nits to be an ideal average for peak output, we calibrate all of our test monitors to that value. In a room with some ambient light (like an office), this brightness level provides a sharp, punchy image with maximum detail and minimum eye fatigue. It's also the sweet spot for gamma and grayscale tracking, which we'll look at on pages five and six.

Achieving exactly 200 cd/m2 is dependent on the resolution of the brightness control. In this case, we went a tad over the mark.

Grayscale calibration does affect the black level. You can see the numbers below are slightly higher than the stock measurements.

Samsung’s black level is most affected by calibration, rising 43 percent from the measurement taken at max brightness. ViewSonic, on the other hand, shows a reduction of nine percent after calibration.

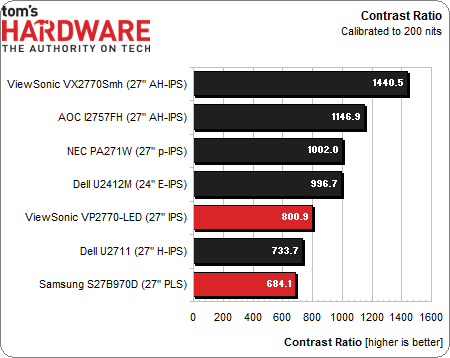

The final calibrated contrast ratio numbers are a bit below other panels we’ve tested.

If ultimate contrast ratio is your goal, the previously-tested ViewSonic VX2770Smh is still the champ. These two QHD monitors both measure a little below average.

Share:
76
Comments
X
Submit

Comments
mayankleoboy1 02/14/2013 3:25 AM
Hide
-11+

Quote :Why wouldn't you want a QHD screen like one of these two?
Everything gets smaller.


So increase the DPI scaling ?

BigMack70 02/14/2013 3:36 AM
Hide
-9+

I'm glad to see 1440p monitors getting some attention, but I just don't see the prices of these being justifiable to most users over the USA-based Korean 1440p IPS panels that are starting to become more numerous.

$800-1200 is just nuts for anyone using these for home use or gaming, IMO. I could get two or three of my Auria 27" 1440p displays for those prices respectively.

BigMack70 02/14/2013 3:39 AM
Hide
-6+

mayankleoboy1 :
So increase the DPI scaling ?



Windows' DPI scaling is crap and in some cases creates as many problems as it solves.

MauveCloud 02/14/2013 3:41 AM
Hide
-3+

BigMack70 :
I'm glad to see 1440p monitors getting some attention, but I just don't see the prices of these being justifiable to most users over the USA-based Korean 1440p IPS panels that are starting to become more numerous.$800-1200 is just nuts for anyone using these for home use or gaming, IMO.



Agreed. I bought a Dell U2711 a few months ago, but if something forced me to replace it, I'd probably go with one of those cheap Korean panels -- or a TN panel 2560x1440 monitor if somebody would actually make one - I doubt I'm the only one who likes the resolution but isn't so picky about color quality. I had no objection to the color quality on my Samsung P2770HD, and the color shifts of a TN panel are affected by the physical size of the monitor, not the resolution, right?

jupiter optimus maximus 02/14/2013 3:47 AM
Hide
-20+

Why not do a review on those $330 Korean 1440P monitors that enthusiasts talk about? I like to see what i am missing with the extra $900. Really i'm serious i really want to know what justifies the 1 grand price tag.

BigMack70 02/14/2013 3:51 AM
Hide
-10+

You get a brand name and a slightly better quality panel (A+ instead of A) for your extra $400-800.

I used the Auria right next to the 30" Dell in the microcenter store for a while before I made my purchase. If you had to ask me which was the better panel, I'd tell you the Dell. But the difference was not that large at all - not anywhere near as large as I expected. I would have definitely considered dropping an extra $100 for a brand name 1440p monitor, but a 100-200 PERCENT price hike? Not a chance in hell.

Graphics professionals obviously should stick to the A+ panels, but I just don't know how the average user can justify it.

cangelini 02/14/2013 4:04 AM
Hide
-20+

jupiter optimus maximus :
Why not do a review on those $330 Korean 1440P monitors that enthusiasts talk about? I like to see what i am missing with the extra $900. Really i'm serious i really want to know what justifies the 1 grand price tag.


It's coming. We're ramping up our display coverage, so we took note of the requests after the last display piece and put in the requests. You'll see this soon. Of course, if there are any other requests from you guys, do let us know. Christian is doing a phenomenal job of applying his extensive experience on Tom's Hardware.

BigMack70 02/14/2013 4:13 AM
Hide
-3+

To the author/editors: When would you say that the price premium is worth it on one of these over the less expensive grade-A models available? (or do we have to wait for that review to find out that info ;)?)

EzioAs 02/14/2013 5:01 AM
Hide
-2+

Dell's UltraSharp U2713HM is less than $600 in my country if we go by standard conversion. Would you guys say that's a good price?

festerovic 02/14/2013 5:56 AM
Hide
-3+

cangelini :
It's coming. We're ramping up our display coverage, so we took note of the requests after the last display piece and put in the requests. You'll see this soon. Of course, if there are any other requests from you guys, do let us know. Christian is doing a phenomenal job of applying his extensive experience on Tom's Hardware.


That's great to hear, I agree with the others that the price of these models is too much to consider unless they were generating $$$s for me. $3-400 seems like the range I would be willing to spend on these. And as for the USA based korean cheap models, are there any legit retailers of these? Please point me at them.

JOSHSKORN 02/14/2013 7:10 AM
Hide
-1+

Just bought a ASUS VS278Q-P for $310. It's a 60Mz monitor and I do game, but I'm happy. My previous monitor lasted 8 years (Samsung SyncMaster 213T, bought it for $1k). I'll upgrade when this one dies, hopefully 4k/UHD will be affordable. Supposedly, only serious gamers can tell the difference between 60Hz and 120Hz. I'm not a serious gamer, so it works just fine for me. 120Hz monitors of that size are nearly twice the price.

mannam 02/14/2013 7:26 AM
Hide
-1+

Quote :

It's coming. We're ramping up our display coverage, so we took note of the requests after the last display piece and put in the requests. You'll see this soon. Of course, if there are any other requests from you guys, do let us know. Christian is doing a phenomenal job of applying his extensive experience on Tom's Hardware.




Here are the inexpensive $300-$400 27" korean monitor brands: Yamakasi Catleap, Achieva Shimian, Crossover, PCBank, Potalion, Auria

"The reason these monitors are cheap - LG makes IPS panels for apple cinema displays. Apple only accepts grade A+ panels. That means the all the grade A,A-,B+, etc are not accepted and returned to LG. LG resells those IPS panels to other manufacturers. You can get the whole story on google if you're interested. In addition, you're getting no support and no manufacturers warranty."

Source: http://www.mmorpg.com/gamelist.cfm [...] 22#5192222

It would be really interesting to get a review of these monitors that go for 50% or less of the price of the Big Brand stuff. If it's even 85-90% quality compared to the big brands, then they are worth the plunge. :D

ubercake 02/14/2013 7:52 AM
Hide
-1+

Personally, I was not impressed with the Auria monitor. My Acer HN274H TN monitor has better contrast. Viewing angles are far better on the Auria, but that's to be expected on an IPS. At any rate, I returned the Auria after a day of use because after many attempts to adjust the contrast/color, it didn't hold a candle to the colors or contrast on my TN. The Auria definitely had deeper black, but the in-betweens seemed to be missing no matter how I set the contrast and color. I honestly couldn't justify the tradeoff of higher resolution to lack of contrast. Maybe I got one of the LG B+ throw-away panels?

sanilmahambre 02/14/2013 9:13 AM
Hide
-1+

Don't want too much ? Think again!

wanderer11 02/14/2013 9:33 AM
Hide
-1+

cangelini :
It's coming. We're ramping up our display coverage, so we took note of the requests after the last display piece and put in the requests. You'll see this soon. Of course, if there are any other requests from you guys, do let us know. Christian is doing a phenomenal job of applying his extensive experience on Tom's Hardware.


Don't forget the Auria at Microcenter. Many Toms users, myself included, have them.

ZippyPeanut 02/14/2013 10:33 AM
Hide
-1+

$856.00 and $1,200

Both 60 HZ

No need to read any further.

warezme 02/14/2013 1:08 PM
Hide
-4+

I'm waiting for this or higher resolution in a 24" size monitor that has very, very narrow or no bezel, true 5ms response time and refresh rate of 120hz. Perhaps I'll live long enough to see one but I'm starting to doubt.

cknobman 02/14/2013 1:10 PM
Hide
-2+

I refuse to spend more than $400 on a computer monitor no matter what resolution it is running at.

I just dont see QHD picking up any traction in the main consumer market until they get prices down to reasonable levels.

Heck I can pick up two 1080p 23/24 inch panels for

mayankleoboy1 02/14/2013 1:39 PM
Hide
-4+

Hey Toms, you interested in an experiment where you cut off the bezels on 3 1080p monitors, and stick them together for a seamless experience ?
