VT82C580VP APOLLO VP-1

VT82C580VP APOLLO VP-1
By

  • PCI/ISA Green PC Ready
  • High Integration

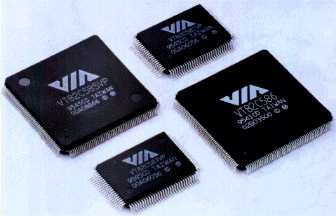

    • VT82C585VP system controller
    • VT82C586 PCI to ISA bridge
    • Two instances of the VT82C587VP data buffers
    • Six TTLs for a complete main board implementation
  • Flexible CPU Interface
    • 64 bit PentiumTM, AMD5K 86TM and Cyrix6X 86TM CPU interface
    • CPU external bus speed up to 66/75 MHz (internal 200 MHz and above)
    • Supports CPU internal write-back cache
    • Concurrent CPU/cache and PCI/DRAM operation
    • System management interrupt, memory remap and STPCLK mechanism
    • Cyrix6X 86 linear burst support
    • CPU NA#/Address pipeline capability
  • Advanced Cache Controller
    • Direct map write back or write through secondary cache
    • Burst synchronous (pipelined or non-pipelined), asynchronous SRAM, and Cache Module support
    • Eight-pin CWE# and GWE# control options
    • Flexible cache size: 0K/256K/512K/1M/2 MB
    • 32 Byte line size to match the primary cache
    • Integrated 10 bit tag comparator
    • 3-1-1-1 read/write timing for Burst Synchronous SRAM access at 66/75 MHz
    • 3-1-1-1-1-1-1-1 back to back read timing for Burst Synchronous SRAM access at 66/75 MHz
    • Sustained 3 cycle write access for Burst Synchronous SRAM access or CPU to DRAM and PCI bus post write buffers at 66/75 MHz
    • Data streaming for simultaneous primary and secondary cache line fill
    • System and video BIOS cacheable and write-protect
    • Programmable cacheable region and cache timing
  • Fast DRAM Controller
    • Concurrent DRAM writeback
    • Four Cache lines (16 quadwords) of CPU/cache to DRAM write buffers
    • Fast Page Mode/EDO/Burst EDO/Synchronous-DRAM support in a mixed combination
    • Mixed 1M/2M/4M/8M/16MxN DRAMs
    • 6 banks up to 512 MB DRAMs (maximum four banks of Synchronous DRAM)
    • Flexible row and column addresses
    • 64 bit or 32 bit data width in arbitrary mixed combination
    • 3.3v and 5v DRAM without external buffers
    • Speculative DRAM access
    • Read around Write capability for non-stalled CPU read
    • Burst read and write operation
    • 4-2-2-2 on page, 7-2-2-2 start page and 9-2-2-2 off page timing for EDO DRAMs at 50/60 MHz
    • 5-2-2-2 on page, 8-2-2-2 start page and 11-2-2-2 off page timing for EDO DRAMs at 66/75 MHz
    • 5-1-1-1 on page, 8-1-1-1 start page and 10-1-1-1 off page for Burst EDO and SDRAMs at 66/75 MHz
    • 5-2-2-2-3-1-2-2 back-to-back access for EDO DRAM at 66/75 MHz
    • 5-1-1-1-3-1-1-1 back-to-back access for BEDO and SDRAM at 66/75 MHz
    • BIOS shadow at 16 kB increment
    • Decoupled and burst DRAM refresh with staggered RAS timing
    • Programmable refresh rate, CAS-before-RAS refresh and refresh on populated banks only
  • Unified Memory Architecture
    • Supports VESA UMA handshake protocol
    • Compatible with major video/GUI products
    • Direct video frame buffer access
    • Satisfies maximum latency requirement from REQ# to GNT# and from GNT# to REQ#
  • Intelligent PCI Bus Controller
    • 32 bit 3.3/5v PCI interface
    • Synchronous divide-by-two with extension to asynchronous PCI bus interface
    • PCI master snoop ahead and snoop filtering
    • PCI master Peer Concurrency
    • Automatic detection of data streaming burst cycles from CPU to the PCI bus
    • Five levels (doublewords) of CPU to PCI posted write buffers
    • Byte merging in the write buffers to reduce the number of PCI cycles and to create further PCI bursting possibilities
    • Zero wait state PCI master and slave burst transfer rate
    • PCI to system memory data streaming up to 132 MByte/sec
    • Sixty-four levels (doublewords) of post write buffers from PCI masters to DRAM
    • Thirty-two levels (doublewords) of prefetch buffers from DRAM for access by PCI masters
    • Enhanced PCI command optimization (MRL, MRM, MWI, etc.)
    • Complete steerable PCI interrupts
    • Supports L1 write-back forward to PCI master read to minimize PCI read latency
    • Supports L1 write-back merged with PCI master post-write to minimize DRAM utilization
    • Provides transaction timer to fairly arbitrate between PCI masters
    • PCI-2.1 compliant
  • Enhanced Master Mode PCI IDE Controller with Extension to ATA-33
    • Dual channel master mode PCI supporting four Enhanced IDE devices
    • Transfer rate up to 22 MB/sec to cover PIO mode 4 and Multiword DMA mode 2 drivers and beyond
    • Extension to ATA-33 interface for up to 33 MB/sec transfer rate
    • Sixteen levels (doublewords) of prefetch and write buffers
    • Interlaced commands between two channels
    • Bus master programming interface for SFF-8038 rev.1.0 and Windows-95 compliant
    • Full scatter and gather capability
    • Support ATAPI compliant devices
    • Support PCI native and ATA compatibility modes
    • Complete software driver support
  • Universal Serial Bus Controller
    • USB v1.0 and Intel Universal HCI v1.1 compatible
    • Eighteen levels(doublewords) of data FIFOs
    • Root hub and two function ports with built-in physical layer transceivers
    • Legacy keyboard and PS/2 mouse support
  • Plug and Play Controller
    • Dual interrupt and DMA signal steering with plug and play control
    • Microsoft Windows 95TM and plug and play BIOS compliant
  • Sophisticated Power Management and OnNow/ACPI Unit
    • Normal, doze, sleep, suspend and conserve modes
    • System event monitoring with two event classes
    • One idle timer, one peripheral timer and one general purpose timer
    • More than ten general purpose input/output ports
    • Six external event input ports with programmable SMI condition
    • Complete leakage control when external component is in power off state
    • Primary and secondary interrupt differentiation for individual channels
    • Clock stretching, clock throttling and clock stop control
    • Multiple internal and external SMI sources for flexible power management models
    • Two programmable output ports
    • APM 1.2 compliant
    • Extension to OnNow and ACPI (Advanced Configuration and Power Interface) support
  • PCI to ISA Bridge
    • Integrated 82C206 peripheral controller
    • Integrated keyboard controller with PS2 mouse supports
    • Integrated DS12885 style real time clock with extended 128 Byte CMOS RAM
    • Integrated USB (universal serial bus) controller with hub and two function ports
    • Integrated master mode enhanced IDE controller with enhanced PCI bus commands
    • PCI-2.1 compliant with delay transaction
    • Four doubleword line buffer between PCI and ISA bus
    • Supports type F DMA transfers
    • Fast reset and Gate A20 operation
    • Edge trigger or level sensitive interrupt
    • Flash EPROM, 2 MB EPROM and combined BIOS support
  • Built-in nand-tree pin scan test capability
  • 0.6um mixed voltage, high speed and low power CMOS process
  • 208 pin PQFP for VT82C585VP
  • 208 pin PQFP for VT82C586
  • 100 pin PQFP for VT82C587VP
