Test Setup

Using WindowsXP to Make RAID 5 Happen
By
Intel Processors (Socket 775)
800 MHz FSB (Dual DDR) Intel Pentium 4 Processor 520 (2.8 GHz)
Motherboards
Socket LGA-775 ASUS P5GDC-V Deluxe
Intel 915P Chipset
BIOS 1002
Memory
DDR SDRAM 2x 512 Crucial Ballistic
Timings: CL 2.5-3-3-7
Common Hardware
Graphics Card nVIDIA GeForce 6 Series
GPU: NVIDIA GeForce 6800 GT
Memory: 256 MB GDDR3-SDRAM
Hard Drive I - OS Hitachi HDS722525VLSA80
250 GB, 8 MB Cache, 7200 rpm
Hard Drive II - RAID Western Digital WD 740 Raptor
74 GB, 8 MB Cache, 10,000 rpm
DVD/CD-ROM MSI MS-8216 16x DVD
Software
NVIDIA Graphic NVIDIA Detonator 61.77
Intel Chipset Driver Installation Utility 6.0.1.1002
DirectX 9.0c
OS WindowsXP Professional 5.10.2600, Service Pack 1
Benchmarks & Measurements
Office Applications ZD WinBench 99 - Business Disk Winmark 2.0 c't h2benchw
High-End Applications ZD WinBench 99 - High-End Disk Winmark 2.0
Performance Measurements c't h2benchw
I/O Performance Intel I/O meter 2003.05.10

Benchmark Results

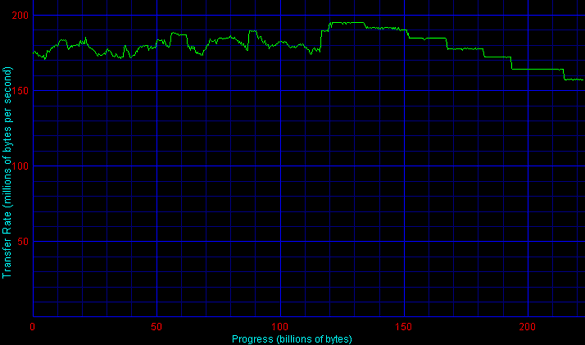

Data Transfer Diagram


Ask a Category Expert

Create a new thread in the Reviews comments forum about this subject

Example: Notebook, Android, SSD hard drive

Display all 19 comments.
This thread is closed for comments
  • 0 Hide
    Anonymous , May 11, 2008 2:45 AM
    Can I grow an array made this way? That is, add another disk without having to lose the data currently held on the raid?
  • 0 Hide
    op365 , June 28, 2008 1:17 PM
    From past experience with Hardware RAID, you would have to first backup your data and then break the RAID and put in the higher capacity drives and create a new container.
    The feature that you want/asking about is called X-RAID
  • 0 Hide
    micokeman , August 11, 2008 3:56 PM
    I have used this hack and it works, but there are some problems that can occur. First of all, if you do this on SP2 and upgrade to SP3, XP will no longer see the RAID5 drives. Uninstalling SP3 allowed me to regain access to the RAID5 devices, but I would continuously get blue screens. After a repair of XP I no longer got blue screens, but I could also no longer see the data on the RAID5 drives. I suspect XP saw them as foreign drives and XP can't import foreign RAID drives!!! Yes, the hack works, but be aware that a service pack upgrade might render the data inaccessible.
    For those of you wondering, I was able to get my data back by installing Server 2003 and importing the RAID5 drives. No data lost, WHEW! You can also use a trial Windows Server 2003 to access your data for 30 days. Get the download from here.
  • -1 Hide
    Anonymous , August 21, 2008 4:12 PM
    This works with SP3 and also with the x64 version of XP.

    To get it to work with SP3, you just have to redo the changes above.

    To get it to work with x64, just locate those same strings in the files and apply the changes. Notice how the changes are only swapping the locations of the words SERVERNT and WINNT. I'd post the exact changes here, but it would take forever to type out all of those hex values. UltraEdit doesn't seem to allow one to copy the hex data to the clipboard.

  • 0 Hide
    Anonymous , September 1, 2008 4:40 AM
    I have also notice the problem when upgrading to SP3 that the RAID no longer works. Even after changing the files (dmboot.sys, dmconfig.dll, dmadmin.exe) on the SP3 release I still could not get RAID to work correctly. I have taken the 3 files from a system running SP2 and copied them to the system running SP3. It looks like the SP2 files work on SP3 but I have only had the system running for about a week.
  • 0 Hide
    SlAoTkAiN , September 13, 2008 1:21 AM
    I was lucky and installed sp3 and then used the hack and got a the raid working. The only problem I'm seeing is that XP doesn't start up the raid at boot. I have to go into manage and re-activate the drive. Anyone have any suggestions?
  • 0 Hide
    Anonymous , September 15, 2008 1:08 AM
    I got it working again after migrating from sp2 to sp3, but I have to go into manage and re-activate the drive every time I reboot.
    Anyone has a solution for this?
  • 0 Hide
    tiborakos , September 25, 2008 11:45 AM
    After spent a week wondering what went wrong with my XP SP2 raid5 setup...i fell into this, and remembered i hd installed SP3 as well!!!
    Is there a way to get those SP2 files from somewhere please? Else i think i might try the server2003 solution.
    As for the "re-activate the drive every time I reboot" it has happened to me in my old PC after the mod, but could not find a way to solve it
  • 0 Hide
    cwilk , September 26, 2008 5:39 AM
    I am lost with the hex editing. I tried a fix from Randem Systems but that doesnt work. Anyone have a copy of the files i can get?
  • 0 Hide
    tiborakos , September 26, 2008 6:51 AM
    Cannot help with the files unless you want mine. btw, i managed to get the Raid5 volume working again, after uninstalling SP3 and getting back to SP2.
    What if i copy the files, install SP3 again and just replace them with the current ones? Do you think it might work? Or i will end up needing "reactivate the drive every time i reboot" ?
  • 0 Hide
    cwilk , September 26, 2008 7:09 AM
    I was able to edit the hex. Rebooted into recovery console, copied files over and went into Disk Management and I got an RPC Server is unavailable error. Rebooted back into recovery console, copied originals over and I still get the same error. Any suggestions?
  • 3 Hide
    Anonymous , September 27, 2008 5:22 AM
    I installed SP3 some time ago, and it killed RAID5 for me. Due to code changes in dmconfig.dll & dmadmin.exe (can see in WinMerge), you need to open the newest (sp3) files in a hex editor (I used FlexHex) and make changes to the new files. This time the offsets (where in the file you need to edit) are slightly different for two files, due to the new M$ code. I would not recommend using the older sp2 files after sp3 upgrades.

    When I did this, I can boot fine, it recognized the array automatically (as healthy too - no rebuild needed), and I do not have to start it or anything.

    dmboot.sys starting at offset 00011070h, the hex between brackets are the only bytes you need to change:
    00011070h: 54007900 70006500 0000[5345 52564552
    00011080h: 4E545749 4E4E5400 0000]0000 00004C41

    dmadmin.exe starting at offset 00001C38h, the hex between brackets are the only bytes you need to change:
    00001C38h: [77696E6E 74000000] 00000000 6C616E6D

    dmconfig.dll starting at offset 00005140h, the hex between brackets are the only bytes you need to change:
    00005140h: 4C414E4D 414E4E54 00000000 [57494E4E
    00005154h: 54000000] 00000000 53455256 45524E54

    Note the new offsets for all but dmconfig.dll. Don't forget to backup files you mod (before and after).

    HTH
    J
  • 0 Hide
    tiborakos , September 29, 2008 7:34 AM
    Nice, but now that i uninstalled SP3 and raid5 works, i am thinking twice if i need to go to SP3 and do the mod again...
  • 0 Hide
    Anonymous , October 7, 2008 3:10 PM
    hi,
    i have this solution working but there are major problems. My data transfer speeds have really really slowed down. Another issue is that whenever i reboot it shows that the array is rebuilding again. please help
  • 0 Hide
    velcro39 , October 17, 2008 4:05 PM
    I would like to have seen the benchmarks include a single drive. I want to go to RAID 5 but if there are no speed improvements I might not bother. I already back-up and limited down-time to restore a back-up is not a concern of mine.

    Anyone have any benchmarks to confirm?
  • 0 Hide
    Anonymous , October 19, 2008 10:13 AM
    It is work-ing just fine on xp sp3, as long as yo edit the sp3 files not the sp2 and paste them over. Tested raid-5 on 3 X 500G sataII.
  • 0 Hide
    tripperdan99 , February 17, 2009 1:43 PM
    excellent, thanks. Obviously one would keep the files on ready for updates and also BACKUPS
  • 0 Hide
    jonfleck88 , March 7, 2009 7:03 AM
    I just finished a complete tutorial on how to do a software RAID 5 on SP3 and make it network accessible on Mac OS X, Linux or another Windows machine. I have provided download links to the modified files so there is no need to worry about using a hex editor. Enjoy.
  • 0 Hide
    anon_lynx , February 5, 2012 4:34 AM
    I don't see anyone posting a fix for the problem of Windows XP breaking the mirror for RAID 1 on reboot as first reported by SlAoTkAiN 09/13/2008 3:21 AM. I can confirm that problem. How Serious is this? Is the mirror valid in every other way? Has anyone tried recovering from a mirror using this hack?
