For a very long time, many of us have been begging Noctua to build a liquid cooler. In a time when CPUs are becoming ever more powerful, their power consumption is also rising, and air-coolers are often no longer up to the task. However, this was a problem for Noctua’s customers, as the brand has stubbornly not built a liquid cooler – at least until now. Meet the NL-LC1-36, Noctua’s first liquid cooler.

Today we’re reviewing the 360-mm variant, but it also comes in 240mm and 420mm flavors.

Let’s start with the elephant in the room: At its core, this is not a liquid cooler designed 100% in-house by Noctua – it’s an Asetek cooler with some Noctua touches. This may be a bit of a let-down, especially for Noctua purists – up until now, every product that had a name in Noctua’s nomenclature, such as NL-LC1-36, or NH-D15 G2, or NF-A12x25 G2, was 100% designed and built in-house by Rascom and Kolink, the two owners of the Noctua brand.

Keen readers will note that there is a Noctua case, Noctua PSU, and Noctua GPUs, but that’s not entirely accurate. The Antec Flux Pro Noctua Edition, Seasonic Prime TX-1600 Noctua Edition, and Asus Noctua Edition GPUs are all, as their name implies, Noctua-Edition products, which are not strictly speaking a core part of Noctua’s own lineup, and they do not carry Noctua’s typical nomenclature.

What’s really going on here is something we’ll get into later, but for now, let’s dive into the box and see what we’ve got on the test bench.

Specifications

Product Walkthrough

The cooler comes packaged in a typical Noctua box with a matte finish and product details written on it. Noctua also sells an auxiliary fan, the NL-ACF1, which can clip onto the pump block to cool the area surrounding the CPU.

Open the box, and we’re presented with a nice appetizer – the large Noctua plaque that can later be installed onto the pump block if you’re not using the auxiliary fan.

This is a truly beautiful plaque, and quite large too – a bit unusually large for Noctua. Is Noctua trying to emphasize its own brand to distract us from Asetek?

An included accessory box contains the mounting brackets, cleaning wipe, instructions, TIM guard, and the classic Noctua Torx screwdriver. Both the AMD and intel mounting brackets come with -7mm offset holes so that the cooler is better placed over the CPU’s hotspots.

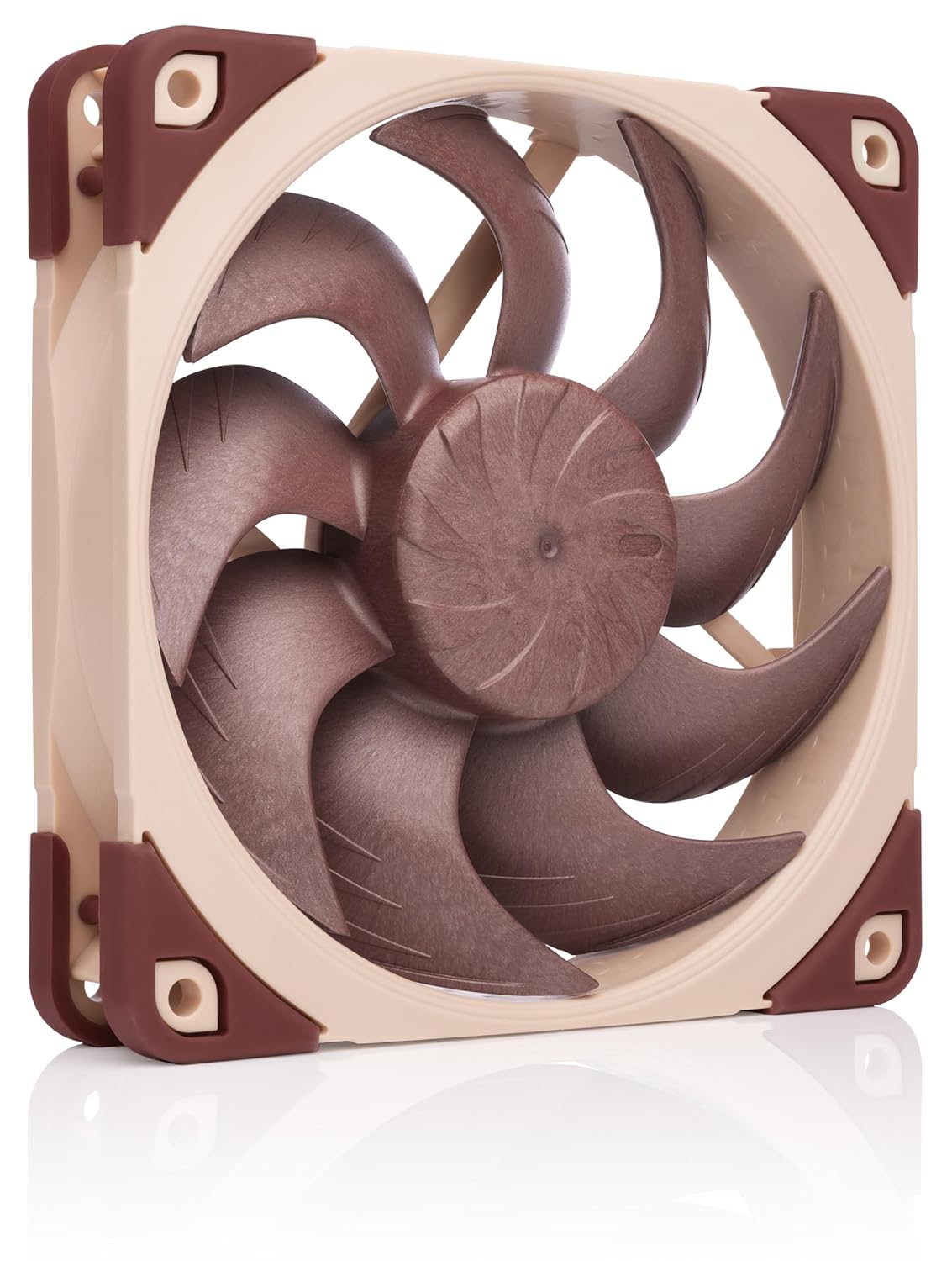

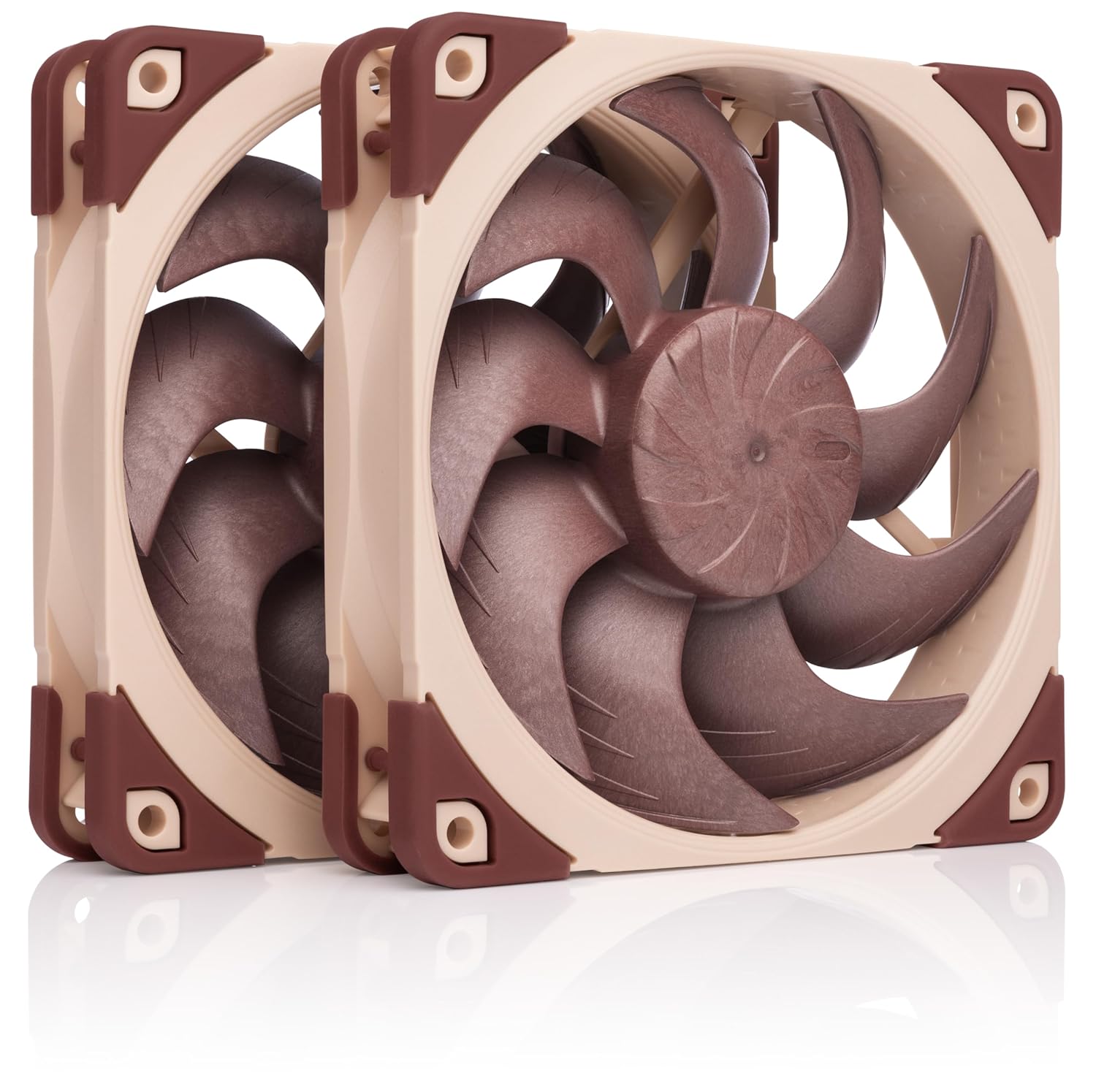

The three fans come in their own box too. Here we have three NF-A12x25 G2s, two of which are the PPA variant and one PPB, which have 50 RPM offsets to prevent harmonics from forming between them. These fans spin at such consistent speeds, that if you mount two next to each other on the same fan splitter, they can sing in harmony.

The fans all come equipped with the full rear gasket for a perfect seal on the radiator.

Moving on to the pump assembly, here we find the pièce de résistance, the NL-PNA1. PNA stands for Pump Noise Absorber, and this is a custom pump cover designed by Noctua that features multiple layers of foam, sound barriers, and silicone mounts, all to quiet down the pump.

At its heart, the NL-CL1 is based on Asetek’s Emma Gen8 V2 pump platform that, although very powerful, isn’t the quietest pump on the market. However, the combination of its power and the PNA1 cap means that Noctua is happy to stand behind the product, and we’ll see in testing whether this stance is justified.

This pump cap isn’t only engineered to absorb and deflect noise, however – it’s also a tuned mass damper. Sitting on silicone mounts, its own mass and positioning is engineered such that it dampens mechanical noise. This damping essentially shifts the higher, more annoying frequencies pumps typically produce toward deeper, more pleasant frequencies that typically bother human hearing less.

The cold plate is beautifully milled, and the exposed copper should do a great job at transferring heat.

Hidden between the two tubes is a dip-switch with three positions. They’re not marked, but it’s easy to tell whether you’re in the quiet, balanced, or unrestricted mode. These limit the pump’s RPMs to 2100 or 2600 for the quiet and balanced profiles. Within these profiles, you can use the motherboard’s PWM control to guide the pump. However, the pump’s internal coolant temperature sensor will override the PWM signal at certain duty cycles or beyond certain coolant temperatures and push to 100% duty anyway, which may lead to the pump running louder than you want. In practice, however, we haven’t found this to be a problem.

For full control, you’ll want to use the unrestricted mode, where you have the pump’s full 3700 RPM at your disposal.

What I find a bit of a let-down here, is that there is no two-pin thermal probe output. I have a lot of experience with custom water cooling, and my preferred method of managing pump and fan speeds is by using the coolant temperature as the source value. It’s great that this AIO’s pump will manage itself and I’m stoked to see this feature finally coming to numerous AIOs, but I’d like access to the coolant temperature so that the fans can be controlled by this too.

The AIO’s radiator is a relatively standard aluminum type, but it’s 30mm thick which is an improvement over thinner 25mm radiators on more budget-friendly coolers.

Lastly, the loop is filled with Glycol, and is not user-serviceable.

Optionally, for $20, you can add an auxiliary fan to cool the VRM and memory surrounding the CPU, but this honestly feels like an afterthought and doesn’t look very charming compared to the rest of the cooler. I don’t doubt that it works, but it’s not nearly as neatly integrated into the pump block as we’ve seen with much of Noctua’s premium competition.

Testing Part 1: Pump speed vs. dBA

To test the NL-CL1, we decided to deviate from our usual procedure. Usually, we take AIO’s as they come and pit them against each other in a real-world scenario using a closed case and standard onboard fan curves. However, with the improvements Noctua has made to the pump assembly, we wanted to really focus on the impact of this different pump on both acoustic and thermal performance.

To do this, we’re pitting the NL-CL1 against the Phanteks Glacier One M25 G2 and the Lian Li Hydroshift II LCD-C 360N – but instead of using their included fans (the Lian Li doesn’t come with any), we’re installing the three NF-A12x25 G2 fans that come with the Noctua.

The reason we’re testing this way is because I feel that the primary audience that would be interested in this AIO, is also the type that would fan-swap an existing cooler. It’s also to take the fan variable out of the equation – we know Noctua’s fans are better than any other (they sit atop our Best PC Fans list just for that reason), and what we really want to know is how much better this pump unit really is.

These two competing coolers cost about $150 each, and if you were to install three NF-A12x25 G2’s on them, that brings the total cost to about $250, which is in-line with Noctua’s pricing. So, what do you get for the same money with the old method, vs the new, official Noctua cooler?

Meanwhile, for the purists among you, we’re also adding the legendary NH-D15 G2 air cooler to the test at the end. The main reason to contemplate a Noctua AIO is to minimize pump noise – and for a few, up until today, that simply meant not using an AIO at all, rather sticking to air cooling with fewer moving parts.

Test Setup

We’re using an MSI Godlike X870E motherboard with a 9950X3D CPU and some Kingston Fury Renegade DDR5-6000 memory. We also have a PNY RTX 5080 installed, though it’s there only for display purposes and will be kept at its zero-RPM mode.

We’re doing these tests on an open test bench, as to expose as much of the pump as possible.

Testing Part 1: Pump speed vs. dBA

For the first series of tests, I ran the three AIO’s pumps through their RPM ranges independently, by themselves. To get the system quiet enough, we ensured the GPU’s fans were not spinning, there was no load on the CPU (and thus no whining VRMs or PSU fan), and disconnected the CPU fans – the only moving part was the pump itself – that’s all we’re trying to figure out here.

What’s clear from the results is that the Noctua pump is notably quieter at most speeds, right up until about 2300 RPM, where Phanteks’ Glacier One becomes quieter, and Noctua’s pump actually makes a big jump up in noise levels.

What’s also interesting is that up until about 1900 RPM, the pump on Noctua’s cooler is almost indistinguishable from the noise floor of the room. That’s very impressive if you consider that the dB meter was placed at a mere 20cm from the pump, at night, in a room treated for acoustics.

I debated testing with dB-C weighting, as this is more sensitive to low frequencies, but decided against this. C-weighting spans across a wider range of frequencies, which technically speaking, would offer results more representative of the entire sound spectrum.

However, dB-A weighting is geared more toward the sensitivities of human hearing – and Noctua specifically engineered the pump cover to shift the pump’s sound profile towards lower frequencies, where they would be less bothersome.

With that in mind, I do want to mention that the dB reading alone really doesn’t tell the whole story. As mentioned, the Noctua pump ends up louder than the Phanteks, at least as far as decibels are concerned.

As I was testing, I saw these numbers, and I thought: that’s not right. How can that be? The Noctua sounded much quieter to my ears.

So, I went back, re-installed the Phanteks, and lo-and-behold, it put out the exact same figure it did before – quieter than the Noctua on the dB meter, but my ears told a different story.

Using dB(A) weighting should have compensated for that difference, but it didn’t. So, perhaps my dB meter is wrong, or Noctua knows more about human hearing than dB(A) weighting accounts for.

However, what may also play a role is the differences in pump assembly and how they impact flow rate. If, for example, the Phanteks pushes more fluid per rotation than the Noctua, then it’d be only logical that it’s louder too – but I doubt it does.

Either way, we’ll be going back and testing with subjective noise levels in addition to these objective figures for a complete picture.

Testing Phase 2: AIO Objective Noise-Normalized, + Min and Max

In order to account for the pump’s engineering, I’ll be running a noise-normalized test that has the NF-A12x25 G2 fans spinning at the same 1200 RPM speed on each cooler, on every test. I’ll be running the three pumps at speeds that have matching noise levels, which we’ve figured out in the previous testing phase with the dB meter.

This is not a test meant to simulate real-life performance -- we run the fans at a fixed speed of 1200 RPM, and keep the CPU at stock settings to limit power draw to exactly a hair under 200 watts under all scenarios, so that all coolers make it through the test and to remove any variables. The only factors influencing the thermal results are the pump, its mounting offset, the flow resistance, and the radiator – all factors over which we ultimately have no influence.

This is where things started to get very interesting. Let us start with the minimums and maximums – you’ll note that at the minimum pump speed, the Noctua has the CPU running much hotter than the other two coolers. I’d like to clarify that the minimum and maximum tests are not noise-normalized, but have the pump running at their minimum and maximum speeds. Noctua’s LC1 has an extremely wide RPM range to work with, which the other two coolers don’t. And running a 200W workload with a pump running at just 750 RPM isn’t going to do great things for thermals. It does, though, mean that in low-load situations, the pump can run completely quietly.

However, in the noise-normalized test between 29 dB(A) pump noise and 32 dB(A) pump noise, we saw some shocking results. Noctua’s cooler, even when it has its pump running at a barely perceptible noise level of just 29 dB(A), still runs significantly cooler than both the Glacier One and the Hydroshift with their pumps running at full speed.

Of course, it must be noted that there are more factors at play here than just the pump – the LC1 offers a 7mm offset mount for Ryzen systems which we used, a different cold plate design, and a radiator that’s slightly thicker than its competition.

Testing Phase 3: Subjective Noise-Normalized

As mentioned earlier, according to my ears, some of the pump’s acoustics don’t match up with what my dB meter shows. For this reason, I’m repeating the previous batch of tests, but instead of looking at the dB meter, I’m trusting my ears to guide me in picking an RPM setpoint for each pump that I deem fits the description. If you see a result missing, it’s because the criteria weren’t met. The RPMs of the pumps are in the chart below.

To determine the RPM levels, I first ran the pump at the highest speed at which it was still completely inaudible. I then figured out a middle point where I was happy to tolerate the noise level under load. And finally, I pushed the pump speed up further, and found the lowest value at which its noise started to annoy me.

To give some additional context, I’d like to emphasize that I have highly sensitive hearing, and I’m someone that likes to run their gear as close to inaudible as possible. This is also a very subjective test – you may hear something where I didn’t – but on the flipside, what annoys me, you may be just fine with, so do take these findings with a grain of salt.

Then, with those numbers, I ran the thermal tests again, all with the fans at 1200 RPM to remove any other variables.

Here, the Noctua started to really stand out from the crowd. Even pushing the Glacier one to annoying noise levels couldn’t make it keep up with the thermals produced by Noctua pump running inaudibly. That’s honestly quite staggering.

I contemplated for a moment whether to adjust the fan speeds in this test to match the annoyance factor, but this would make comparison difficult, and I really am trying to focus on the difference the pump makes here, and nothing else.

What’s really important to note here, though, is that from my experience, I can truly say that the dBA figure means almost nothing in practice. The subjective noise profile of the pump matters way more than the dBA, and whereas the Noctua might, strictly speaking, be louder than the Phanteks at higher speeds, it’s also far smoother. Whatever they did with the PNA1, it’s working.

Meanwhile, though, from the results it’s also clear that there is no need to run the Noctua at these higher pump speeds, as there is very little additional benefit.

And that’s not to even mention the Lian Li pump, which is always audible. Consequently, I had to omit it from the inaudible category entirely, and I can tell you from experience, there are many AIOs that are unable to run their pumps at inaudible levels. This is not an isolated case.

Testing Phase 4: Air vs Water (Noise-Normalized)

As mentioned, we also added the NH-D15 G2 to the mix, as it is Noctua’s most powerful air cooler and the most surefire way to avoid pump noise entirely, and I’m sure many of you who want nothing except Noctua, actually want to know how the new liquid cooler compares to Noctua’s finest air cooler – not a bunch of AIO’s you wouldn’t buy anyway.

TheD15 air cooler has – as its name implies – much larger 150mm fans. Consequently, to test fairly against the NH-D15, we decided to set two noise targets, based on the AIO’s internal pump limiters selected with the switch on quiet and balanced.

The test we’re performing here is more representative of real-world performance than the previous bunch. For the quiet and balanced pump profiles, I set the AIO’s fans to a speed that I felt matched up nicely, where the fan and pump noise blended smoothly. I measured the total dB(A) produced, then figured out which fan speed the NH-D15 G2 had to run at to produce the same overall noise level.

For the maximum speed test, dB(A) figures were ignored – all gear was run at full speed.

The results speak for themselves. Noctua’s NL-LC1-36 offers vastly superior performance to the NH-D15. Even with the NH-D15 G2 air cooler running at full tilt, producing a highly annoying 43.9 dB(A), it still runs 6 degrees hotter than the LC1 running in the quietest profile with the fans barely even trying at just 1000 RPM, producing only 29.6 dB(A).

Noctua has been defeated. Long live Noctua.

When I first heard that Noctua’s first liquid cooler would be an Asetek unit with some Noctua sprinkles added to it, I had some major doubts about its efficacy and, quite frankly, Noctua’s business decisions.

I grew up knowing Noctua as a company that prides itself on its standards, and designing its products entirely in-house. With that in mind, the Noctua NL-LC1 is a bit… unlike the classic Noctua that we know and love – at its core, it’s not a Noctua cooler in any way we’ve seen before.

However, if you look at the history of companies that have tried to build their own AIO’s, you’ll be met with a very long list of fallen soldiers -- whether that’s due to being unable to build a reliable pump, or because of litigation from Asetek when their patent was still valid. If history has taught us anything, it’s that it’s surprisingly difficult to build a good AIO with no liquid cooling experience.

In that sense, I somewhat doubt whether the LC1 is the liquid cooler Noctua actually wanted to build. The company is also still working hard on its pumpless Thermosiphon cooler. But in the meantime, the market still wants what the market wants.

With CPUs becoming ever-more powerful, and consumer demands increasing, Noctua either had to find a way to give the people what they wanted, or get left behind in the CPU cooling space – a space they once dominated.

With all this in mind, I believe that the LC1 is the result of Noctua making a compromise – they won’t design the cooler entirely in-house, but instead work with Asetek for the pump and radiator, but adding their own pump cover, mounting bracket, and fans to bring the total package to a new industry standard.

However, this compromise is proving to pave the way to greatness. From my brief testing, I can safely say that this is an absolutely fantastic AIO – and I’m glad to finally see somebody making a liquid cooler that focusses on what really matters: noise and performance.

Priced at $220 to $280, it’s not the cheapest AIO, but certainly isn’t the most expensive either. So, despite the fact that it’s not 100% Noctua, this one comes highly recommended to anybody looking for a high-quality AIO with fantastic performance and a stellar 6-year warranty.

So, as much as I may not feel like this AIO appeals to me as a Noctua purist, as a hardware enthusiast, I really quite like it, and it’ll certainly be finding its way into a personal system.
