Intel on Thursday published its financial results for the second quarter of 2026, posting revenue of $16.1 billion — a 25% rise year-over-year — amid high demand for client and data center products. The company also said that due to extraordinary demand for its own CPUs, it will initiate mass production using its 14A (1.4nm-class) fabrication technology in 2028, which is in line with TSMC's plans for its A14 process technology.

"With encouraging external customer progress and increased demand for our internal products, we remain on track for 14A risk production for our internal products in the second half of 2027, and we made the decision in Q2 to fully commit to high volume ramp in 2028," said Lip-Bu Tan, chief executive of Intel, during the company's earnings call with financial analysts and investors.

Typically, companies initiate high-volume manufacturing (HVM) using a new process technology about a year after initiating risk production. Assuming that Intel intends to start risk production using 14A in the second half of 2027, it is reasonable to expect the company to start 14A HVM in the second half of 2028. It remains to be seen whether by the 'second half' Intel means July or December. If Intel initiates high volume ramp in November or December 2028, actual products made using the technology will emerge in 2029. In any case, Intel typically begins manufacturing using its leading-edge nodes in its development fab in Oregon and while it formally calls it HVM, actual volumes produced at such fabs are relatively low.

Another thing to note about Intel's 14A is that in 2028 it will start making its own products using this process, not products from external customers. Apparently, Intel still does not have any external clients that have committed to use the technology to make their products.

TSMC typically initiates production using its latest nodes in December and usually calls it the 'second half of the year.' Assuming that it follows the same pattern with A14 (though the progress of the node can enable the company to pull mass production in provided that customers' designs are ready), then the volume ramp will occur in 2029. TSMC claims that multiple customers have already taped out their ICs on A14.

Intel reported a strong second quarter as its revenue reached $16.1 billion, up 25% year-over-year and $1.8 billion above the midpoint of its guidance. Formally, Intel's GAAP losses reached a whopping $11 billion. However, this was driven by the $13.619 billion of mark-to-market losses on Escrowed Shares related to Intel's CHIPS Act Secure Enclave agreement with the U.S. government. Meanwhile, the company's non-GAAP net income was $2.2 billion, which reflects profitable underlying operations. The company's GAAP gross margin increased to 40.1%, up from 27.5% in Q2 2025. Intel's Operating cash flow totaled $7.0 billion, prompting the company to raise its capital spending outlook for both 2026 and 2027 as AI-driven demand continues to exceed available supply.

Intel's Client Computing and Physical AI Group (CCPG) generated $8.9 billion in revenue, up 13% year-over-year. The company confirmed that the CCPG result was not driven by increased unit sales, but was a result of higher average selling prices (ASP) due to supply constraints.

"Client obviously exceeded expectations. I would say it was largely ASP, of which some of that was mix related, some of that was our own like-for-like changes in ASPs where we thought we had seen some inflation on our cost and needed to pass that on to the end customer," said David Zinsner, chief financial officer of Intel, during the call.

The Data Center and AI (DCAI) business delivered the strongest growth as its sales climbed 59% year-over-year to $6.3 billion amid surging demand for Xeon processors, expanding AI infrastructure deployments, and rapidly growing purpose-built silicon sales.

"Q2 year-over-year server growth was the strongest on record, Xeon 6 continue to be one of the fastest ramping products in Intel history, reflecting improving execution and strong customer demand," Tan said.

"We also continue to see strong momentum in our purpose-built silicon product line, with revenue up roughly 20% sequentially and nearly tripling year-over-year," Zinsner said. "Purpose-built silicon revenue nearly tripled year-over-year."

Intel Foundry posted $5.8 billion in revenue, an increase of 31% year-over-year, as Intel 18A production ramped. At the same time the production units losses dropped to $2.1 billion — down from $2.4 billion in the previous quarter and $3.2 billion in the same quarter a year ago. External foundry revenue reached $293 million.

"Intel Foundry operating loss in Q2 was $2.1 billion and $348 million better quarter-over-quarter as higher yields improved cycle times and increased factory scale across Intel 4, Intel 3, and 18A drove improved wafer costs," Zinsner said.

Intel guided its third-quarter revenue to $15.8 billion – $16.8 billion and a projected non-GAAP gross margin of 42% and an EPS of $0.38.

TSMC intends to raise base quotes on advanced chip production services by up to 10%, according to Nikkei, which cites people with knowledge of the matter. The price hike reflects increased demand for sophisticated processors by the AI sector, raising costs of tools and materials, as well as amplified investments in new production capacities.

For advanced process technologies — which TSMC considers 7nm-class and below — TSMC plans to raise baseline prices by 5% to 10%, depending on the particular production node and customer, the report claims. Furthermore, customers that need additional HPC chip capacity beyond their original volume requirements will reportedly have to pay another 10% to 15% premium on top of the standard increase, which means that some services will get a price hike of around 25%, if the report is accurate.

TSMC also intends to increase prices for mature manufacturing technologies, including its 12nm, 16nm, and 28nm-class nodes as well as other legacy fabrication technologies, the report claims. Increases could reach 10%, although certain nodes will reportedly see smaller adjustments, according to Nikkei.

Advanced technologies generated around 77% of the foundry's revenue in Q2 2026, whereas mature nodes accounted for 23%, which essentially means that TSMC is hiking prices on all of its services.

The company reportedly began discussing the new pricing with customers around June and completed negotiations in July. Rather than introducing higher rates immediately, TSMC opted to implement them from the beginning of 2027 to give clients like Apple, AMD, Nvidia, and MediaTek additional time to accommodate the changes and adjust their prices accordingly.

Since TSMC produces the lion's share of advanced processors for AI, HPC, networking, and smartphone applications, its price hikes will inevitably create a ripple effect in the industry and will make almost all electronics more expensive.

TSMC is not alone in raising prices these days. Vanguard International Semiconductor has also raised prices, while UMC began implementing increases in July. Also, memory makers have increased prices significantly, making TSMC management jealous. Intel also recently increased prices of its client and data center CPUs, citing market demand.

"I am really jealous about memory companies' 86% gross margin," said C.C. Wei, chief executive of TSMC, during the company's earnings call with financial analysts and investors. "86% [margin at memory makers] – 68% [margin at TSMC], I will be happy about that."

TSMC rarely comments on its prices to a large degree because they vary based on volumes and relationship with a particular client. Nonetheless, the head of the company stressed that the company has no intentions to increase prices suddenly or dramatically.

"So we do not suddenly increase our price by which I like to have 4x or 5x," Wei said. "You cannot survive for that kind of... for your customer to survive for that kind of price increase. So we earn our value, and we make sure that our profit, our gross margin, is enough for our long-term sustaining expansion, that is to the benefit of my customers and TSMC also, that is our philosophy."

An analysis of Huawei's Kirin 9030 system-on-chip (SoC) for smartphones conducted by SemiAnalysis revealed that SMIC's third-generation 7nm-class fabrication technology (N+3) has smaller metal pitch than Intel's 18A fabrication technology and that China's leading foundry has managed to achieve transistor density on par with manufacturing process that rely on EUV lithography. But does this make SMIC's N+3 node as competitive as Intel's 18A or TSMC's N2 and N3? Not really.

SemiAnalysis' teardown indicates that SMIC's N+3 fabrication process supports a minimum metal pitch of 32.5nm, which is nominally tighter than the approximately 36nm pitch used for many high-performance cells in Intel's Panther Lake CPU, even though 18A can support approximately 32nm metal pitches. The video from SemiAnalysis and High Yield does not reveal other important characteristics of SMIC's N+3, such as contacted gate pitch (CGP), standard cell height (tracks or nm), or fin pitch, so we cannot make direct comparison of this node to Intel's or TSMC's technologies. What it does reveal is estimated transistor density of around 113.4 million transistors per square millimeter (Mtr/mm²), which is even higher than transistor density of TSMC's N6, 107.7 Mtr/mm².

TSMC's N6 uses multiple EUV layers, so achieving higher transistor density without using EUV lithography is an indisputable technological achievement of SMIC. The foundry achieves this density by using DUV multi-patterning, including self-aligned quadruple patterning on the tightest layers, and extensive design-technology co-optimization (DTCO). In addition, SemiAnalysis believes that SMIC used techniques like reduced fin counts, placing contacts directly over active gates, and tightening cell isolation. Such methods allow for increased transistor density, but at the cost of increased process complexity, cost, yield risks, and design constraints.

Meanwhile, transistor density does not equal overall process competitiveness. Despite its compact layout, the Kirin 9030 reportedly delivers performance comparable to flagship application processors from roughly three years ago and has a substantial energy-efficiency disadvantage compared with modern Apple, Qualcomm, MediaTek, and Samsung designs. Huawei's highest performing CPU core is characterized as roughly Cortex-X2-class in IPC, while Apple's much smaller efficiency cores reportedly outperform it in integer workloads and consume considerably less power.

Given the fact that Kirin 9030 is neither a performance nor efficiency champion, the provocative comparison with Intel 18A is not exactly justified. Although SMIC N+3 has 32.5nm minimum metal pitch that is nominally tighter than the approximately 36nm pitch used in Panther Lake, 18A offers both higher transistor density and considerably higher performance efficiency. In addition, 18A uses gate-all-around transistors and backside power delivery, which make it particularly suitable both for mobile SoCs and for data center applications.

SemiAnalysis concluded that while export restrictions have slowed China's technological progress, progress is still being made. SMIC could potentially continue increasing density by tightening upper and lower metal layers, shorter standard cells, smaller gate pitches, and eventually backside power delivery. If the company continues scaling, N+4 could approach TSMC N5-class density, while N+5 with backside power might reach Intel 18A-class density, according to SemiAnalysis. Still, transistor density alone does not necessarily bring substantial improvements of performance or power efficiency.

Taiwanese prosecutors indicted a former TSMC deputy manager on Monday for allegedly copying 21 confidential documents, some covering technologies Taiwan designates as national core technologies, intending to use them in China. Prosecutors are seeking a sentence of up to seven years for the man, surnamed Chen, who has been detained since late May, and describe the indictment as the first under Taiwan's National Security Act to involve an alleged attempt to leak the island's most sensitive chip technologies to China.

However, that alleged transfer never happened. TSMC's internal monitoring systems flagged irregularities, with the company reportedly recovering every improperly copied document after its own investigation, according to the prosecutors' office. A High Prosecutors' Office spokesperson told Nikkei Asia that despite the failed attempt, the case "remains highly significant" as the first of its kind.

Prosecutors found Chen while investigating a separate Chinese espionage case centered on a Hong Kong national named Ding Xiaohu, Taiwan's Central News Agency reported. Investigators allege Ding was acting on instructions from the Nanning station of the Chinese Communist Party's Central Military Commission Political Work Department, entering Taiwan repeatedly to recruit agents and collect intelligence on the island's critical technologies, and that he recruited Chen through an intermediary surnamed Huang. Ding died earlier this year and was never charged.

Chen and Ding allegedly worked together between May 2023 and February 2024 to set up CSMAC, a semiconductor materials analysis company in China. Chen drafted several proposals for the venture, including one called the "Blue Ocean Plan" that aimed to recruit workers from Taiwan's chip industry to join CSMAC, and took the copied TSMC documents home to study for use in China, prosecutors said.

The state-directed recruitment allegation separates this case from the trade secrets disputes TSMC has fought over the past year, which involved employees allegedly taking confidential data to other chip industry employers.

Taiwan's National Security Act, in force since 2022, makes it a crime to copy, use, or disclose trade secrets tied to designated national core technologies, a list that includes chipmaking processes more advanced than 14nm. Prosecutors brought the first charges under the law last August, when three current and former TSMC employees were arrested over an alleged attempt to leak 2nm process data. That case grew to ensnare Tokyo Electron's Taiwanese unit, which prosecutors charged with failing to prevent the theft.

TSMC is also pursuing a civil case against Wei-Jen Lo, the former R&D executive who joined Intel last year, with Taiwanese authorities running a parallel national security inquiry into his departure.

ASML is reportedly considering increasing prices of its existing Low-NA EUV lithography tools. The potential price hikes have already upset TSMC, ASML's largest client, reports The Information. But can ASML rapidly raise the prices of the tools it sells to chipmakers? Price adjustments are not going to happen overnight, said Roger Dassen, CFO of ASML, said during the company's quarterly earnings call. But there is one thing to remember about ASML's price hikes: They are going to affect the entire semiconductor industry.

"When it comes to Low-NA [EUV tools] pricing, of course, you know that we keep on increasing the productivity of the Low-NA tool, [which] gives us a pretty strong runway for potential price improvements going forward," said Roger Dassen, chief financial officer of ASML, during the company's quarterly earnings call. […] Given the long order lead times that we have, that does not translate into pricing effects tomorrow."

ASML just reported record results for its second quarter of 2026, with total net sales of €9.326 billion ($10.67 billion) and net income of €2.918 billion ($3.338 billion). The company now expects net sales between €43 billion ($49.2 billion) and €45 billion ($51.5 billion) in 2026, a range that comfortably exceeds its own guidance and the expectations of industry analysts.

More complex, more expensive

ASML has generally increased the average selling price of EUV scanners over successive generations as they increase in complexity and productivity, so the idea of higher pricing of EUV tools is not particularly new. The company calls the concept of 'value-based pricing' and gradually increases its average selling price (ASP) based on the value that its tools provide to its operators.

Early ASML Twinscan NXE systems were commonly discussed in the roughly €100 million–€120 million ($115 million-$137 million) range, while later production models such as the NXE:3400C and NXE:3600D moved toward roughly €140 million–€170 million ($160 million-$195 million). The latest NXE:3800E is climbing even further. High-NA EXE systems represent another major step up, at more than €350 million ($400 million) per machine according to industry reports.

Meanwhile, both productivity and performance of ASML's Twinscan NXE systems have been steadily increasing: While the NXE:3400C and NXE:3600D can process 160 – 170 wafers per hour (WPH) and feature a matched machine overlay (MMO) of ≤ 1.1nm, the NXE:3800E and NXE:3800F increase productivity to 220 WPH and 260 WPH, respectively, while increasing MMO to 0.9nm. With the NXE:4200G and NXE:4200H (which will likely feature an all-new light source), we are looking at productivity beyond 300 WPH and MMO of ≤0.8nm - ≤0.7nm.

ASML makes no secret that more advanced EUV lithography tools carry a higher average selling price than their predecessors.

"You should also recognize that the tool mix that we are going to ship next year is a different tool mix from the tool mix that we shipped this year," Dassen said. "When it comes to EUV in particular, the tool mix that we are going to ship next year will be EXE: 3800E and EXE:3800F [tools], while this year it is a combination of EXE:3600D and EXE:3800E [systems]."

ASML's value-based pricing logic is essentially: if an upgraded Low-NA machine processes more wafers and therefore generates more economic value for a fab, ASML can capture part of that additional value through a higher system price. This is what ASML has been doing for some time. That said, the important nuance in Dassen's statement is that he appears to be discussing further price increases for Low-NA EUV tools.

ASML's EUV dominance

ASML is the only supplier of EUV lithography systems on the planet; every single chipmaker must comeq to the company to get one of these scanners, so the company sells these machines years in advance. This year, the company expects to have the capacity to build 65 EUV tools and intends to increase capacity by 30% next year to around 84 – 85 EUV systems. In 2028, ASML plans to produce 110 EUV scanners.

"For 2027, we are now close to being fully covered with orders for Low-NA EUV, and we are planning to increase our Low-NA EUV capacity by around 30%," Dassen said. "Looking ahead to 2028, we have already received a significant number of Low-NA EUV orders. Strong demand forecasts from our customers have led us to investigate a further 30% capacity increase for that year."

Given the strong demand for ASML's tools, the company is in a position to increase prices, at least according to the rules of the free market. As always, comments on pricing are made in opaque corporate language, so one can make a lot out of it, or nothing at all.

"Clearly, the environment that we live in today, with the [substantial] value that our products bring to customer, of course, gives us flexibility on pricing, more so than what you would have seen in the past," Dassen said. "Of course, we are executing on that as well."

However, it is not that easy for ASML to just hike prices overnight, and there are important things to note. When ASML gets an order, and that order enters the reported backlog (which totaled €38.8 billion as of late Q4 2025), it already carries a sales value (with a possibility of inflation adjustments), so there is necessarily an agreed or otherwise contractually determined price basis attached to it.

This makes Dassen's comments particularly interesting. If ASML is already close to fully booked for 2027 Low-NA EUV capacity and has received a significant number of Low-NA orders for 2028, then much of that capacity is already represented by customer orders with associated sales values. As a result, unless ASML can subsequently renegotiate the fixed price before delivery, it cannot hike prices on tools that it intends to ship in 2027 and part of 2028. This essentially means that ASML could only book new orders that it intends to ship in 2028 (presumably for the second half of the year) and onwards at higher prices. However, ASML has not confirmed this directly.

ASML's next-generation NXE:4200G is on track to arrive in 2029. That scanner is poised to be more expensive than the NXE:3800E/NXE:3800F anyway, so the company's Low-NA EUV ASPs will inevitably get a bump that year. Of course, ASML is set to continue shipping its EXE:3800-series after 2029. The big question is whether the company will adjust the prices of these units that will ship starting in 2028 or not.

We do not know the answer to this question, unfortunately. But during the conference call, ASML's financial chief implied that the company would like to get 'rewards' from its customers not only for improved productivity, but also for other improvements of its tools, which means that ASML will stick to its value-based pricing model, but may adjust the pricing for the EXE:3800 model.

"We have always been able to show customers not just productivity upgrades, but also the value from better imaging, the value of better overlay, etc.," Dassen said. [But] you got this very strong correlation between throughput improvements and ASP. That is just the way things panned out, which, put in another way, customers were paying for the productivity upgrade, and the value that we gave them for free was the value associated with, let us say, overlay improvement, imaging quality […]. In the current environment, with the value that we bring, we are also having conversations with customers on how we get rewarded for that additional value."

TSMC's backlash against the price hikes

As ASML will likely not be able to hike prices on EUV tools that have already been pre-ordered and which are set to be delivered in the course of the next two years, existing chipmakers like TSMC will not feel the effects of the price increase at least over the next 24 months. Of course, if ASML adjusts prices of its EXE:3800-series scanners due to ship in 2028 – 2028, nobody is going to be happy. And yet, TSMC seems to be so upset that the sentiment has made it to the press. There are several reasons behind the reported backlash, but the major one seems to be strategic.

For years, TSMC has said that ASML's High-NA EUV lithography tools were too expensive, and that the company's engineers can continue innovating using Low-NA EUV systems. Also, adopting all-new High-NA EUV scanners will not be an easy undertaking in general, as the transition also requires new photoresists, photomasks, pellicles, metrology equipment, design rules, computational lithography flows, and numerous other supporting technologies and process innovations.

TSMC's mid-term expansion strategy, as well as a leading-edge roadmap through 2030, has been built around extracting more performance and resolution from conventional Low-NA EUV scanners using techniques such as improved masks, computational lithography, and multi-patterning where necessary. If ASML proceeds with its price hikes for Low-NA EUV tools, this can seriously hit one of the key economic foundations of TSMC's strategy.

TSMC's intention to avoid the usage of High-NA EUV scanners until at least 10A-class (1nm) process technology has an important economic advantage. A High-NA EUV system costs more than €350 million, whereas Low-NA systems are substantially cheaper. As a result, TSMC can choose its own trade-off between additional process steps and buying much more expensive lithography equipment. In contrast, Intel, which is set to adopt High-NA EUV lithography for its 14A fabrication process, has much less flexibility: If a particular process technology is designed around High-NA EUV layers, these extremely expensive scanners, along with other ingredients, become part of the manufacturing flow and affect wafer pricing.

One of the reasons TSMC would like to extend usage of Low-NA EUV systems is that it already has the world's largest install base of these tools, as well as mature processes, established flows, and plenty of innovations that enable it to stay ahead of the competition. However, if ASML systematically ties productivity improvements of each new Low-NA EUV generation to higher prices, the cost advantage of staying with Low-NA EUV gradually narrows, which greatly undermines TSMC's strategy.

There are several other reasons for TSMC to be particularly unhappy with ASML. Firstly, TSMC needs an enormous number of tools for its upcoming fabs in Taiwan, the U.S., and Japan. All of the company's leading-edge process technologies through 2029 rely on Low-NA EUV production tools. Even a relatively modest percentage increase applied to dozens of Low-NA EUV scanners can add billions of dollars to the company's capital expenditure (CapEx).

Secondly, ASML is essentially arguing that it deserves a share of its customers' improved economics. From TSMC's perspective, potential price adjustments are very different from charging more because a new scanner is materially more expensive to manufacture. ASML is effectively saying: 'Your fabs are more profitable, and our tools are more productive, therefore we want a piece of that.'

Thirdly, pricing negotiated today determines pricing and TSMC's economy for years to come. Now that ASML is sold out for 2027 and a significant part of 2028, it is negotiating terms for the second half of 2028 and onwards. Accepting a substantial increase now will inevitably carry through to dozens or hundreds of future Low-NA EUV systems, which directly affects TSMC's economics.

TSMC's A14 (1.4nm-class) fabrication process has made rapid progress in the last three months and is well ahead of N2 at the same stage of development, according to the company's update provided at its earnings call this week. The technology also faces strong customer interest and engagement across both smartphone and AI/HPC applications.

"A14 technology development is on track and progressing well. Internal product-like vehicle demonstrated close to 90% device performance and close to 90% 256Mb SRAM yield," said C.C. Wei, chief executive of TSMC, during the earnings call with analysts and investors.

A14 — which is expected to enter mass production in 2H 2028 — is making rapid progress in terms of performance and yield improvements. This April, the company disclosed that the production node achieved >85% target transistor performance and >80% 256Mb SRAM yield. Roughly three months later, both figures are approaching 90%, which suggests a gain of around 5% in device performance and nearly 10% in SRAM yield.

For comparison, TSMC's N2 demonstrated more than 80% of its target device performance and over 50% yield on a 256Mb SRAM test chip in April 2023. By April 2024, the process had advanced to more than 90% of its target device performance and over 80% SRAM yield. While development trajectories are not directly comparable, the figures suggest that A14 is maturing considerably faster than N2 did at a similar stage of development.

The very rapid progress of A14 compared to the relatively slow maturation of N2 at similar stages of development can probably be attributed, at least in part, to TSMC's growing experience with gate-all-around (GAA) nanosheet transistors. Back in 2023, the company barely had enough experience with the production of gate-all-around (GAA) nanosheet transistors, as N2 is its first process technology to adopt such a structure. By contrast, A14 relies on TSMC's 2nd Generation of GAA devices, so it can probably benefit from the transistor-design improvements, process refinements, and manufacturing expertise accumulated during the development and ramp of N2.

It appears TSMC has likely eliminated many of the yield limiters with A14 and N2, though keep in mind that a high 256Mb SRAM yield merely indicates low enough defect density and good process uniformity across a highly repetitive test structure, but it is not directly representative of functional or parametric yield of a commercial processor.

Nonetheless, the close to 90% device performance and close to 90% 256Mb SRAM yield about 2.5 years away from expected mass production start put TSMC's A14 progress well ahead of N2. Such progress can potentially enable TSMC to start high-volume manufacturing (HVM) using A14 ahead of schedule, provided that customer designs are ready, or initiate HVM with better-than-usual functional and parametric yields.

Speaking of customer design readiness, Wei indicated that clients strive to tape-out their A14 designs ahead of schedule, which is a good sign. It is also interesting to note that despite the fact that A14 lacks Super Power Rail backside power delivery (A12 will gain SPR in 2H 2019), it is set to be adopted not only by client processors, but also by AI/HPC applications.

"We are observing a strong level of customer interest and engagement on both smartphone and HPC/AI applications, and customer new tap-out activity is ongoing and ahead of schedule," Wei said.

A14 is TSMC's next-generation process technology that combines the company's 2nd Generation GAA nanosheet transistors with a new standard-cell architecture to improve performance, power efficiency, and transistor density. Compared with N2, TSMC expects A14 to deliver a 10% – 15% performance uplift at the same power and transistor count, or reduce power consumption by 25%–30% at the same frequency and complexity. The node is also projected to increase transistor density by around 20% for mixed designs and by 23% for logic.

As the semiconductor industry increasingly relies on ASML's EUV lithography tools both for logic and memory production, ASML is considering increasing prices of these systems as they deliver greater productivity and better value for its customers. However, with 2027 production nearly sold out and substantial 2028 orders already booked, meaningful increases may primarily affect systems delivered from late 2028 onward. Nonetheless, the idea has already angered TSMC, ASML's largest client, reports The Information.

"When it comes to Low-NA [EUV tools] pricing, of course, you know that we keep on increasing the productivity of the Low-NA tool, [which] gives us a pretty strong runway for potential price improvements going forward," said Roger Dassen, chief financial officer of ASML, during the company's quarterly earnings call. "Given the long order lead times that we have, that... doesn't translate into pricing effects tomorrow."

Value-based pricing set to persist… in a new way

ASML has long followed what it calls value-based pricing and gradually increased its quotes based on output, patterning costs, power consumption, and other benefits its new tools offer to clients.

Usually, this involved increasing prices once in a while. For example, if early Twinscan NXE Low-NA EUV systems cost roughly €100 million – €120 million ($115 million–$137 million), the more advanced are priced starting at €170 million ($195 million. It is still well below rumored quotes for High-NA EXE scanners that exceed €350 million ($400 million). At the same time, Low-NA productivity has risen from 160–170 wafers per hour (WPH) and ≤1.1nm matched-machine overlay to 220 WPH/260 WPH with NXE:3800E/NXE:3800F at 0.9nm. Future NXE:4200G/NXE:4200H systems are expected to exceed 300 WPH and improve overlay to ≤0.8nm–≤0.7nm.

"Clearly, the environment that we live in today, with the value that our products bring to customer — it's substantial— of course, gives us flexibility on pricing, more so than what you would have seen in the past," Dassen said. "Of course, we are executing on that as well."

However, later during the call, Dassen emphasized that ASML intends to maintain its value-based approach even in the current environment of high demand and limited supply in the semiconductor world. Yet, he stressed that from now on, ASML might want to charge for things beyond just productivity.

"We have always been able to show customers not just productivity upgrades, but also the value from better imaging, the value of better overlay, etc.," Dassen said. "[But] you got this very strong correlation between throughput improvements and ASP. That is just the way things panned out," he said, suggesting that ASML shares value with its clients.

No price hikes in the short term

ASML will be unable to hike prices of Low-NA EUV systems for another couple of years. Since orders that are in ASML's backlog already carry a sales value, subject to inflation adjustments, prices for much of the 2027 and early 2028 output may already be contractually determined. Unless existing contracts can be renegotiated, higher pricing could therefore primarily apply to 2028 shipments and beyond, or for new orders that somehow get squeezed in in 2027. The NXE:4200G, due in 2029, should naturally lift average selling prices anyway as it gets major performance improvements.

TSMC is upset

For TSMC, however, the issue is strategic. The foundry's leading-edge roadmap through 2030 relies on extending Low-NA EUV with better masks, computational lithography, and multipatterning. Until then, TSMC's strategy has always been avoiding High-NA EUV until at least its 10A-class (1 nm-class) technology. If ASML hikes prices of its future Low-NA EUV lithography systems, it will likely affect all of TSMC's plans for the next several years.

TSMC already operates the world's largest Low-NA EUV fleet and needs many more scanners for fabs in Taiwan, the U.S., and Japan as it executes its global expansion strategy. Consequently, even modest increases beyond TSMC's projections could add billions to capital spending, reduce the economic advantage of postponing High-NA, and ultimately raise its manufacturing costs. Moreover, accepting higher prices now could establish the baseline for dozens or hundreds of future systems, which will allow ASML to capture a larger share of the economic value created by increasingly productive lithography equipment.

Can this force TSMC to transition to High-NA EUV tools earlier than planned? Moving to High-NA EUV requires not only €350-million-plus scanners but also new resists, masks, pellicles, metrology, design rules, and computational lithography flows, which are likely not ready at TSMC.

TSMC will invest an additional $100 billion in the U.S. to build at least four more chipmaking plants and advanced packaging facilities in Arizona, CEO C.C. Wei announced at the company's second-quarter earnings conference in Taipei on Thursday. The new fabs will produce chips at the 2nm node and below, and the commitment lifts TSMC's total announced U.S. investment to $265 billion, confirming plans that appeared as a market rumor in February. TSMC didn’t attach a timeline, saying the pace of construction will be set by market demand.

Wei said the money will fund several more logic wafer fabs "for 2-nanometer and below technologies" alongside advanced packaging plants to serve multi-year demand from TSMC's leading U.S. customers. According to a Bloomberg report citing a U.S. official, the expansion takes TSMC's planned U.S. footprint to 10 fabs and two advanced packaging facilities.

A leading-edge 2nm-class fab module with a capacity of roughly 20,000 wafer starts per month costs roughly $25 billion to $35 billion to build and equip, so $100 billion funds approximately four modules, matching the "at least four" plants Wei referenced. It also puts the Arizona site around the halfway mark of the 12-fab, four-packaging-facility endgame reported in April as part of the broader U.S.-Taiwan agreement.

The packaging component is arguably the more consequential half of the plan, as CoWoS capacity, not wafer output, remains the binding constraint on AI accelerator production, and on-site packaging in Arizona would give TSMC's U.S. customers a complete domestic supply chain from wafer start to packaged accelerator for the first time.

The announcement comes alongside another record quarter for TSMC, which posted net income of NT$706.56 billion ($22.35 billion) for April-June, up 77.4% year over year and its fifth consecutive quarterly record. Revenue rose 36% to NT$1.27 trillion, and gross margin hit a record 67.7%. High-performance computing accounted for 66% of revenue by platform.

TSMC now expects third-quarter revenue of $44.6 billion to $45.8 billion, up 12% sequentially at the midpoint, and raised its full-year revenue growth forecast to slightly above 40% in U.S. dollar terms, from the roughly 30% it guided in June. CFO Wendell Huang said 2026 capital expenditure will rise to between $60 billion and $64 billion, up from a prior budget of $52 billion to $56 billion, with 70% to 80% of the total going to advanced process technologies. TSMC's suppliers describe the same demand picture, with ASML raising its 2026 outlook on Wednesday, and Applied Materials CEO Gary Dickerson telling Nikkei Asia the industry is set for years of capacity expansion.

TSMC declined to say when the additional $100 billion will be spent, but the commitment follows the U.S.-Taiwan trade agreement that cut tariffs on Taiwanese goods to 15% in exchange for $250 billion in planned Taiwanese investment in the U.S., roughly two weeks after President Donald Trump said TSMC was doubling the size of its Arizona operations. A demand-contingent pledge satisfies that arrangement without committing capital to a schedule. Wei himself bracketed the demand outlook, saying he expects demand to remain very strong through 2029 or 2030, but added: "Whether there is a dip in between or not, I'm not very sure."

Wei also said TSMC is planning 13 leading-edge and advanced packaging fabs in Taiwan over the next several years, heading off concerns that the U.S. buildout comes at Taiwan's expense. Execution in Arizona still faces labor, water, and visa constraints, which will do as much as demand to determine how quickly four more fabs are built in Phoenix.

Google plans to use Intel's EMIB-T packaging for its next-generation TPU codenamed Humufish, according to SemiAnalysis. TSMC's portfolio of chip-on-wafer-on-substrate (CoWoS) technologies has become the de facto standard advanced packaging option for nearly all AI and HPC processors made in the industry. Competing offerings are usually considered as secondary solutions if CoWoS is in tight supply, but things are beginning to change.

Google is a long-standing CoWoS customer for TPUs, starting from the Third-Generation TPU, all the way to Google's latest Eighth-Generation TPUs. Assuming that SemiAnalysis's report about Google's decision to move to EMIB-T with its Ninth-Generation TPUs is accurate, it's a big decision for Google, as switching from one advanced packaging technology to another is a complicated endeavor, which involves plenty of changes and unknowns. Understanding Google's reasons for the switch could shed some light on the prospects of Intel's and TSMC's advanced packaging technologies, which will be used by leading chip designers and hyperscalers in the coming years.

Advanced packaging technologies at glance

For years, Google used TSMC's CoWoS-S, and later, CoWoS-L packaging. Initially, the company used CoWoS-S packaging, which relies on a silicon interposer up to 3.3X the reticle size, but with its 7th- and 8th-Generation TPUs, the company moved to CoWoS-L. CoWoS-L relies on a redistribution layer (RDL) interposer with embedded local silicon interconnect (LSI) bridges that enable high-performance die-to-die links, which can scale packages to 5.5X the reticle size today. TSMC promises to improve CoWoS-L's capabilities to scale over 14X the reticle size by the end of the decade.

Unlike CoWoS, Intel's embedded multi-die interconnect bridge (EMIB) technology does not use any interposers. The technology instead relies on tiny embedded silicon bridges within the substrate to enable high-density die-to-die interconnections, whereas everything else is routed through an inexpensive organic substrate.

EMIB-T adds through-silicon vias (TSVs) to the bridge, which enables power to flow vertically instead of going through the organic substrate. In addition, Intel's EMIB-T also integrates sophisticated metal-insulator-metal (MIM) capacitors and a dedicated ground plane into the bridge to improve power integrity. The latter is a particularly important feature of complex next-generation AI accelerators, which demand more, cleaner power, and for which power delivery is becoming as challenging as signal routing.

The main selling point of EMIB (and EMIB-T) is that it is not constrained by interposer reticle limits as it places small silicon bridges only where high-density die-to-die links are needed. Strictly speaking, CoWoS-L is not either, as it uses LSIs locally as well. The difference is that those bridges are embedded into a package-wide RDL interposer that connects everything and enables dense interconnections across the package.

Since both CoWoS-L and EMIB-T are designed to address the same applications and have many similarities in the way they do this, the choice between them is likely driven by a combination of factors rather than one single advantage or disadvantage. On the technology side of matters, these factors include interconnect performance and density, power delivery, scaling beyond very large package sizes, and mechanical rigidity. On the business side of things, costs, capacity availability, and supply chain diversification are also a significant factor.

Crucial differences

SemiAnalysis claims that the main advantage of EMIB/EMIB-T over CoWoS is the lack of reticle limit, but this argument does not fully hold against CoWoS-L, as it was invented specifically to escape the reticle limitation by replacing the monolithic silicon interposer with localized LSI bridges.

When it comes to dense, package-wide routing, CoWoS-L's RDL interposer is fundamentally superior to an ordinary organic substrate offered by EMIB-T. Organic substrate wiring has coarser line/space dimensions and larger vias, so it cannot provide the same routing density as CoWoS-L's fine-pitch RDL. Where an EMIB bridge connects adjacent dies, Intel can achieve very high interconnect density. But anything that needs to travel beyond those bridges must use the package substrate or cross a topology involving additional bridges.

By contrast, CoWoS-L gives the designer two levels of connectivity: LSIs provide extremely dense local die-to-die connections, while the global RDL interposer provides relatively dense and flexible routing across the entire package. This means the RDL can carry longer, lower-density connections without consuming valuable LSI resources, while still offering much finer routing than the underlying package substrate.

One scenario for Google's choice is that it potentially wanted better power delivery than what CoWoS-L could offer. EMIB-T integrates TSVs for vertical power delivery, sophisticated MIM capacitors for local decoupling, and a dedicated ground plane into its silicon bridges. The combination of these features substantially reduces power-delivery impedance and improves transient response and power integrity, which gives EMIB-T a major advantage over conventional EMIB for power-hungry AI accelerators. However, we have no idea how EMIB-T stacks up against CoWoS-L in the case of Google’s Humufish.

Of course, the larger the RDL interposer becomes, the greater its parasitics can become, potentially limiting scaling unless TSMC finds ways to mitigate them. However, EMIB does not eliminate long-distance wiring: If two distant dies must communicate, those signals still have to travel somewhere, and routing them through an organic substrate is not inherently electrically superior to routing them through a purpose-built RDL interposer. Therefore, it is difficult to claim that Google chose EMIB-T over CoWoS-L, simply because EMIB-T offers superior package-wide electrical characteristics.

After Nvidia suffered yield loss with its Blackwell data center GPUs due to an alleged mismatch in the coefficient of thermal expansion (CTE) among the GPU chiplets, LSI bridges, RDL interposer, and motherboard substrate, which led to warping and system failure, it is reasonable to question the mechanical rigidity of CoWoS-L packages. Nvidia has found a solution for its dual compute chiplet Blackwell packages, and so have other developers of AI accelerators. However, as package dimensions increase, they may behave differently, therefore causing yield losses.

By contrast, EMIB/EMIB-T eliminates the large RDL interposer and embeds small silicon bridges in the organic substrate, so most of the package consists of the substrate itself. This does not make EMIB/EMIB-T packages immune to mechanical failures, as large packages can warp and bend, causing various problems. However, as such packages lack the very source of global thermomechanical stress, they can potentially be more robust mechanically. However, EMIB-T can potentially complicate things because TSVs, additional metal structures, MIM capacitors, and their ground plane make the bridge more complex. Thus, Intel must manage both global package warpage and local stresses around each embedded bridge to ensure the mechanical rigidity of these packages.

Ironically, while CoWoS-L can offer denser package-wide routing, which is better for ultra-large processors, EMIB-T may potentially provide better mechanical rigidity required for such devices. Nonetheless, EMIB-T and its organic substrate do not eliminate package bending or cracking risks entirely.

Economics

If Google's Humufish TPU really moves to EMIB-T, the decision could well be both technical and strategic. Google has the engineering resources to opt for an all-new packaging technology in an effort to lower costs and eliminate dependence on TSMC's constrained CoWoS capacity. Nvidia tends to procure advanced packaging allocations years in advance, so it is possible that Google could simply not get enough CoWoS-L wafers for its 9th-generation TPU.

As a bonus, Google can also build relationships with Intel Foundry without using the company's fabrication technologies. In fact, keeping in mind that Intel and Google already have a strategic agreement covering Intel Xeon CPUs, it wouldn't be too surprising to learn that the cloud giant is courting Intel Foundry as well.

Both Intel's EMIB-T and TSMC's CoWoS-L have their own technological and economic advantages and disadvantages. Perhaps the biggest advantage of CoWoS-L is its predictability, as the company has experience with that tech. However, if Google has decided to drop that predictability in favor of an all-new packaging method, it may well have a combination of technological and strategic reasons to do so.

Japanese chipmaker Rapidus will try to lure customers away from TSMC not only by offering a different kind of service, but also by offering its manufacturing services at lower prices, chief executive Atsuyoshi Koike announced this week. The company's plan to rival TSMC in terms of pricing appears on the surface as a risky move, as the company moves to develop leading-edge process technologies.

At present, Rapidus is looking at charging ¥3 million – ¥3.5 million ($18,550 - $21,635) per wafer processed using its 2nm-class fabrication process, which is significantly below TSMC's rumored quote of around $30,000 per N2 wafer, and is comparable to what Samsung is rumored to offer with its SF2 manufacturing technology, set at $20,000 per-wafer. Actual prices will depend on exchange rates, though Rapidus' general idea of offering significantly lower quotes than TSMC is immediately apparent.

Rapidus plans to start high-volume manufacturing (HVM) using its 2nm-class fabrication technology by the second half of 2027. The ramp of a new fab will take some time, so expect meaningful volumes from Rapidus to only be produced in 2028, when TSMC's N2 will no longer be its leading-edge node.

By the time Rapidus starts HVM at its IIM-1 in 2027, TSMC will have ramped production of chips using its performance-enhanced N2P manufacturing node, and the company will also absorb all the yield learning with gate-all-around the company will have with its N2 present at five fab modules. Furthermore, by the time Rapidus reaches meaningful volumes at IIM-1 in 2028, TSMC will have ramped up production using its advanced A16 fabrication process with Super Power Rail backside power delivery as well as a 3^rd-generation 2nm-class node named N2X.

In addition to the vast 2nm-capable capacity and process maturity that should be kept in mind when comparing Rapidus with TSMC, there is another factor to consider. One of TSMC's major advantages over its rivals is its Open Innovation Platform (OIP) ecosystem, which includes comprehensive electronic design automation tools, silicon-proven IPs, even for the latest nodes, a host of contract chip designers, and advanced packaging services not only from TSMC but also from its partners. For now, neither Rapidus nor Intel and Samsung Foundry can offer anything close to TSMC's OIP.

Given the advantages that TSMC will likely have over competitors with its 2nm-class fabrication technologies in 2028, lower pricing may be among the few ways to compete against the world's largest foundry. Rapidus' strategy of offering lower quotes while operating a single fab does not seem like the best way of earning money, but perhaps a certain way to lose it.

However, Rapidus may have another ace up its sleeve with single wafer processing across all process steps. The approach will greatly speed up the production cycle, which will be its indisputable advantage over other chipmakers, albeit at the cost of tool usage efficiency. Will lower quotes and shorter production cycles be enough for Rapidus to win customers from TSMC? Only time will tell.

Rapidus is reportedly negotiating with more than 60 potential customers, mainly overseas companies, which demonstrates the company's ambitions to become a viable rival to the global leader TSMC as well as contract chipmakers Intel Foundry and Samsung Foundry.

TSMC has reportedly told customers to prepare for price increases across its advanced chipmaking portfolio, extending the hikes beyond the newer 3nm process to include 7nm and even legacy products. According to a June 23rd Culpium report, the increases would affect the bulk of TSMC’s wafer revenue and could raise costs for major chip designers, including Apple, Nvidia, AMD, Qualcomm, Broadcom, and MediaTek.

The exact size of the increases remains unclear, as figures would reportedly vary by customer, node, and product category, but generally appear to fall in the 5% to 10% range. TSMC price increases have reportedly already started rolling out in some cases, while other customers have been told to build the higher cost structure into future purchase orders.

The company declined to discuss specific pricing with Culpium. “TSMC does not comment on pricing. Our pricing strategy is strategic, not opportunistic,” the company said in a statement to the publication. “We will continue to work closely with customers and sell our value to them.” Although the company had earlier said it would refrain from raising prices.

Earlier reports from Taiwanese media had mainly pointed to increases at TSMC’s 3nm node, one of its most advanced processes currently used for premium smartphones, PC, and AI chips, with price pressure also expected at the newest 2nm-class production. However, Culpium reports that TSMC has informed clients that “all advanced nodes” will become more expensive, meaning the hikes would extend beyond 3nm and 2nm to include older but still advanced processes such as 5nm and 7nm.

3nm alone accounted for 25% of TSMC’s wafer revenue in the first quarter of 2026, while the company’s full advanced-node portfolio — defined by TSMC as 7nm and more advanced technologies — accounted for 74% of wafer revenue. Therefore, the hikes would span nearly three-quarters of the company’s wafer business.

The inclusion of 7nm is especially notable because the node is no longer TSMC’s flagship technology. However, it's not exactly surprising as 7nm remains heavily used across processors, accelerators, networking silicon, and other high-performance chips. Many products remain on older, more advanced nodes because they offer better cost, yield, and maturity than the newest processes, especially when a design does not require the density or efficiency gains of 3nm or 2nm.

The client notices follow weeks of public comments from TSMC executives suggesting that higher prices were at least under consideration. At the company’s annual shareholders’ meeting in Hsinchu on June 4, CEO C.C. Wei said customers remained positive on the AI demand outlook, while also acknowledging cost pressures and the widening gap between chip demand and available manufacturing capacity. CFO Wendell Huang also said earlier that TSMC did not rule out price increases as inflation, overseas expansion, and advanced manufacturing costs continue to rise.

The timing of the price increases reflects TSMC’s strong negotiating position. The company remains the dominant manufacturer of leading-edge logic chips, and its most advanced capacity is in high demand among AI accelerator vendors, smartphone chip designers, and custom ASIC developers. With customers competing for access to the same manufacturing lines, TSMC has more room to pass on rising costs than it would in a weaker cycle.

The move also comes as TSMC benefits from a surge in AI-related demand. In its first-quarter results, the company reported $35.9 billion in revenue and a 66.2% gross margin, both supported by strong demand for high-performance computing and advanced-node production. TSMC has also raised its 2026 revenue growth target to more than 30%, with capital spending expected to remain elevated as the company expands capacity in Taiwan, the U.S., Japan, and Germany. The company’s Arizona manufacturing capacity has been sold out through 2027 since early 2025.

The reported increases are still far smaller than the recent price spikes seen in the memory market, where AI-driven demand for HBM and other high-end memory products has allowed suppliers to push through much steeper increases. Conversely, TSMC does not need memory-style pricing to meaningfully improve its margins. Because advanced nodes account for most of its wafer revenue, even a mid-single-digit increase across that base could add billions of dollars in annual revenue if demand remains strong.

For chip designers, the immediate impact is a higher manufacturing bill. For consumers, the effect is less direct but still important. A 5% to 10% wafer price increase does not automatically translate into a 5% to 10% increase in the price of a GPU, CPU, smartphone, or laptop, since the wafer is only one part of the final product cost. However, when combined with higher memory prices, packaging constraints, AI demand, and rising manufacturing costs, it creates another reason for device makers and component vendors to raise prices or protect margins by cutting costs elsewhere.

An interesting conversation on X has unearthed the existence of a rare ASML-focused Special Edition Monopoly board. Two chipmaking and engineering enthusiasts appear to have clinched a deal where one hands over an ASML Lego kit, a scale model of the world’s first High-NA EUV machine. In the no-cash deal, the other party will receive an ASML Special Edition Monopoly board. It appears that the deal is done, barring any regulatory hurdles and no one changing their minds, but it did pique our interest in the history of the board.

While we’ve seen and reported on the ASML chip tool Lego sets previously, this is the first time the firm’s special edition Monopoly set has blipped on our radar. It is possible this obscurity is due to this board game edition coming out way back in 2007, when the pioneering Dutch semiconductor company’s profile wasn’t quite as high as it is now. With the semiconductor segment becoming all the more important in recent years, driving the current AI boom, cutting-edge chip tool firms like ASML have risen to great prominence.

ASML’s special edition merchandise is also in high demand in the 2020s. Thankfully, we can learn a little more about the provenance of the headlining Monopoly board as it is featured in the board game’s Wiki. As previously mentioned, it was produced in 2007. Specifically, it was prepared for the Christmas period at the end of that year “as a gift to ASML employees and their families this holiday season.” From that ‘publisher’s description, it sounds like quite a few employees will have received one of these games, but it is still obviously an attractive collector’s item.

Sadly, the Wiki imagery doesn’t clearly show what the playing ‘tokens’ are (that’s Hasbro’s official term for the little metal playing pieces). The normal game has tokens like a boot, a dog, and a car, but we can’t quite make out the detail on this. Instead of streets and avenues, the ASML Monopoly board appears to have technologies and machines. Furthermore, the traditional stations are replaced by ASML campuses. Elsewhere on the board, special spaces include Corporate Tax and Press Release, where you must pick up a card. Regular Monopoly features such as Go, Water Works, Go To Jail, and the Electric Company remain.

Other non-consumer-facing semiconductor brands like TSMC and SK hynix have released successful sellout merchandise and memorabilia in recent years. Some items are easier for non-employees to get a hold of than others. For example, it is easy for anyone to find resellers of TSMC-related merchandise on Taiwan’s Shopee marketplace.

Imec, ASML, and TSMC have integrated both n-type and p-type transistors with atomically thin 2D channels on a single 300mm wafer at a 50nm contacted poly pitch, the tightest pitch demonstrated to date for complementary 2D devices and one that lands within range of leading-edge silicon.

The trio presented the work this week at the IEEE/JSAP Symposium on VLSI Technology and Circuits, using a single EUV exposure to print channel lengths as short as 28nm. Imec reported that 94% of the integrated transistors switched correctly, with an on/off current ratio above 100,000. The n-channel devices use molybdenum disulfide (MoS₂), while the p-channel devices use tungsten diselenide (WSe₂) or tungsten disulfide (WS₂).

2D transition metal dichalcogenides have been studied for more than a decade — imec has been fabricating MoS₂ test transistors since the late 2010s — so while it’s not a new material breakthrough, the result is a solid milestone in terms of integration and scaling. What’s changed with this work is that both transistor polarities were built together on a standard 300mm process flow, rather than as isolated single devices patterned with coarser lithography.

The demonstrated transistors reached active widths down to 75nm and an equivalent oxide thickness near 2nm. Both polarities turned fully off at zero gate voltage, and imec said the WSe₂ p-channel devices performed close to the best lab-scale results reported so far, narrowing the gap on the historically weaker p-type side of 2D CMOS. For perspective on the pitch, 50nm is tighter than the 54nm contacted gate pitch of Intel's 10nm-class node.

Building the transistor upside down

Contact resistance has been the dominant obstacle to scaling 2D transistors because an atomically thin channel carries comparatively little current, and the junction between the metal contact and the 2D film tends to throttle whatever the channel can deliver, partly because the metal pins the semiconductor's Fermi level and raises the Schottky barrier that carriers must cross. Lab devices have compensated by keeping large contact areas, which in turn blocks the pitch scaling that makes the transistors worth pursuing in the first place.

To break that trade-off, the consortium inverted the usual build order: rather than depositing metal onto the fragile film after the channel is in place, the team patterned tungsten-filled contact trenches first and transferred the 2D channel on top, with the gate deposited over it. Imec calls this a “reverse” thin-film-transistor flow, and credits the resulting bottom-contact geometry for the clean off-state behavior, in which both polarities stop conducting at zero gate voltage.

"For the first time, we achieved 50nm CPP — a metric determined by both the gate length and source/drain contact length — without affecting the performance of the 2D n and pFETs," said Gouri Sankar Kar, vice president of R&D for compute and memory device technologies at imec. The single-patterning EUV step, he added, was developed in close collaboration with ASML.

EUV resolution, not High-NA

The 28nm channels and 50nm pitch were printed with one EUV exposure, well inside the resolution of standard 0.33-NA EUV scanners. ASML’s High-NA EUV work with imec targets far tighter pitches that would otherwise demand multi-patterning, but the 50nm pitch here needs neither High-NA tooling nor multiple exposures. ASML credited EUV's resolution for shrinking 2D channel lengths that earlier 300mm demonstrations had left large because they relied on older lithography.

Imec isn’t alone here, with Intel having run its own 300mm 2D-material program with the company, and Samsung having demonstrated wafer-scale growth of single-crystal MoS₂. University groups have pushed monolayer MoS₂ transistors to gate pitches near the 1nm-node, but what sets imec’s work apart here is the combination of complementary n- and p-type integration, EUV single-patterning, and a node-relevant pitch on full 300mm tooling at once.

2D channels

2D channels come after the complementary FET on most roadmaps, and it’s not just because of density. A TMD channel under a nanometer thick lets the gate control the channel more tightly than a silicon nanosheet several nanometers thick, which supports switching at lower voltage as gate lengths shrink.

Imec's long-range roadmap has placed 2D atomic channels beyond 2030, and IEEE Spectrum has reported that imec expects CFETs around 2033 and a switch to 2D-semiconductor channels closer to 2041, while the IRDS industry roadmap pencils in 2D channels as early as 2034 at the 0.7nm node, a timeline that sits well beyond today's silicon. TSMC only began volume production of its first gate-all-around node, N2, late last year, and the CFET that stacks n-type over p-type transistors is the next step before 2D channels become relevant to logic chips.

And while the demonstration is impressive, several challenges still separate it from a production process. First, the integration is quasi-CMOS: the n- and p-type materials are placed side by side by transferring films onto the wafer, not grown together in a single monolithic flow, and wafer-scale, residue-free transfer at production throughput remains unsolved. Beyond that, fab-compatible low-resistance contacts, controllable doping, and long-term reliability data all need to be addressed.

Dr. Min Cao, vice president and chief technology officer at TSMC, described the collaboration's aim as de-risking the lab-to-fab transition for novel channel materials. On the timelines imec and the IRDS have published, that transition is a 2030s problem at the earliest, and the first production role for 2D channels is likely to be modest back-end or wafer-backside devices, not high-performance logic. The engineering shown this week, however, narrows the work to be done down to manufacturing problems rather than questions about whether the devices can be built at pitch at all.

The race is on to build the massive chip packages that power the future of AI, with some technologies being developed to produce a single chip that houses a monstrous 58 chips in one unit. But the future pathway to those sorts of massive chips isn't entirely agreed upon yet, as learned at TSMC's recent European Technology Symposium that we attended.

Although panel-level packaging technologies are set to enable much larger chip packages, they will not provide, at least initially, the same interconnection densities as today's wafer-level packaging technologies like CoWoS, according to Kevin Zhang, TSMC’s senior vice president of business development and global sales and deputy co-COO.

"The geometry complexity panel-based process has to deal with is nowhere near the wafer level technology capability," Zhang said. "CoPoS, I would say it is one way to basically using panel-based process to continue driving the interposer scaling."

One of the common misconceptions in the semiconductor industry is that panel-based chip packaging technologies will replace existing wafer-based technologies like CoWoS as they promise to enable considerably larger package sizes — think 310mm×310mm, up from existing 120mm×150mm — at lower costs. This is not the case, though, according to TSMC.

"That is an option on the table," Zhang said. "But remember, if you look at our CoWoS roadmap, we still have a lot of runway left with wafer-level technologies. We can scale CoWoS all the way to 14X using wafer-level processes, and we also have wafer-level integration. […] You can integrate 58 large reticle-sized dies together. So, there is still plenty of room for us to continue advancing wafer-level integration. At the same time, our team always wants to make sure we evaluate all future options. Obviously, one of those options is panel-based packaging."

But panel-level packaging cannot leverage the tools currently used for wafer-level packaging, as essentially technologies like CoWoS use the same lithography, etching, deposition, and other tools that were previously used to make logic chips. By contrast, panel-level integration tools are considerably less advanced.

 "From technology point of view, wafer-level-based process is far more advanced than panel," Zhang said. "I am not talking about just TSMC, I am talking about the industry as a whole. Wafer-level processing is where the most advanced manufacturing technology exists today. To move to panel-based manufacturing, the industry needs to improve panel processes rapidly so they can eventually offer a better next-generation solution relative to wafer-level technology."

In fact, the main advantage that panels have over wafers is indeed larger package size: currently, TSMC can use 120mm×150mm substrates, next-generation CoWoS technologies will enable 150mm×250mm substrates, but even substrates the size of a hardcover book look pale compared to the initial 310mm×310mm panels. Furthermore, future packages can get to 515mm×510mm or even 750mm×620mm, which is larger than a wafer. When asked specifically whether CoPoS will complement CoWoS rather than replace it, Zhang essentially answered positively.

 "I think that may be a way to look at it because it depends on the specific product configuration," Zhang said. "At some of the product will continue to get optimum benefit by leveraging wafer-level processing capability. Our goal is to offer our customer all the options they would need in order to find the optimum solution for their next-generation product. CoWoS today [has a lot of] scaling room for us to continue to drive this technology forward. But at the same time, we are looking at a fan-out-based process, some use the word CoPoS, as another alternative path going forward."

TSMC is currently expected to complete its first CoPoS pilot line this June. The gap between pilot and meaningful production is often around two or three years, so a reasonable expectation for high-volume manufacturing (HVM) using CoPoS would be 2028 – 2029. However, keeping in mind that CoPoS uses new tools and since the peculiarities of these tools are unknown, it is more reasonable to expect the first CoPoS-based products in 2029 or 2030, with more meaningful volumes sometime in the first half of the next decade. At the end of the day, CoWoS existed for years before explosive adoption, so CoPoS will likely repeat this pattern.

Four Republican members of Congress have urged the U.S. International Trade Commission to block imports of foreign-made chips found to infringe U.S. patents in a case centered on TSMC, according to a recent letter to ITC Chair Amy Karpel obtained by Axios. The investigation concerns chips fabricated on TSMC's 7nm and smaller process nodes, names Apple, Qualcomm, and Broadcom among the respondents, and an initial ruling is due this month. Representative Ryan Zinke (R-Mont.) and Senators Tim Sheehy (R-Mont.), Roger Marshall (R-Kan.), and Bernie Moreno (R-Ohio) argued in the letter that strategically important companies shouldn’t receive special treatment.

The ITC began investigation 337-TA-1443 in late March based on a complaint filed that February by Longitude Licensing and Marlin Semiconductor, two Dublin-registered subsidiaries of patent licensing firm IPValue Management, which San Francisco private equity firm Vector Capital has owned since 2014.

The five asserted U.S. patents came from United Microelectronics Corporation, TSMC's Taiwanese foundry rival, in 2021. The complainants seek a limited exclusion order and cease and desist orders covering non-x86 semiconductor devices made on TSMC's 7nm and smaller nodes, along with downstream products containing them, a scope that takes in the silicon behind current AI accelerators, smartphones, and PCs. The Federal Register notice lists TSMC, Apple, Broadcom, Qualcomm, Lenovo, Motorola, and OnePlus entities as respondents.

TSMC confirmed in its latest annual report that a companion lawsuit in the Eastern District of Texas was stayed in April last year, pending the ITC's outcome, which the company said it can’t determine. An evidentiary hearing took place in February, and the full Commission decision is expected in October, according to Quinn Emanuel LLP, which is representing TSMC and Qualcomm in the investigation.

The Republicans’ letter answers an earlier push from Arizona Democrats, including Senators Ruben Gallego and Mark Kelly, along with Representative Greg Stanton, who warned the ITC that an order made against TSMC could disrupt semiconductor production, AI development, and defense systems. TSMC has committed roughly $165 billion to its Arizona manufacturing site, and North America was responsible for generating 75% of the company’s revenue last year.

The case is the most serious import-ban threat against TSMC silicon since GlobalFoundries sought to bar U.S. imports of TSMC-made Nvidia and Apple chips over node-related patents in August 2019. TSMC countersued, and both companies dropped all litigation within two months under a 10-year cross-license.

Longitude and Marlin manufacture nothing, so TSMC has no infringement counterclaims to trade, and a license fee is the complainants' ultimate goal. Any exclusion order the Commission issues in October would still face a 60-day presidential review before taking effect.

When we referred to TSMC just several years ago, we called it 'the world's largest foundry,' implying that Intel was still the world's largest producer of advanced logic chips. However, having spent nearly $240 billion on capacity expansion over the last 10 years, TSMC now has nine sites with dozens of 300-mm fabs, many of which can process orders of magnitude more wafers using EUV-based process technologies than Intel*, which makes TSMC the world's largest maker of advanced logic chips.

Being the world's largest maker of advanced AI processors requires TSMC to stay ahead of its rivals, Intel and Samsung Foundry, both in terms of process technologies and, perhaps, even more importantly, in terms of production capacity.

Therefore, TSMC has kicked off the most aggressive manufacturing expansion in its history as the company races to meet explosive demand for AI processors, logic chips made on leading-edge nodes, and advanced packaging.

During TSMC's Tech Symposium 2026 manufacturing presentations, the company revealed that in 2025 – 2026, it effectively doubled its historical construction pace, building or converting nine fab phases annually, up from an average of four phases per year. The company is simultaneously building or ramping new fabs in Taiwan, the U.S., Japan, and Germany. In addition, it introduces new ways to improve the productivity of existing facilities.

N2 ramp: Six-figure amounts of wafers per-month by 2029

The central part of TSMC's expansion plan is its N2 process technology. At present, the company is ramping up production of chips using N2 at two sites: Fab 20 phase 1 and phase 2 in Hsinchu near TSMC's global R&D center, and Fab 22 phase 1 in Kaohsiung. Ramping a leading-edge node at three facilities simultaneously is highly uncommon for foundries. The company also plans to ramp up production at Fab 22 phase 2 shortly and Fab 22 phase 3 by the end of the year. Eventually, Fab 22 phase 4 will come online as well. As a result, TSMC aims to start mass production on its N2 process technology at five facilities in the first year, which is at an unprecedented scale.

As a result of such an aggressive ramp, TSMC expects its N2 wafer-out capacity to be 45% higher than that of N3B in the first year. Reports from 2023 – 2024 indicate that TSMC ramped its N3B production at two or three phases of Fab 18 in 2023 and reached a capacity of around 60,000 wafer starts per month by the end of that year. If the reports are accurate, then TSMC expects its N2 capacity to reach around 90,000 wafer starts per month (WSPM) by the end of the year. This exceeds the fully ramped capacity of Intel's 18A-capable Fab 52, which is believed to be at around 40,000 WSPM.

What is even more impressive is that TSMC intends to increase its N2/A16-capable capacity by 70% every year through 2028, which means hundreds of thousands of WSPM in 2029.

In addition to reaching vast capacity, ramping up five fab phases simultaneously enables TSMC to mitigate risks. If one fab phase experiences a contamination issue, tool failure, or yield issues, the entire N2 supply chain will not collapse. The same applies to ramping up production at two sites located in different parts of the country: an earthquake or utility failure can interrupt production or even cause yield loss at one of them, but it will not affect another. Such risk mitigation is critically important when customers like Apple, AMD, Nvidia, or Qualcomm, which demand a continuous supply. There is potentially another bonus with ramping up these fab phases in parallel rather than in serial, so read on.

N2 ramp: One Team and the Super Manufacturing Platform

Such an unusual ramp strategy seems to be enabled by two programs at TSMC: the "One Team" collaboration between R&D and fab operations, and the Super Manufacturing Platform (SMP) that enables multiple fabs (or rather fab phases) to work as one, which likely has similarities to Intel's "Copy Exactly." TSMC hasn't shared many details about the One Team and SMP, though we can make some educated guesses.

The One Team is a global manufacturing knowledge-transfer system that links R&D, process integration, equipment management, and high-volume manufacturing expertise during technology development and ramp-up. To speed up feedback loops, TSMC likely inserts manufacturing teams relatively early in node development so that R&D teams adjust their work to what is possible at fabs. As a result, yield learning, process optimization, and tool productivity improvements can be done quickly at one fab and then transferred to others. TSMC says that One Team enabled a 20% faster technology transfer compared to N3, without disclosing the time it typically takes to transfer technology from one fab to another.

In addition, all of TSMC's GigaFab sites now rely on its Super Manufacturing Platform (SMP), which is essentially a centralized manufacturing-control system that makes multiple fabs operate as one giant synchronized fab with standard process recipes, tool configurations, metrology, and yield management flows. This should enable TSMC to transfer production between fabs more easily, ramp new nodes faster, introduce yield fixes globally instead of locally, and reduce customer requalification work when production of chips is moved from one fab to another.

Moreover, since every fab phase generates its own tool behavior data, defect density data, process window statistics, and yield learning information, multiple simultaneous ramps may actually accelerate yield/defects learning when SMP and One Team are in place. In turn, it may speed up ramping of fab phases.

A 70% CAGR in N2/A16 capacity in the coming years is an extraordinarily aggressive ramp for leading-edge manufacturing. Without something like TSMC's' One Team structure and SMP, coordinating that scale of expansion across multiple Fab 22 phases, Fab 20, and eventually Fab 21 phase 3 in Arizona would be barely possible both from organizational (operational control) and from economic (yield learning, process window, etc.) points of view.

TSMC also noted that despite the significantly higher complexity associated with gate-all-around (GAA) nanosheet transistors, N2 is achieving a better yield learning curve than N3, which again can be attributed to the innovative approaches that the company uses.

Beyond N2: A14, A13, and A12

TSMC's N2/N2P/N2X/N2U/A16 production will largely be concentrated at Fab 20 phase 1 and 2, Fab 22 phases 1, 2, 3, 4, and, to some degree, Fab 21 phase 3. However, for nodes beyond 2nm-class (A16 is essentially N2P with a backside power delivery network), such as A14, A13, and A12, TSMC will build Fab 21 phase 3 and then the all-new Fab 25 site in central Taiwan with at least four phases.

A14 is set to start high-volume production in late 2028, so there is a good chance that TSMC will ramp it at both Fab 20 phase 3 and Fab 25 phase 1. However, given the company's aggressive approach to capacity expansion, TSMC might well surprise us once again. Also, we do not yet know how TSMC plans to upgrade N2/A16-capable fabs to subsequent nodes, if at all.

Expansion beyond N2

The expansion is not limited to the N2 production node and subsequent technologies. TSMC is continuing to grow combined N3 and N5 capacity at a 25% compound annual growth rate (CAGR) from 2022 through 2027. To address immediate demand, the company is converting some N5 capacity into N3 production, which is not particularly expensive, since N3 reuses 85% - 90% of the tools used for N5. Furthermore, as much of TSMC's N3 and N5 capacities are concentrated at Fab 18 (four phases N5, four phases N3), converting some of the N5 capacity to N3 is relatively easy from a logistical perspective.

AI is here to help (to build more AI processors)

Alongside the conversion of N5 to N3 capacity, TSMC also heavily uses AI to improve the performance of each tool, and the whole fab in particular. Essentially, TSMC uses AI to build more AI processors, which seems to be a paradox, but it is becoming popularized as AI becomes embedded within workflows.

One of the things that greatly slows down cycle times of modern fabs is batch processing of wafers in various chambers, something that is an inevitable part of some 5,000 steps. Essentially, 25 wafers ‘wait’ in a (perhaps in a CVD chamber) for a lithography tool to process them individually.

Atsuyoshi Koike of Rapidus thinks differently and believes that a single-wafer processing across all steps can significantly speed up cycle time, but at the cost of tool efficiency. TSMC does not seem to plan to use single-wafer processing (despite its purchasing power, it can likely persuade fab tool makers to produce appropriate tools), but it can certainly optimize the ways in which it uses existing tools to boost the productivity of its existing fabs.

TSMC revealed at its recent Technology Summit that it uses intelligent scheduling systems that incorporate 'state-of-the-art linear programming and heuristic algorithms' to optimize equipment efficiency, though it did not reveal what exactly is done and what is achieved. TSMC further revealed that it uses generative AI algorithms to identify optimal parameters that 'challenge the physical limits of equipment' while maintaining wafer quality. In parallel, the company analyzes tool logs using big-data analytics and text-mining systems to dynamically adjust key parameters, minimize tool idle time, and maximize output.

AI systems are also used for real-time chamber condition analysis to determine optimal chamber-cleaning timing and avoid unnecessary maintenance that could reduce machine uptime and available capacity. In addition, TSMC disclosed that AI-assisted comparison and fine-tuning of large volumes of machine verification parameters reduced the time required to validate new tools and reach high-volume manufacturing by more than 20%, which helps to ramp up new fab modules faster.

TSMC also said it achieved more flexible allocation and higher combined N3 and N5 capacity at Fab 18 in Tainan by increasing equipment commonality and integrating 'cross-technologies planning,' which essentially means that the company re-uses as many tools as possible.

Expansion beyond Taiwan

Outside of Taiwan, TSMC continues to broaden its geographic footprint. In Arizona, Fab 21 phase 1 is already producing chips using N4 technology (with capacity increasing by 1.8X this year alone), while Fab 21 phase 2 is on track to start N3 production in Q3 2027. Fab 21 phase 3 targets N2 sometime later this decade, as the company continues to construct shells both for phase 3 and phase 4. The company also reaffirmed plans for an advanced packaging facility, an R&D center, and additional land acquisitions to support future expansion.

In Japan, the company’s Kumamoto Fab 23 phase 1 is already producing 28nm and 22nm chips, while Fab 23 phase 2 underwent a major strategic shift. Originally planned for 7nm-class production, the facility will instead manufacture using technologies down to N3 3nm to address stronger-than-expected local demand and onshoring intentions of local chip designers.

Meanwhile, Fab 23 in Dresden, Germany, which is under construction, is aimed at automotive and industrial applications with legacy planar transistors and FinFET-based 28nm, 22nm, N16, and N12 production nodes.

Advanced Packaging

AI itself is now one of the main drivers behind the company's unprecedented capacity growth. TSMC disclosed that wafer shipments for AI accelerators are expected to rise 11X between 2022 and 2026. The company also highlighted the rapid growth of extremely large dies exceeding 500 mm^2, as shipments of those devices are projected to increase 6X over the same period. Such products typically require lots of wafer capacity (wafer starts) and advanced packaging technologies, since many of these designs use HBM3E memory.

Advanced packaging has therefore become just as important as wafer fabrication itself. TSMC said its CoWoS capacity will grow at an 80% CAGR between 2022 and 2027, while SoIC capacity will expand at a 90% CAGR during the same timeframe. TSMC also said it has improved development-to-HVM transition times by 30% for CoWoS and by 75% for SoIC compared to earlier generations.

TSMC currently operates 11 advanced packaging facilities in Taiwan (AP1 in Hsinchu, AP2A/AP2B/AP2C and AP8 in Tainan, AP3 in Longtan, AP5 in Taichung, AP6A/AP6B/AP6C in Zhunan, and AP7 in Chiayi). According to a recent DigiTimes report, the company is simultaneously expanding multiple advanced packaging campuses, including AP5, AP6, AP7, and AP8.

The AP7 site in Chiayi will reportedly become TSMC's largest advanced packaging campus using SoIC to support major customers like Nvidia, which plans to use 3D packaging technologies for its next-generation Feynman GPUs. AP8 — converted from a former Innolux LCD fab — is expected to exceed 40,000 wafers per month of CoWoS capacity by late 2026.

While CoWoS is the de facto standard for AI processors, SoIC is set to become much more widely used in the coming years. As a result, the company is also rapidly expanding its SoIC production capacity. DigiTimes claims that AP6 in Zhunan could approach 10,000 SoIC wafers per month, whereas AP7B may add approximately 12,000 wafers per month. Future AP7 phases are expected to support both SoIC and CoPoS technologies, though CoPoS is a part of TSMC's roadmap in the 2030s.

Advanced packaging now requires tight ecosystem integration that includes HBM suppliers, substrate vendors, OSAT partners, testing companies, materials providers, and toolmakers, with which TSMC works to standardize those tools. The very emergence of such an ecosystem emphasizes the increasing role of TSMC in the burgeoning AI industry.

An all-encompassing roadmap

After investing nearly $240 billion into capacity expansion over the last decade, TSMC has evolved from the world’s largest foundry into the world's largest producer of advanced logic chips, producing the lion's share of AI processors today.

To support the explosive AI demand and to stay ahead of Intel and Samsung Electronics, TSMC has doubled its historical fab construction pace to nine fab phases annually in 2025 – 2026 while simultaneously expanding in Taiwan, Arizona, Japan, and Germany. The company's N2 ramp is unprecedented as the company preps to ramp five fab phases within the node's first year, and N2/A16 capacity is projected to grow at a 70% CAGR through 2028.

TSMC said this aggressive expansion is enabled by its One Team organizational structure and Super Manufacturing Platform (SMP), which synchronizes manufacturing, yield learning, and process control across multiple fabs. The company is also implementing various AI-driven manufacturing optimizations, including intelligent scheduling systems, generative AI process tuning, and real-time tool analytics to improve throughput, reduce cycle times, and accelerate tool qualification.

At the same time, TSMC is rapidly expanding advanced packaging capacities. The company intends to increase CoWoS and SoIC capacities at 80% and 90% CAGR, respectively, through 2027, as demand for both technologies is expected to grow as chiplet-based designs and HBM memory are technologies of choice for AI accelerators.

*TSMC's wafer processing revenue for 2025 was $103,708.5 billion, thus representing around 84% of consolidated revenue of $122.4 billion. EUV-based N3 and N5 process technologies accounted for 60% of TSMC's wafer revenue in 2025, thus earning around $62,225 billion. Intel Foundry earned $17.826 billion in 2025, $307 million came from external customers that mainly ordered advanced packaging. It is estimated that process technologies that use EUV account for more than 10% but less than 20% of Intel's wafer revenue.

Intel does not disclose a revenue split similar to TSMC's (wafer fabrication vs. packaging/testing vs. other) in its official filings, so its wafer processing revenue is hard to estimate, especially given the fact that some of its silicon is made at TSMC and is packaged internally. Nonetheless, even 20% of Intel Foundry's 2025 revenue is $3.565 billion, which is over 17 times less than TSMC earns on its EUV-based nodes.

TSMC CEO C.C. Wei has told company shareholders that it still won’t be able to completely address the production demands for AI chips in the years to come. Even though the company has opened multiple fabs across the world, including the one in Arizona, the insatiable demand for the most advanced processors means that there still isn’t enough production capacity to go around for all customers. Bloomberg reports that the additional capacity that is expected to go online in the U.S. is still not enough to feed the increasing demand from hyperscalers.

“It will be a long time before we can meet customer demand,” C.C. Wei said. Despite that, TSMC is still forecasting a 30% increase in sales this year. It’s also not taking advantage of the supply bottleneck, with Wei adding that the company will avoid sudden price hikes similar to the memory and storage chip market industry’s experience to ensure business stability.

Hyperscaler buildouts are expected to hit $725 billion just this year. And unless the AI bubble bursts, demand is only expected to go up every year. TSMC has been building many new fabs in Taiwan, the U.S., and other parts of the world. But building these manufacturing plants would take years, and it seems that semiconductor manufacturing demand would outpace supply if the current AI infrastructure build-out continues.

TSMC Arizona’s manufacturing capacity has been sold out through 2027 since early 2025, showing the massive demand for the company’s output. The company is continually expanding this site, too, with its Taiwan headquarters authorizing a $20 billion capital injection last month to continue the development of Fab 21 phase 2. It’s expected that this would allow the company to start mass producing 3nm chips in Arizona in 2027, which is about a year earlier than the original 2028 launch date. There have also been reports of additional fabs and other units, bringing the total Arizona site to 12 fabs, 4 packaging facilities, and an R&D center.

These production shortages mean that TSMC can expect that their expansion plans will have customers once they’re completed. However, this is also an opportunity for Intel, which is trying to win customers for its 18A and 14A processes. Both Apple and Nvidia are reportedly considering Intel for some of their 2028 chip production, and sources say that the former has already reached a preliminary agreement with Team Blue.

The lack of availability has also led Elon Musk into semiconductor manufacturing. Even though building chips is a totally different beast when compared to building electric cars and even rocket ships, it seems that the billionaire founder is ready to take on the challenge with Terafab. It seems that he’s pretty serious, too, with his team already in talks with various suppliers and that they’re willing to pay a premium to ensure priority.

TSMC employees are openly discussing forming a union and staging a strike after rumors spread that the company plans to cut performance bonuses by approximately 15%, according to a DigiTimes report published today. The rumored haircut comes despite TSMC posting a record first-quarter net profit of NT$572.5 billion ($17.9 billion), a 58% year-over-year increase driven by surging AI chip demand. Workers say the company's historical practice of returning roughly 13% of retained earnings as employee bonuses has been cut, even as profits climb, and they’re pointing to Samsung’s recent union deal as a template for action.

TSMC responded by saying it expects employee profit-sharing bonuses to grow faster in 2026 than in 2025, and that it is "fully aware of its growing corporate social responsibility in Taiwan," Digitimes reported.

The most likely explanation for the rumored cut, according to analysts cited by South Korean and Taiwanese media, is TSMC’s capex program. The company is spending $52 billion to $56 billion annually while constructing 12 new fabs across the U.S., Japan, Germany, and Taiwan to secure its lead in 2nm and 1.4nm manufacturing. That outlay appears to be tightening the cash available for employee compensation.

Based on 2025 earnings, the average TSMC employee bonus was approximately NT$2.64 million (roughly $87,000), with the total bonus pool reaching around NT$206.1 billion, according to Taiwan’s Liberty Times. Frustrations have risen around the ratio of profits going to employees

The unrest at TSMC has intensified in the wake of Samsung’s landmark union deal last week. Samsung narrowly avoided an 18-day factory shutdown by agreeing to allocate 10.5% of its semiconductor division's operating profit as stock-based bonuses, plus another 1.5% in cash, over a 10-year period. That deal translates to projected average payouts of roughly $340,000 per chip division employee in 2026, based on recent estimates of Samsung's operating profit.

SK hynix agreed to a similar structure last September, setting aside 10% of operating profit for employee bonuses. The comparison is undoubtedly painful for TSMC workers, who have no union and no formal mechanism to negotiate collectively; the company has operated without a labor union since its founding in 1987.

Employee frustration has spilled onto Dcard, a Taiwanese workplace community, and dedicated TSMC Facebook pages, where workers have posted complaints ahead of TSMC's shareholder meeting scheduled for May 28th at the company's Hsinchu headquarters. Some have asked whether forming a union would violate Taiwanese law, and others argue that the company prioritizes shareholder returns and overseas expansion over its workforce.

Doris Hsu, chairperson of silicon wafer manufacturer GlobalWafers, has weighed in on the broader debate, saying that across GlobalWafers' 18 factories in nine countries, some have unions and some don’t, and that the key factor in business performance is whether a company shares profits with workers, not whether a union exists.

Samsung's deal, meanwhile, is already facing legal pushback. A shareholder lawsuit challenges the agreement on the grounds that committing a fixed percentage of operating profit to employee payouts over a decade conflicts with the capital demands of chipmaking at scale.

Lip-Bu Tan, chief executive of Intel, this week confirmed that the company had already begun to work on its 10A and 7A fabrication technologies that will succeed Intel's current-generation 18A and next-generation 14A production nodes sometime in the next decade. Both 10A and 7A processes will presumably be able to use ASML's EUV lithography tools with high numerical aperture optics (High-NA), which will first be used for 14A.

"Now I am starting to work 10A, 7A, the roadmap," said Lip-Bu Tan at JP Morgan's Global Technology, Media and Communications Conference. "People do not [simply] go to you, they are looking for the roadmap for the future. So we want to build a long-term business. […]."

Tan emphasized a long-known business practice that ambitious roadmaps that are properly executed are as important as competitive products or fabrication technologies, as many companies do not just buy products, but roadmaps, as they prefer to work with suppliers for years to come. That said, Intel must offer its partners long-term roadmap visibility, so it has to work on technologies that are years from commercialization.

When it comes to Intel's 14A, its development is proceeding as planned, with version 0.5 of the process design kit (PDK) already available and version 0.9 of the PDK due in October.

"Clearly, the 14A, and we announced in Q1, we have v0.5 PDK so that they can do the test chip to look at our yield and see whether they can, over time, to really design their product and fabricate with us," Tan said. "The Holy Grail is v0.9 PDK. Right now, we are looking at October to [hand it to] the outside customer. Internal customer will be earlier, so that we make sure that we really clean the pipe, make sure that we are doing right, make sure that we can sell with good quality."

Tan says multiple customers have expressed interest in 14A, though Intel has not yet disclosed them.

"We have multiple customers engaged with us [with 14A], and to really define what product, what foundry location wants to be, what kind of capacity we need," Tan said. "I do not disclose the customer. If the customer wants to disclose, we will support that."

As for Intel's 14A timeline, Intel expects risk production in 2028 and then volume production in 2029, which is about the time when TSMC begins to volume produce chips on its A14 fabrication technology.

Three things must be kept in mind here. Firstly, TSMC's A14 is not a direct rival for Intel's 14A as the latter features backside power delivery and is better suitable for high-end data center-grade processors. Secondly, TSMC is said to start making chips using A14 in late 2028, and the company tends to initiate high volume manufacturing (HVM) with very high yields and volumes. By contrast, Intel initiates volume production at development fabs, and it takes the company some time to reach comparable yields and volumes. Thirdly, Intel's 14A will be one of the first nodes to be compatible with High-NA EUV lithography systems (for select layers) and will be the first production node to have the capability to use such scanners for high-volume manufacturing.

Insertion of all-new High-NA EUV tools — along with new photoresists, new photomasks, new pellicles, new metrology tools, new design rules, new computational lithography flows, and a lot of other innovations — is not going to be easy for Intel, so the company is hard at work working with both ASML and partners to ensure that the new ecosystem is ready for prime time. Coincidentally, Christophe Fouquet, the head of ASML, reportedly said that the first test chips made using these High-NA EUV tools will emerge in the coming months, though he did not specify at which vendor or facility.

All three leading-edge foundries — Intel Foundry, Samsung Foundry, and TSMC — have initiated mass production of chips using 2nm-class process technology. Samsung was the first one to start production using its SF2 node (though it could be argued that this is a rebadged SF3P) around mid-2025, Intel followed suit with its 18A node in November (albeit at development lines in Oregon, not production lines in Arizona), and TSMC initiated high-volume manufacturing using its N2 process at two volume fabs in Taiwan in December. We outline what's next for these three leading-edge foundries.

The current state of the market

The amount of capital, expertise, and experience required to develop leading-edge process technologies and build high-volume fabs supporting advanced nodes is so high that only three companies in the world are currently capable of producing them. Companies like Rapidus have yet to prove they are a viable leading-edge chipmaker. Meanwhile, all three leading foundries are transitioning from traditional node scaling to a more segmented, architecture- and product-driven approach, but are doing so with different priorities.

TSMC is focused on predictable scaling, combined with aggressive specialization, which is why its roadmap is split into high-performance computing-oriented technologies with backside power delivery network (BSPDN) and cost/density-optimized nodes without it.

Samsung has a wide range of node variants, though it is currently more focused on yield improvement, rather than on scaling, which is why its roadmap appears more iterative than breakthrough-focused. This is perhaps why it is behind competitors with its BSPDN implementation.

Intel seems to be pursuing the most aggressive technological roadmap with a conjoined implementation of gate-all-around (GAA) RibbonFET transistors and PowerVia BSPDN, rapid iteration, and the aggressive pursuit of High-NA EUV lithography in 2027 – 2028, years before its rivals.

Intel Foundry: The most ambitious chipmaker

Being a new player in the foundry market and a large integrated design manufacturer (IDM), Intel is pursuing a multi-faceted strategy aimed at addressing the needs of its own products, as well as attempting to land customers that do not necessarily require leading-edge process technologies.

Intel's roadmap is the most ambitious, but arguably the most volatile one, when compared to the plans of other leading foundries. On the one hand, Intel needs the best fabrication technologies to differentiate its own consumer and data center products. To that end, with its 18A and subsequent process technologies, Intel bet on the simultaneous implementation of GAA transistors and a BSPDN to maximize performance, power efficiency, and transistor density. On the other hand, since Intel has zero customers from the automotive and smartphone sectors, it does not have any technologies tailored specifically for these applications.

Intel's 18A is probably the most important technology for the company in years, as it will return production of the company's consumer CPUs back to its own fabs, something that promises to greatly improve margins. Although the company is in the process of improving yields on 18A and current 18A volumes are not significant, Intel is already preparing follow-on refinements such as 18A-P (with enhanced performance and improved power efficiency) and 18A-PT (which supports through silicon vias (TSVs) and can be used for 3D-integrated systems-in-package).

Beyond that, Intel is targeting 14A and 14A-E for 2027 ~ 2028 production readiness and an early ramp. The nodes will introduce Intel's 2^nd Generation RibbonFET GAA transistors, revamped PowerDirect backside power delivery, and Turbo Cells to improve the performance of critical data paths.

These will be the company's first nodes to use High-NA EUV lithography, at least for some 14A and 14A-E variants, which will be another attempt to introduce a technology that will differentiate Intel compared to competing nodes. Intel has said that the interest in 14A from external customers is significant. Musk's Terafab project is set to make use of Intel's 14A, as a licensee, but not as a customer.

At the same time, Intel is heavily relying on node variants to address different use cases, including performance enhancements (P), feature enhancements (E), and through-silicon via support (T). These process technologies are required to enable Intel to build custom multi-chiplet products for consumer and data center applications, which directly support its strategy to produce most of its products at in-house fabs.

Intel's roadmap also includes continued investment in mature nodes such as Intel 16 and UMC 12 as the company pursues a strategy to capture demand outside leading-edge applications, to ensure steady revenue streams.

While Intel's plans are aggressive and ambitious, the abrupt cancellation of 20A in late 2024 highlights the execution risks associated with such a roadmap.

Samsung Foundry: When yields matter more than nodes

Samsung was the first company to adopt GAA transistors with its SF3E technology in 2022, three years before Intel and TSMC. However, low and unpredictable yields have limited the adoption of this technology to niche applications like cryptocurrency mining ASICs. While SF3 was more mature, it was still adopted by select applications, mostly internally. As a result, the highest-performing chips made by Samsung are produced using FinFET-based SF4P and SF4X, which puts the company behind its rivals.

For now, reducing defect density, increasing yields, and ensuring stable yields are the top priorities for Samsung. Last year, it began making mobile system-on-chips (SoCs) using its SF2 node (which it calls the 1^st Generation 2nm GAA process), but among the major goals for the company for this year is to ramp up '2^nd Generation 2nm [SF2P] and prepare performance and power-optimized 4nm process,' which suggests limited adoption of SF2. The fact that the low-power 4nm-class node will be a major workhorse for the company. The company's roadmap also indicates SF2X (HPC-oriented) in 2026 as well as SF2A (for automotive applications) and SF2Z (SF2X with BSPDN) in 2027, though we can only wonder whether these nodes will be widely adopted.

Nonetheless, Samsung's iterative approach to the evolution of its SF2 nodes (SF2=>SF2P=>SF2X=>SF2X with backside power) is evident, which gives us hope that the company's yields will gradually improve.

Samsung's next major node will be SF1.4, a 1.4nm-class process technology optimized for consumer and smartphone applications, which won't feature backside power delivery. Samsung's slides put SF1.4 above the SF3 and SF2 families, which may suggest that this manufacturing process will feature some major enhancements, such as a new GAA transistor design or other major refinements. Samsung expects to mass-produce chips on its SF1.4 technology in 2027, so it can formally leave Intel and TSMC behind with its 1.4nm node.

A big question lingers, and that's whether Samsung plans to finally start using pellicles with its EUV lithography tools starting with SF1.4, or later. A lack of pellicles greatly increases the number of potentially yield-killing stochastic mask-borne defects, which are increasingly dominant at the 2nm and are getting much worse at thinner nodes.

TSMC: New technologies like clockwork

TSMC's roadmap remains the most structured and execution-focused among the three. The world's largest contract chipmaker initiated mass production of chips using its N2 process technology — its first node with GAA nanosheet transistors — at two fabs simultaneously late last year in a bid to meet demand from a wide range of applications, starting from Apple's smartphones and all the way to AMD's server-bound EPYC 'Venice' CPUs. Initiating volume production at two fabs simultaneously is something that rarely happens in the industry, though it looks like structural changes caused by demand from the AI segment are changing many things in the industry.

TSMC is on track to start making chips using performance-enhanced N2P with traditional frontside power delivery and A16 technology that adds backside power delivery on top, a split which highlights TSMC's increasingly segment-specific approach to leading-edge technologies.

Going forward, the company is set to continue offering advanced technologies with and without BSPDN, as this feature may be too expensive for consumer and smartphone applications, but is clearly valuable for heavy-duty data center processors. For example, A14 will emerge as a smartphone-oriented node in 2028, but then will re-emerge as a data center-oriented node once it gets BSPDN in 2029.

In addition, the company will continue to offer mainstream nodes like N4C, N3C, and eventually N2C for applications that are more sensitive to costs. Automotive-specific nodes (N7A, N5A, N3A) will lag leading-edge nodes by one to two generations, as they prioritize reliability and longevity over performance and transistor density.

TSMC's segmentation and yearly cadence for advanced manufacturing nodes enable the foundry to address the most demanding clients like Apple, AMD, Intel, Nvidia, or Qualcomm with competitive process technologies. Ultimately, such cadence and a wide range of nodes reinforce TSMC's position as the most predictable and commercially disciplined foundry.

Fractured futures

To sum things up, TSMC continues to bet on execution discipline and segmentation as it ramps its 2nm-class node at two fabs to meet overwhelming demand from a variety of applications, starting from humble cell phones all the way to heavy-duty servers.

Intel leads in architectural ambitions, as currently it is the only company that uses a process technology that features both gate-all-around transistors and backside power delivery. However, the company admits that its yields will only get to world-class level by 2027, which likely makes Intel's 18A node significantly less attractive to demanding customers.

Samsung sits somewhere in the middle, offering a wide variety of process technologies for different applications, but the company's yields with GAA-based nodes have been a challenge, which is why the firm is now focused on yield increases rather than on breakthroughs, so it does not attempt to leapfrog its competitors.

TSMC's board of directors on Tuesday approved a capital injection of $20 billion into the company's wholly owned subsidiary TSMC Arizona, which will be used to continue the expansion of the Fab 21 site. While the allocation proves that the project is moving smoothly, the company is still facing multiple challenges in Arizona, including labor and water shortages, according to a report from Taipei Times.

The approval of a capital injection is a formal procedure that grants TSMC management the right to use the money for the expansion of Fab 21, and while it is an important milestone, it is a formality, as this is a part of the $165 billion expansion plan that the company introduced last year. What is more important is that TSMC's Fab 21 earned $514 million in profit last year, according to Yeh Chun-Hsien, Taiwan National Development Council (NDC) Minister. Making a profit in a new fab in the first year of full-scale operation is quite a big deal for foundries.

TSMC informed Taiwanese officials that the startup phase of its first Arizona fab proceeded more smoothly than originally projected, which strengthens confidence in the long-term viability of the site, according to Yeh Chun-hsien. At the same time, the company continues to deal with multiple operational difficulties in the U.S., including limited water availability, labor shortages, visa complications for foreign employees, concerns about long-term electricity supply, and regulatory compliance, the report claims.

Water access remains one of the most pressing issues for the project due to the dry and hot climate in Arizona. The company has previously attempted to ease concerns regarding water usage and long-term water supply at Fab 21 by incorporating extensive water recycling and treatment infrastructure capable of supporting advanced fab requirements, though it is unclear whether this has already been done. TSMC hopes to receive assistance from Arizona authorities to ensure reliable water resources for its operations, though environmental and electricity consumption regulations remain concerns as they complicate the project and prevent securing stable power delivery for the site.

Labor availability also remains another major issue. To make matters worse, the company faced difficulties obtaining visas for overseas personnel needed to support operations in Arizona due to the Trump administration's $100,000 fees on the entry of new H-1B visa holders.

In addition, TSMC is encouraging Taiwanese suppliers of semiconductor chemicals and manufacturing equipment to establish operations in the U.S. adjacent to its Arizona campus. However, Yeh noted that enabling broader supplier migration could require adjustments to Taiwan's investment-related laws.

Global semiconductor revenue reached $298.5 billion in the first quarter of 2026, up a whopping 25% from the previous quarter, according to the Semiconductor Industry Association (SIA). The SIA believes that the industry is on track to top $1 trillion in sales this year.

That nearly $300 billion of total revenue accounts for sales of logic, memory, analog, mixed signal and other types of chips. In March 2026, monthly revenue stood at $99.5 billion, which represents a 79.2% increase from $55.5 billion recorded in March 2025 and 11.5% higher from February 2026 levels. These monthly figures are calculated as a rolling three-month average by World Semiconductor Trade Statistics.

The Semiconductor Industry Association represents 99% of semiconductor revenue generated by U.S.-based companies and nearly two-thirds of chip firms headquartered outside the U.S., which means that actual sales of chips by various makers was higher than $300 billion in Q1 2026.

Unfortunately, the actual total revenue of semiconductor makers across the world is hard to estimate accurately, as privately owned companies do not share their financial results with the public.

Some companies are partially integrated and sales of their semiconductors cannot be accurately estimated (e.g, Apple, Bosch, Huawei, Sony, and Tesla). Numerous companies from China tend to fly under the U.S. radar and are therefore reluctant to share sales data with the SIA.

On a regional basis, March 2026 sales compared to the same month a year earlier increased by 108.5% in Asia Pacific, 83.1% in the Americas, 74.8% in China, 46.5% in Europe, and 7.4% in Japan. Sequentially, March sales also grew across all key markets, including 13.3% in Americas, 12.7% in China, 9.8% in APAC, 8.4% in Europe, and 7.1% in Japan.

"Global chip sales remain on track to reach $1 trillion in 2026, with Q1 sales significantly exceeding sales in Q4 2025," said John Neuffer, SIA president and CEO. "Strong sales across the Asia Pacific region, the Americas, and China drove global semiconductor market growth, highlighting broad and robust demand for semiconductors and the countless tech products they enable."

Given the current AI-driven semiconductor supercycle and predictions of years-long shortages of critical chip types, total revenues across the industry seem sure to continue their sharp rise, and manufacturers of chips of all types will likely be able to continue cashing in on the AI bonanza with every chip they can make.

JSR, the Japanese chemical maker that controls roughly a fifth of the global photoresist market, plans to build its first production facility in Taiwan to supply and co-develop advanced photoresists with TSMC, Nikkei Asia reports. The company established a joint venture with a local partner in early April and aims to bring the plant online as early as 2028, investing tens of millions of dollars in the project.

The facility will close a gap that has put JSR at a disadvantage relative to its two largest Japanese rivals. Tokyo Ohka Kogyo (TOK) and Shin-Etsu Chemical both already operate production facilities in Taiwan, where they work directly with TSMC on resist development.

Photoresist is the light-sensitive material used to transfer circuit patterns onto silicon wafers during lithography. At advanced process nodes, the resist must be precisely tuned to work with specific exposure tools and etch chemistries, and that tuning requires constant back-and-forth between the resist supplier and the foundry.

JSR currently develops products for Taiwanese customers by shipping samples from its facilities in Japan, the U.S., and Belgium. Each round trip can take weeks, according to Nikkei, dragging out an iteration process that its competitors can complete far more quickly from local production sites. A Taiwan plant would let JSR embed its engineers closer to TSMC's development teams, a model TOK and Shin-Etsu have already adopted. Beyond photoresist, JSR told Nikkei Asia that it’s also considering producing other materials at the Taiwan site, such as abrasives used to smooth semiconductor substrates.

JSR's Taiwan expansion is part of a broader expansion with the company simultaneously building the world’s first production-scale facility for metal oxide resist (MOR) in South Korea, with mass production expected to begin this year. That plant will supply Samsung Electronics and SK hynix with tin-based MOR for EUV lithography.

MOR absorbs EUV photons more efficiently than the conventional chemically amplified resists used at older nodes, enabling higher resolution with fewer pattern defects. JSR acquired MOR pioneer Inpria in 2021 and has been developing tin-oxide-based formulations since. The company plans to market MOR to TSMC as well, according to Nikkei, putting itself in place for the next generation of EUV and high-NA EUV production lines that TSMC will need at 2nm and beyond.

Japanese companies collectively hold around 80% of the global photoresist market and dominate the high-end EUV segment almost entirely. Chinese firms have made inroads at the KrF and i-line level, but their penetration at ArF and above remains minimal.

"Chinese players are a threat, but it'll still be some time before they can catch up with us and take market share," Toru Kimura, a senior officer at JSR who heads the company's electronic materials business, told Nikkei. JSR's strategy seems to be to stay ahead by locking in co-development relationships at the leading edge, which have the highest technical barriers to entry.

Asian suppliers now represent roughly 90% of Nvidia's production costs, up from about 65% a year earlier, according to data compiled by Bloomberg. That figure captures Nvidia's established data center supply chain: TSMC fabrication, SK hynix and Samsung HBM, and server assembly from Foxconn and Quanta. But the company's physical AI hardware is now adding entire new product categories that route through those same suppliers.

Nvidia's Jetson Thor robotics platform, released last August, is built on the Blackwell GPU architecture and fabricated on TSMC's 3nm process. The top-end T5000 module delivers 2,070 FP4 TFLOPS with 128 GB of LPDDR5X memory, while a lower-cost T4000 variant introduced at CES 2026 offers 1,200 FP4 TFLOPS with 64 GB at $1,999 per unit in volume. Both use Arm Neoverse-V3AE CPU cores and LPDDR5X sourced from Samsung or SK hynix.

These modules compete for TSMC 3nm wafer starts alongside Blackwell data center GPUs. Partners, including Boston Dynamics and Amazon Robotics, are building on the platform, and LG has confirmed that it’s “exploring a strategic collaboration in physical AI,” with Nvidia, including the robotics ecosystem, Bloomberg reported. Nvidia's DRIVE AGX Thor automotive SoC is another Blackwell-based product line competing for the same 3nm wafer capacity.

None of these physical AI products requires TSMC's CoWoS advanced packaging, which remains the primary bottleneck for data center GPU production, but they do consume 3nm wafer capacity and Asian-sourced LPDDR5X, both of which are already constrained.

The same memory market dynamics feeding Nvidia's newer physical AI products are simultaneously killing off its older ones. At the end of April, it was reported that Nvidia has accelerated end-of-life timelines for its Jetson TX2 and Xavier modules because LPDDR4 supply has become too constrained to maintain production. Samsung has moved away from LPDDR4 manufacturing, and AI-driven demand has redirected memory capacity toward higher-margin products.

That forces Jetson customers onto Orin or Thor modules, which use LPDDR5X from the same Asian memory suppliers whose capacity is already stretched by HBM and data center DRAM demand. TSMC's CoWoS advanced packaging for data center GPUs is growing at an 80% compound annual growth rate, TSMC's head of North American packaging told CNBC last month, and chips fabricated at TSMC's Arizona Fab 21 still ship back to Taiwan for packaging.

Nvidia committed to $500 billion in U.S. server manufacturing last year, with Foxconn and Wistron, and Amkor and SPIL are building advanced packaging facilities in Arizona. But those operations are not yet at production scale, and physical AI product lines are widening the range of components sourced from Asia faster than domestic capacity can absorb them.

TSMC's chip-on-wafer-on-substrate (CoWoS) packaging technology has become the de facto standard packaging method for advanced AI and HPC processors that use HBM memory, thanks to TSMC's aggressive development of the technology. Unlike lateral 2.5D CoWoS, TSMC's vertically integrated System on Integrated Chips (SoIC) technology with 3D interconnects has not been adopted as widely. However, now that the company has overcome the first generation's constraints, it will aggressively develop this technology in the coming years, as the company revealed at its recent North American Technology Symposium.

Different kinds of stacking

TSMC's 3D stacking SoIC technology has always been somewhat of a backburner project for TSMC, as it gained support for new process technologies slowly, when compared to CoWoS. From a pure interconnection pitch point of view, TSMC offered a rather fine 9 µm pitch in 2023, which was good enough to enable products like AMD's Instinct MI300-series. However, the 1^st generation SoIC had one major limitation: it only supported face-to-back (F2B) stacking, but not face-to-face (F2F) stacking, which is supported by the 2^nd generation SoIC technology. In 2025, TSMC achieved 6 µm pitches and expects the pitch size to decrease to 4.5 µm by 2029.

Face-to-back stacking imposes fundamental limits because signals cannot travel directly between dies. Instead, they must cross multiple metal layers and pass across through silicon vias (TSVs) in the bottom die, which increases latency, power consumption, and routing complexity.

In addition, this limits how densely connections can be implemented, since TSVs are relatively large structures that cannot be placed at fine pitch across active logic regions without affecting transistor density and design considerations. According to Broadcom, a real-world design using face-to-back stacking can achieve 1,500 signals/mm² with TSVs.

By contrast, face-to-face stacking removes the indirect signal path by aligning the metal layers of two dies directly and connecting them using hybrid copper bonding. This enables straight, ultra-short vertical interconnects without relying on TSVs, which increases signal density by an order of magnitude to 14,000 signals/mm², which therefore increases bandwidth, reduces latency, and cuts energy usage per bit.

As a result, communication between stacked dies resembles on-die wiring rather than chip-to-chip links, which is why companies like Broadcom view it as a crucial capability to scale compute density for next-generation AI and HPC processors.

3D packaging acceleration

Now that TSMC can do both F2F and F2B stacking, development of the technology will proceed much faster than before. The company now touts the usage of N3P dies on top of N4 dies, expects N2P on top of N3P within the next year, N2P on top of N2P by 2028, and envisions 3D stacked A14 dies by 2029.

Notably, the company hasn't demonstrated any process technologies with a backside power delivery in its SoIC roadmap. Yet, TSMC SVP Kevin Zhang reassured us that these nodes can support 3D integration as well.

"That may just be a simplification in the slide, A16 will have stacking capability," said Kevin Zhang, TSMC's Senior Vice President of Business Development and Global Sales, and Deputy COO.

"The SoIC roadmap shown does not cover all possible combinations — there are many permutations. The key takeaways are twofold. First, pitch scaling — from 9 µm to 6 µm, and eventually down to 4.5 µm. Second, the acceleration of stacking timelines. In the past, for example, you might stack N3P on N4, since the base die with TSV takes time to mature — 3nm TSV is only expected around 2027. But looking ahead to 2029, A14 TSV becomes available just one year after initial production. That shows how we are accelerating the schedule, enabling customers to stack the most advanced dies on top of each other much sooner."

The first face-to-face 3.5D designs

Being a leading developer of custom processors for hyperscalers, Broadcom is among the main users of TSMC's CoWoS and SoIC packaging technologies. Broadcom builds some of the world's largest system-in-packages, so it is not surprising that it is also among the first to use TSMC's F2F SoIC technology to build Fujitsu's Monaka supercomputer CPU.

On a high level, Fujitsu's Monaka processor is a heavy-duty general-purpose data center processor, and uses 144 Armv9 cores, spread over four compute chiplets made on TSMC's N2 technology, deploying a stacked face-to-face (F2F) atop dedicated SRAM chiplets (implemented on N5 technology) using hybrid copper bonding (HCB), equipped with a comparatively large I/O die that integrates the processor's memory controllers and PHYs for 12 DDR5 channels. Fujitsu's Monaka also features PCIe 6.0 connectivity with CXL 3.0 support for accelerators and memory expanders, as well as other interfaces expected from a modern data-center-class CPU.

Stacking N2-based CPU chiplets atop N5-made SRAM chiplets enabled Broadcom and Fujitsu to add massive amounts of cache to Armv9 cores to maximize their single-thread performance relatively cost-efficiently, but at the price of additional complexity and challenges surrounding thermals. Due to this, Broadcom and Fujitsu do not stack logic-on-logic, and it remains to be seen when TSMC's clients will actually start to use this option.

Broadcom is currently sampling Monaka with Fujitsu and aims to volume produce the CPU in 2027. Notably, while the company uses hybrid bonding, it also uses 9 µm pitches, which indicates that even innovators like Broadcom are cautious about using the latest versions of 3D integration technologies. This is in stark contrast to CoWoS, as TSMC's clients are eager to use the latest versions of the technology to build bleeding-edge processors.

Nonetheless, TSMC clearly positions its SoIC 3D stacking as a way to increase compute density, so it clearly has reasons to expect this technology to be used widely. After all, if transistor scaling is slowing down, packaging is inevitably becoming the scaling engine.

At the North American Technology Symposium 2026, TSMC revealed its updated CoWoS packaging roadmap with major enhancements. Within chipmaking, the reticle limit is the largest size that a chip can be printed within a single step of the manufacturing process. TSMC's previous CoWoS-based system-in-packages (SiPs) roadmaps topped out at a 9.5-reticle size.

Now the company expects to produce 14-reticle and over 14-reticle-sized System-in-Packages (SiPs) with up to 24 HBM5E stacks by 2029. Such high integration is designed to meet the insatiable demand that AI accelerators have for both compute and memory bandwidth, and signals that packaging, not lithography, acts as a primary driver for semiconductor technologies.

"AI compute scaling is driven by the combination of advanced logic, SoIC 3D stacking, and CoWoS technologies," a statement by TSMC reads.

Bigger, hotter and hungrier

It is common for contemporary process technologies to scale slowly in transistor density, while full-node scaling enables 15% to 20% higher transistor density every three years. Intra-node improvements yield diminishing returns in density, but continue to provide performance improvements and greater power efficiency. This may not be a big problem for consumer product-makers, but it greatly affects the developers of AI and HPC applications, who must improve their solutions every year or two to remain competitive.

For those customers, TSMC has begun mass production of 5.5-reticle-sized CoWoS SiPs, supporting up to 12 HBM3E/HBM4 stacks and has achieved yields over 98%, according to the company.

In 2027, TSMC's CoWoS roadmap outlines a 9.5-reticle-sized interposer that supports 12 HBM5 stacks, which is expected to require a 120 mm by 150 mm substrate. In 2028, the company expects to produce a 14-reticle-sized interposer capable of carrying 20 3D-stacked compute chiplets and 20 HBM5 modules. By 2029, TSMC expects to produce interposers over 14 reticle sizes, with up to 24 HBM5E stacks. One standard reticle measures 26 mm by 33 mm (858 mm²), so a 14-reticle-sized interposer measures 12,020 mm², or the size of a small plate, and slightly larger than a CD.

An SiP that uses a 14-reticle-sized interposer and measures 12,020 mm² will consume an enormous amount of power, will require an exotic cooling solution (think exotic cold plates like those developed by Frore Systems, immersion cooling, or a combination of both), and will require a massive substrate, which will occupy a significant share of a server motherboard's real estate. The dimensions of the SiP alone will redefine how AI servers are built, whereas power consumption and cooling requirements are poised to open doors to a host of new technologies.

48x more compute transistors, 34x more bandwidth by 2029

Such gargantuan multi-chiplet processors show that advanced packaging is now the de facto scaling engine for the industry. In fact, TSMC's lateral CoWoS and vertical SoIC technologies enable faster growth of transistor budgets than traditional Moore's Law scaling. In addition, such SiPs also offer more memory bandwidth.

Based on TSMC's expectations, its customers will be able to put (at least) as many as 24 3D-stacked compute chiplets on one 14 reticle-sized CoWoS interposer by 2029, when A14 will be in mass production. When combined with scaling enabled by the latest process technologies (4x from N7 to A14), an ultra-high-end SiP from 2029 with 24 3D-stacked A14-based chiplets will be able to carry 48x more compute transistors than a high-end SiP with two N7-based chiplets from 2024, according to TSMC. Granted, we've rarely seen frontier dual-chiplet N7-based SiPs in 2024, even a cautious Nvidia opted to use 4NP instead.

There is a catch regarding 3D-stacked compute transistors, though. The bottom die may overheat, whereas the top die must get enough power to reach its full potential. To that end, many designs use the bottom die for cache (e.g., AMD's Zen 5-based CPUs with 3D V-Cache), not for compute.

Nonetheless, even a 24x increase in the number of compute transistors per high-end SiP in five years is a breakthrough that could not be achieved by Moore's law alone. However, such integration comes at a price. In the 2030s, cutting-edge SiPs with 24 3D-stacked compute chiplets and 24 HBM5E modules will likely cost an order of magnitude more than a high-end SiP from the mid-2020s.

In addition to compute capability, large CoWoS interposers also enable considerably higher memory bandwidth simply because they can carry more HBM stacks. It is not that simple, though. Total memory bandwidth scales dramatically, driven by the combination of wider HBM4 and HBM5 interfaces, more advanced HBM base dies built on TSMC’s N3P process, and ongoing CoWoS improvements that enable faster interconnect speeds. As a result, a high-performance SiP integrating 24 HBM5E stacks in 2029 is expected to deliver up to 34x higher bandwidth when compared to a reference SiP with eight HBM3 stacks in 2024, according to TSMC.

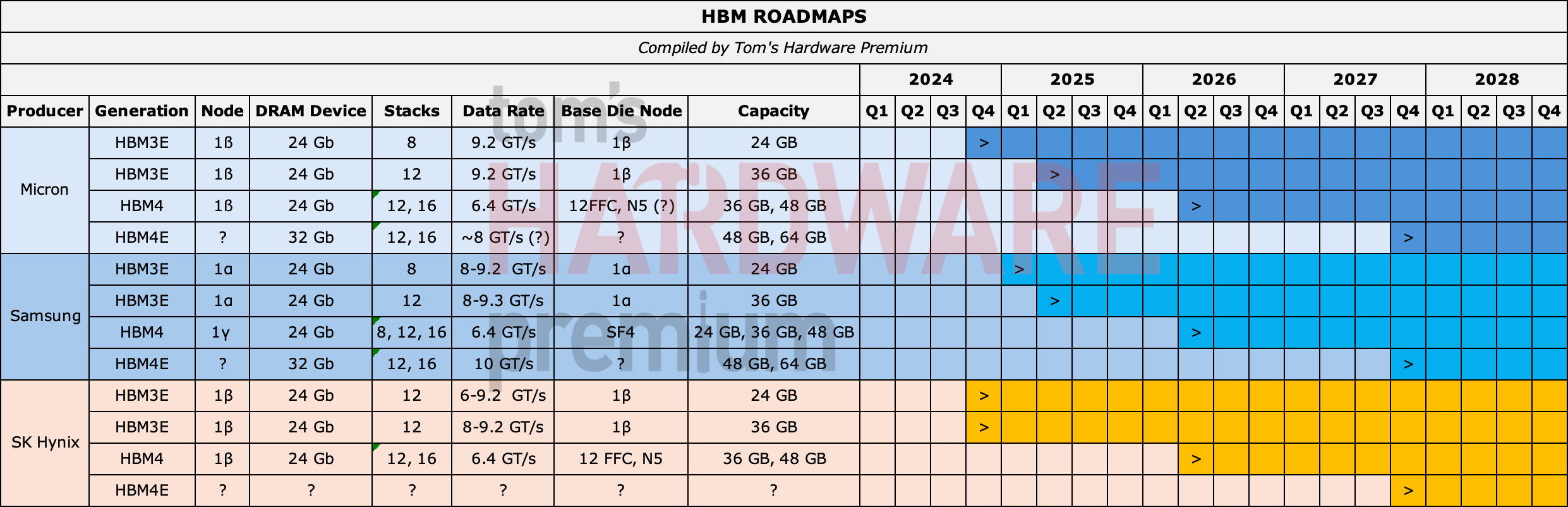

"HBM bandwidth scaling comes from multiple factors," said TSMC. "First, there is the memory itself — progressing from HBM3 to HBM4, with higher I/O counts. In addition, we are leveraging more advanced logic technologies for the base die, which allows us to push data rates well beyond 10 Gb/s per pin, something that was unheard of in traditional DRAM. At the same time, our CoWoS technology enables integration of more HBM stacks within a single package. […] All of these factors together — higher data rates, more I/O, and more stacks — contribute to the overall bandwidth scaling."

Slower transistor scaling

One of the things that strikes the eye about the current and upcoming process technologies due later this decade is the slow scaling of transistor density. While A14 is set to increase per-chip transistor density by 20% compared to N2 technology in 2028, its optical-shrink successor (A13) is only poised to provide a 6% higher density a year later.

Fortunately, TSMC continues to aggressively develop its CoWoS packaging technology, which promises to enable developers of system-in-packages to put 24 3D-stacked compute chiplets and 24 HBM5E modules onto one massive 14 reticle-sized interposer before the end of the decade. This will increase compute transistor count and memory bandwidth per SiP by 48x and 34x, respectively, compared to high-end data center SiPs in 2024, according to TSMC.

However, this level of integration will likely come at a high cost. System-in-packages with up to 24 3D-stacked compute chiplets and 24 HBM5E stacks in the 2030s will probably cost an order of magnitude more than high-end SiPs from the mid-2020s.

Taiwan's stock market is now worth more than the United Kingdom's, according to recent Bloomberg data, in a shift driven almost entirely by the insatiable global appetite for AI chips. The island's listed companies carry a combined valuation of roughly $4.3 trillion, edging past Europe's largest equity market, despite Taiwan's economy being less than a quarter the size of the UK's. South Korea, powered by Samsung and SK hynix, is roughly $140 billion behind and closing fast.

As for Taiwan’s stock market constituents, TSMC makes up the bulk, with a market cap of approximately US$1.98 trillion, or 40% of Taiwan’s entire stock market value. No other major economy has this degree of single-company dependence. By comparison, Apple represents roughly 7% of the S&P 500.

On Thursday, Taiwan's Financial Supervisory Commission raised the single-stock investment cap for local equity funds from 10% to 25% of a fund's net asset value. The change applies only to companies whose market weighting exceeds 10%, a threshold TSMC alone meets. That adjustment triggered a 4.3% jump in TSMC shares on Friday and pushed the benchmark TAIEX up 2.7%, according to Taiwanese media.

TSMC reported record first-quarter earnings last week, with net income up 40.6% year-over-year to roughly $18 billion. The company raised its full-year revenue guidance to more than 30% growth and confirmed plans to add another 3nm fab to meet AI demand, which it expects to outstrip supply through 2027.

South Korea's market, KOSPI, has already overtaken both Germany and France this year and is up 44% in 2026. Samsung and SK hynix account for nearly half the index's total weighting. The former’s share price has nearly quadrupled since the start of 2025, while SK hynix has risen roughly sixfold over the same period. These gains reflect the ongoing memory supercycle, with demand for HBM far exceeding current production capacity.

William Bratton, head of cash equity research for Asia-Pacific at BNP Paribas, told the Financial Times that, aside from ASML, European-listed equities have almost no exposure to the current AI hardware buildout. He added that South Korea could overtake the UK as well if the current rally continues.

The disparity between these semiconductor-heavy Asian markets and Europe highlights how narrowly the financial benefits of the AI infrastructure boom are distributed. Taiwan's GDP is roughly $977 billion, according to IMF estimates, versus the UK's $4.3 trillion. While the gap between those two economies hasn’t changed, the gap between their stock markets has.

TSMC revealed its general manufacturing technology roadmap through 2029 at its North American Technology Symposium 2026 on Wednesday. Among the key highlights the company presented were its 1.2nm and 1.3nm-class fabrication processes called A12 and A13, an unexpected extension of the N2 family named N2U, and the lack of plans to use High-NA EUV lithography for any nodes through 2029. Perhaps the most notable part of the technology-related announcement was firming the multi-faceted approach to new node development.

"Last year we announced A14 as our most advanced, 2^nd Generation nanosheet technology, scheduled for production in 2028," said Kevin Zhang, senior vice president of business development and global sales and deputy COO at TSMC.

"This year, we are introducing derivatives of A14, including A13 and A12, both planned for production in 2029. A13 is an incremental enhancement of A14 achieved primarily through optical shrink, delivering about 6% area reduction while maintaining full design-rule and electrical compatibility, enabling customers to benefit with minimal redesign."

Changing the rules of the game

Historically the lion's share of TSMC's revenue originated from the smartphone industry, but more recently AI and HPC have outpaced handsets. This was clearly reflected in the company's plans, so TSMC's latest roadmap highlighted a deliberately bifurcated strategy that segments leading-edge nodes by end-market requirements rather than pursuing a one-size-fits-all approach. As a result, the company is adopting a new strategy for process technology introductions in which it will continue to offer a new node for client applications every year and will roll-out a new node for heavy-duty AI and HPC applications every two years.

On one hand, processes like N2, N2P, N2U, A14, and A13 are aimed at smartphones and client devices — where costs, power efficiency, and IP reuse are crucial and strong design compatibility is welcome, while incremental improvements can be tolerated as long as TSMC can deliver a new node every year.

On the other hand, nodes such as A16 and A12, aimed at AI and HPC application, must offer strong performance improvements to justify transition to newer technologies, and costs are less important. These nodes integrate Super Power Rail backside power delivery (SPR) to address power integrity and current delivery constraints of AI data center and HPC workloads and offer tangible performance, power, and transistor density improvements — albeit, at a biennial cadence.

*Chip density published by TSMC reflects 'mixed' chip density consisting of 50% logic, 30% SRAM, and 20% analog.
**At the same area.
***At the same speed.

A13 and N2U: New nodes for client applications

Last year TSMC introduced its A14 process technology, which is set to rely on the company's 2^nd Generation gate-all-around (GAA) nanosheet transistors, offer additional design flexibility with NanoFlex Pro technology, and serve as the foundry's premium node for high-end smartphone and client applications sometimes in 2028. This year the company announced A13, which will build upon A14.

TSMC's A13 is an optical shrink of A14 designed to extract additional efficiency with minimal disruption. A13 reduces linear dimensions by about 3% (to ~97% scale), which translates into roughly 6% higher transistor density amid maintaining full design-rule and electrical compatibility with A14. From many points of view, A14 continues TSMC's long-standing tradition of offering optical shrinks of its process technologies (N12, N6, N4, N3P) — though, previously, these could deliver more tangible benefits in general. The approach enables TSMC's customers to reuse IP with little to no redesign effort, but with only incremental improvements.

While A14 is set to deliver full-node improvements in power, performance, and density, to extract them, chip and IP designers must use all-new tools, IPs, and design methodologies. By contrast, A13 delivers incremental gains enabled by design-technology co-optimization (DTCO), but which does not require to change anything to extract these gains. A13 is expected to enter production in 2029.

In addition to offering customers its all-new A14 node in 2028, TSMC plans to offer them a cheap way to improve their N2-based designs with N2U. N2U will be the third-year extension of the N2 platform that leverages DTCO to provide about 3% – 4% higher performance at the same power or 8% – 10% lower power at the same speed while allowing a modest 2% – 3% logic density improvement. The node will maintain compatibility with N2P IP, which will enable its customers (particularly from the client space) to build new products without transition to an all-new process and incur rather massive costs. For example, if a company plans to build a mid-range product using IP of a high-end product implemented using N2P in 2027, it can do it with N2U in 2028.

"We continue to extend our 2nm platform with N2U, which provides additional improvements in performance, power, and density through design-technology co-optimization," Zhang said. "Our strategy is to continue enhancing each node after introduction, allowing customers to maximize the return on their design investments while still gaining incremental PPA benefits."

A16, A12, and N2X: Maximum performance at any cost

While TSMC's N2 is set to be adopted both for client and data center applications, the company preps A16 with its Super Power Rail backside power delivery that is specifically tailored for high performance data center applications. Essentially, A16 is N2P with SPR that will rely on the 1^st Generation nanosheet GAA transistors and provide significant power, performance, and transistor density advantages over N2 and N2P nodes, albeit at higher cost.

It is noteworthy that TSMC now lists A16 as a 2027 process technology, which is technically a slip from 2026.

"A16 will be ready for production in 2026," Zhang said. "However, actual product ramp depends on customers, and we expect volume production to begin in 2027. That is why we aligned it to that timeline."

Interestingly, the arrival of A16 does not replace N2X, a performance-enhanced variant of N2P that uses traditional front side power delivery to push clocks of N2-based designs to the max.

A16 will pass the baton to A12 — set to arrive in 2029 — which is projected to bring full-node advantages to TSMC's data center-class nodes. While TSMC does not disclose actual numbers, expect A12 to offer the same kinds of benefits over A16 as A14 brings over N2 as it is set to rely on the company's 2^nd Gen nanosheet GAA transistors and NanoFlex Pro technology.

“I can say that A16 is our first-generation technology with Super Power Rail, or backside power delivery, and A12 is the next generation,” Zhang said. “A13 and A12 are built on A14 with significant geometric scaling. To continue shrinking the frontside geometry, you also need to scale the backside to achieve overall density benefits. So there are many enhancements being implemented as we move from A16 to A12, particularly related to backside power delivery. That is all I can share.”

No High-NA on horizon

One interesting thing to note about TSMC's upcoming A13 and A12 process technologies due in 2029 is that none of them will require High-NA EUV lithography tools, which is stark contrast to Intel's approach to its 14A production node and successors that are set to use High-NA EUV scanners starting in 2027 – 2028.

"I tell you, I am amazed by our R&D team," said Kevin Zhang. "They continue to find a way to drive the technology scaling without using High-NA. One day they may have to use it, but at this point, we continue to be able to harvest the benefit from current EUV, not have to go to High-NA, which, you know, very, very expensive."

TSMC this week posted financial results for the first quarter of 2026 and lifted its 2026 revenue guidance and capital expenditures to the high end of its original expectations. Accelerating sales of AI accelerators and accompanying hardware increases demand for TSMC's wafers, which is why the company said it would build another 3nm-capable fab in addition to those already planned. But while the company is confident in its long-term prosperity driven by the AI megatrend, it warned about profitability due to the war in the Middle East.

AI megatrend earns TSMC tens of billions in one quarter

"Our conviction in the multiyear AI megatrend remains high, and we believe the demand for semiconductors will continue to be very fundamental," said C.C. Wei, chief executive of TSMC, during the company's earnings conference. He admitted that capacity during the quarter was 'tight,' whereas Jen-Chau Huang, TSMC's chief financial officer, confirmed 'higher-than-expected' overall capacity utilization.

Indeed, the HPC segment (an ambiguous term that TSMC uses to describe everything from client PCs to high-end AI accelerators) accounted for 61% of TSMC's revenue in Q1 2026 (or approximately $21.9 billion), up from 46% in Q1 2024 (approximately $8.68 billion), which represents colossal growth in just two years. The smartphone segment accounted for 26% of TSMC's earnings in Q1 2026, whereas IoT and automotive commanded 6% and 4% of the company's revenue in the same quarter.

Based on TSMC's annual report released this week, it looks like Nvidia, with its aggressive capacity booking strategy, has become TSMC's top customer, accounting for 19% of the foundry's revenue for 2025, dethroning Apple, which was responsible for 17% of TSMC's earnings for 2025.

On the fabrication technologies side of matters, TSMC's 5nm-class nodes accounted for 36% of the company's wafer revenue in Q1 2026 (driven by the success of Nvidia's Blackwell AI accelerators), 3nm-class processes were responsible for 25% of the foundry's earnings, while 7nm-class technologies represented 7% of TSMC's revenue. In general, advanced nodes (7nm and below) accounted for 74% of the company's earnings. Yet, keep in mind that while TSMC is mass producing 2nm-class (N2) chips for its customers, it has not formally shipped them to clients and therefore does not recognize 2nm-related revenue.

Capacity additions

As Nvidia's leading AI platforms, as well as offerings from other vendors, are set to shift from TSMC's 5nm-class family of nodes (N5, N4) to 3nm-class lineup of process technologies (N3), demand for the latter is going to skyrocket this year and remain strong for years to come. To meet this demand, TSMC will add three N3-capable fabs to its lineup over the next couple of years.

"Historically, we do not add additional capacity to a node once it has reached its target capacity," Wei said. "However, as a foundry, our first responsibility is to provide our customers with the most advanced technologies and necessary capacity to unleash their innovations. Based on our assessment, to meet the strong demand for AI applications, we are stepping up our CapEx investment to increase our N3 capacity."

First up, the company will add a new N3-capable fab module to its Gigafab cluster at Tainan Science Park, aiming to start volume production in the first half of 2027. While TSMC has been building the fab module for some time, this is the first time it has disclosed its capabilities.

Secondly, TSMC's N3-capable Fab 21 phase 2 in Arizona is on track to come online in the second half of 2027. This is the first time the foundry has clarified when Fab 21 phase 2 is set to begin making chips. TSMC's CEO also confirmed that the company had acquired the second plot of land near Fab 21 to build additional fab modules, though he never confirmed how many fab modules would be built.

Thirdly, the company plans to upgrade the capabilities of its Fab 23 phase 2 (aka JASM phase 2) to 3nm by installing more advanced equipment. Originally, Fab 23 phase 2 was projected to make chips on N6 (6nm-class) and N7 (7nm-class) fabrication technologies, then TSMC pondered upgrading it to N4 (4nm-class). Now, the plan is to make it N3-capable when it comes online in 2028.

The decision to add 3nm capacity was not made overnight, though it looks like TSMC expects demand for FinFET-based N3 — its final FinFET node — to remain strong well into the second half of the decade (it takes a year to ramp up a fab, so these three fabs will contribute meaningfully to TSMC's capacity in 2028 - 2029). Separately, the company will continue converting N5-capable facilities into N3-capable fabs in Taiwan and make some of its fabs capable of building chips on N7, N5, and N3 nodes.

"In addition to all the new fabs, we continue to convert 5nm tools to support 3nm capacity in Taiwan," Wei added. "We are also leveraging our manufacturing excellence to drive greater productivity across our fab in all locations to generate more wafer output. We are also focusing on capacity optimization across nodes, including flexible capacity support among N7, N5, and N3 nodes."

One of the main challenges for TSMC's expansion is to get fab tools to support new capacity as fast as possible, but this is not easy, as leading suppliers of semiconductor production equipment are also constrained in terms of capacity.

"We try very hard to speed it up and pull in all the equipment as we can, [but] our supply is very tight," Wei said. "Demand is continuing to increase, so we continue to work with our suppliers to speed it up."

As far as TSMC's N2 and A16-capable capacity is concerned, the company is currently ramping Fab 20 in Hsinchu Science Park and Fab 22 in Kaohsiung Science Park. While the capacity of the former will remain largely intact in the coming years, Fab 22 will gain capacity aggressively over time, according to Global Semi Research, though TSMC did not touch upon N2 capacity expansion during the earnings call.

Another record quarter, but there may be hiccups

TSMC's first quarter revenue reached $35.9 billion, an increase of 40.6% year-over-year, and a 6.4% rise over the previous quarter. The company's net income totaled $18.2 billion, which is the company's highest net profit for a quarter, while its gross margin was 66.2%. TSMC expects its Q2 2026 revenue to be between $39 billion and $40.2 billion, which is a 32% year-over-year growth.

"Our business in the first quarter was supported by strong demand for our leading-edge process technologies," said Wendell Huang, Senior VP and Chief Financial Officer of TSMC. "Moving into second quarter 2026, we expect our business to be supported by continued strong demand for our leading-edge process technologies."

In addition, the company indicated that for the full year 2026, it expects revenue to increase to over 30% (up from its original expectations of around 30%) over the previous year to approximately $158 billion, which gives it an opportunity to increase its CapEx budget towards the high-end of its guidance between $52 billion and $56 billion.

Meanwhile, TSMC warned that its costs may increase due to the ongoing war in the Middle East.

"In addition, given the recent situation in the Middle East, prices for certain chemicals and gases are likely to increase," said Huang. "Based on our current assessment, there may be impact to our profitability, but it is too early to quantify the impact."

TSMC's chief executive has warned that Intel Foundry is a 'formidable' rival in the chipmaking industry at the company's most recent earnings call. Despite not yet landing many high-volume external customers, Intel's semiconductor production operations remain among the largest in the industry, a fact now more keenly felt by TSMC.

"We view Intel as our formidable competitor and do not underestimate them," said C.C. Wei, chief executive of TSMC, during the company's latest earnings call this week. "But having said that, there are no shortcuts. The fundamental rules of the foundry game never change: they need the technology leadership, manufacturing excellence, customer trust, and most of all, the service [to win market share]."

Although TSMC produces a significant percentage of Intel's products, the company still makes the bulk of its products, including its data center-grade server CPUs, at its own fabs. Intel's Xeon processors command a larger server CPU market share than AMD's EPYC products (even though AMD has captured the most lucrative parts of the market thanks to high core count and performance), so Intel is not an underdog.

Furthermore, the company is now ramping up production of client Core Ultra 3-series 'Panther Lake' and data center Xeon 6+ 'Clearwater Forest' CPUs at its Fab 32 in Arizona using its 18A fabrication process (1.8nm-class) that relies on gate-all-around RibbonFET transistors and boasts a backside power delivery network called PowerVia. While TSMC's N2 production is now ramping at two fabs and also uses GAA nanosheet transistors, it does not support a BSPDN, which makes Intel's technology somewhat more progressive, at least for some designs. TSMC's A16 will bring an even better BSPDN implementation called Super Power Rail (SPR), but this will happen only in late 2026.

When it comes to revenue from chip production and packaging (and associated services), TSMC earned $33.731 billion in Q4 2025, whereas revenue of Intel Foundry was $4.5 billion, which makes Intel Foundry the world's second-largest foundry, but a long way off first place. TrendForce estimates that Samsung Foundry earned $3.399 billion in Q4 2025, SMIC's revenue was $2.489 billion, UMC's earnings totaled $1.993 billion, whereas GlobalFoundries followed with $1.83 billion in the fourth quarter of last year. While Intel Foundry primarily serves the Intel Products division and provides advanced packaging for AWS and some other companies, so does Samsung Foundry, as its parent company's LSI and Semiconductor divisions are its key customers.

It remains to be seen whether Intel's 14A process technology will gain traction with external customers and whether the company will ever have production capacity comparable to that of TSMC. Yet, at this point, there are only three companies in the world — Intel, Samsung, and TSMC — that still have ambitions and the capability to produce logic chips on leading-edge process technologies, which is another reason why TSMC calls Intel a formidable rival. At the end of the day, being one of the three semiconductor champions already deserves respect.

Intel CFO Dave Zinsner told the Morgan Stanley TMT conference last month that Intel Foundry is "close to closing some deals that are in the billions per year in terms of revenue" on advanced packaging alone, with EMIB-T, the next-generation variant of Intel's embedded bridge technology, driving customer interest as TSMC's CoWoS-L capacity remains structurally oversubscribed.

That tech, EMIB-T, which adds through silicon vias (TSVs) to the bridge, is expected to enter production fab rollout this year and addresses the limitations that have kept standard EMIB out of high-power AI accelerator sockets: HBM 4 class power delivery and large package scaling.

If these “billions per year” in deals close, it’d mark quite the turnaround for Intel Foundry, which generated just $307 million in external revenue last year against a $10.3 billion operating loss. Given that 18A isn’t expected to reach industry-standard yields until next year at the earliest, packaging is the fastest on-ramp for Intel, and EMIB-T is what could convert that into AI accelerator revenue. Intel Foundry's most recent announcement aligns well with this, having signed up to join Musk's Terafab project, though the reality of the effort delivering on all that's been promised remains extremely optimistic, as we've broken down.

EMIB-T and PSVs

Standard EMIB, which has been in volume production since 2017, embeds small silicon bridge dies in cavities within an organic substrate to route signals horizontally between adjacent chiplets, avoiding the cost and reticle limits of a full silicon interposer.

Intel deliberately skipped through-silicon vias entirely with EMIB, keeping the bridge die simple and cheap. That meant power had to be routed around the bridge via the organic substrate in long, resistive paths, limiting the current that could be delivered to the dies above. That ceiling was fine for the likes of Sapphire Rapids and Ponte Vecchio, but not for HBM4-class accelerators.

EMIB-T reverses that decision by adding through-silicon vias (TSVs) to the bridge die. In doing so, EMIB-T enables vertical power delivery directly through the bridge, integrates Metal-Insulator-Metal capacitors for noise suppression, and adds a copper ground plane grid for signal isolation.

Dr. Rahul Manepalli, Intel Fellow and VP of Substrate Packaging Development, gave us a look into the full specifications of EMIB-T at last May’s Electronic Components Technology Conference — a 45-micron bump pitch with a roadmap to 35- and 25-micron, energy efficiency of around 0.25 pJ/bit, and UCle-A interfaces running at 32 Gb/s of data transfer or higher per pin. EMIB-T supports HBM3, HBM3E, HBM4, and future HBM5 stacks, and scales to a 120mm x 180mm package supporting more than 38 bridges and over 12 reticle-sized dies.

Intel then followed up just before Christmas with a conceptual 2.5D/3D package integrating 16 compute elements across eight base dies, 24 HBM5 stacks, and a 10,296 mm² silicon footprint, scaling to 12x reticle size and beating TSMC's planned 9.5x CoWoS-L ceiling. For comparison, TSMC's CoWoS-L roadmap targets 5.5x reticle this year and 9.5x by 2027, while Intel is targeting 8x reticle in 2026 and 12x or more by 2028.

Bernstein analysts estimate a substantial cost differential, with EMIB packaging running in the low hundreds of dollars per chip versus an estimated $900 to $1,000 for CoWoS on a Rubin-class accelerator, according to figures cited by Investing.com in recent packaging analysis. Intel also claims roughly 90% wafer utilization for bridge dies versus approximately 60% for large interposers.

CoWoS-L bottlenecks

TSMC has expanded CoWoS capacity from approximately 35,000 wafers per month at the end of 2024 to roughly 80,000 by the end of 2025, with a target of around 130,000 by the end of this year through new facilities at AP7 in Chiayi and AP8 in Tainan. As a result of these aggressive ramp-ups, Counterpoint Research projects industry-wide advanced packaging capacity could expand by roughly 80% year-over-year in 2026.

Nvidia secured more than 60% of TSMC's total CoWoS capacity for 2025 and 2026, with every Blackwell GPU and the upcoming Rubin architecture requiring CoWoS-L. At the back-end of 2025, it was reported that TSMC’s CoWoS capacity was stretched due to AI demand, and that Intel was picking up packaging interest from firms either blocked from accessing CoWoS or looking for a shorter path to production.

TrendForce then reported in early December that both CoWoS-L and CoWoS-S were fully booked, and that Google had cut its 2026 TPU target by 1 million units due to allocation limits. TSMC CEO C.C. Wei, of course, said during the Q3 2025 earnings call that AI-related capacity, both front-end and back-end, remained very tight, falling “about three times short” of AI demand.

Only a handful of customers have been publicly named as being interested in EMIB-T, and there’s been no official confirmation by Intel to date. MediaTek was named by the Commercial Times back in November as actively recruiting engineers with EMIB experience, with the publication adding that Intel was “tapping Intel’s advanced EMIB-T packaging” to secure more capacity. Amazon is reportedly another named customer, claiming Intel is in active discussions with AWS for Trainium-class custom AI processor packaging.

Meanwhile, standard EMIB has the customer pipeline that EMIB-T doesn’t. Nvidia's $5 billion September 2025 investment in Intel includes confirmed use of EMIB and Foveros, with Jensen Huang and Lip-Bu Tan naming both technologies on the joint announcement call, and DigiTimes has reported that approximately 25% of Feynman GPU packaging will run through Intel. Microsoft's Maia AI accelerator is Intel Foundry's marquee 18A customer under a $15 billion lifetime contract originally announced at Intel Foundry Direct Connect 2024, while Google is understood to be designing EMIB into its 2027 TPU v9.

Intel’s Foundry VP of Packaging, Mark Gardner, told EE Times way back in March last year that Intel is "in production today and have been in production even last year in cases where we took things that were designed for CoWoS and are now designed for manufacture with either EMIB or Foveros," confirming that live design migration off TSMC is already occurring on the standard EMIB platform.

EMIB-T for Jaguar Shores?

Clearwater Forest, the 288-core Xeon 6+ E-core server processor formally launched in H1 2026 after a delay from its original 2025 target, uses second-generation standard EMIB combined with Foveros Direct 3D hybrid bonding across a 17-tile package. The configuration spans 12 compute tiles on Intel 18A, three base tiles on Intel 3, and two I/O tiles on Intel 7, connected by 12 EMIB bridges. Diamond Rapids, the Xeon 7 P-core server processor with up to 192 cores, also targets H2 2026 using standard EMIB plus Foveros.

Jaguar Shores, the successor to the canceled Falcon Shores AI accelerator, is the likely first Intel product to use EMIB-T. A leaked test chip showed a 92.5mm x 92.5mm package with four compute tiles and eight HBM4 interfaces on Intel 18A. That HBM4 integration is exactly the use case that standard EMIB will struggle with, making Jaguar Shores the natural first home for the variant. Panther Lake, Intel's first 18A client processor shipping in volume since late 2025, uses Foveros-S 2.5D rather than any EMIB variant.

No EMIB-T customer production for a ‘year or two’

Intel's packaging footprint spans three continents. In Rio Rancho, New Mexico, Intel launched the Fab 9 facility in January 2024 as the first co-located high-volume advanced packaging site, adjacent to the existing Fab 11X and backed by a $3.5 billion investment. Intel later received $500 million in CHIPS Act funding earmarked for further modernization of Fab 9, Fab 11, and Fab 11X.

In Asia, the Penang, Malaysia, advanced packaging complex is 99% complete, with first-phase operations beginning sometime this year. Intel has also outsourced EMIB production to Amkor’s Songdo K5 facility in South Korea — described as a “first-ever” outsourcing move by TrendForce — with additional Amkor sites planned in Portugal and Arizona.

However, EMIB-T itself hasn’t yet shipped in any commercial product. Standard EMIB has been in volume since 2017 and is what every named Intel packaging customer is currently using, but the TSV-enhanced variant is only now due to roll out, with external customer designs expected in production "in the next year or two," says Mark Gardner.

China is stepping up efforts to pilfer semiconductor-related know-how and experienced workers from Taiwanese companies, reports Reuters, citing Taiwan's top security agency. The report claims that external restrictions on shipping advanced fab tools and other technology to the People's Republic of China are among the reasons why the mainland is attempting to grab those resources from the island nation.

China is targeting Taiwan's semiconductor ecosystem to gain access to advanced chip manufacturing technology and skilled talent in a bid to bypass those international restrictions, according to Taiwan's National Security Bureau. In particular, China uses indirect methods — front companies, recruitment schemes, and covert channels — to poach engineers, obtain sensitive know-how, and even procure restricted fab tools, the NSB claims.

Taiwan is famously home to TSMC, the world's largest and most advanced contract chipmaker, which produces chips using 2nm-class fabrication technologies in high volume. By contrast, China-based SMIC can only mass produce chips on 7nm-class nodes, which are at least two generations behind TSMC's technologies.

The PRC cannot get sophisticated tools from Europe and the U.S. to develop its own advanced manufacturing processes and use them for high-volume production. As a result, the efforts of Chinese companies and even government-linked entities to steal technologies, talent, or restricted pieces of equipment will inevitably continue. Even as far back as the 2000s, international courts found SMIC guilty of illegally obtaining fabrication technologies from TSMC, so the Chinese foundry had to pay the Taiwanese company compensation.

Nowadays, it is close to impossible to steal the secrets of a semiconductor manufacturing process without stealing the fab itself, so Chinese attempts to obtain Taiwanese chip-making know-how are getting more sophisticated and involve the poaching of engineers, among other things, according to the NSB. As a result, Taiwan continues to strengthen legal and regulatory barriers to prevent technology transfer, illicit recruitment, and espionage network activity from operating in the country.

According to the report, Taiwan's National Security Bureau claims that cyber activity against its sensitive assets remains intense. More than 170 million intrusion attempts against Taiwan's Government Service Network were recorded in the first quarter alone. Military pressure around Taiwan is rising, too. In the first quarter of 2026, more than 420 Chinese aircraft operated near the island, alongside naval forces that carried out 10 coordinated combat-readiness patrols. Those tensions, in addition to the covert operations, recruitment efforts, and illicit trading methods the report describes, will only continue to dog Taiwan as it continues its reign at the leading edge of semiconductor manufacturing.

TSMC is reportedly mulling another round of expansion in the U.S., which will expand its capacity in Arizona to 12 fabs, four advanced packaging facilities, and at least one R&D center, if the recent rumors published by DigiTimes are to be believed. The said round of TSMC's expansion in America will work as a part of the intergovernmental deal between the U.S. and Taiwanese governments under which Taiwanese entities are to invest $500 billion in various American high-tech sectors.

Rumors about TSMC's plans to significantly expand its site near Phoenix, Arizona, have been floating around for some time, but the company has never confirmed them. Back in early March, it was reported that TSMC planned to expand its presence in Arizona to 10 advanced fabs, but DigiTimes now claims that the company is looking forward to building another Gigafab complex adjacent to Fab 21, bringing the number of fabs to 12 and increasing the number of advanced packaging facilities to four. For now, this should be considered a rumor because some numbers do not add up.

TSMC recently acquired approximately 900 acres of land adjacent to its existing 1,100-acre campus, bringing the total area of the site to 2,000 acres, which is comparable to a small town, according to market rumors. The acquisition, along with industry chatter about plans to increase investments in Arizona by another $100 billion, certainly supports the possibility of a major expansion of the Fab 21 and possibly another site in the region. TSMC's existing plan includes building six Fab 21 modules, two advanced packaging facilities, and one R&D facility, up from three Fab 21 modules planned initially.

Unofficial information that TSMC needed to acquire land to build additional Fab 21 phases, two advanced packaging facilities, and an R&D center emerged last fall, so the buyout of an additional 900 acres points to sticking to the existing expansion plan introduced in March 2026.

Furthermore, doubling the number of fab modules in the U.S. from 6 to 12 over the next 5 to 10 years will cost considerably more than $100 billion, as a modern leading-edge 2nm-class logic fab module with a roughly 20,000-wafer starts per month capacity costs roughly $25 billion to $35 billion. Building six or more advanced fab modules (that will probably be capable of 1.4nm or more advanced technologies) will cost considerably more than $100 billion.

While we certainly have to keep in mind that there is no smoke without fire, for now, all the rumors about TSMC's expansions in the U.S. should be taken as rumors. In fact, even if the company has plans to expand its capacity in America due to strategic reasons, it does not look like the company has finalized any plans, which is why all the information that surfaces cannot be accurate.

The global semiconductor foundry market generated a record $320 billion in revenue in 2025, growing 16% year-over-year, according to Counterpoint Research's Foundry Market Supply Tracker published on Monday, March 30. Demand for AI GPUs and custom AI ASICs drove the gains across both advanced manufacturing and advanced packaging, with TSMC accounting for 38% of the total market and growing at more than four times the rate of its nearest competitors.

Counterpoint's figures use an expanded "Foundry 2.0" definition that includes pure-play foundries, non-memory integrated device manufacturers (IDMs), outsourced semiconductor assembly and test (OSAT) companies, and photomask suppliers. Under that framework, pure-play foundries accounted for 54% of revenue and grew 26% YoY, while non-memory IDMs made up 27% and grew just 2%.

TSMC's full-year revenue grew 36% YoY, though quarterly growth moderated to 25% in Q4 2025 from the 40%-plus rates posted earlier in the year. The slowdown reflected a higher comparison base in high-performance computing and typical consumer electronics seasonality.

"The key question is no longer just wafer capacity, but system-level integration," Jake Lai, senior analyst at Counterpoint Research, said. "As front-end scaling becomes more constrained, bottlenecks are increasingly moving to the back end."

Non-TSMC foundries collectively grew a more modest 8% YoY, aside from Chinese foundries, which were the exception. SMIC posted 16% growth, and Nexchip grew 24%, both supported by ongoing localization efforts. Counterpoint expects double-digit growth from Chinese fabs to remain sustainable into 2026.

Samsung had what Counterpoint described as a mixed year, but the firm's analysts see room for improvement. "Demand for its 4nm node has been relatively solid, supporting better pricing, and the ramp of 2nm should help it secure higher-value designs, particularly in AI and mobile," Tom Kang, research director at Counterpoint Research, said.

Intel Foundry held 6% of the total Foundry 2.0 market by revenue, according to Counterpoint's breakdown, placing it alongside Texas Instruments and Infineon among the non-memory IDM segment. Non-memory IDMs largely worked through their inventory corrections in the second half of 2025. Texas Instruments posted a 13% YoY rebound, and Infineon grew 5%.

The OSAT segment grew 10% YoY in 2025 as ASE/SPIL and Amkor absorbed spillover demand from TSMC's constrained internal advanced packaging capacity. ASE grew at an above-average rate and became the second-largest player by revenue in the entire Foundry 2.0 market, behind TSMC. Counterpoint projects that industry-wide advanced packaging capacity could expand by roughly 80% YoY in 2026, driven by AI customers locking in long-term partnerships with OSAT vendors for CoWoS-S and CoWoS-L production.

"Advanced packaging is no longer just a supporting step but becoming a gating factor for AI deployment," said Counterpoint Research senior analyst William Li.

Most of the political ping-pong revolving around the black hole of AI concerns the sale and tariffs of accelerator cards, but there are many other stakes in play. UDM Money is reporting that one of the three landmark cases involving the alleged theft of trade secrets from TSMC has run through investigative and court proceedings, and a verdict is scheduled for April 27.

The case is one of three related indictments pertaining to former TSMC engineer Chen Li-ming, who allegedly orchestrated industrial espionage for Tokyo Electron Taiwan. Li-ming worked in yield management at TSMC and switched jobs to the marketing department at the Japanese firm, where he allegedly coordinated espionage in two separate operations.

The remarkable nature of the cases is due to the Taiwanese courts invoking the National Security Act for the first time in the context of semiconductor manufacturing, first in charging Chen Li-ming and his associates (on two separate counts), and Tokyo Electron itself. If this is all sounding familiar, chances are you're thinking of the separate, ongoing trade secret indictment against Intel engineer Wei-Jen Lo.

The Li-ming case that is about to conclude hails from August 27 and evaluates allegations that, after he joined Tokyo Electron, around 2023, he convinced TSMC engineers Wu Bing-chun and Ko Yi-ping to syphon away key technical information about 2 nm processes. This charge could result in 14 years of prison time for Li-ming, nine years for Bing-Chun, and seven years for Yi-ping. The data stealing was presumably to help Tokyo Electron become a supplier for TSMC.

That's not Li-Ming's only concern, however. A second case that kicked off in January discusses his involvement in getting another TSMC employee, Chen Wei-chieh, to photograph trade secrets regarding 14nm chip technology, with the knowledge of a Tokyo Electron manager with the surname Lu.

This second civil case covers not only the data theft but also the destruction of evidence, as apparently the trio shared their information on a cloud-sharing platform. The prizes for this endeavour could be as severe as seven years for Li-ming, close to nine for Wei-Chieh, and one for Lu. The recent nature of that indictment means that the investigation or court proceedings are still ongoing, and no sentence date has been set.

Taiwan courts seemingly add up sentences for related charges, with a 20-year cap. Given the groundbreaking nature of this case, Li-ming could still be staring down the barrel of two decades in prison. As for Tokyo Electron Taiwan, its own case could cost the company a fairly modest NT$145 million, or about $4.52 million / €3.95 million, for "[failing] to take adequate steps to prevent the illegal acts." The original fine was NT$120 million, but it got a NT$25 million bonus after the most recent indictment.

Although the $20 billion funds injected in Elon Musk's TeraFab project — which is supposed to build logic and memory chips as well as package them under one roof — is barely enough to build a 7nm-class logic fab, Elon Musk's eventual ambitions include producing millions or billions of AI chips that consume 1 terawatt (1 TW) of power per year. This ambition by far exceeds today's industry capacity, and if Musk pursues it, he will need $5 trillion, according to Bernstein, a premier semiconductor analysis firm (via @Jukan05). Interestingly, the order of the sum is similar to what Sam Altman was seeking for his failed fab network a couple of years ago.

To build 1 TW of AI silicon per year, Elon Musk's TeraFab would need to process 22.4 million Rubin Ultra GPU wafers, 2.716 million Vera CPU wafers, and 15.824 million HBM4E wafers annually using from 142 to 358 fabs, according to Bernstein.

The firm gets these figures, which it describes as "a very rough back-of-the-envelope wafer capacity calculation," by using a top-down approach, translating rack-level power demand into required semiconductor manufacturing capacity. Using power consumptions of rack-scale systems (120 kW for Rubin to 600 kW for Rubin Ultra), analysts convert system volumes into chip counts and then into wafer demand using their die sizes, such as ~825 mm² for GPU dies, ~800 mm² for CPU dies, the number of HBM stacks, and yields.

But Bernstein seems to overstate the typical capacity of logic fabs (50,000 wafer starts per month, WSPM, instead of 20,000 WSPM), understates the capacity of DRAM fabs (50,000 WSPM instead of 100,000 – 200,000 WSPM), and assumes prices per fab at $35 million, which likely inflates total estimates even if the multi-trillion-dollar magnitude is generally correct.

Trillions for fabs and packaging facilities

Based on what we know about the modern semiconductor industry, a modern leading-edge logic fab typically delivers around 20,000 WSPM, or roughly 240,000 wafers per year. To produce 25.116 million logic wafers annually, TeraFab would require about 105 fabs at perfect yields, or 126 fabs at 80% yields. A 2nm-class capable fab costs from $25 billion to $35 billion (~$30 billion midpoint), so logic capacity alone would require around $3.15 trillion, assuming a 100% yield and $3.78 billion at 80% yield.

For context, TSMC shipped 15.023 million 300-mm-equivalent wafers in 2025, which includes 200-mm wafers and 300-mm wafers made on outdated process technologies. Also important, TSMC currently operates about 50 300-mm fab modules built over two decades.

Large-scale high-bandwidth memory (HBM) production is also crucially important for achieving Elon Musk's goals for TeraFab. Modern DRAM fabs — run by Micron, Samsung, and SK hynix — typically offer 100,000 to 200,000 WSPM (so, let us take 150,000 WSPM as the midpoint). Producing 15.824 million HBM4E wafers would require about 9 fabs at 100% yield, or ~12 fabs at 70% yield. Each of these fabs costs at least $20 billion, or roughly $240 billion for front-end memory capacity alone. However, HBM output is constrained by stacking and packaging capabilities and yields, not only by the output of DRAM devices. For comparison, the three major DRAM makers currently operate only ~30 fab modules built since the early 2000s.

Advanced packaging facilities used for 2.5D and 3D integration, as well as HBM assembly, cost around $2 billion to $3.5 billion per phase, and TeraFab would require tens or even hundreds of such facilities to assemble AI processors and HBM stacks, which means hundreds of billions of dollars in additional investment.

Altogether, TeraFab would require well north of $4 trillion, which generally aligns with Bernstein's $5 trillion estimate, excluding land, process R&D, software, and ecosystem development.

Constraints beyond money

Raising $5 trillion would be extraordinarily difficult. For context, companies like Nvidia, Apple, and Alphabet have market capitalizations of $4.34 trillion, $3.71 trillion, and $3.5 trillion, respectively, so Musk would need to mobilize capital exceeding the value of the world's most valuable corporations. It is hard to imagine a private fundraising round, consortium, or even sovereign funding of this magnitude. For example, even if the U.S. would like to fund Musk's semiconductor venture, it could not do this that easily, as its budget for this year is about $7 trillion.

The only conceivable path would involve multi-government backing, sovereign wealth funds, hyperscalers, and capital markets acting in concert. However, we doubt this is possible at all. Furthermore, at a scale of $5 trillion deployed within a foreseeable timeframe, constraints would extend beyond capital and would include limited availability of wafer fabrication equipment, construction materials, and a sufficiently large and skilled workforce to build, operate, and maintain such fabs.

Then again, does Musk really plan to build a foundry that would leave behind TSMC, Samsung, and Intel combined just to make enough chips for Tesla, SpaceX, and xAI? Well, this is an open question.

Elon Musk spent quite some time last fall complaining that existing foundries cannot meet his company's demand for high-performance AI processors and proposed an idea to build his own chipmaking venture. Apparently, this was not just a brag but rather an announcement of a long-term project. Now the project has gotten its launch date: March 21, 2026.

"Terafab Project launches in 7 days," Elon Musk wrote in an X post.

He did not elaborate on any details about the project, though his previous comments indicated that this is indeed a long-lasting semiconductor production facility project that would enable his companies — Tesla, SpaceX, and xAI — to get enough supply of AI accelerators.

Musk once mentioned that his companies might need 100 – 200 billion AI chips per year, and if it cannot get them from existing foundry partners, then the company will consider building its own fabs. Apparently, the Terafab Project seems to be the brand depicting the endeavor and scale, though it does not provide any reasonable portrayal of the nature of the project.

Speaking in an interview with Moonshots, Elon Musk argued that the semiconductor industry may be approaching cleanroom design incorrectly. Instead of keeping entire buildings ultra-clean, Musk suggested that fabs should focus on isolating silicon wafers themselves throughout the manufacturing flow, keeping them sealed from the surrounding environment at all times. He surmised that would allow him to eat cheesburgers in the cleanroom while chips were being made.

Rebuilding the whole supply chain for such fabs would take the industry a couple of decades, to say the least. For this, Musk argued that his planning horizon is closer to one to two years, and he rarely looks beyond three years, which makes the traditional semiconductor buildout cycle incompatible with his projected demand.

He added back then that if foundries could accelerate expansion and supply 100 billion to 200 billion AI chips per year within Tesla’s required timeframe, the company would gladly rely on external manufacturing instead of pursuing its own facilities.

Apparently, we are going to see details about the project in a week. The again who launces a multi-billion project on Saturday? This is what we are going to see next Saturday!

Following a rabid weekend of tariff rulings and press conferences, the Trump administration has settled on a blanket 15% tariff for basically all goods entering the United States. This has upended global trade as countries look to confirm their final rates, with many of them having previously negotiated different rates - some higher than 15%, some lower. While Bloomberg suggests China is a big winner of the redrawing of tariff percentages, it also threatens to hand companies like TSMC a big win by negatively impacting U.S. chip companies like Nvidia and Intel.

Pledges and promises

One of the second Trump Administration's main goals has been in what it views as a necessary rebalancing of global trade. A big part of that has been to encourage companies to bring their manufacturing facilities to the United States, particularly high-tech chip manufacturers.

Alongside investing in companies like Intel, the U.S. government has used trade blocks and tariffs to push for companies like TSMC and Micron to open up new manufacturing facilities in America. If they do, they get discounts on their tariff rates. A major part of recent discussions between the U.S. and Taiwan (and particularly TSMC) was in securing a favorable tariff exemption, in exchange for further investment in American manufacturing facilities. The agreed-upon figure was 15%, though the details were scant. However, the prevailing sentiment was that with enough investment, tariffs might disappear entirely for a select few.

TSMC's announcement earlier this month that it could invest a further $100 billion in advanced manufacturing in Arizona was with the idea of taking advantage of a potential zero-tariff loophole. Companies looking to manufacture chips in the U.S. could import up to 2.5 times the manufacturing capacity of planned facilities, and up to 1.5 times the manufacturing capacity once the facility begins production.

In late 2025, TSMC accelerated plans to bring its latest manufacturing facilities to the U.S. as a major show of solidarity with the Trump administration's goals.

That's all been thrown out the window as of this weekend's Supreme Court ruling and subsequent announcements. But if 15% was what Taiwan had gained for its efforts, and now it faces 15% regardless, it may have been given a golden opportunity. It may be able to leverage existing agreements and investment plans to secure a better-than 15% rate for its products, or it could drop them entirely and still likely only face the same 15% maximum tariff rate as everyone else.

And better yet, whichever avenue companies like TSMC go down, they'll have an advantage over American firms doing the same.

Building here still means importing here

The vast majority of the world's most advanced semiconductor manufacturing happens in Taiwan, but the Trump administration has made a major play to bring some of that to U.S. shores, even claiming to want as much as 40% of TSMC's total manufacturing to be based in America in the future — something that TSMC has said is impossible.

But it has secured massive new manufacturing investments from international firms like TSMC, Micron, and others, as well as investing domestically in Intel. It's also thrown up major trade blocks to limit other countries' (particularly China) access to the latest AI accelerators and the equipment used to make leading-edge nodes.

These latest trade tariffs do nothing to help America or American businesses, though. In what is either a continued misunderstanding or a gaslighting attempt by the Trump administration, foreign companies do not pay the tariffs when goods are imported; the importing companies do.

That means for companies looking to import chips from TSMC, they'll have to pay that 15% fee, not TSMC. For companies looking to manufacture chips in America, they're still reliant on key raw materials for chip manufacturing. Broad tariffs raising the cost base for everything imported into America means raising prices on those key materials, in turn making U.S.-based chip manufacturing more expensive for everyone involved.

This comes at a poor time for Intel, which is hoping to bring its cutting-edge facilities online as fast as possible. Its planned Fabs have potential chip complexity and yield advantages over even some of TSMC's best facilities, though they have yet to start production. Increasing the costs of these raw materials and further squeezing supply chains is not ideal for such a venture.

A lack of clarity

Nothing is clear about these new tariffs, and there's a distinct possibility that they don't apply to semiconductors and electronics, or at least, aren't designed to.

The new tariffs are being brought in as part of Section 122 of the U.S Trade Act of 1974, which gives the executive branch limited and temporary ability to apply tariffs to imported goods. But as the Singaporean Ministry of Trade highlights, some products should be excluded from this Section.

"Certain types of goods are exempted from the Section 122 tariffs, such as energy and energy products, pharmaceuticals and pharmaceutical ingredients, certain electronics, certain aerospace products and metals used in currency and bullion, amongst others," it said in a statement over the weekend. "In addition, semiconductors and pharmaceuticals are not subject to the Section 122 tariffs, as they may be the subject of Section 232 tariffs that have not yet been imposed."

However, as White Case LLP highlighted in January, the Trump administration has already leveraged Section 232 for 25% tariffs on a limited selection of semiconductors imported into America. Those tariffs could easily be expanded with the legal justification that it's for matters of national security. Trump has previously used similar justifications to limit imports of Steel and Aluminum during his first term.

Uncertainty prevails

Although somewhat expected, the U.S. Supreme Court's ruling has thrown the Trump administration into chaos, and it has responded in kind. The new tariffs are sweeping, confusing, and very temporary, at least for now. It throws into question all existing deals, which were less foundationally secure than traditional trade agreements anyway.

In the near term, though, it's looking like some of the greatest beneficiaries of America's further turn inwards towards self-sufficiency may be helping anyone and everyone but America itself.

As part of the recently concluded trade arrangement between the U.S. and Taiwan, Taiwanese companies including TSMC will invest $250 billion in the U.S. in exchange for exemptions from potential chip tariffs, Financial Times reports.

Limited disclosure around the terms of this commitment has introduced major uncertainties regarding TSMC's future capital spending, manufacturing allocation, and long-term strategy, however. And meanwhile, a market rumor suggests that TSMC may invest an additional $100 billion in its U.S. facilities, bringing its total commitments to $265 billion — and making TSMC one of the biggest ever investors in America.

The $250 billion figure largely reflects previously announced plans, and TSMC is projected to be the biggest spender. The company has already committed $165 billion to its Fab 21 campus in Arizona, which includes six fab modules, two advanced packaging facilities, and a research and development center. According to U.S. commerce secretary Howard Lutnick, roughly $100 billion of TSMC’s existing commitments are included in the investment total, and TSMC's supply chain partners are projected to contribute about $30 billion.

According to market rumors, TSMC may invest an additional $100 billion to construct four more fab modules in Arizona in a bid to avoid tariffs. TSMC's recent acquisition of approximately 900 acres of land adjacent to its existing 1,100-acre site supports the possibility of expansion on that scale.

Other Taiwanese companies, including Foxconn, are expanding U.S. capacity to assemble AI servers, though these projects are considerably less capital-intensive and are expected to total no more than $20 billion, according to Financial Times.

The arrangement reportedly allows companies building U.S. facilities to import chips tariff-free at up to 2.5 times the planned capacity during construction, followed by a reduced quota equivalent to 1.5 times capacity once production begins, Financial Times reports. Analysts say that once the new fabs finish construction, the temporary rule allowing higher tariff-free import volumes will expire. After 2032, this could leave TSMC without enough U.S. capacity to keep all shipments to American customers exempt from tariffs, which is why the company may need to build additional fabs by around 2035 to maintain full tariff-free coverage, according to Financial Times.

Even if the Arizona complex ultimately reaches its theoretical capacity — 10 fab modules, at least two advanced packaging facilities, and an R&D center — TSMC's presence in the U.S. is poised to remain considerably smaller than its operations in Taiwan. For now, TSMC estimates that up to 30% of its chips on N2 (2nm-class) and more advanced process technologies will be made in America. Taiwanese officials have rejected suggestions that 40% - 50% of semiconductor production on the island could shift overseas, particularly to the U.S.

It should be noted that only $8.2 billion of Taiwan’s $198 billion in exports to the U.S. in 2025 consisted of standalone semiconductors. Most chips made in Taiwan enter the U.S. being installed into finished goods spanning from smartphones to AI servers, which greatly complicates tariff enforcement as importers may struggle to identify or report the value of individual chips. As a result, many observers wonder whether such tariffs could be practically collected.

Following the announcement of impending chip import tariffs in January, the Trump Administration is now planning to offer major U.S. tech companies like Google, Microsoft, and Amazon the ability to circumvent them. However, the number of TSMC-made chips exempt from the tariffs may be directly tied to the Taiwanese chipmaker's scale of investment in American operations.

This follows recent trade negotiations between the U.S. and Taiwan, where the Trump Administration agreed to cut tariffs on imports from the island to 15 percent from 20 percent, but that was contingent on Taiwanese companies investing $250 billion in the American chip industry, specifically chip fabrication on U.S. shores.

With TSMC as Taiwan's (and the world's) premier cutting-edge semiconductor manufacturer, the bulk of this investment will need to come from its coffers. According to Financial Times' sources, the scale of those U.S. investments still requires significant work to plan out, and the tariff exemption rules are just another wrinkle for the company to work out.

“We’re going to be monitoring what unfolds after this is unveiled like hawks to make sure that the integrity of what we’re trying to accomplish with the tariffs and the rebates isn’t undermined and that this doesn’t end up being a giveaway to TSMC,” an official told the Financial Times.

In recent days, TSMC has made it clear that, as much as the Trump Administration would like it, there's no way it can get its American production capacity up to 40% of its total output.

Bringing it home

Amidst the seemingly chaotic international policies and trade negotiation tactics of the Trump administration, one thread has run through it all with some consistency: It wants cutting-edge chip manufacturing to be located on American soil. Although President Trump has acted as a vanguard for this kind of approach to silicon supply chains and immediate, localized access to fabrication, the reshoring of chipmaking efforts isn't singularly tied to American interests. We've seen China develop competitive AI accelerators, and the EU heavily investing in its own initiatives.

In the wake of the enormous AI infrastructure boom in mid-2025, many countries around the world have focused on building up their own national infrastructure and access to semiconductors, both leading-edge and older, more specialized chips. As it's become clearer that the future of many economies and national security itself relies on a ready supply of fast, efficient silicon, bringing the manufacture of that hardware in-house has a long list of advantages.

In America, this has led to aggressive trade talks with China, as both countries flexed their respective muscle - for the U.S., high-end GPU exports. For China, raw materials like rare earth minerals. This is all in an effort to secure the firmest of footing in this new race for AI and semiconductor dominance. Although in 2026 trade has opened up a little with export licenses and profit-sharing initiatives, the real fallout is China massively boosting its development of inference GPUs and ASICs, and the U.S. looking to increase stockpiles of critical rare earth minerals.

It's also led to the Trump Administration looking to accelerate its own domestic chip industry. With so much of the world's expertise and chip fabrication facilities located in Taiwan, a major focus of the White House's aims has been to encourage TSMC and its contemporaries to build in America.

Along with other companies, TSMC is now doing that and on a grand scale. But the specific size of the investment, and these latest tariff carve-out carrots, are nebulously complex.

Cautious, massive expansion

In the recent Taiwan-U.S. trade deal, America agreed to cut import tariffs from Taiwan to 15% in exchange for Taiwanese companies investing $250 billion in the American chip industry. Specifically, it will allow them to import 2.5 times the new facilities' planned capacity tariff-free, during the construction period. Companies that have already built capacity in America will receive 1.5 times those facilities' capacity in tariff exemptions.

The idea is that TSMC and other Taiwanese firms that invest in the U.S. will allocate their tariff-exempt chips to hyperscaler AI companies like Google, Microsoft, Amazon, and Meta. But since the math on the investment scale and how that relates to chip allocations is so hazy, there are still many details to be worked out. Much of it depends on what kind of fabrication capacity TSMC can project it will reach within the next two years.

To date, TSMC has pledged to invest $165 billion in building chip fabrication capacity in America. It is reportedly quite nervous about further expansion, considering the fears of an AI bubble, and the U.S. government's own investment in TSMC competition, like Intel. If demand for chip fabrication falls dramatically in a year or two because of a change in the winds of global development, TSMC could be left with unneeded production capacity that isn't even online yet, in a similar fashion to memory suppliers a few years ago following the pandemic boom.

TSMC and other Taiwanese chip firms are now towing a similar line to major U.S. companies and international governments on working with the current White House team. Engaging with complex trade practices is an important component of maintaining strong financial and trade opportunities in the near term. But the weaker long-term strategic thinking of the Trump administration risks dragging down any firms that rely too heavily on its coercive suggestions on longer-term planning.

Although major U.S. investment is coming, TSMC may need to tread carefully to avoid falling afoul of the risks on either side of the equation.

The artificial intelligence supercycle is reshaping the semiconductor and electronics industries, as the scale of the AI infrastructure buildout strains the entire supply chain. While developers of AI accelerators like Nvidia are cashing in on the AI boom, it's memory makers that will earn the most cash, according to estimates from TrendForce. Arguably, this is a result of the different business models and expansion strategies memory makers use compared to foundries, in addition to the behavior of the commodity market.

Demand outstrips supply

The company projects that while global foundry revenue is expected to total $218.7 billion, 3D NAND and DRAM revenue will reach $551.6 billion, which means that the total market for memory is more than twice as large as contract chip production. TrendForce attributes this to structural market changes caused by AI buildouts. The latter creates elevated demand for specific types of memory, creating shortages of all types of memory, and therefore affecting prices across the industry. As a consequence, while the AI industry does not need low-capacity commodity memory devices, they also become substantially more expensive amid tight supply. This creates the perfect conditions for memory makers to capitalize upon.

Indeed, the spot price of a 16 Gb DDR5 chip at DRAMeXchange was $38 on average, with a daily high of $53 and a daily low of $25. By contrast, the very same chip used to cost $4.75 on average just one year ago ($3.70 session low, $6.60 session high). Similar changes occurred to the prices of 3D NAND memory in recent quarters.

Fundamental differences

Just like some other analyst firms, TrendForce calls the AI megatrend a 'supercycle,' indicating its overwhelming ubiquity, which affects multiple industries, and its potential length.

There were two periods in the last few decades when revenue of memory makers grew significantly year-over-year for two years in a row: in 2017 – 2018, when hyperscalers built their vast data centers (+62% in 2017 and +27% in 2018), and in 2020 – 2021, when people increased purchases of PCs amid the COVID-19 pandemic. In both cases, memory makers increased capacity to meet demand and maintain their market share, which caused sharp drops in revenue back in 2019 and 2022.

The foundry industry — which is much more capital-intensive than the 3D NAND or DRAM industries — uses fabs that are harder and longer to build, and only suffered a year-over-year revenue decline in 2023.

The situation today is vastly different. On the one hand, leading developers of frontier AI models need the most powerful clusters to train their models, therefore creating demand for leading-edge hardware with expensive HBM3E memory and plenty of storage. On the other hand, these companies and their clients need more powerful inference systems to use those models. Therefore, demand for CPUs, AI accelerators, memory, and storage does not decline over time. Meanwhile, buyers like cloud service providers (CSPs) tend to be less sensitive to price increases, which is why 3D NAND and DRAM suppliers are expected to raise average selling prices more aggressively than in the past cycles.

Foundry vs. Commodity

3D NAND and DRAM are commodities, so their prices behave like prices of commodities, almost immediately reacting to tightening supply, increasing demand, or sentiment among buyers. While large PC makers purchase their memory at prices agreed upon every six months, a significant portion of memory is sold on the spot market.

This dynamic is reflected in TrendForce's projections that show memory revenue growth accelerating after the downturn of 2022 – 2023, including an expected 80% increase in 2024, followed by 46% growth in 2025, and a projected 134% surge in 2026.

By contrast, foundries tend to operate under long-term agreements that smooth price fluctuations, which prevents sharp swings that characterize memory markets. Even during periods of strong demand, foundry pricing adjustments occur gradually, which means slower revenue growth compared to memory vendors.

TrendForce models that following a 19% year-over-year revenue increase in 2024, the foundry market grew 25% in 2025 and will grow another 25% this year.

As a result, boosted by the AI supercycle and not constrained by long-term agreements, memory vendors will earn more than two times more this year alone compared to producers of logic, which have to adhere to their long-term contracts.

The biggest question

With HBM4 memory devices using four times more silicon than typical DRAM ICs, it is obvious that memory makers cannot meet all the demand that exists because of insufficient capacity, which results in price adjustments. However, the biggest question is how significantly current commodity 3D NAND and DRAM prices are influenced by insufficient supply, and how significantly they are influenced by typical commodity memory market behavior that dictates that customers buy more memory when it is getting more expensive, as it may get even more expensive in the future?

The U.S. Department of Commerce is reportedly planning tariff carve-outs for AI hyperscalers within the country, including Amazon, Google, and Microsoft, among others. According to the Financial Times, the move will allow these companies to acquire the chips they need to remain competitive in the AI race, while still pushing chip makers like Taiwan Semiconductor Manufacturing Company (TSMC) to continue investing in the U.S.

Taiwan and the U.S. agreed on a trade deal last month, with Washington cutting tariffs on the island from 20% to 15% in exchange for a $250-billion commitment on direct investments, plus another $250 billion in credit guarantees from Taipei to allow its companies to invest in the American semiconductor industry. The 15% tariff is set to include chips made on the island, but Taiwanese companies building fabs in the U.S. will get an exemption.

These chip manufacturers can import two and a half times their fab’s planned capacity tariff-free while their plants are under construction. That number would then fall to just 1.5 times once they start churning out semiconductors locally. TSMC is expected to allocate its exemptions to its Big Tech clients that are ordering huge numbers of AI chips, but the total quantity of tariff-free chips will still depend on the company’s investments in the U.S.

At the moment, TSMC has already committed to invest $165 billion in the U.S., with one fab already operational in Arizona. Despite this, a source told the Financial Times that U.S. President Donald Trump is delaying the signing of the agreement. “We’re going to be monitoring what unfolds after this is unveiled like hawks to make sure that the integrity of what we’re trying to accomplish with the tariffs and the rebates isn’t undermined and that this doesn’t end up being a giveaway to TSMC,” the administration official said.

On the other hand, the TSMC board recently announced a $45 billion spending package on new fabs. This is a massive change for the company, which usually spreads out its capital appropriation throughout the year. This recent move instead saw a huge chunk of the chip maker’s planned $52 to $56-billion budget for capital expenditure allocated in the first quarter of 2026. It’s unclear how much of this will be spent on American fabs, though. Although Taiwan rejected the possibility of moving 40% of its semiconductor capacity inside the U.S.’s borders, it said that the production capacity of both local and American chip production is expected to scale hand-in-hand as the AI infrastructure build-out continues, driving record demand for the latest chips.

TSMC on Tuesday held a board meeting where it, among other things, approved plans to spend $44.962 billion on building new fabs and upgrading existing production capacities. The approval is a part of the company's general plan to spend between $52 billion and $56 billion on capital expenditures this year, with the rest of the funding to be approved at a later meeting. In addition, the company promoted a developer of its 1nm-class process technology.

A record spending approval

TSMC holds board meetings — where it approves things like capital appropriations, capital injections, or distribution of dividends — every quarter. However, the company usually attempts to approve its CapEx appropriations more or less evenly throughout the years. For example, last year the board approved spending of $17.141 billion in Q1, $15.247 billion in Q2, $20.657 billion in Q3, and $14.981 billion in Q4, with some of the funds to be spent in 2026 or even later. Approval of a plan to spend $44.962 billion is a record one and indicates that the company is getting more aggressive with its expansion, as well as its projects getting more costly, which is in line with the general industrial trend for fabs to get more expensive.

It should be noted that approvals of capital appropriations are not indicators of actual spending, but these are allowances for management to spend them on certain projects, which may or may not be parts of the ongoing fiscal year's CapEx. Yet, as TSMC's CapEx budgets are increasing year-over-year, so are capital appropriations.

Earlier this year, TSMC announced plans to spend between $52 billion and $56 billion on all-new manufacturing capacities, upgrading existing fabs, and building advanced packaging facilities. The contract chipmaker plans to spend between 70% and 80% of its 2026 CapEx on advanced process technologies, between 10% and 20% of the budget on advanced packaging and mask making, as well as approximately 10% on specialty technologies.

Accelerated spending on advanced fabs is designed to make TSMC unbeatable to Intel and Samsung Foundry when it comes to availability of the state-of-the-art production capacities. If the company has considerably more capacity than its rivals, it will be more likely to land big orders from big customers. If TSMC has slightly more capacity than its clients need, then the latter will unlikely outsource even a part of their production to competitors.

Lead A10 developer gets promoted

Another notable happening at the meeting is the promotion of S.S. Lin — who is currently senior director at TSMC's research and development organization responsible for the development of the company's A10 process technologies (1nm-class) — to a vice president status.

The promotion is likely a sign that the upper management is satisfied with where the A10 platform development is going and the preliminary results that have been achieved so far. The promotion may also mean that as a VP, S.S. Lin will be able to oversee more technology programs than a single (yet very important) process node as well as have greater influence over roadmap goals, priorities, and resource allocation, though we are speculating. Also, as the A10 program is moving from research and development towards finalization and adoption by partners and customers, the program leader may need to have more power to execute their goals.

A10 is TSMC's post-A14 fabrication process expected to be available to its clients sometimes in 2030 or later. The company expects A10 to enable it to make monolithic chips with over 200 billion transistors at the time. Some believe that TSMC plans to start using High-NA EUV lithography tools with its A10 node.

Taiwan's government has rejected calls from U.S. officials to shift a large portion of semiconductor manufacturing to America, stating that relocating 40% of the island's chip production is not feasible, reports Reuters. The authorities expect companies like TSMC and UMC to keep expanding their production capacity on the island, even though TSMC is now actively expanding overseas and other countries are looking for the onshoring of chipmaking.

Vice Premier Cheng Li-chiun said in an interview with Taiwanese television station CTS that she had clearly told the U.S. government that Taiwan's semiconductor ecosystem cannot simply be transferred elsewhere. The semiconductor sector will continue expanding domestically, while overseas investments — including those that TSMC makes in its U.S. production capacity — will proceed only alongside continued growth at home.

According to Cheng, Taiwan's overall semiconductor capacity — including existing fabs as well as future projects — is expected to exceed investments made in the United States or any other country.

The comments are a response to the recent statements by U.S. Commerce Secretary Howard Lutnick, who said that concentrating a large portion of global semiconductor production close to China represented a strategic vulnerability. He also indicated that the goal of the U.S. government is to increase the country's share of the market of leading-edge semiconductor manufacturing to 40% in three years, by the end of President Trump's current term.

How that can be possible, given the fact that it takes three years to build a fab in the U.S. and then about a year to ramp it, is something Lutnick did not disclose. Yet he warned that if such goals are not achieved, tariffs on Taiwan-made goods could potentially increase to as much as 100%.

In earlier remarks, Lutnick also described a scenario in which leading-edge semiconductor production could be split roughly evenly between Taiwan and the United States, which indicates that the U.S. government has a fairly flexible position when it comes to actual market share numbers.

By contrast, Taiwanese officials reiterated that there are no plans to relocate the island's science parks, which form the core of its semiconductor manufacturing ecosystem, and are indispensable parts of the country's so-called silicon shield. Nonetheless, Taiwan authorities have no problems with TSMC expanding overseas as long as its most advanced technologies remain in Taiwan.

Among semiconductor companies, Intel has always been the biggest one both in terms of revenue and in terms of headcount. However, following massive layoffs at Intel in recent years, TSMC has by now outpaced Intel as the world’s biggest semiconductor employer. While Intel is still an exceptionally huge semiconductor company that employs more people than AMD, Nvidia, and Arm combined, the moment when TSMC becomes bigger than Intel from a headcount point of view represents a milestone for the industry.

85,100 employees after years of cuts

Intel employed 85,100 people as of December 27, 2025, following substantial job cuts at Intel in 2024 and colossal job cuts in 2025. TSMC had 83,825 full-time employees serving in various capacities as of December 31, 2024, following years of aggressive hiring amid expansions overseas as well as building out new production capacity in Taiwan. As of December 31, 2025, TSMC employed 90,557 people, according to its Annual Report the company published this week, which is nearly 7,000 full-time employees more than a year before, therefore surpassing Intel as the biggest employer in the semiconductor industry.

To put the numbers into context, AMD had approximately 31,000 of full-time employees (FTE) in the end of 2025, Nvidia employed around 36,000 people full time at the end of its fiscal 2025 (i.e., calendar 2024), Qualcomm had about 52,000 employees on its payroll as of September, 2025, Apple exited its fiscal year 2025 with 166,000 full-time equivalent employees, whereas Arm had roughly 8,330 FTEs as of March 31, 2025. All of these companies have been hiring aggressively in recent years as they have benefited greatly from the increased demand for semiconductors amid the AI and cloud data centers expansions. This makes Intel one of a few semiconductor companies that have been aggressively reducing their headcount in 2024 – 2025.

It should be noted that comparing Intel to other companies in the industry is not exactly an apples-to-apples comparison. Intel is among a few remaining integrated design manufacturers (IDMs) and is the only IDM that still produces chips on a leading-edge process technology in-house. By contrast, TSMC is the world's largest contract chipmaker that certainly runs more fabs and packaging facilities than Intel at this point, so the number of its employees shows how vast its manufacturing operations are. Yet, TSMC does not develop its own products. AMD, Apple, Nvidia, and Qualcomm develop very competitive products, but they do not conduct any in-house manufacturing, so they do not have appropriate personnel.

One may argue that Intel employs way too many people in terms of such metrics as revenue per employee. That being said, Intel maintains and operates multiple fabs and packaging facilities across the world (something none of its direct rivals do these days, except TSMC); it has vast R&D operation as it develops process technologies (again, only TSMC does it among its rivals), it designs multiple products, and it also happens to develop technologies that become industry standards. Although Nvidia designs vertically integrated data center platforms, whereas AMD tends to adhere to industry standards, Intel does plenty of fundamental work behind things like DDR, PCIe, USB, and Thunderbolt, just to mention a few technologies.

Intel still spends more than AMD and TSMC on R&D

Intel's spending on research and development (R&D) illustrates how many projects the company handles at once, both on the foundry and on the products side. Even after a sharp cut of R&D expenses in fiscal 2025, Intel spent $13.8 billion on R&D, which is more than AMD, TSMC, Qualcomm, or TSMC did. Nvidia yet has to report its FY2026 results — which roughly correspond to calendar 2025 — and while it will likely leave Intel behind, this will be the first time ever. Of course, the company has been outspent by Apple since 2018, but Apple spends a lot on development of actual products, so this is again not an apples-to-apples comparison.

For obvious reasons, after cutting approximately 40 thousand positions in two years, it is hard to expect Intel to keep R&D investments at its 2025 level. Along with people, dozens of projects have either been shut down or merged with others, so the company's R&D expenses will be reduced further in 2026. At this point, we can only wonder whether Intel's R&D budget for this year will match that of AMD and TSMC, or will still remain ahead of both companies.

To some degree, R&D spending is a good benchmark that shows the financial health of the company. However, it also gives an idea of where the company is going in the next three to five years. In Intel's case, it must spend on the development of products that will be competitive with those from AMD, Nvidia, and Qualcomm in the latter half of the decade and early next decade. It must also spend on next-generation process technologies to stay competitive with TSMC.

Therefore, in the best-case scenario, Intel must spend more than AMD, Nvidia, Qualcomm, and TSMC combined — like it used to do in 2014 – 2019 — to stay ahead of everyone. However, given the current situation (after Intel exited 5G, modem, 3D NAND, Optane, servers, and many other businesses), the company's R&D budget must be comparable to the combined R&D spending by AMD and TSMC, its two key rivals in the products and foundry realms. If Intel cannot properly fund R&D for its products and semiconductor production operations, it only remains to be seen whether the company retains its relevancy in the late 2020s and the early 2030s.

The voracious appetite of the generative AI revolution has overhauled any number of industries so far in its three-year history. First, it upended demand for high-end chips, pushing companies like Nvidia to record high valuations and putting pressure on all parts of the manufacturing process to churn out chips to meet that need. Then it began to make power grids break and buckle, requiring the need for a rethink about how we send energy to data centers. And those data centers are also facing the strain as they’re needed more often for AI training and inference, even eking out extra demand for commodities like copper that are integral to their operations.

Those data centers need to respond to that demand for more capacity and the challenges of copper shortages, argues Vaysh Kewada, CEO and co-founder at Salience Labs, a silicon-photonics company focused on networking bottlenecks in AI data centers. The bigger and more intensive AI models that continue to roll out, alongside the shift away from chatbots to agentic AI, are pushing those within the sector towards photonics.

“We're targeting the scale up domain of AI data centers, where we're seeing that they're increasingly limited by not just the bandwidth, but the latency of predictability, especially as we scale to larger workloads and agentic workloads,” she said in an interview with Tom’s Hardware Premium. For that reason, “there’s a lot of attention at the moment around photonics.”

Others agree: 2026 is “the year of increasing visibility into design wins and building momentum for silicon photonics,” wrote Aaron Rakers, equity analyst at Wells Fargo Securities, in a recent research note. Wells Fargo estimates that the total addressable market for photonics could end up being $10-12 billion by 2030, thanks to the industry’s shift to bigger capacity.

That sounds like good news, but it comes with a catch. Behind the bullish forecasts, those within the photonics industry warn that, like all those sectors that have been eaten up and spat out before, the next set of constraints, including reliability, packaging, manufacturing capacity, and how data is actually routed once it hits fibre, could become the next hard limit on AI scaling.

Data is the new choke point

The boom in photonics might come as a surprise to some. “Photonics is something that already exists within the data centre today,” said Vivek Raghunathan, CEO and co-founder at Xscape Photonics, in an interview with Tom’s Hardware Premium. “Optical cables and the silicon photonics technology already exist when it comes to connecting different switches as part of a pluggable transfer ecosystem.”

But now that section of optics is being pushed out of there and into ultra-fast links that link large numbers of GPUs into a single compute fabric. “Ultimately, the network is the bottleneck for these workloads, because they're just far too large to run on a single GPU,” Kewada said.

Using photonics means you can get between 10 and 100 times more information back and forth from the memory before they output a single stream of reference, Raghunathan explained. That’s important because what AI systems do now is changing, requiring that extra information shifting. The average AI user is moving from asking single prompts of a model to running chains of tasks, and Kewada said that the hardware is already struggling under current AI use. “If it’s a problem now, it becomes an even bigger problem when it comes to agentic workloads, and that's heavily latency- and balance-sensitive,” she explained.

Photonics also matters because “fundamentally, the current copper-based interconnects just cannot meet that bandwidth requirement,” explained Raghunathan. He warns that “the current approach is going to break down sooner than later.” The solution is the photonics approach, where you can “squeeze a lot of bandwidth in a single strand of fiber, which is extremely small,” Raghunathan added. Kewada points out that dedicated AI data centers want to move from 200‑gigabit‑per‑second (Gb/s) links to 400 Gb/s links as AI clusters behave less like traditional IT and more like large distributed machines.

The photonics push inside AI data centres is increasingly being shaped by TSMC. Its COUPE (Compact Universal Photonic Engine) platform has become a key reference point for integrating photonic and electronic circuits on a wafer, following rumors, years beforehand, with an eventual unveiling at SEMICON in Taiwan in September 2025, and first mocked up in December. Other companies, including Marvell, Broadcom, and Nvidia, are all also engaged in the sector, with Nvidia helping define the performance requirements that become standards by default.

But Nvidia isn’t the only voice in the space. Broadcom has been leading the debate on co-packaged optics (CPO), betting that moving optics closer to silicon is the only realistic way to get past copper’s limits when scaled up. Marvell has also pushed photonics-heavy designs in bigger AI clusters, as well as spending cash on investments, including buying photonics startup Celestial AI for up to $5.5 billion.

Tackling the routing problem

Most of the focus has recently been on solving the problems of getting optics away from chip switches and onto fiber. But once the data is there, it still has to be routed around a cluster. “All billions of dollars has been spent onto the I/O, but less has been thought about of what you do once the data is there,” Kewada said.

Salience Labs is betting on optical circuit switching. “Rather than it being an OEO [optical-electrical-optical] switch, it's a purely optical switch; we're never transforming that data into the electronic domain,” Kewada explained. That matters because every optical-to-electrical-to-optical hop costs power and, crucially for AI, adds delay. The company is seeing huge interest from those trying to scale up to meet the current needs of AI.

But there’s a broader problem within the photonics sector. “I would say that it is mentally ready for it, but practically not ready for it,” Raghunathan explained.

Part of the issue is in capacity. Many photonics components rely on III-V semiconductors (compound semiconductors made from the associated groups in the periodic table), which aren’t produced in the same numbers as mainstream silicon. Raw materials supply is also tight, said Kewada. And that’s before you get to packaging. “This requires sub-micron alignment,” Raghunathan said. “They are typically glued onto that die. So now the industry has started thinking about, how do I make that interface detachable?” It’s one of many questions the industry is being asked — and asking itself — to address the challenges ahead.

The push towards photonics feels inevitable, but just because it’s inevitable, it doesn’t mean the sector is ready. Manufacturing scale, raw materials, packaging, and reliability are still unanswered issues. And if the industry doesn’t get ahead of those constraints, it risks replaying the same shortages it has already lived through with chips, copper, and power — but this time the choke point could be the network itself. “The volume here is going to be two orders of magnitude higher than what the industry has seen so far,” said Raghunathan. “The entire optics industry has never seen such a volume ever before.”

It's something on the mind of Kewada, too. “We’re in for some interesting times if we see the attention on photonics continue to grow, and especially for next-generation bandwidth,” she said, “if people look towards larger-scale deployment.”

Apple's performance in the second quarter of its fiscal 2026 will be constrained by the availability of processors made on TSMC's leading-edge production nodes, the company said this week — the sort of announcement the company has not made in years. Apparently, as AI accelerators based on some of TSMC's latest manufacturing processes ramp up, Apple believes it cannot secure enough capacity to produce more chips for its popular products.

What does this mean for the supply of iPhones, Apple Watches, and other popular products from the company? While the Nvidia Rubin ramp is a very significant event for the industry, will it alleviate the bottleneck? And most important, can TSMC pivot production to ensure supply meets demand?

Apple sets new business records, but warns about supply constraints

"On the supply side, I had made comments earlier about the constraint that we are seeing in Q2, that is reflected in the revenue guidance that Kevan [Parekh] gave earlier," said Tim Cook, chief executive officer of Apple. "The constraint, as I had mentioned, is due to the advanced node capacity, and it is really a result of growing so well in Q1 with — by 23% — and having less flexibility, partly due to that in the process, to increase it as much as we would like to increase it."

The company's chief financial officer, Kevan Parekh, emphasized that its guidance for next quarter is based on the company's 'best estimates of constrained supply,' meaning that things are dynamic.

"Beyond Q2, I do not really want to comment on supply [as] supply is a function of a lot of things in the industry that move around a lot," said Cook. "So, I would not want to comment on that."

Sales of Apple's products and services increased 15.6% year-over-year to $143.756 billion during the quarter that ended on December 27, 2025. Although sales of Macs ($8.386 billion) and wearables ($11.493 billion) decreased year-over year, sales of iPhones ($85.269 billion), iPads ($8.595 billion), and services ($30.013 billion) set records and were up considerably — by 23%, 6.3%, and 13.9%, respectively — compared to the same quarter a year ago, which contributed to the company's record business performance.

For the second quarter of its fiscal 2026, however, the company expects revenue to grow by 13% - 16% year-over-year to around $107.75 billion - $110.62 billion due to constrained iPhone supply during the quarter.

TSMC's N3 supply reaches the limit?

Apple's latest iPhone 17 and iPhone 17 Pro are based on the company's A19 and A19 Pro chips that are produced by TSMC using its N3P fabrication technology. Apple was the first company to adopt TSMC's N3B — the foundry's original 3nm-class node — in 2023, and for a while was the only major user of N3B before Intel jumped on board a bit later, and then AMD and Qualcomm joined with N3E in 2024.

Being TSMC's alpha customer for new nodes, Apple has always had supply priority, but it looks like demand for its products based on processors made on 3nm-class technologies exceeded supply just when TSMC's N3 supply reached its limit.

TSMC now runs multiple N3-capable fabs, but virtually all of its major customers produce 3nm-class products. More importantly, Nvidia has begun mass production of its next-generation Rubin GPUs and accompanying process for its next-generation Vera Rubin platform for AI, which takes a lot of N3 capacity.

In fact, ASML recently estimated that while Nvidia's original GB200 NVL72 system required 2.5 300-mm silicon wafers — which includes CPUs, GPUs, NVLink switches, Ethernet/InfiniBand processors, BlueField DPUs, memory, and storage — the company's upcoming VR300 NVL576 Rubin Ultra rack-scale solution will need ten 300-mm silicon wafers. It is hard to estimate how much of this silicon real estate is attributable to TSMC, but probably more than 25% but less than 50%.

While the Nvidia Rubin ramp is a very significant event for the industry, as the company controls the lion's share of the data center AI market, it looks like there are more customers ramping up their silicon-intensive platforms on TSMC's N3, which is why the foundry has limited capabilities to respond to Apple's requests for extra capacity.

All of TSMC's widely used 3nm-class nodes — N3E and N3P — use up to 19 EUV lithography layers, which is down from 25~28 supported by the original N3B, according to reports. Reduced usage of EUV exposures allows TSMC to lower its reliance on EUV scanners, which can positively affect output for cases when the number of EUV lithography systems in a fab is limited. In fact, TSMC has been working for some time converting its N5 to N3-capable capacity, which to a large degree meant adding EUV tools where possible or maybe upgrading EUV systems where possible. This is a mid-term project, though.

"We are also pulling forward the existing fab schedules to the extent possible, both in Taiwan and in Arizona," said C.C. Wei, chief executive of TSMC, back in December. "We are also leveraging our manufacturing excellence to drive greater productivity in our fabs to generate more output, convert N5 capacity to support the N3 wherever necessary, and focus on capacity optimization across nodes, to maximize the support to our customers."

Logic =/= memory

Also in the call, Apple's chief executive mentioned the company's concerns about memory and storage supply as well as prices going forward. Large OEMs tend to have long-term volume-related supply agreements for commodities, with additional negotiations concerning supply and prices happening early in the year. To that end, it was a surprise to see supply chain genius Tim Cook saying that Apple was in 'a supply chase mode to meet the very high levels of customer demand.' Yet, the supply chain of logic chips like those used in iPhones and memory used in the said devices is structurally different.

It just so happened that memory is a commodity. DRAM vendors can redirect capacity across customers, die densities, and even memory types (HBM, LPDDR, GDDR) with fewer process changes and shorter qualification cycles. Large OEMs like Apple must qualify the said memory devices, then they are good to go into production of iPhones or Macs. Apple is rumored to have qualified YMTC's 3D NAND memory for iPhones sold in China.

Foundry capacity at TSMC is structurally harder to secure than memory, as it is booked well in advance. Once you have it, it sticks across the variety of products and volumes. When demand surges, there is no fast substitution: you cannot shift N3 volume to N5 without redesigning the chip, nor can you split production across foundries without essentially redesigning the IP that keeps you competitive.

On January 15, Taiwan and the United States of America signed a significant trade deal. On its side, Taiwan earmarked a total of $500 billion for investment in the U.S. semiconductor industry. In exchange, the U.S. dropped its tariff rate on Taiwanese goods from 20% to 15% and allowed for limited duty-free exports for chip companies investing in stateside soil, among other benefits.

The deal has been inked but is pending ratification from the Taiwanese Executive Yuan, and those $500 billion are split between $250 billion in private investment and $250 billion in lines of credit from the Taiwanese government to chipmakers wanting to invest stateside.

The documents don't make any specific mention, but the exchange is mostly about TSMC, the company that manufactures about 90% of the world's advanced chips (5 nm and below), and fabricates almost every AI and smartphone chip of relevance. The firm, and by extension its nation, is currently the only shop if you want a high-end computer chip made, particularly if said unit needs 2 nm transistors.

Tricky geopolitics

The geopolitics involved are easily described but tricky to navigate: nearby China has long had aspirations to embrace Taiwan into its fold, but North-American companies represent 75% of TSMC's revenue. Plus, it's the only company mass-producing cutting-edge chips for the entire world. This situation is thus described as Taiwan's "silicon shield," and many believe it's the only reason why China hasn't taken over.

As for the United States, the nation has long wanted to curb its nearly exclusive reliance on an external source for advanced chip manufacturing. It's not the only country in this situation; plus, it's never a good idea to have all the eggs in one basket. Many companies are building chip factories outside Taiwan, especially since the COVID crisis illustrated how tightly woven worldwide supply chains are.

The problem is, erecting fabs is an exceedingly time- and money-consuming endeavor. TSMC's Arizona three-fab facility is top-notch, but costs around $55 billion per individual factory. Samsung's Texas fab is going on over $40 billion, and the price tag for Rapidus' Japan build is over $30 billion. All these price tags are significantly higher than those from Taiwan (or South Korea), and it takes multiple years to get just one fab fully set up and ready.

Production still face numerous challenges

Right now, there are only a handful of locations worldwide actively (or about to start) producing sub-5nm class chips. To briefly sum things up, there's TSMC Arizona, Intel Ireland, and JASM's Kumamoto facility. Samsung's Texas fab will be joining them soon. However, when it comes to making 2nm-class chips outside Taiwan, you can only count on TSMC Arizona.

The AI boom has filled TSMC's coffers to the brim, but as the saying goes, heavy is the head that wears the crown. The company is now worth around $1.7 trillion, and at face value, the trade deal is a boon for both nations and would theoretically strengthen the silicon shield, but there are underlying dangers.

The first concern is that rapid expansion into the United States requires qualified personnel, leading to a potential brain drain, or "hollowing out", of TSMC. The Arizona fab is already home to many Taiwanese engineers, something that TSMC has repeatedly framed as a temporary situation meant to help the local workers get up to speed, but that seemingly turned semi-permanent and presumably made worse by the accelerated build and production schedule.

Brain drain fears

The firm previously stated that there were "insufficient skilled workers" in the region, and the Taiwanese culture of 12-hour shifts and rigid structure clashed with U.S. labor laws, and only exacerbated the shortage. Illustrating the situation, last November, 137,000 Taiwanese citizens were working in the U.S., with the increase in that figure mostly attributed to TSMC's expansion.

Both TSMC and Taiwan government representatives have repeatedly assuaged worries about the brain drain, stating that the most advanced R&D will remain in the home base. However, the U.S. administration wishes to manufacture precisely the highest-grade chips in its soil, and is reportedly offering assistance to Taiwan for "acquiring resources such as land, water, electricity, infrastructure, tax incentives and visa programs", further enticing staff exports.

Pure chip production cost is also a factor. Labor is far more expensive in the U.S. than in Taiwan, so high-end chips made there are expected to be substantially pricier than usual. This would eat into TSMC's profit margin, and/or require big shoppers like Nvidia and Apple to be willing to pay premium prices for the same goods, risking the investment. There's a fair chance that further U.S. government intervention could help remedy this, though, as the Trump administration can't help but keep twiddling the tariff knobs everywhere.

On that note, Washington's desire to essentially reshore 40% of advanced chip production is seen by many as unrealistic. Just today, Nvidia CEO Jensen Huang arrived in Taiwan and tried offering some clarification, saying that that 40% slice is meant to be taken from new chip production. He further believes that TSMC must expand beyond Taiwan to meet current needs, remarking on Taiwan's energy capabilities as one key limitation factor.

Even still, those statements appear to be at odds with those of the opposite corner, with Economics Minister Kung Ming-hsin saying that Taipei wants to keep 85% of advanced chip production capacity by 2030, a split set to increase to 80%/20% by 2036.

Moreover, since the deal has yet to be ratified by the opposition-controlled Taiwan Executive Yuan. Unsurprisingly, said opposition has been fierce in criticizing the arrangement. Several members pointed out that the government made the deal under duress of tariffs, without properly consulting all the parties, and offering insufficient info. The main opposition party, Kuomintang (KMT), called for a full legislative review of the agreement on the day after it was signed.

Opponents also remarked that Taiwan would effectively use its own money to fund U.S. investments, and that the negotiation itself was poor, as Taipei only got the same 15% general tariff reduction as other countries while offering up its most precious strategic commodity. Some could counter-argue that the duty-free chip exports could be more valuable overall, however.

TSMC and Taiwan are definitely living in interesting times, and we'll be sure to hear a lot more about this trade deal in the coming weeks. It'll be exceedingly difficult for Taiwan to keep its huge customers happy, thus keeping the silicon shield powered, without losing a technological edge to its competitors, nor moving its best goods out of the country. Either of those would turn off the shield regardless. It's definitely a balancing act on a tightrope.

Jensen Huang, chief executive of Nvidia, has rebuffed claims that the U.S. intends to shift 40% of Taiwan's semiconductor capacity to the U.S., therefore removing the island's silicon shield, reports DigiTimes. He insisted that the global fab construction represents new capacity growth rather than relocation. Haung also said that TSMC must expand worldwide to meet surging AI-driven demand for chips and keep Taiwan as its stronghold.

Huang explained that demand for wafers is now outpacing what Taiwan's power grid can physically support, making overseas production a necessity rather than a political manoeuvre. He said that while TSMC will build and expand fabs in the U.S., Europe, and Japan, a substantial share of its output will remain in Taiwan, as no other region can replace the island's manufacturing ecosystem. According to Huang, spreading production across multiple regions strengthens resilience for both Taiwan and the U.S. and prevents supply bottlenecks as AI hardware volumes rise sharply.

For Nvidia, which sells everything it can produce both in Taiwan and the U.S., vast manufacturing capacities are crucial. Meanwhile, getting enough memory — HBM, DDR5, GDDR7, LPDDR5X, or even NAND — is as crucial for the company as getting enough compute silicon. To that end, production capacities for DRAM and NAND in Japan, South Korea, Taiwan, Singapore, and eventually the U.S. are just as important to Nvidia as logic production. Huang said the company is coordinating closely with all major HBM suppliers —Samsung Electronics, SK hynix, and Micron Technology — to secure the volumes required for its next-generation AI accelerators, namely Rubin.

When it comes to geopolitics, Huang said that lawmakers must balance three competing goals: national security, technological leadership, and economic leadership. Therefore, he dismissed remarks by Anthropic CEO Dario Amodei, who compared exporting advanced AI processors to China to 'selling nuclear weapons to North Korea,' and reminded that the current U.S. government has determined that selling Nvidia's H200 to Chinese entities does not undermine national security. However, he noted that it is now up to the Chinese government to let these processors into the country, as the company is awaiting regulatory clearance from Chinese authorities.

During his Taiwan visit, Huang plans to attend internal Nvidia meetings and Lunar New Year events, as well as to meet TSMC founder Morris Chang and chairman C.C. Wei.

ASML this week posted its highest yearly result ever as demand for its chipmaking tools set records. The company's revenue for the fiscal year 2025 totaled €32.7 billion ($39 billion USD), up 15% from the previous year. As expected, sales of lithography and other wafer fab equipment to China-based entities decreased in 2025 due to export rules imposed by the U.S. and the Netherlands. When it comes to sales of lithography systems, EUV tools became the leading source of ASML's revenue.

Fewer sales in China

Driven by the Made in China 2025 program and the buildout of the Chinese semiconductor industry amid tightening export curbs by the U.S. in recent years, ASML's sales to the People's Republic set records and culminated with 41% of the company's system unit share in 2024. Last year, sales of ASML's fab tools to China dropped, but 33% of ASML's tools (in terms of units) were sold to the PRC, meaning that Chinese chipmakers kept buying dozens of lithography and other machines for their fabs that use trailing nodes. Some of those older DUV systems are reportedly being upgraded by grey-market means.

China is followed by sales of wafer fab equipment to customers in South Korea (25%) and Taiwan (22%). By contrast, only 12% of ASML-produced tools (by unit count) were shipped to the U.S.

High-end EUV

U.S.-based Intel bought the world's first High-NA EUV Twinscan EXE:5200B lithography tool with 0.55 numerical aperture optics, designed for mass production of chips using next-generation process technologies, such as Intel's 14A (1.4nm-class). Another system was assembled at SK hynix's fab M16 in Icheon, South Korea. Meanwhile, ASML has supplied eight High-NA EUV tools (including six EXE:5000 and two EXE:5200B machines) to additional partners so far.

Speaking of EUV lithography systems, it's important to note that both current-generation Low-NA EUV scanners and next-generation High-NA EUV machines accounted for 48% of ASML's system revenue in 2025 (or €11.6 billion / $13.8 billion USD), up from 38% a year earlier. For the whole year, the company shipped 48 EUV systems and 131 immersion DUV tools, up from 44 EUV scanners and 129 immersion DUV machines in 2024.

Sales of EUV and sophisticated DUV tools are primarily driven by leading-edge logic fabs that build chips for AI infrastructure as well as smartphones and PCs. In fact, logic fabs accounted for 66% of ASML's system sales, whereas memory accounted for 34%. Although both logic and memory makers strive to increase their output and procure new tools, logic producers buy more expensive EUV systems.

"In advanced Logic, our foundry customers have become more positive on the long-term sustainability of demand on a number of fronts," said Fouquet. "AI accelerators are migrating from the 4nm node to the more litho-intensive 3nm node. At the same time, customers continue to ramp the 2nm node in support of next-generation HPC and mobile applications."

However, as DRAM vendors adopt more sophisticated fabrication processes that rely on EUV, they will also intensify procuring EUV scanners, which will significantly increase demand for this type of equipment as memory makers tend to operate very large fleets to fab commodity products in the most cost-efficient way.

"In memory, our customers are reporting very strong demand for both HBM and DDR products with supply remaining very tight through at least 2026 as they ramp both their 1b and 1c nodes in support of the demand," Fouquet added. "In addition, DRAM customers continue to adopt more EUV layers on these nodes. This is expected to continue on their future nodes as they migrate more multi-patterning DUV to single-exposure EUV, resulting in an increase in litho intensity."

Record results

ASML closed 2025 with a record fourth quarter and its strongest year ever. In Q4 2025, the company's revenue totaled €9.7 billion ($11.5 billion USD), its gross margin reached 52.2%, and net income hit €2.8 billion ($3.3 billion USD).

For the full year, the company generated €32.7 billion ($39 billion USD) in net sales, up from €28.3 billion ($33.8 billion USD) in 2024, with a 52.8% gross margin and €9.6 billion ($11.4 billion) in net income.

ASML's net bookings reached €28.0 billion ($33.4 billion USD), whereas their year-end backlog grew to €38.8 billion ($46.3 billion USD), another record for the company.

During the final quarter of 2025, the company supplied 94 new photolithography systems as well as eight used lithography machines. For the whole year, ASML sold 300 new lithography tools and 27 used lithography systems.

For the first quarter of 2026, ASML expects revenue of €8.2 billion – €8.9 billion ($9.7 - $10.6 billion USD), which is up year-over-year but down sequentially. Full-year 2026 revenue is projected to be between €34 billion and €39 billion ($40 billion - 46 billion USD), this reflects growing demand for lithography tools and EUV scanners, primarily due to the wide AI infrastructure buildout. Gross margins at ASML are projected to be between 51% and 53%.

"In the last months, many of our customers have shared a notably more positive assessment of the medium-term market situation, primarily based on more robust expectations of the sustainability of AI-related demand," said Christophe Fouquet, chief executive of ASML. "This is reflected in a marked step-up in their medium-term capacity plans and in our record order intake. Therefore, we expect 2026 to be another growth year for ASML's business, largely driven by a significant increase in EUV sales and growth in our installed base business sales. We continue to invest in people and footprint to support that growth in 2026 and beyond."

Looking ahead

Being the only supplier of EUV and advanced DUV tools on the planet, ASML has every reason to expect sales of these scanners to increase in the coming years. The number of EUV layers increases with the upcoming process technologies, driving its revenue all the way to €44 billion - €60 billion ($52 billion - 71 billion USD) in 2030. Indeed, EUV tools accounted for 65% of ASML's backlog in late 2025, up from 62% a year before. If the demand for their tools continues apace, then ASML will be sitting as one of the most important companies in the ongoing AI boom, right alongside Nvidia.
