The AW3426DW came to me set to Standard picture mode, which, as you’ll see, does not need calibration. There is an 11-page report stored in each sample’s firmware that you can read from the OSD. My tests confirmed that it is indeed calibrated at the factory.
Grayscale and Gamma Tracking
Our grayscale and gamma tests use Calman calibration software from Portrait Displays. We describe our grayscale and gamma tests in detail here.

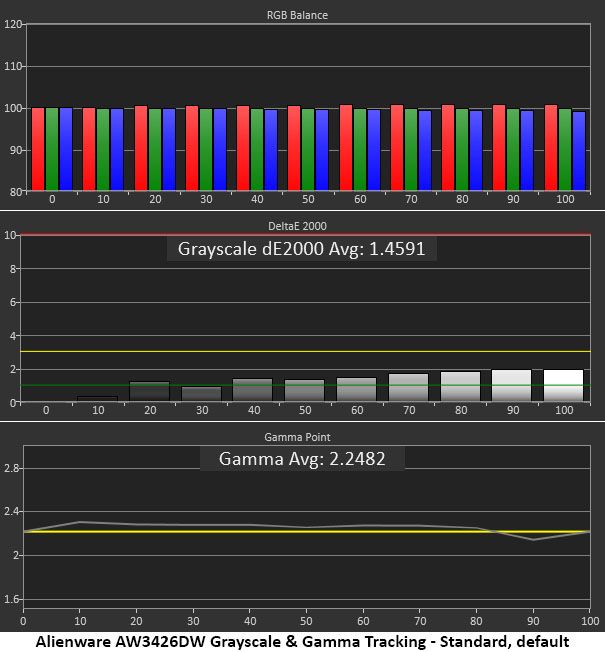

If I were just going to put the AW3426DW on my desk and use it for gaming and productivity, I would not bother with adjustments. The first chart shows that it has no grayscale errors above 2dE, and the gamma is slightly dark but very close to the 2.2 reference. This is impressive out-of-box performance.

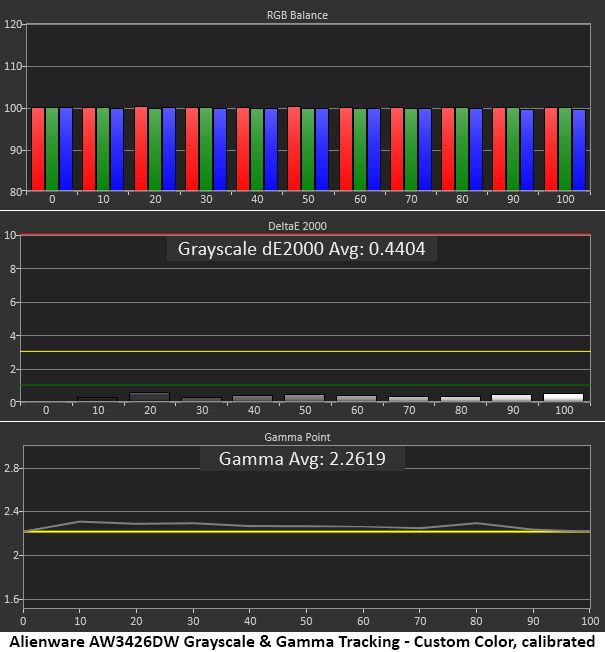

In the Custom Color mode, you get RGB gain and bias sliders. I didn’t have to touch the bias, but I lowered red and green gain by one click each. The result was all errors below 0.5dE and a slightly tighter gamma. The visual difference is extremely small, but if you have the desire and the means, why not? This is a superlative performance.

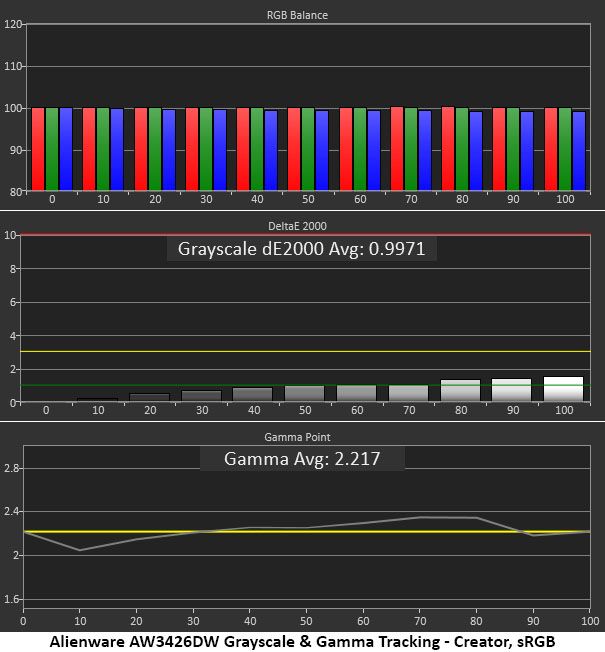

The Creator sRGB mode has very accurate grayscale, but gamma is a tad wonky. It’s too light at 10%, making the shadow areas less black. And there’s a rise between 60 and 80%, which takes a bit of definition out of the brighter mid-tones. This is a minor error, but it would be nice to have tighter gamma. You can change the preset, but you can’t alter the curve’s shape.
Comparisons

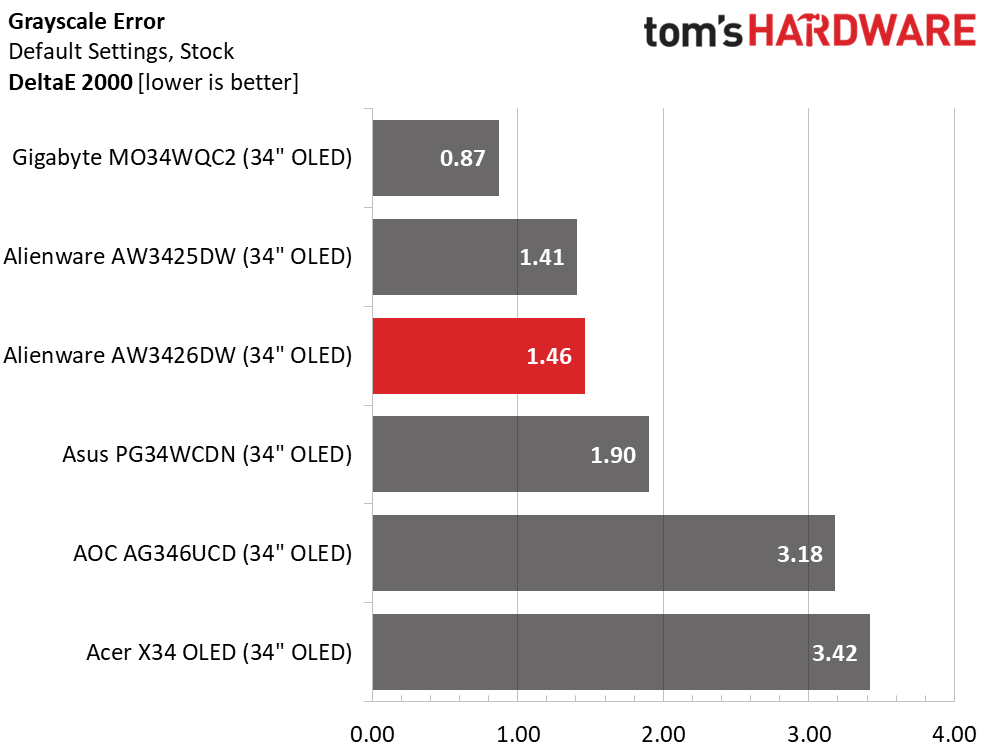

Though the AW3426DW impresses with a 1.46dE default grayscale score, it is slightly bested by its predecessor and by the Gigabyte. These numbers are more like talking points as the visual difference can’t be seen with the naked eye. But I am here to be precise in my testing.

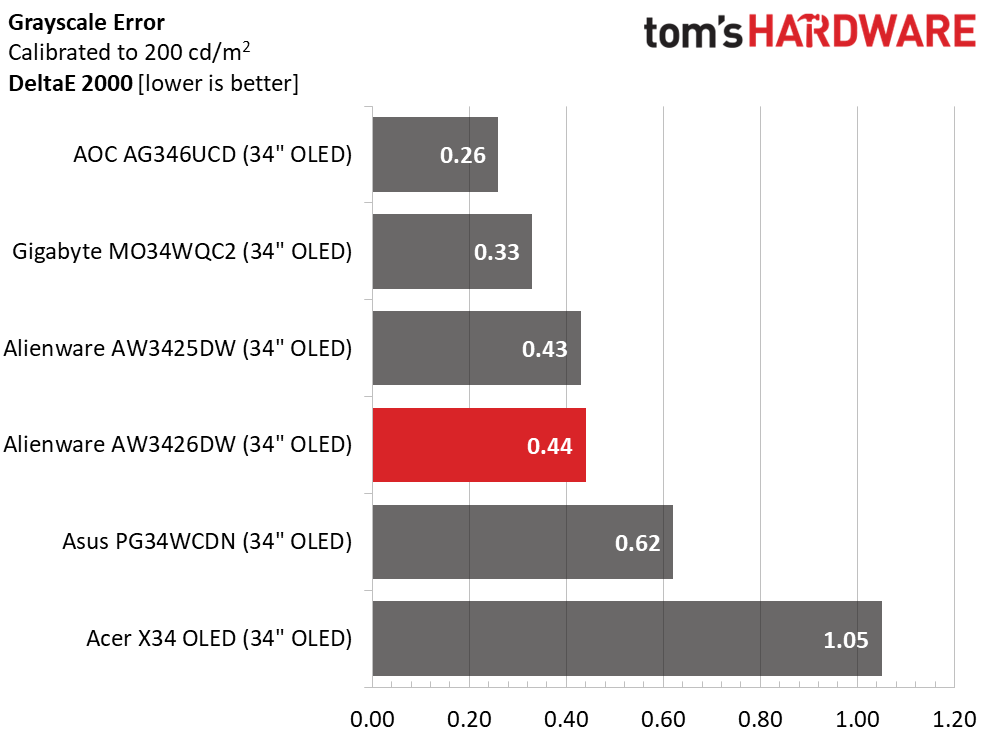

Calibration takes the AW3426DW down to 0.44dE, but again, it is pipped by the AW3425DW by 0.01dE. Yes, that is a hair at best. All the monitors here test extremely well.

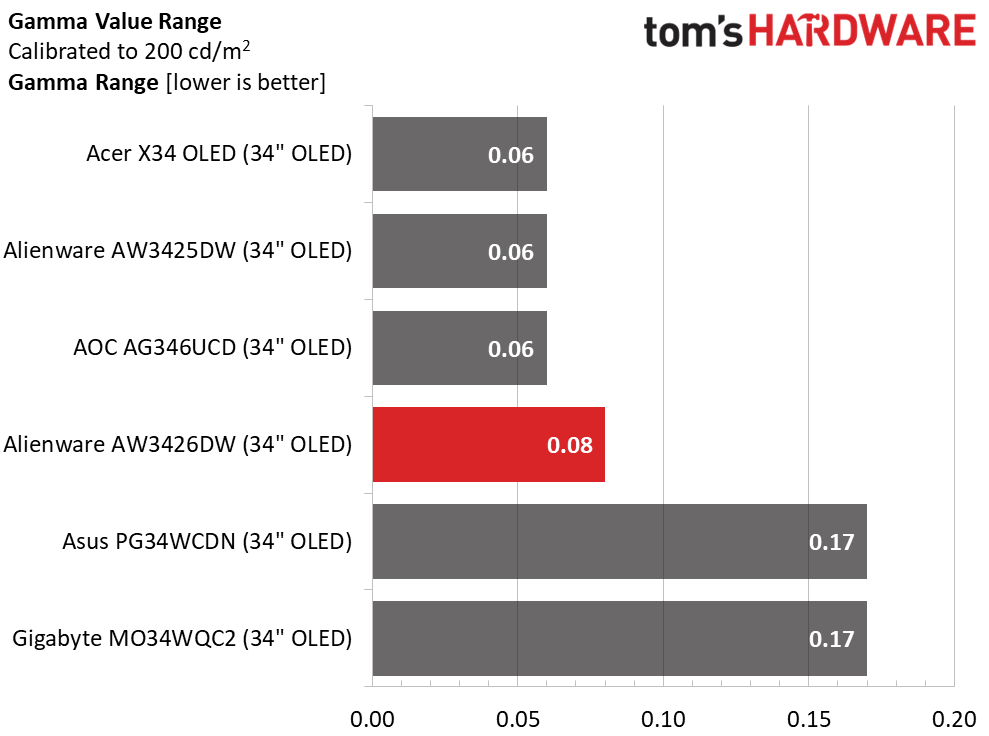

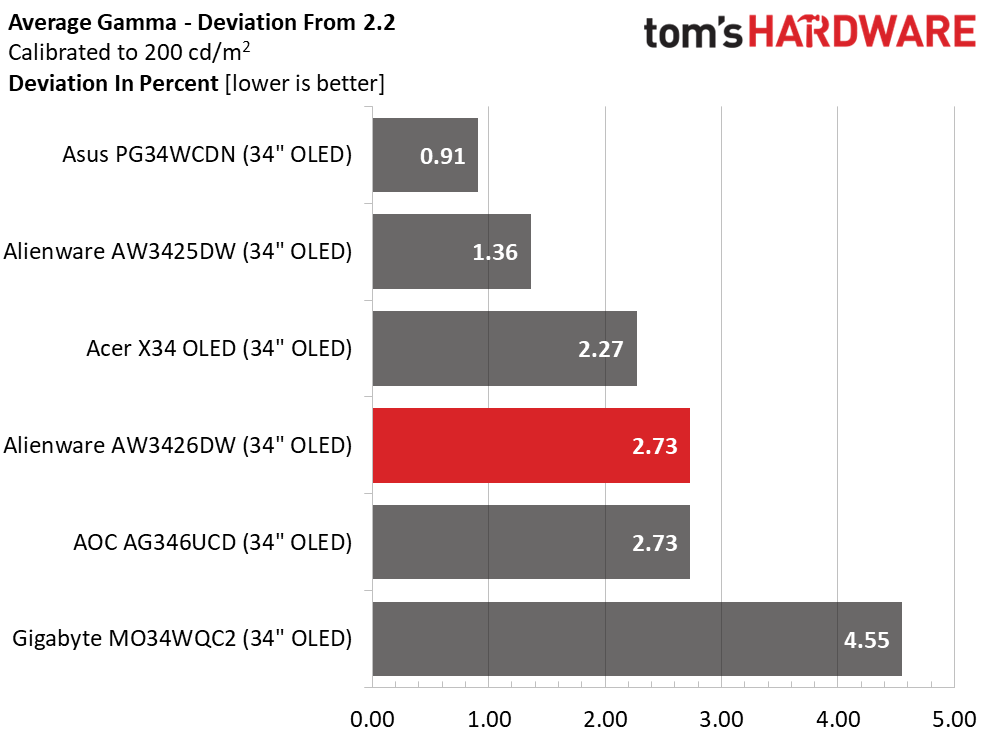

Gamma performance is excellent but middling by comparison. The range of values is very tight at 0.08 from lowest to highest. The deviation is 2.73% with an actual average of 2.26. This is excellent performance.
Color Gamut Accuracy
Our color gamut and volume testing use Portrait Displays’ Calman software. For details on our color gamut testing and volume calculations, click here.

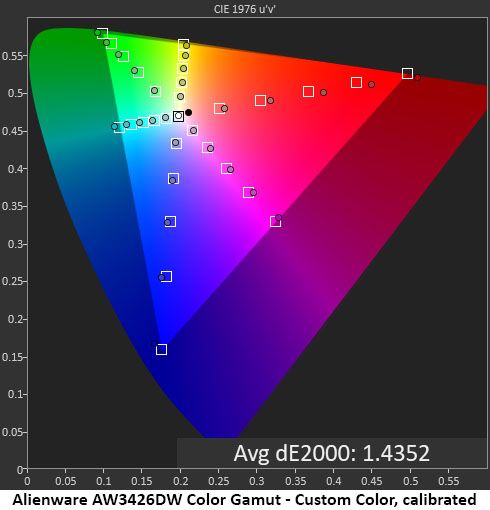

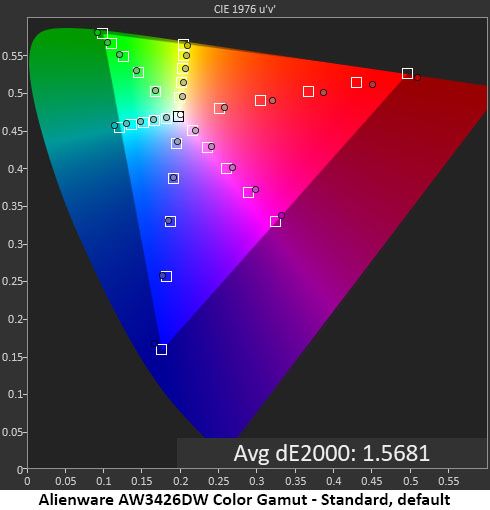

The color test result clearly shows the advantage of Quantum Dot technology. The AW3426DW fully covers all primaries, including green with slight oversaturation at all points. This means the picture will be very colorful but also well-balanced. Calibration barely makes a difference, but you can see slightly better hue tracking in cyan, magenta, and yellow.

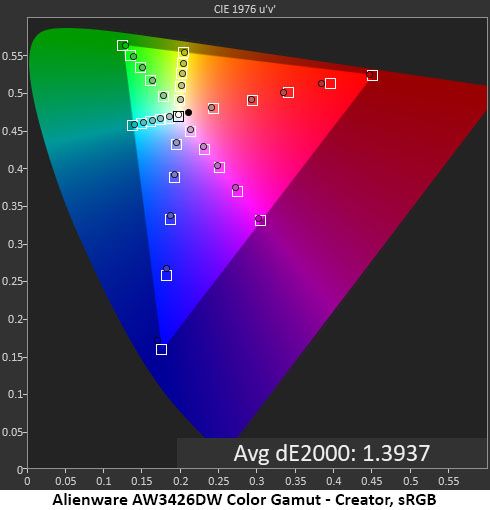

The sRGB chart is very good overall, but with some slight undersaturation in the midrange red tones. This is an extremely small error. The AW3426DW is qualified for color-critical applications.
Comparisons

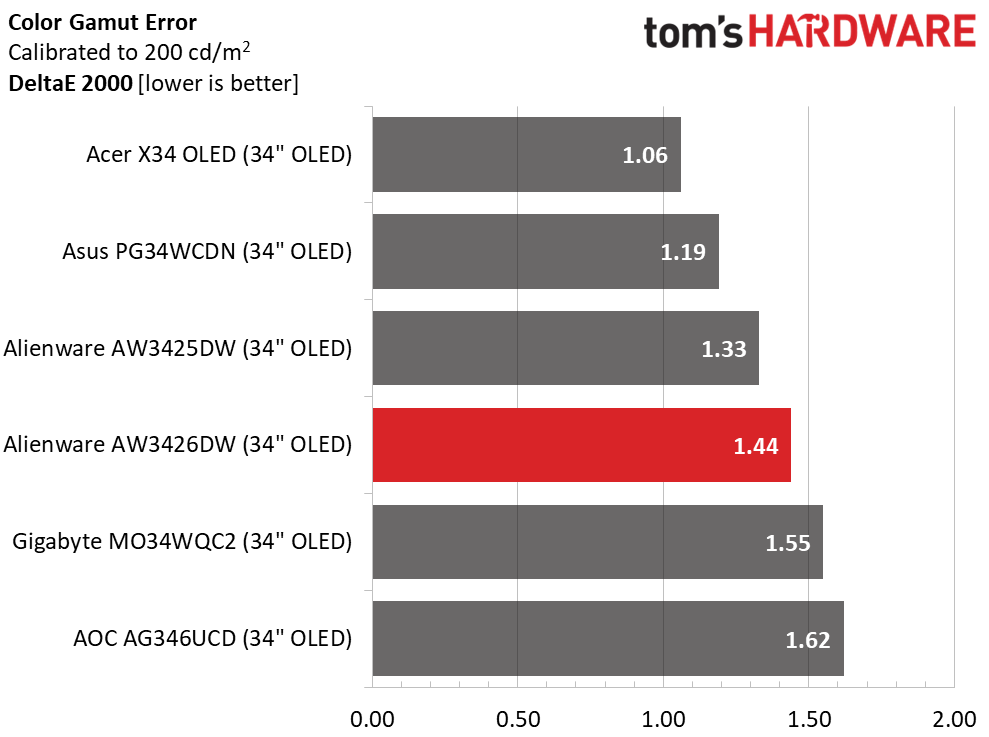

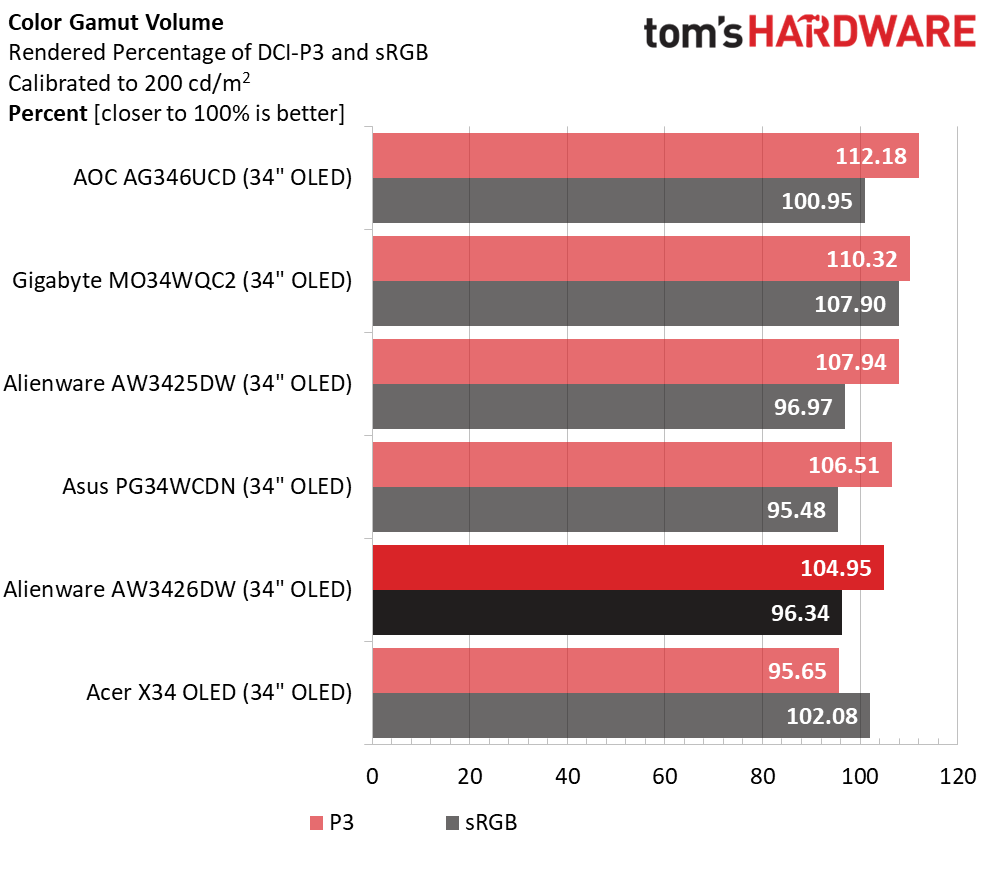

The color difference between all six monitors is extremely small. From an error standpoint, there is no visible difference. The only variation comes in the volume test, where the AW3426DW sits at the bottom of the Quantum Dot screens. It has about 1.5% less color volume than the AW3425DW, which is an invisible difference. The AOC and Gigabyte screens have a touch more green and red, but you’ll only see that in the brightest content. For everyday games, videos, and applications, all six monitors will look the same.
Test Takeaway: The AW3426DW has exemplary out-of-box color, grayscale, and gamma accuracy. It does not need calibration, but a couple of tweaks generated awesome numbers in my tests. Its color volume is on par with other Quantum Dot screens at a hair shy of 105% of DCI-P3. No one would complain about its colorful and clear image.
