Benchmark Results
Our standard benchmarks and power tests are performed using the CPU’s stock frequencies (including any default boost/turbo) with all power-saving features enabled. We set optimized defaults in the BIOS and the memory by enabling the XMP profile. For this baseline testing, the Windows power scheme is set to Balanced (default) so the PC idles appropriately.
Synthetic Benchmarks
Synthetics offer a valuable method for evaluating a board's performance, as identical settings are expected to yield similar results. Turbo boost wattage and advanced memory timings are areas where motherboard manufacturers can still optimize for stability or performance, though, and these settings can impact specific testing scenarios.

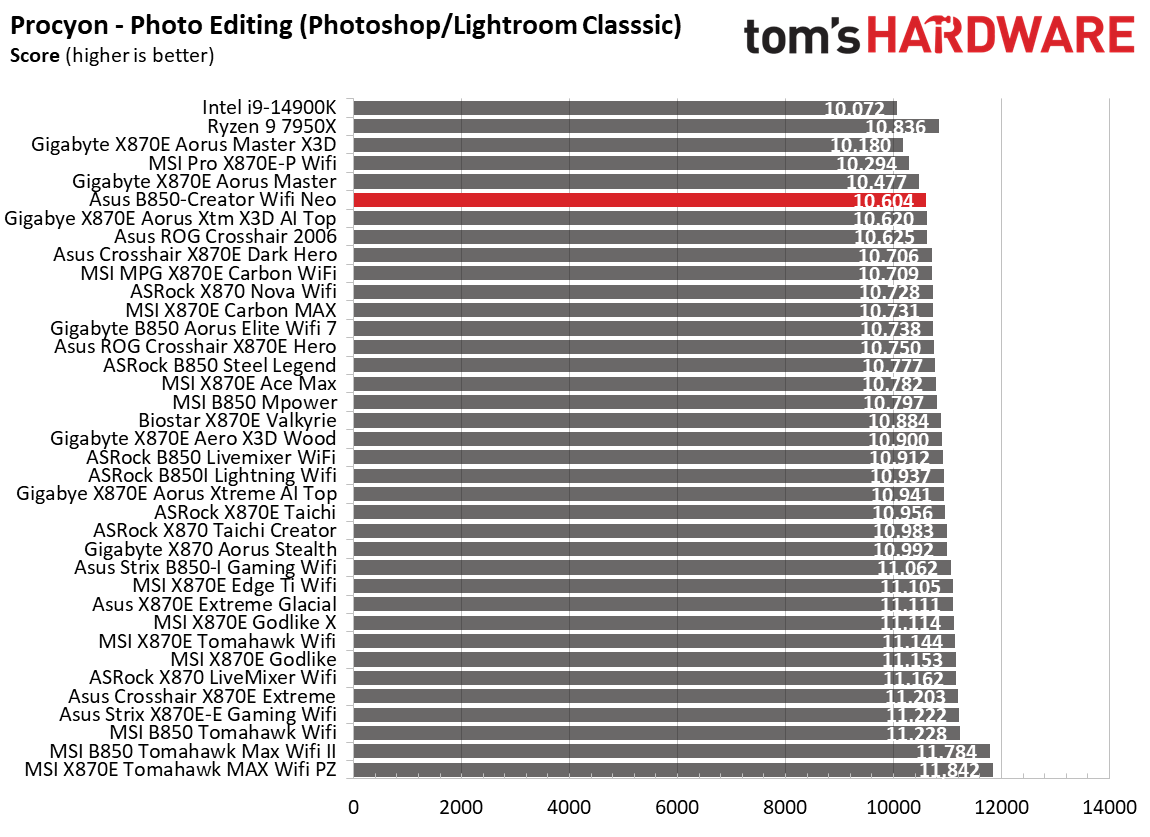

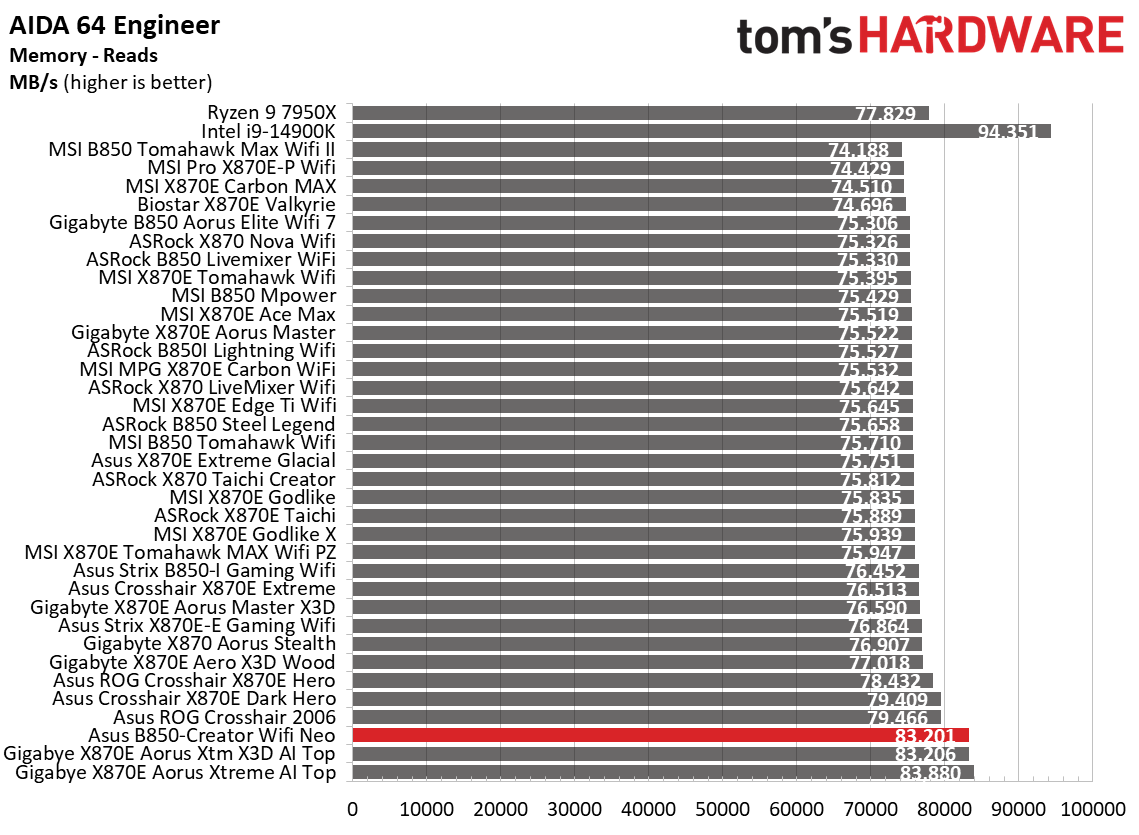

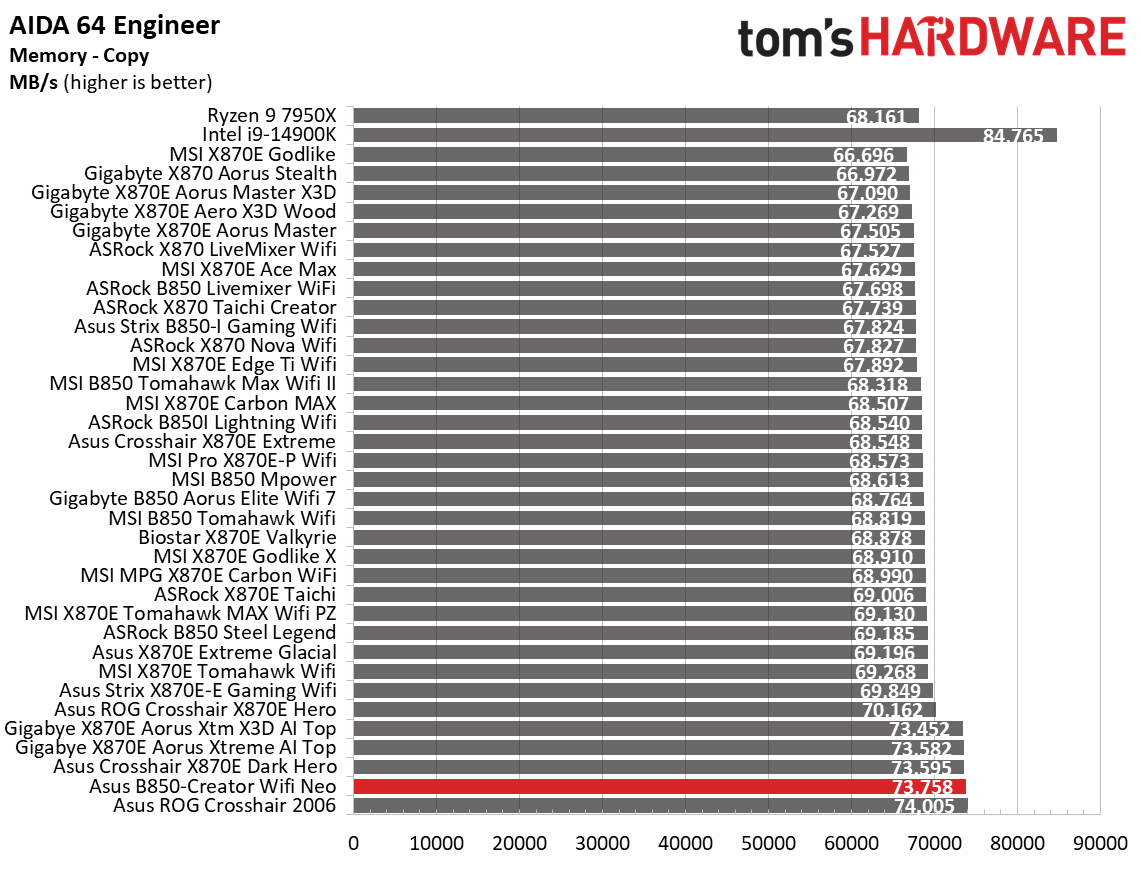

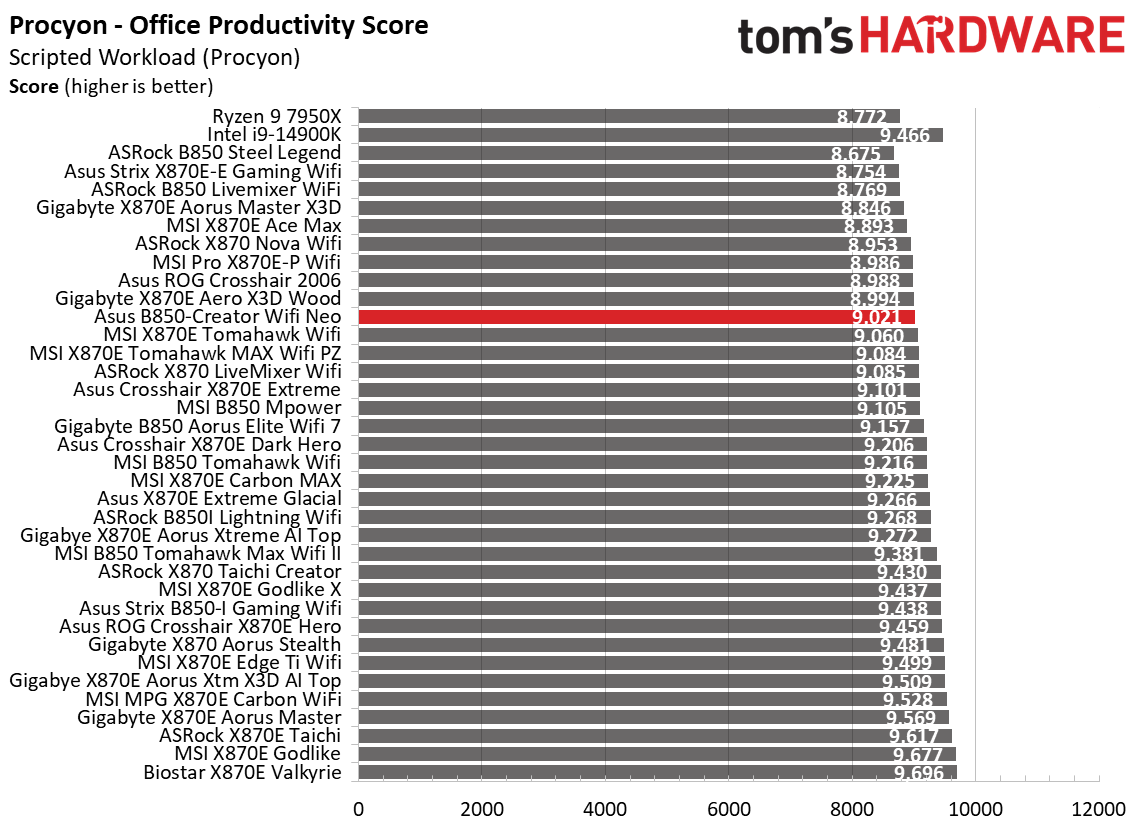

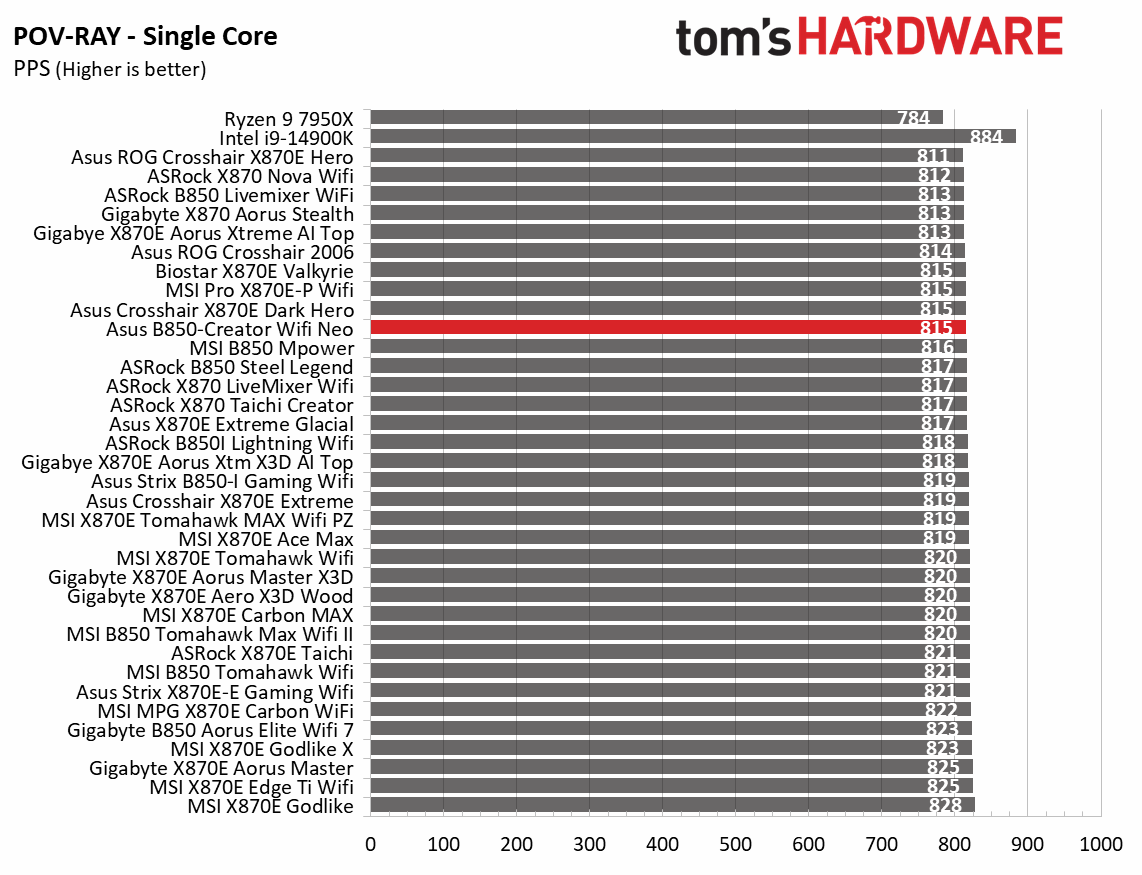

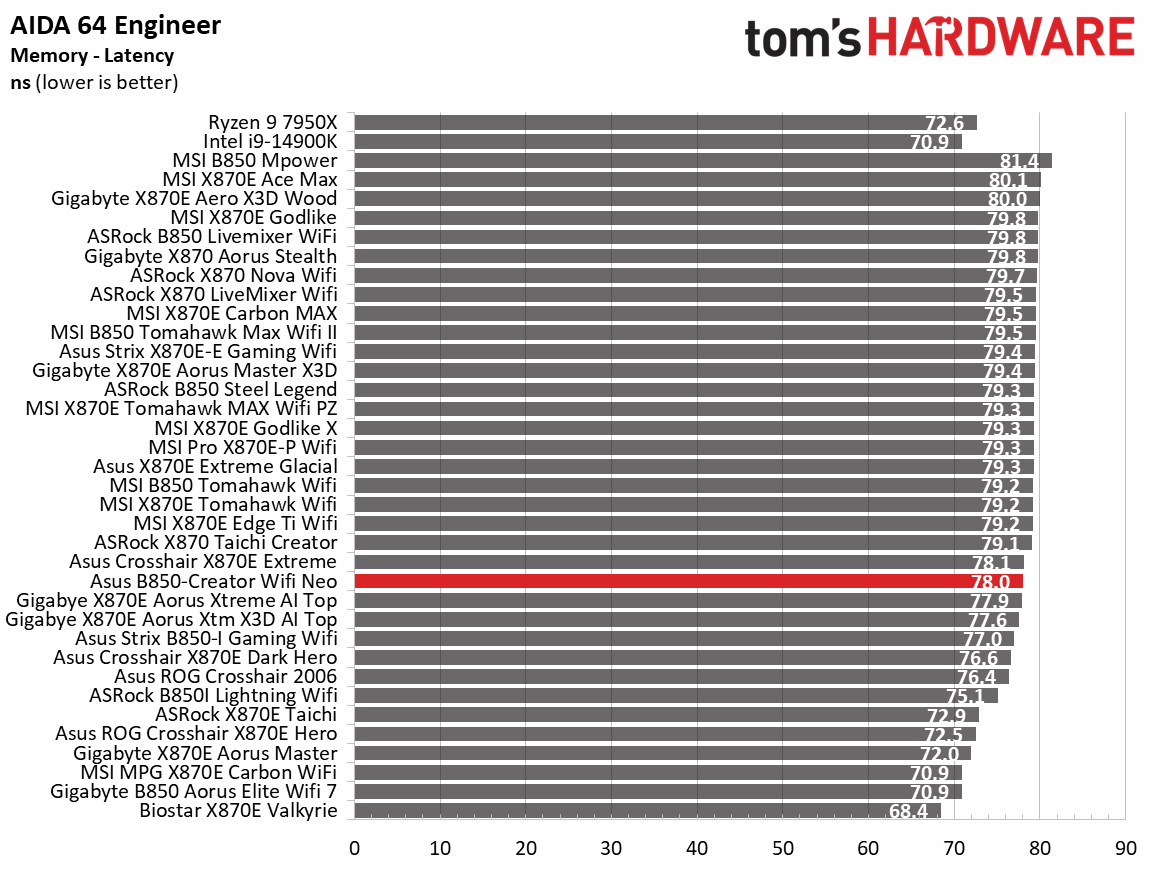

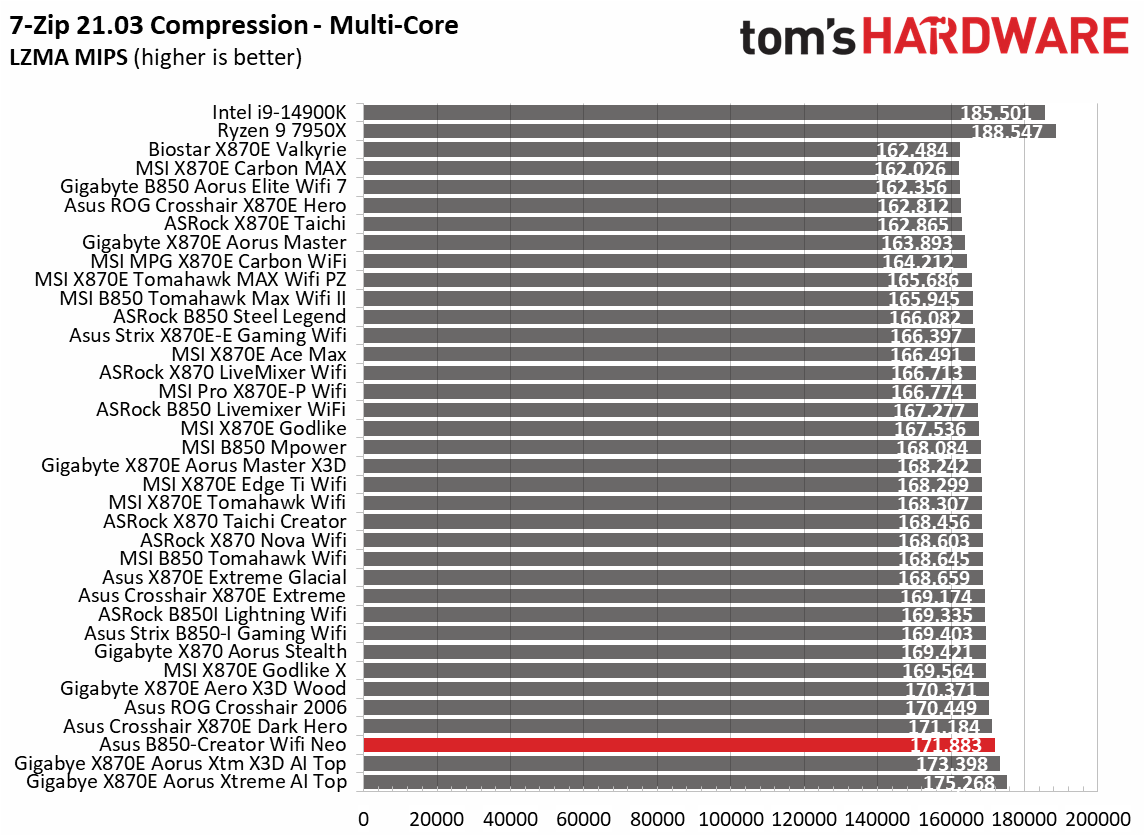

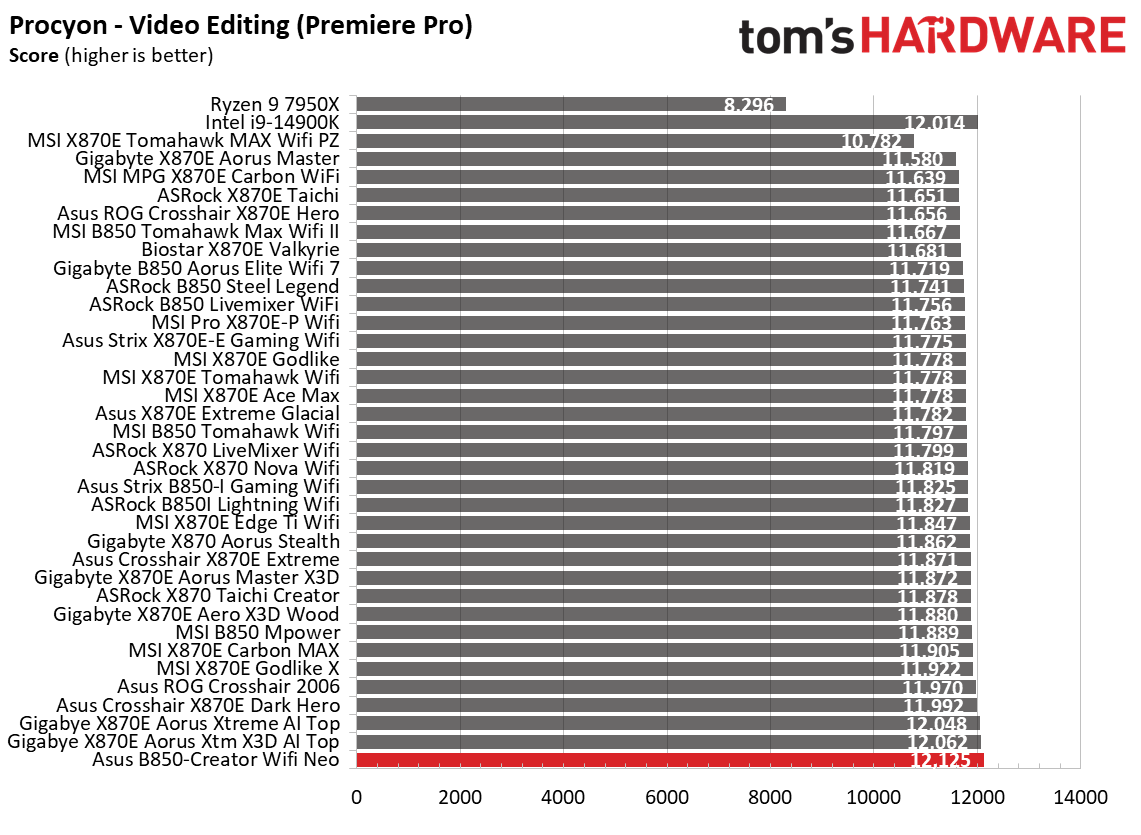

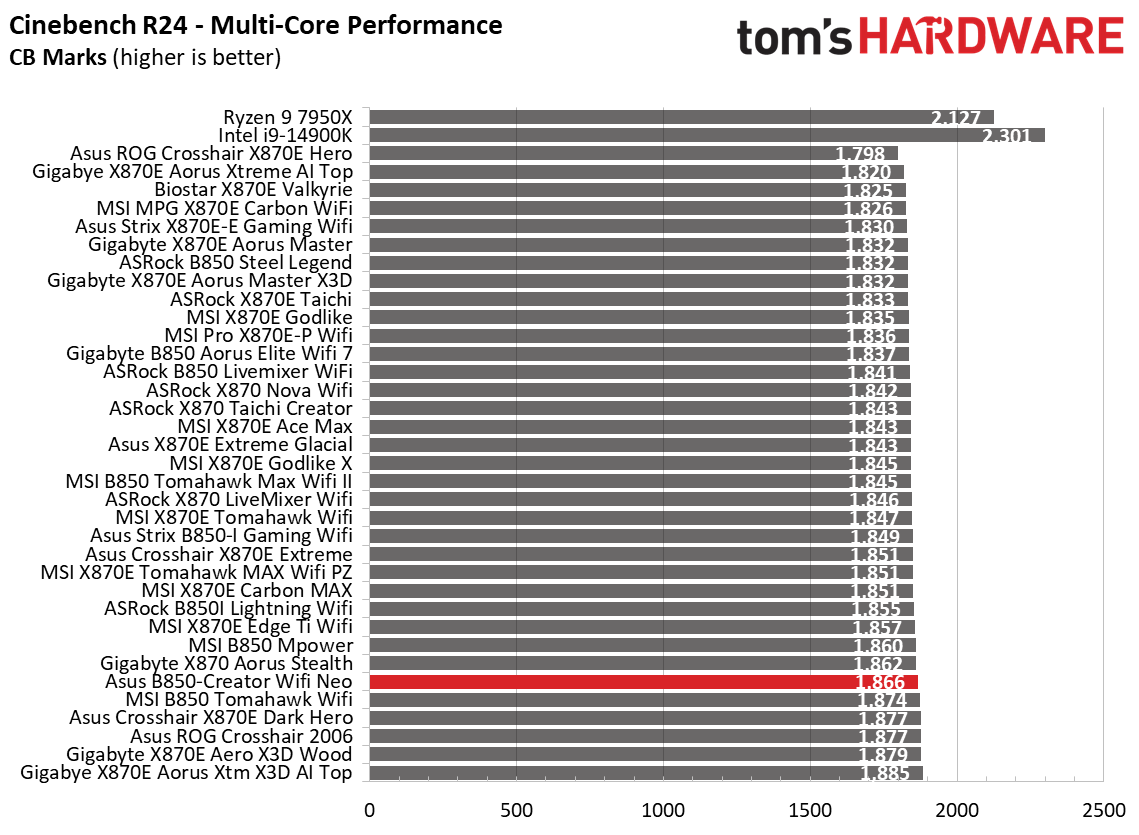

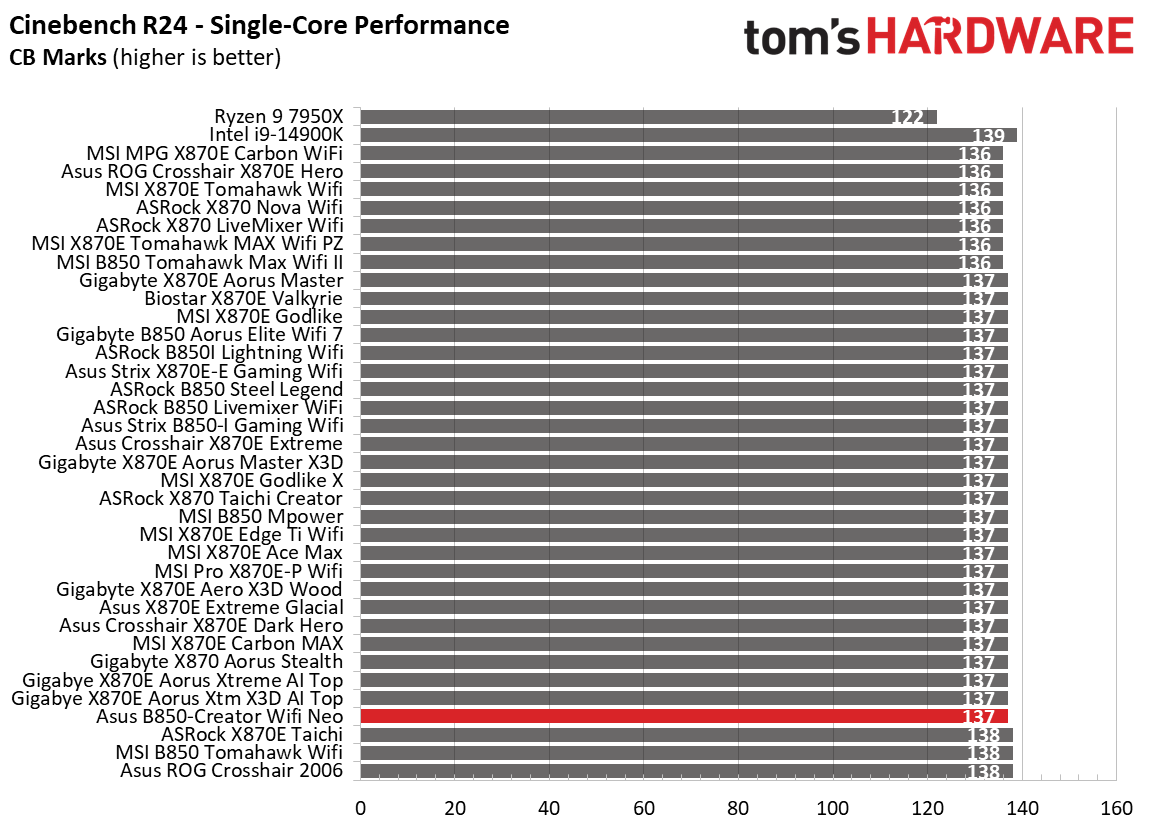

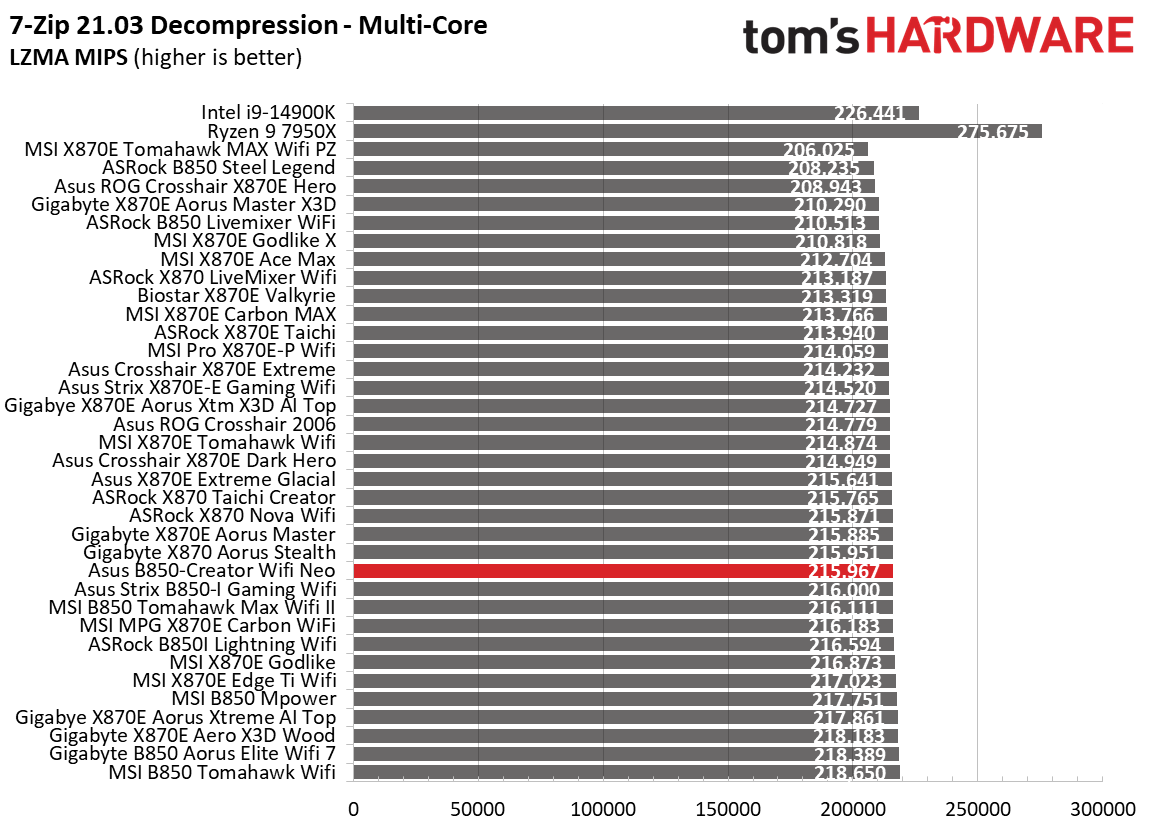

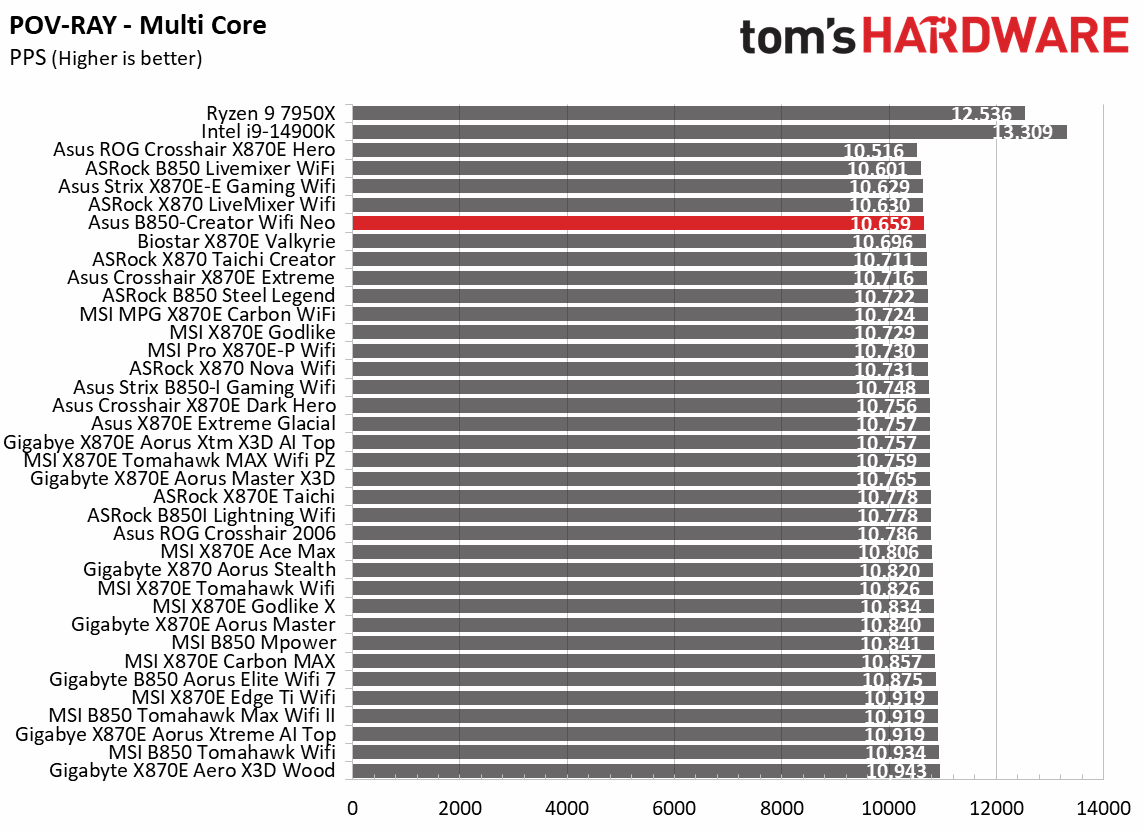

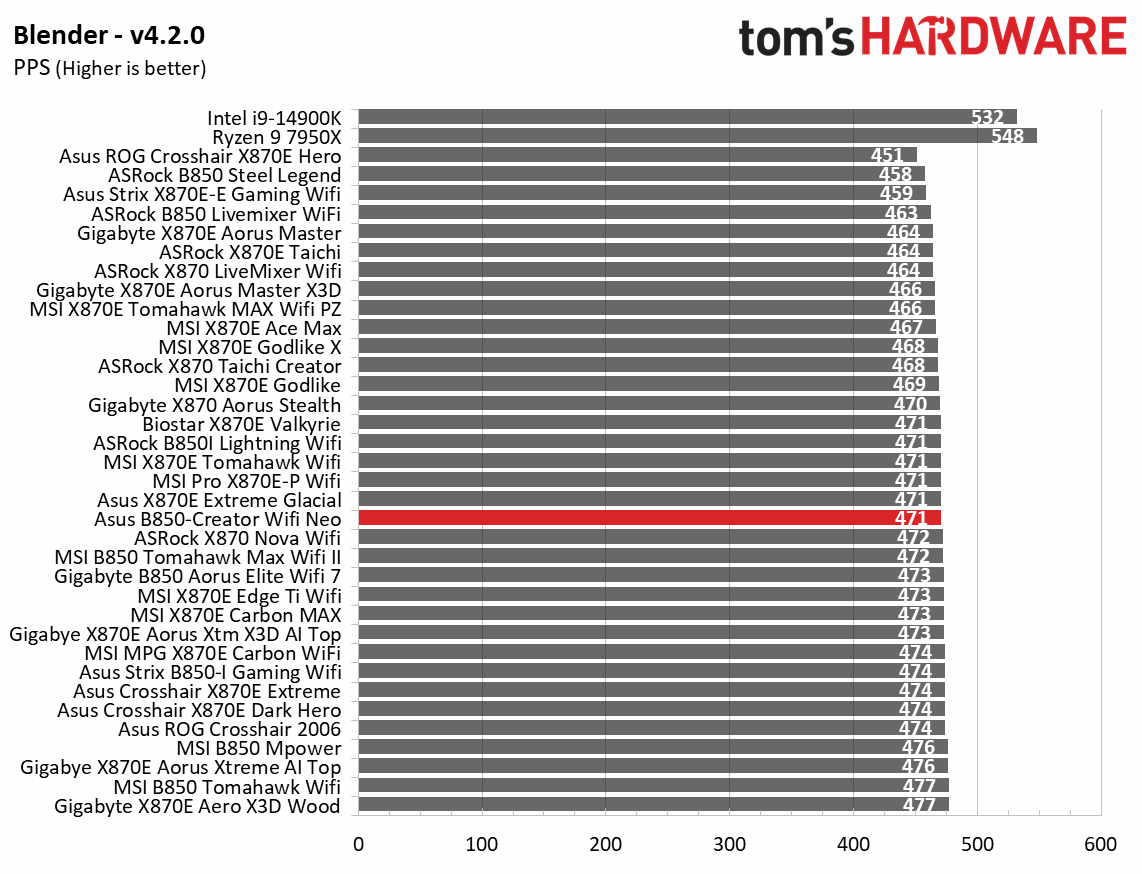

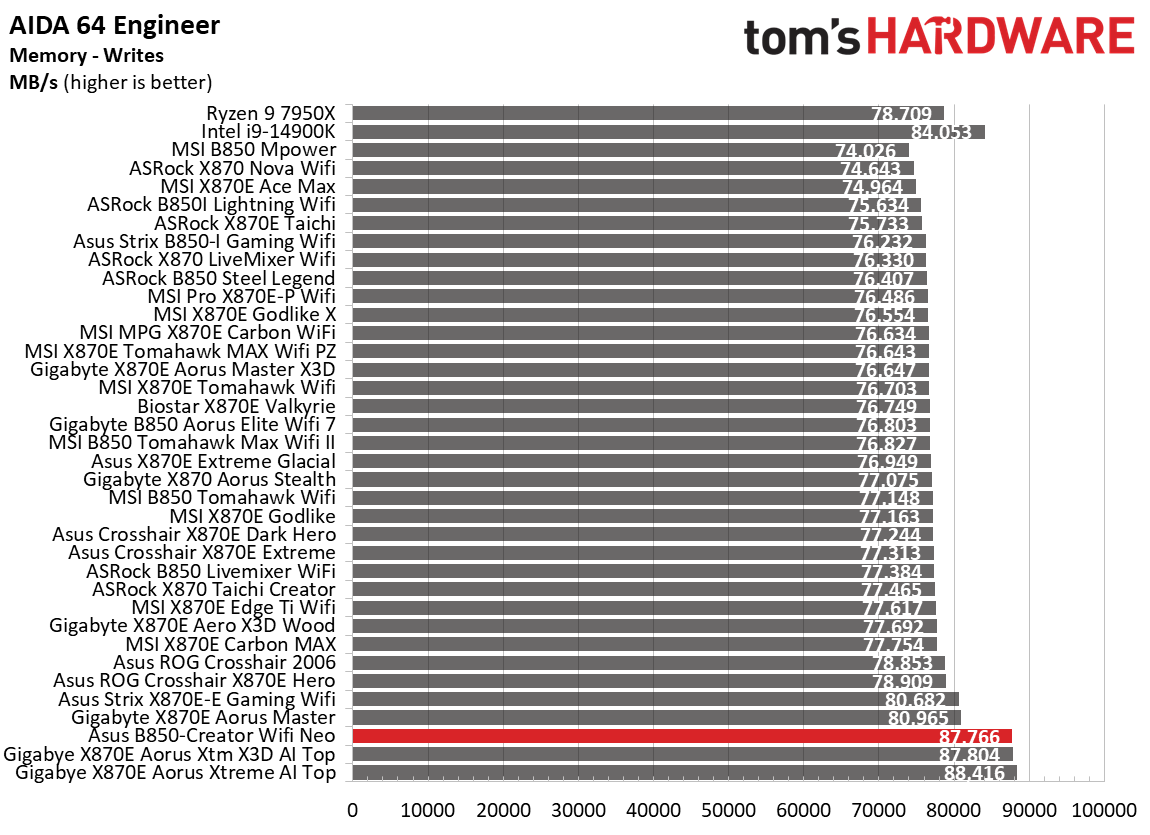

Starting with our synthetic benchmarks, the Creator Neo was average to above average among the other tested boards. In some tests, such as 7-Zip compression, it was among the fastest. It was average elsewhere and rarely below. This is what we see from most boards—nothing to worry about so far.
Timed Applications

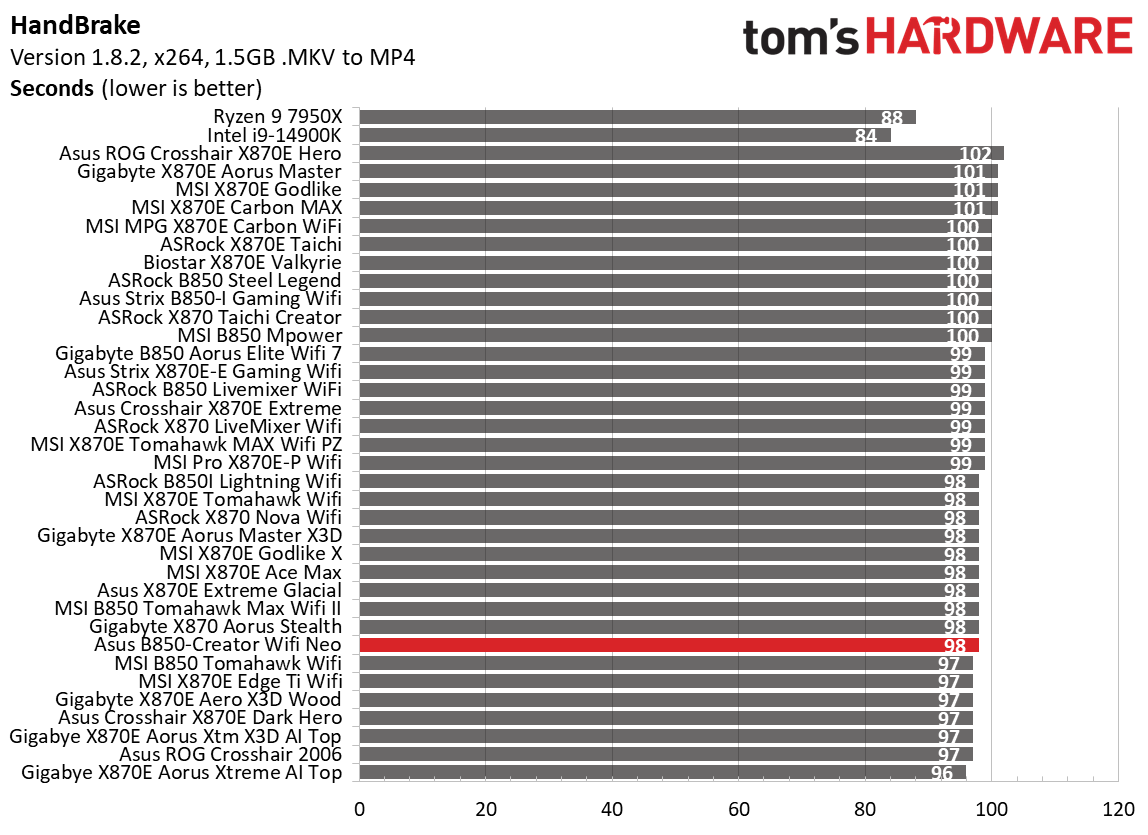

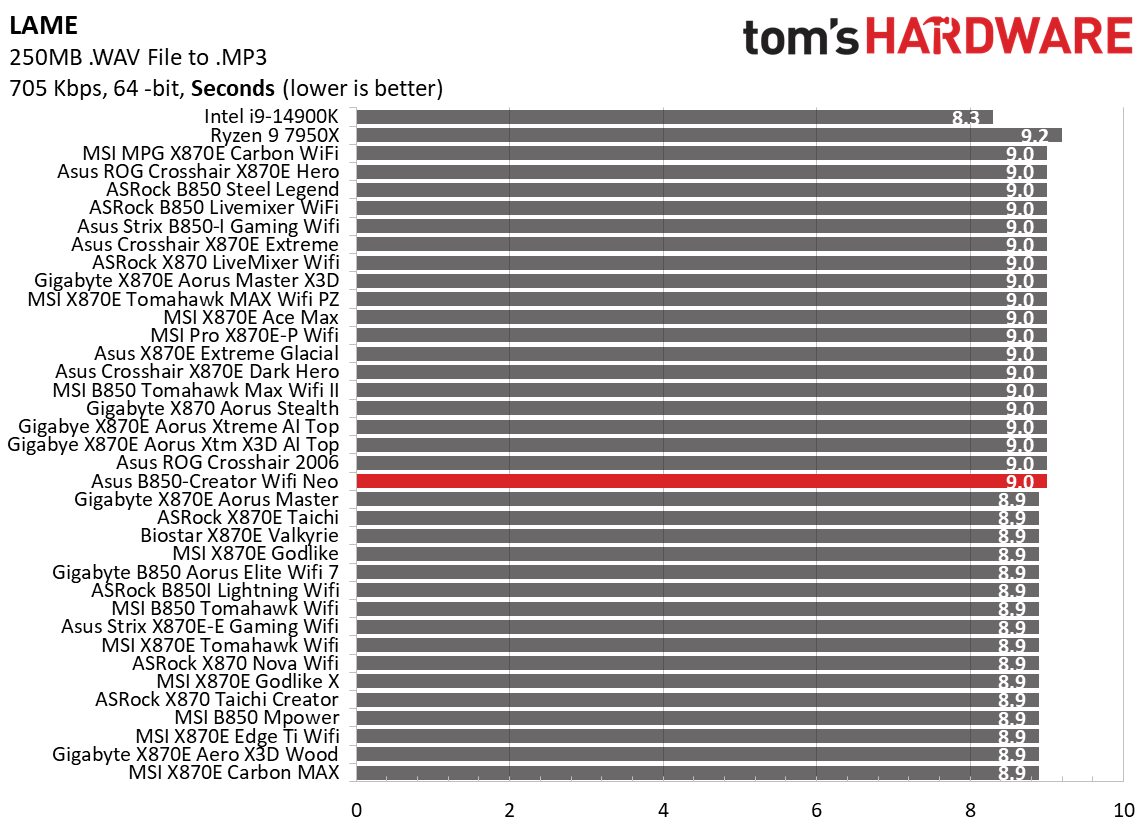

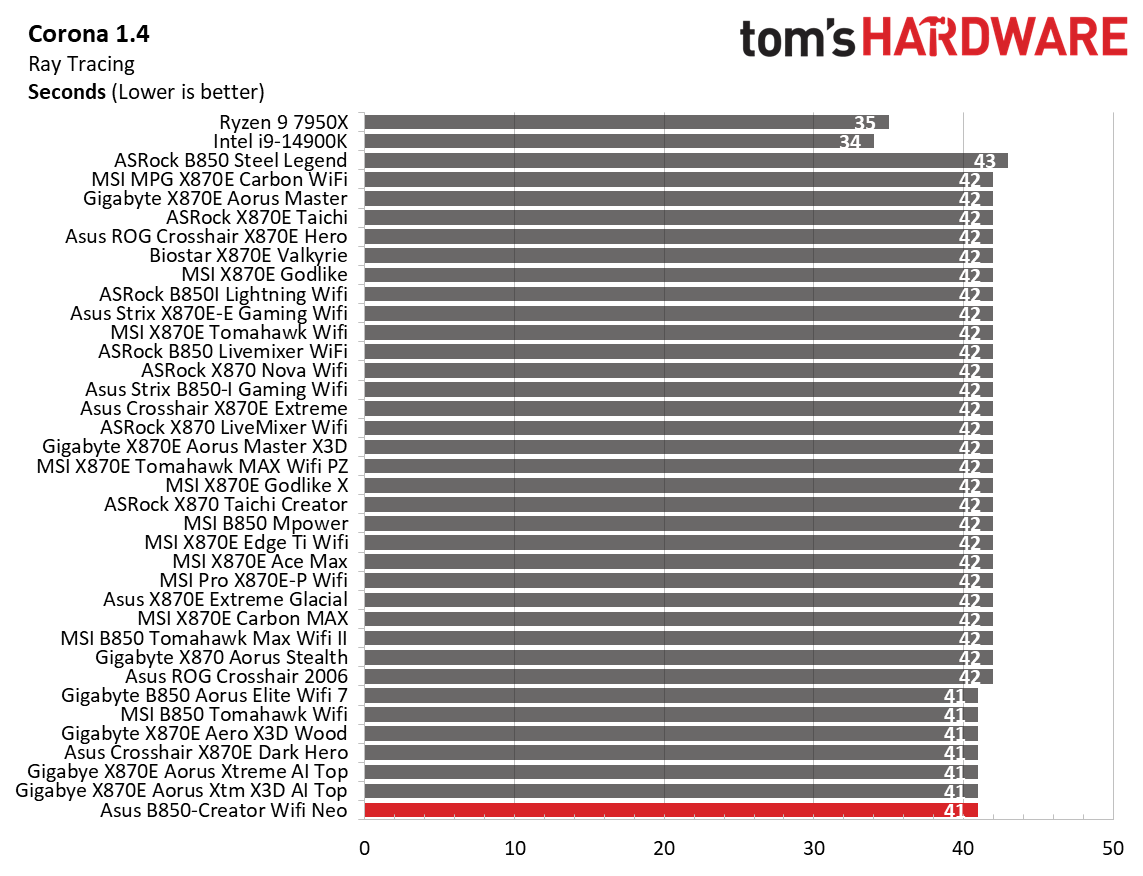

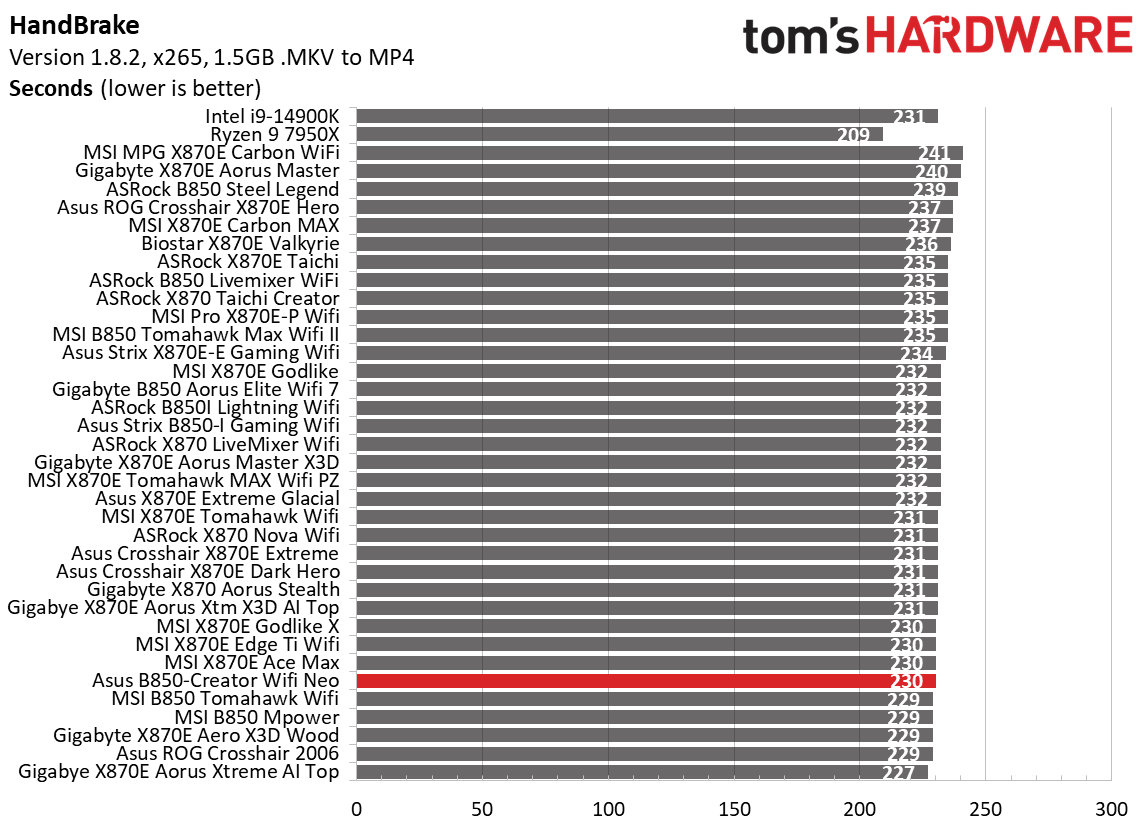

Timed applications also went well. It delivered the slower of the two times in LAME (9.0 seconds) but faster in Corona (41 seconds). Handbrake results were also good, running above average across both sub-tests. Nothing out of the ordinary here, either.
3D Games and 3DMark
Starting with the launch of Zen 5, we’ve updated our game tests. We’re keeping the F1 racing game but have upgraded to F1 24. We also dropped Far Cry 6 in favor of an even more popular game in Cyberpunk 2077. We run both games at 1920x1080 resolution using the Ultra preset (details listed above). Cyberpunk 2077 uses DLSS, while we left F1 24 to native resolution scaling.
The goal with these settings is to determine if there are differences in performance at the most commonly used (and CPU/system-bound) resolution with settings most people use or strive for (Ultra). We expect the difference between boards in these tests to be minor, with most falling within the margin of error. We’ve also added a minimum FPS setting, which can affect your gameplay and immersion.

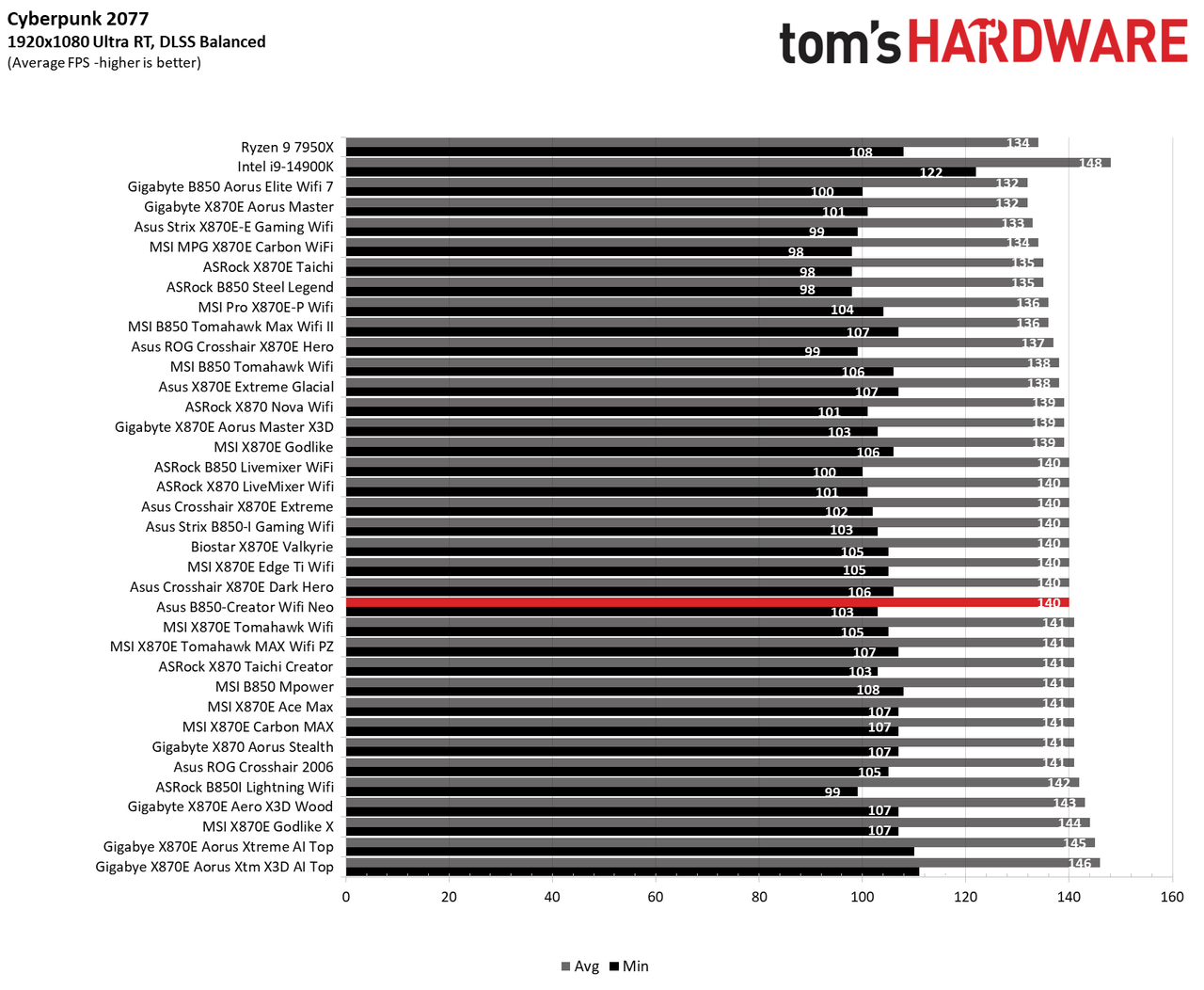

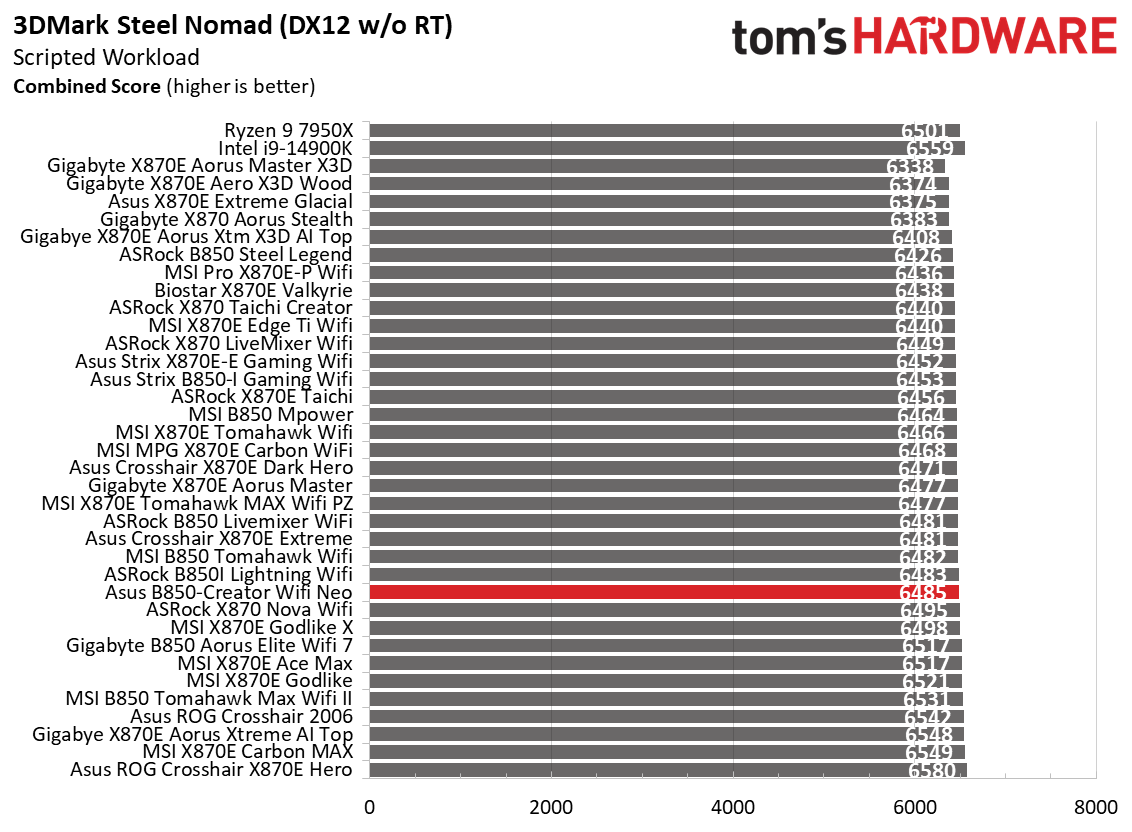

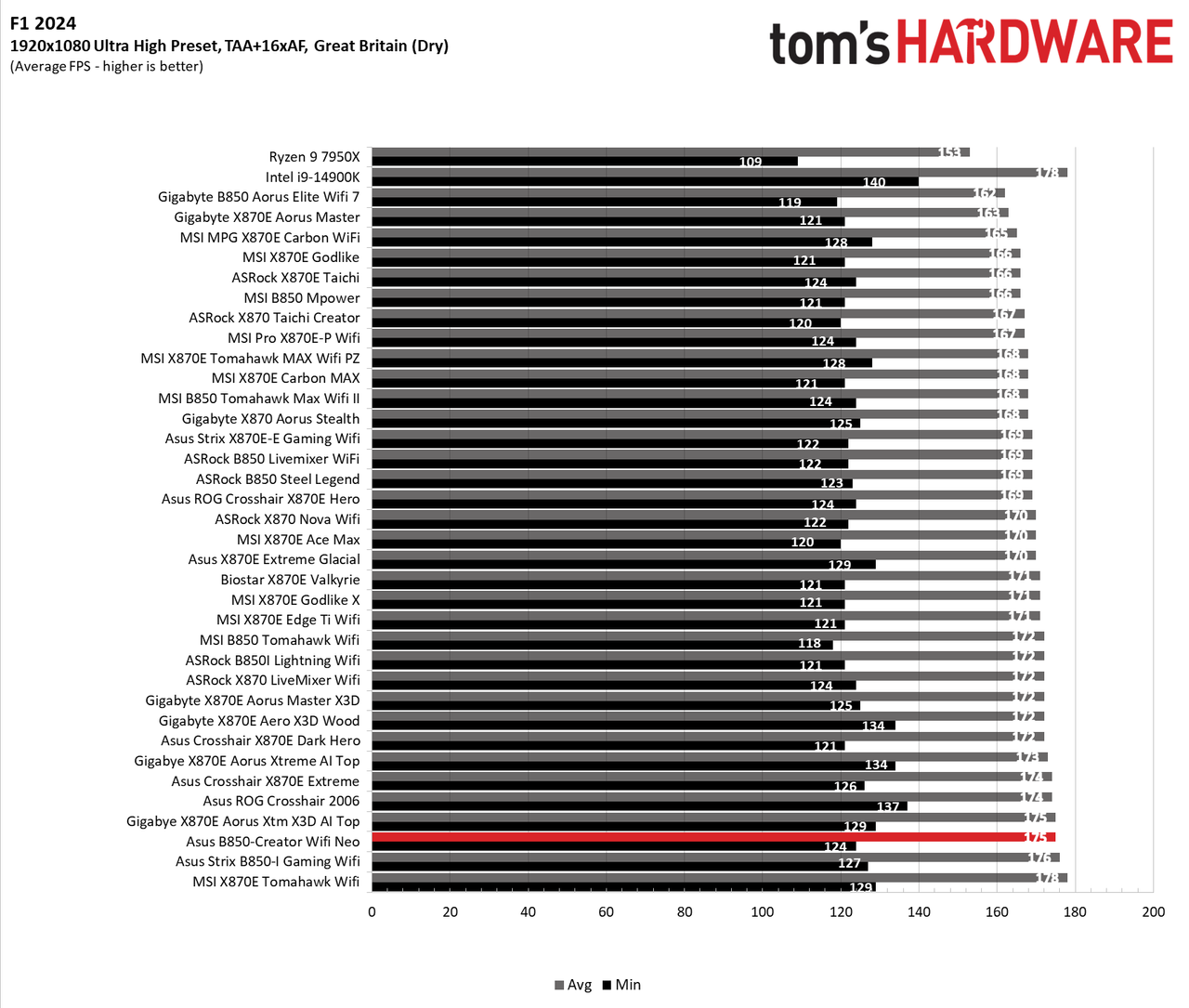

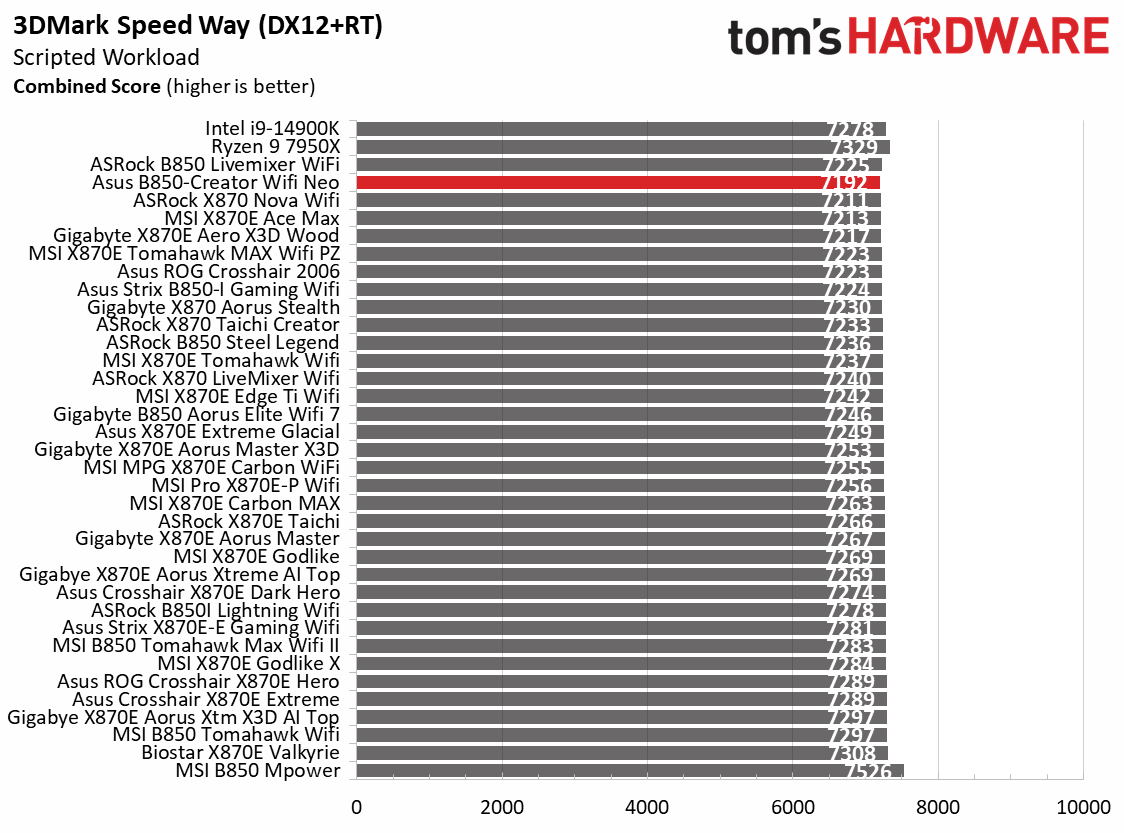

In our 3DMark and game tests, the Creator Neo was average overall. It scored slightly lower on the 3DMark Speedway test but slightly faster than average on Steel Nomad. In our games, Cyberpunk 2077 results were right around average, while F1 24 was slightly above average at 124/175 FPS (minimum/average, respectively). To summarize, this board has no issues running games or any productivity/creator-related activities.
Overclocking
Over the past few CPU generations, overclocking headroom has been shrinking on both sides of the fence, while the out-of-the-box potential has increased. For overclockers, this means there’s less fun to have. For the average consumer, you’re getting the most out of the processor without manual tweaking. Today’s motherboards are more robust than ever, and they easily support power-hungry flagship-class processors; We know the hardware can handle them. There are multiple ways to extract even more performance from these processors: enabling a canned PBO setting, manually tweaking the PBO settings, or just going for an all-core overclock. Results will vary and depend on the cooling as well. In other words, your mileage may vary. Considering all the above, we will not be overclocking the CPU. However, we will try out our different memory kits to ensure they meet the specifications.

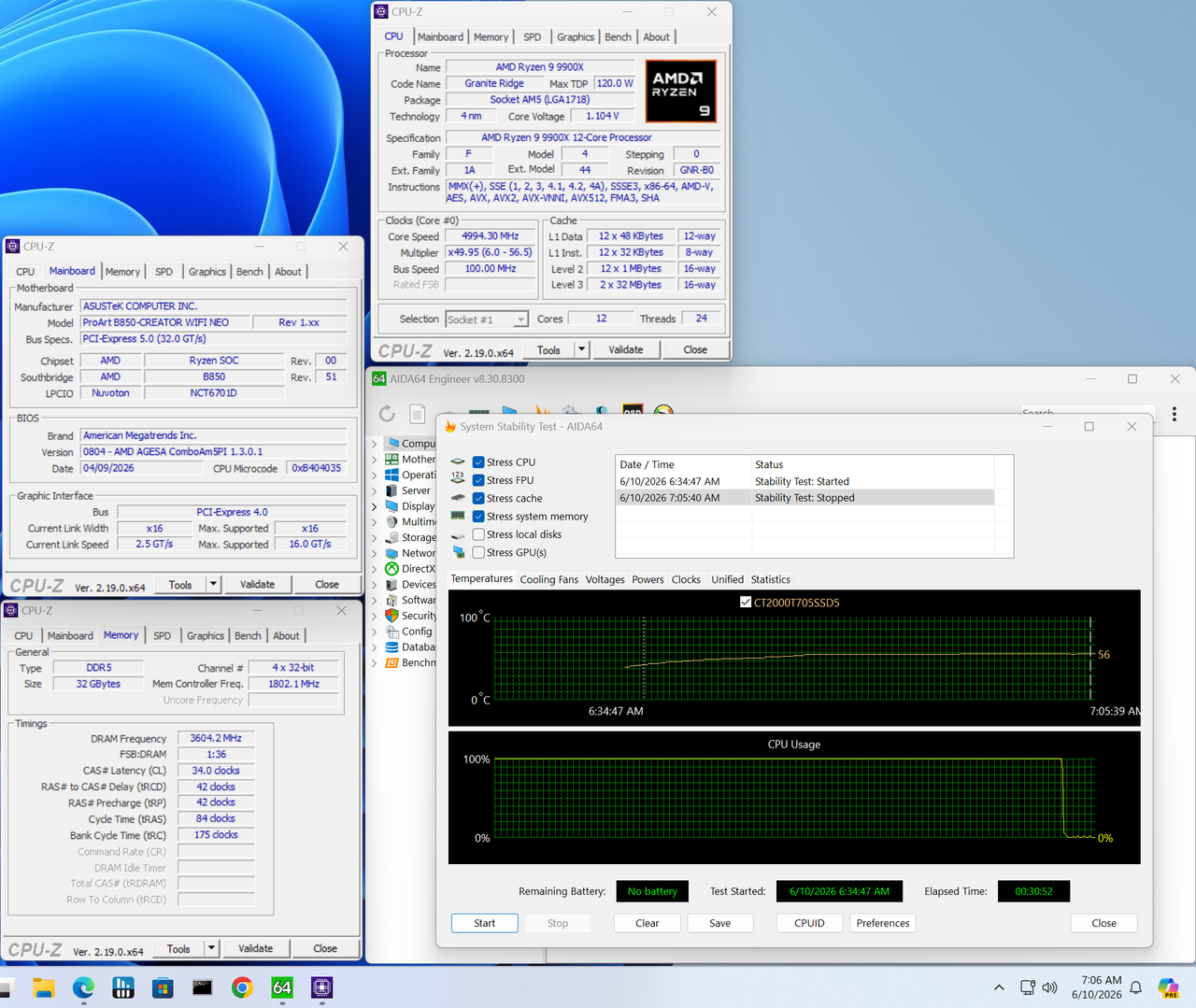

For memory testing, we start with our fastest non-clock driver kit: Klevv 32GB (2x16) DDR5-8000. Per usual on this platform, it booted to Windows but wouldn’t pass a stress test with our 9900X. The Team Group DDR5-7200 kit worked without issue. Those speeds are well past the ‘sweet spot’ for the AMD platform, and with today’s RAM prices, we doubt many people are looking at these higher speeds in the first place.

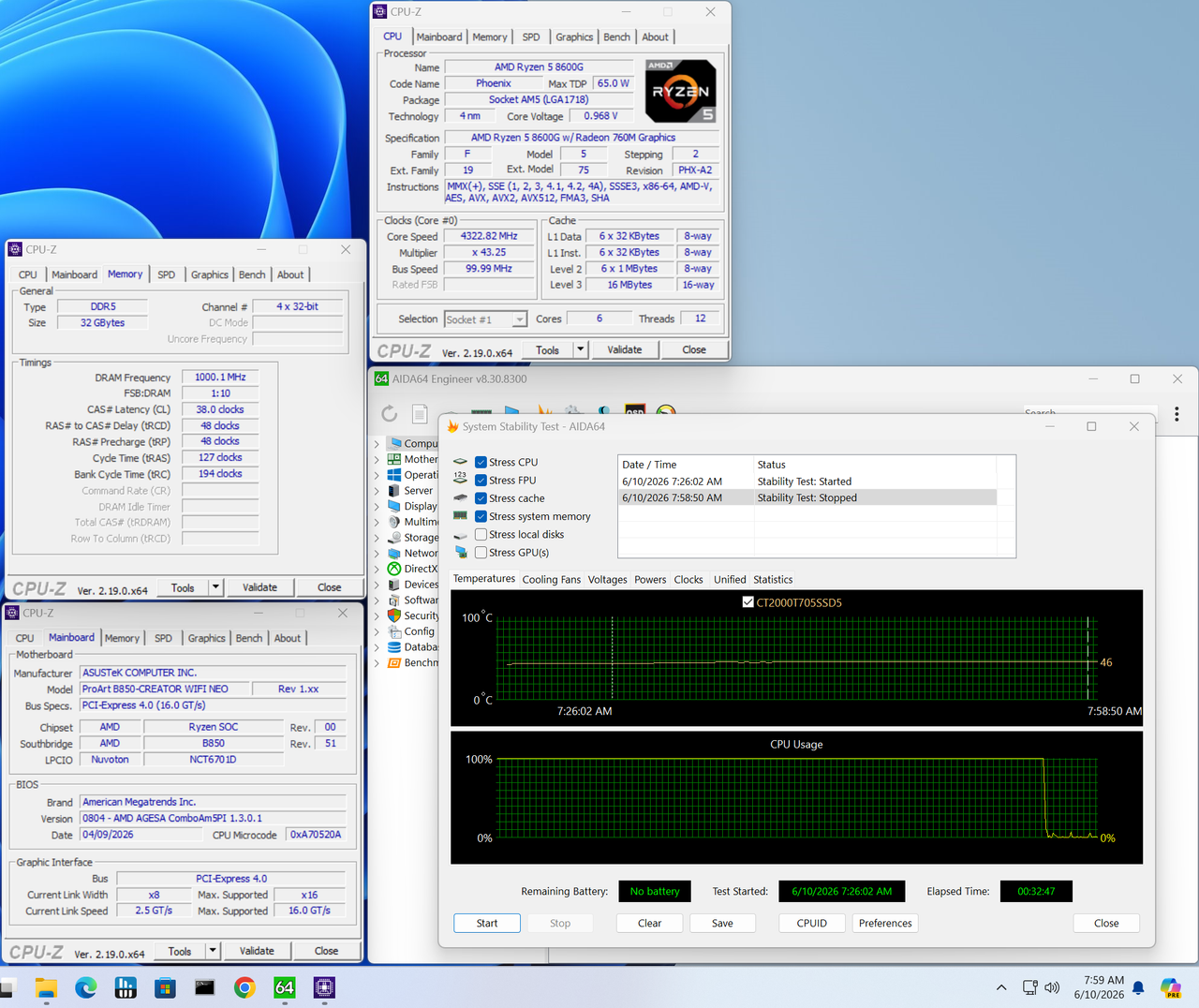

Dropping in the Ryzen 5 8600G APU, we were able to run our Klevv DDR5-8000 kit without issue, which is a trend we’ve seen since we started using the APU (the IMCs on the APUs are generally better than those on desktop processors). Again, AMD’s sweet spot is around 6000-6400 MT/s, and this board (really any X870E board we’ve tested) can handle that and then some. Asus also offers AI Overclocking for the CPU if you don’t want to adjust settings manually.
Power Consumption / VRM Temperatures
We used AIDA64’s System Stability Test with Stress CPU, FPU, cache, and Memory enabled for power testing, using the processor's peak power consumption value. The wattage reading is obtained from the wall via a Kill-A-Watt meter, capturing the entire PC (excluding the monitor). The only variable that changes is the motherboard; all other parts remain the same. We've moved to using only the stock power use/VRM temperature charts, as this section aims to ensure the power delivery can handle flagship-class processors.
Stress testing the Creator with our DDR5-7200 kit showed it to be less power-hungry than most boards. At idle, it sat around 81W and peaked at 256W. This averages out to 169W, which is again slightly lower than the average B850/X870/X870E-based boards.

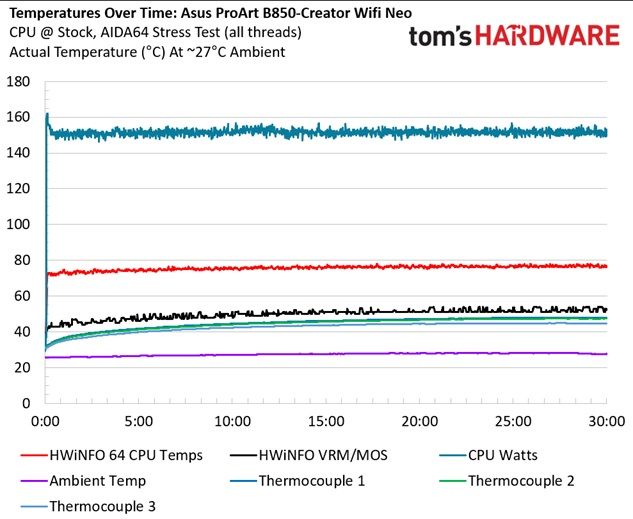

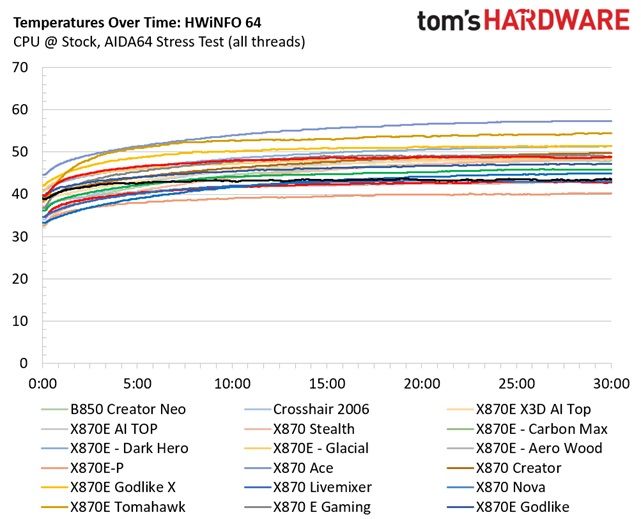

VRM temperatures are good, peaking at just under 48 degrees Celsius on our sensor (internal sensor readings were off and not listed). Between the capable power delivery and large heatsinks, you won’t have any trouble running flagship-class processors or even overclocking.
Bottom Line

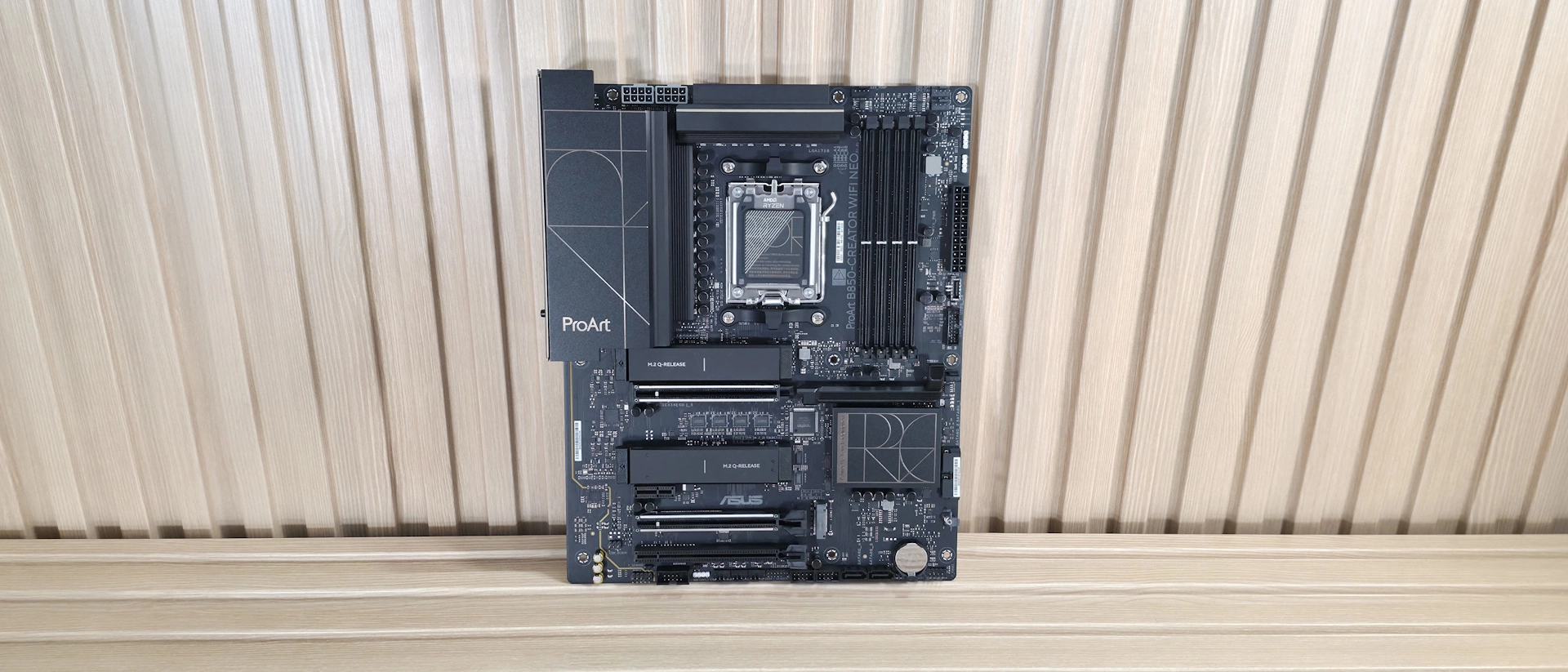

Asus’ B850-Creator Wifi Neo is an OK budget motherboard for Creators. Priced at $299.99, you get dual 5 GbE ports, three display output options, and several of Asus’ EZ DIY and AI Features that all help to make this a viable option for the budget-minded creator. That said, you are lacking in a couple of areas compared to the X870E version of the board, which offers faster USB (40 Gbps USB4 ports) and more USB ports. If you’re hung up on the port count, the next Asus Creator option costs almost $250 more ($549.99), and at that point, there are plenty of other options that would work for less.
One example, ASRock’s X870 Taichi Creator ($319.99), is arguably a better option in the creator space and a direct competitor to the Asus B850 Creator. For $20 more, you get 10GbE and 5 GbE, dual USB4 (40 Gbps) ports, and more USB Type-A ports, along with even more robust power delivery. If this isn't the board for you, check out our best motherboards article to see if one of our best picks are right for you.
